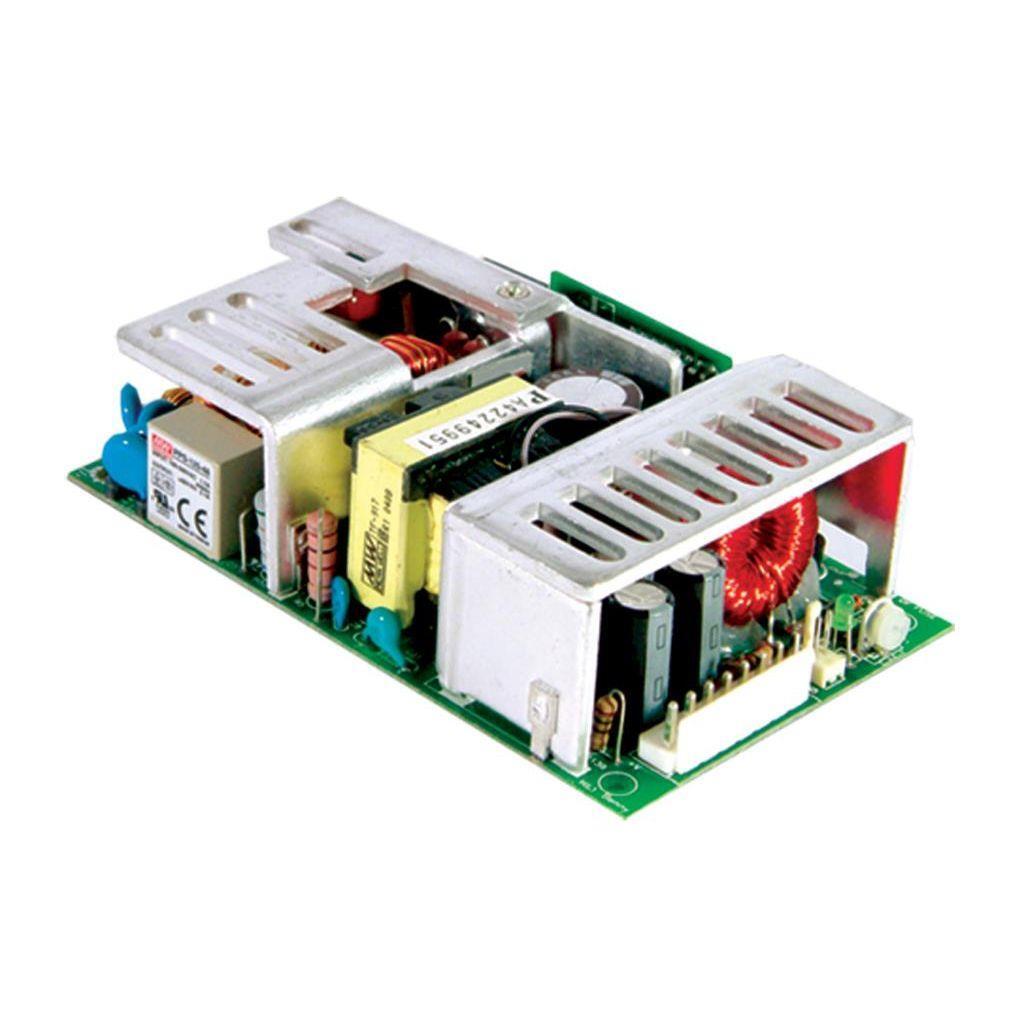

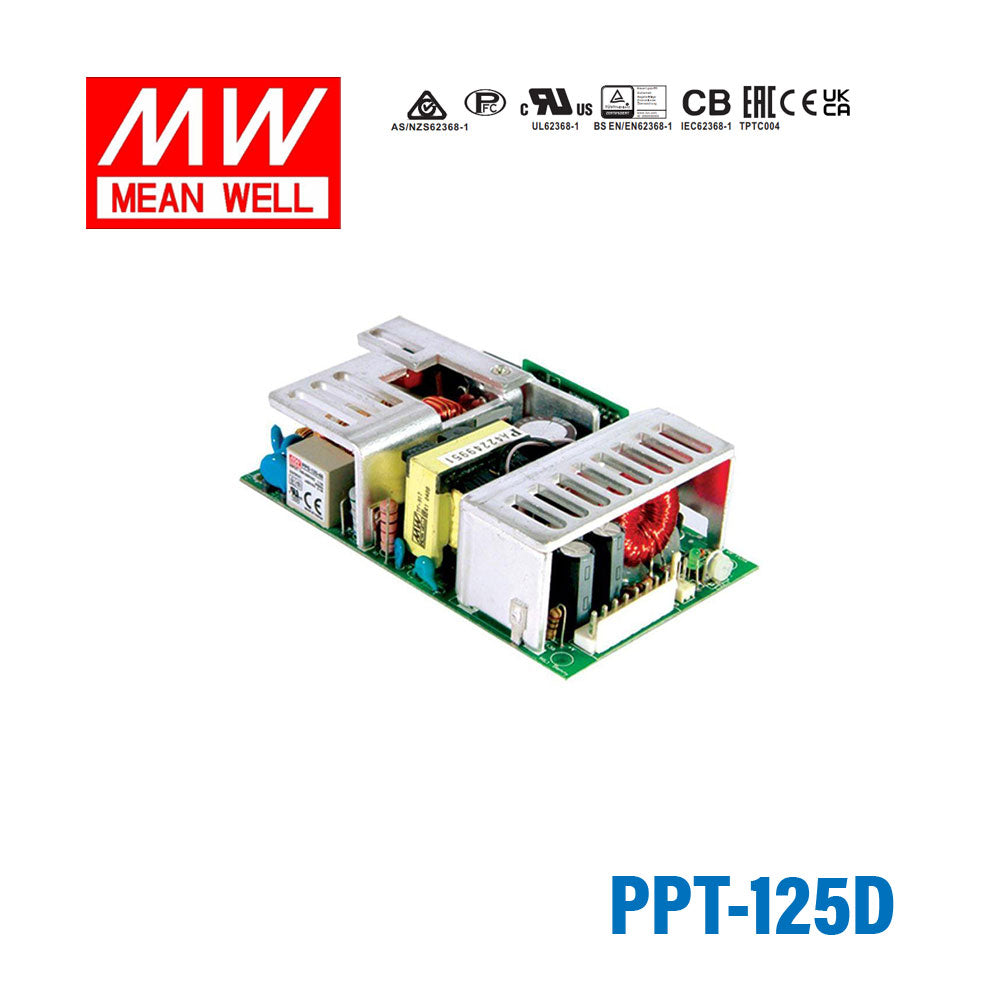

Mean Well PPT-125D Triple Output with PFC Function 125W 7A

5" x 3" compact sizebuilt-in active PFC functionPWM control and regulatedhigh power density 6.117W/inch³
SKU PPT-125D
$53.68 USD
Shipping calculated at checkout.
In stock
|

Overview

PPT-125D is the 5V 24V 12V output model of this series: rated current 7A 2.5A 0.5A, typical efficiency 78%.

Features

  • Universal AC input / Full range
  • Built-in active PFC function
  • Protections: Short circuit / Overload / Over voltage
  • PWM control and regulated
  • High power density 6.117W/inch³
  • LED indicator for power on
  • 100% full load burn-in test
  • 125W with 18CFM FAN
  • 5"x3" compact size
  • 3 years warranty

Specifications

PPT-125DSpecifications from the official datasheet (2024-10-30 edition)

OUTPUT

OUTPUT NUMBER
CH1 CH2 CH3
DC VOLTAGE
5V 24V 12V
RATED CURRENT
7A 2.5A 0.5A
CURRENT RANGE (convection)
1 ~ 7A 0.25 ~ 2.5A 0.05 ~ 0.5A
CURRENT RANGE (18CFM FAN)
1 ~ 8.75A 0.25 ~ 3.13A 0.05 ~ 0.63A
RATED POWER (convection)
101W
RATED POWER (18CFM FAN)
126.43W
RIPPLE & NOISE (max.)Note.2
100mVp-p 240mVp-p 120mVp-p
VOLTAGE ADJ. RANGE
CH1:4.75 ~ 5.25V
VOLTAGE TOLERANCENote.3
±3.0% ±5.0% ±6.0%
LINE REGULATION
±0.5% ±0.5% ±0.5%
LOAD REGULATION
±3.0% ±3.0% ±5.0%
SETUP, RISE TIME
1000ms, 30ms/230VAC 2000ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.)
24ms/230VAC 24ms/115VAC at full load

INPUT

VOLTAGE RANGE
90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE
47~63Hz
POWER FACTOR (Typ.)
PF>0.93/230VAC PF>0.98/115VAC at full load
EFFICIENCY (Typ.)
78%
AC CURRENT (Typ.)
1.7A/115VAC 0.75A/230VAC
INRUSH CURRENT (Typ.)
COLD START 24A/230VAC
LEAKAGE CURRENT
<2mA / 240VAC

PROTECTION

OVERLOAD
130 ~ 160% rated output power Protection type : Fold back current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE
CH1:5.75 ~ 6.75V Protection type : Hiccup mode, recovers automatically after fault condition is removed

ENVIRONMENT

WORKING TEMP., HUMIDITY
-20 ~ +70℃ (Refer to "Derating Curve")
WORKING TEMP.
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.05%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
UL62368-1, TUV BS EN/EN62368-1, AS/NZS 62368.1 , EAC TP TC 004 approved
WITHSTAND VOLTAGE
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level, EAC TP TC 020

OTHERS

MTBF
2173.4K hrs min. Telcordia SR-332 (Bellcore) ; 269.9K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
127*76.2*34.6mm (L*W*H)
PACKING
0.37Kg; 36pcs/14.3Kg/0.96CUFT
Test conditions and notes6
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  5. 5. Heat Sink HS1,HS2 & HS3 can not be shorted.
  6. 6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

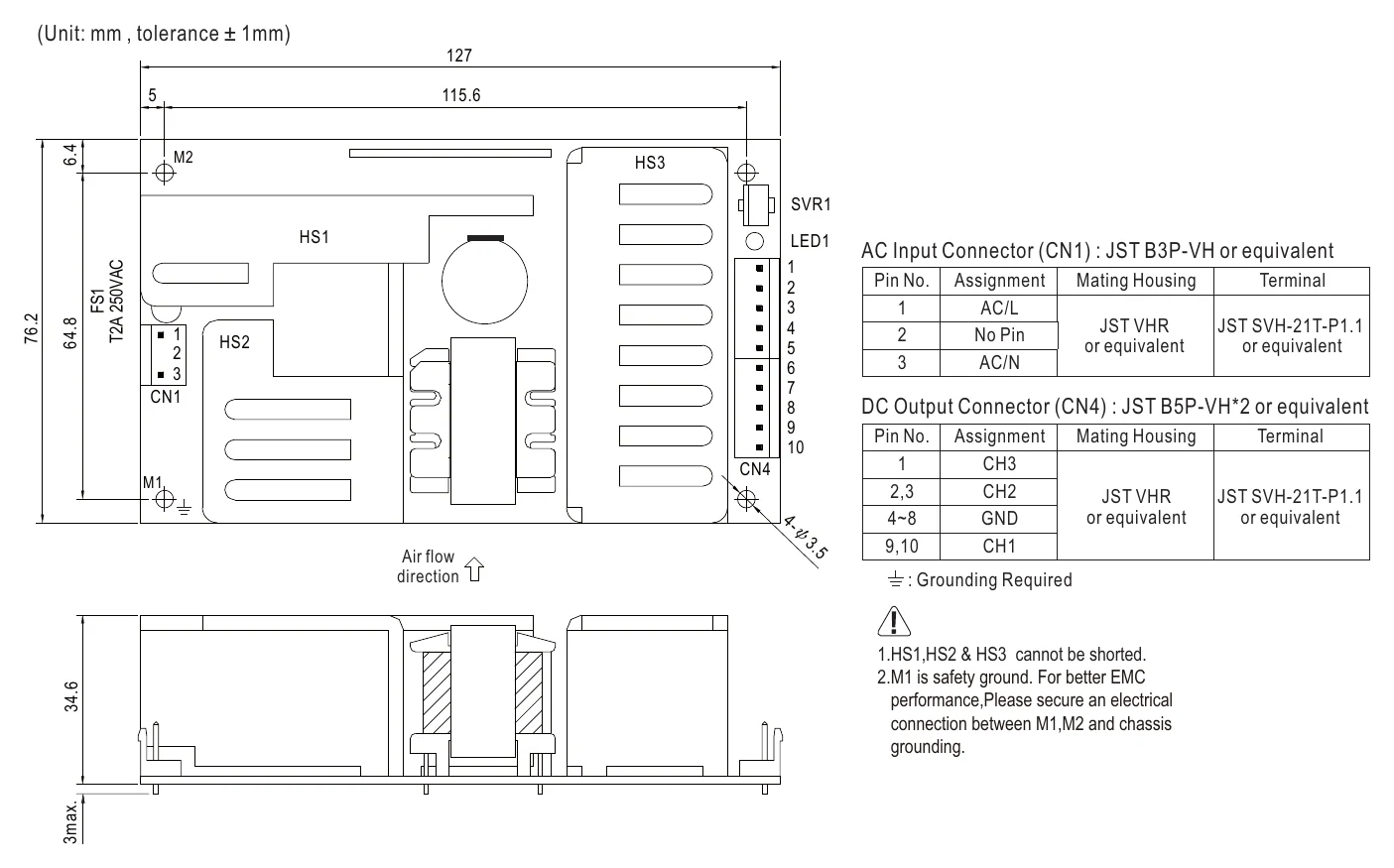

PPT-125D Mechanical Specification
Mechanical Specification

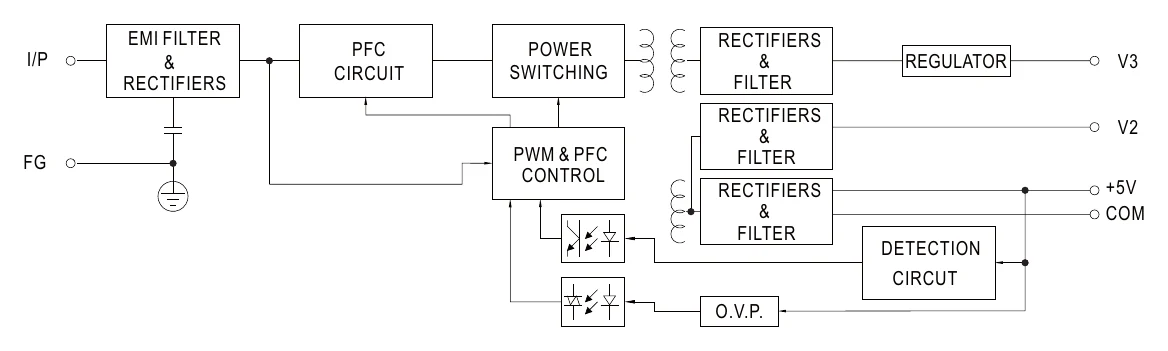

PPT-125D Block Diagram
Block Diagram

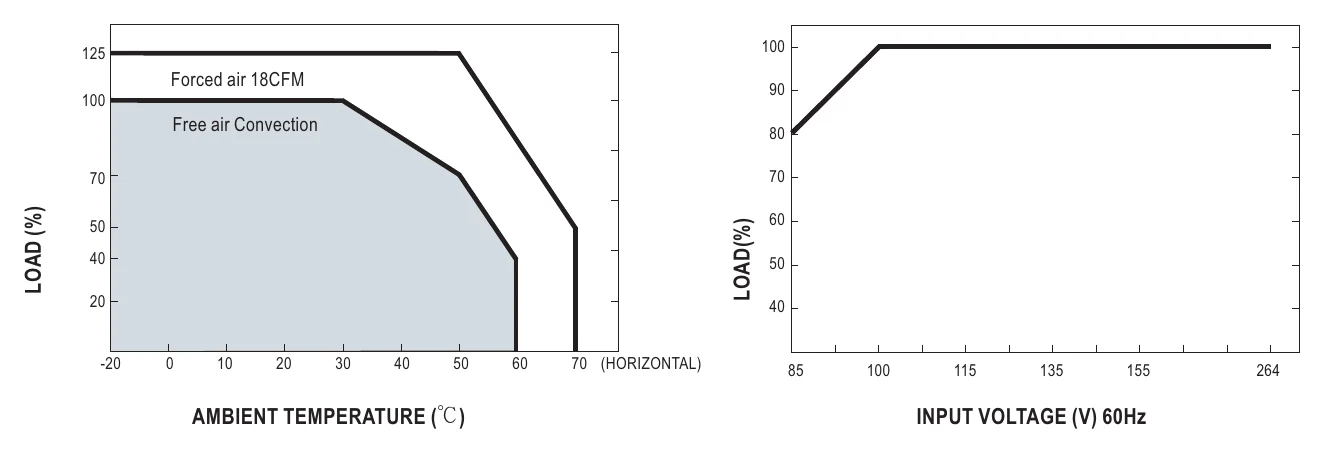

PPT-125D Derating Curve
Derating Curve

Downloads

FAQ

Can I use the PPT-125D for industrial equipment that needs multiple regulated DC outputs from one supply?

Yes, this model is a triple output supply (5V, 24V and 12V) with PFC, rated 101W in free-air convection and 125W with 18CFM forced-air cooling. That makes it suitable for industrial, embedded, or automation systems that need several regulated DC rails from one compact supply.

Is the PPT-125D a good choice for control systems that run from wide AC input ranges?

Yes, it has a universal AC input of 90-264VAC (47-63Hz), and the input range is also listed as 127-370VDC. That supports use in equipment deployed across a broad AC supply range, with output power of 101W in convection or 125W with 18CFM forced air.

Can this power supply support a 5V load rail in a larger embedded or automation assembly?

Yes, CH1 is 5V rated at 7A in convection (up to 8.75A with 18CFM forced air), adjustable from 4.75 to 5.25V. In a multi-rail system, that 5V output can support embedded logic, control electronics, or peripherals while the 24V and 12V channels supply additional regulated rails within the unit's total rated power.

Is the PPT-125D suitable for space-constrained equipment builds?

It is designed in a 127.0 × 76.2 × 34.6 mm package and is described as a 5" x 3" compact size. For systems that need up to 125W (with 18CFM forced air) and triple output in a relatively compact enclosure footprint, those dimensions are a relevant fit consideration.

How does the PPT-125D compare with the other PPT-125 series models?

The models differ in output voltages: PPT-125A is 3.3V/5V/12V, PPT-125B 5V/12V/-12V, PPT-125C 5V/15V/-15V and PPT-125D 5V/24V/12V. Rated power with 18CFM forced air is 98.81W (A), 124.46W (B), 125.15W (C) and 126.43W (D), so PPT-125D has the highest rating, narrowly ahead of the B and C models.

Can the PPT-125D be used in demanding temperature conditions indoors?

The specified operating temperature range is -20°C to +70°C, with output derating at higher temperatures per the derating curve. No IP rating is provided in the specs and the unit is intended as a component installed in final equipment, so the data supports temperature suitability but does not confirm outdoor or water-exposed use.
