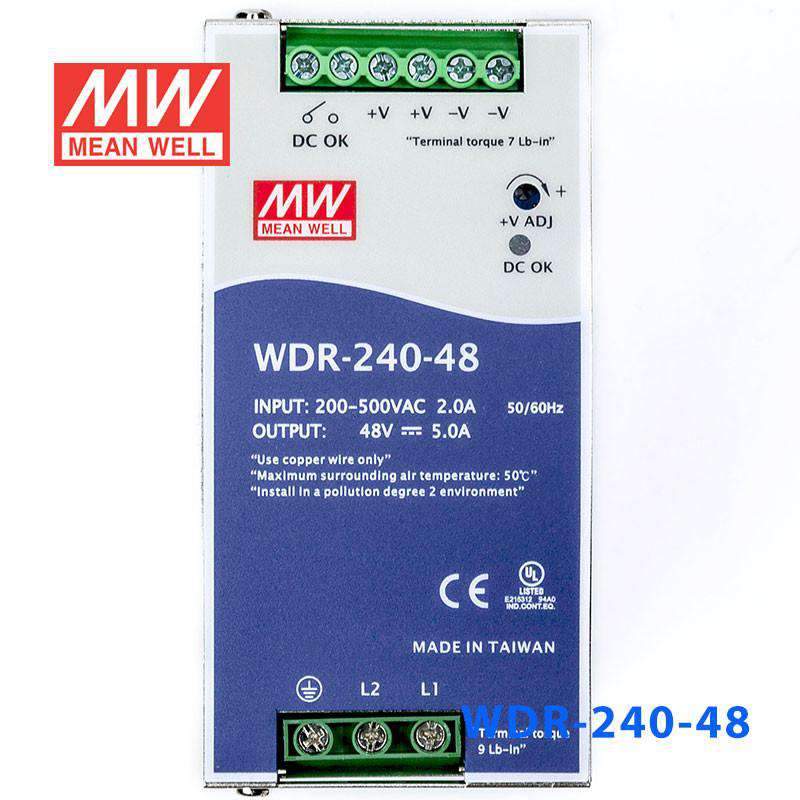

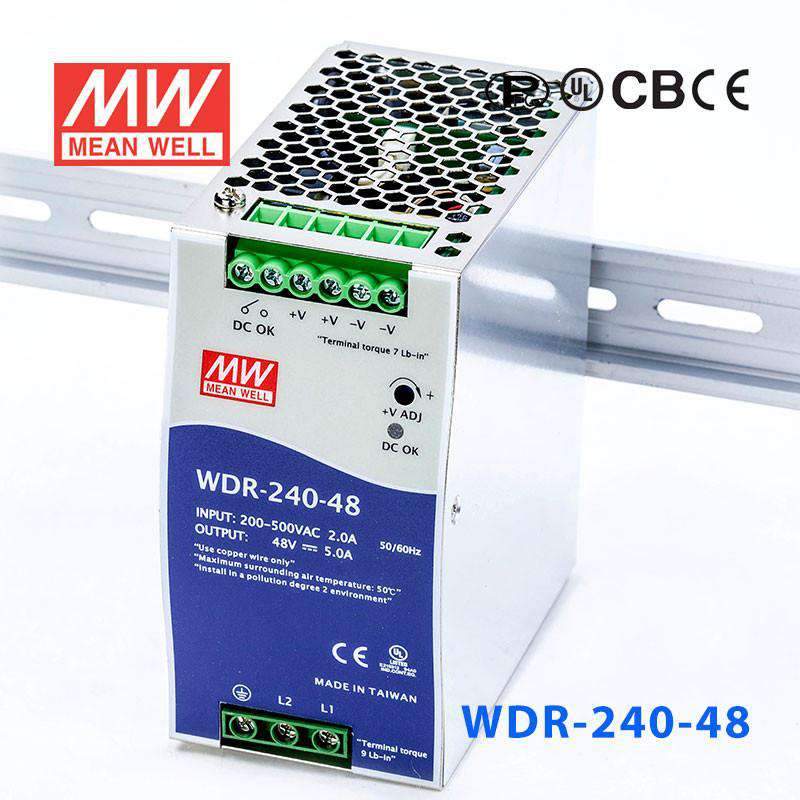

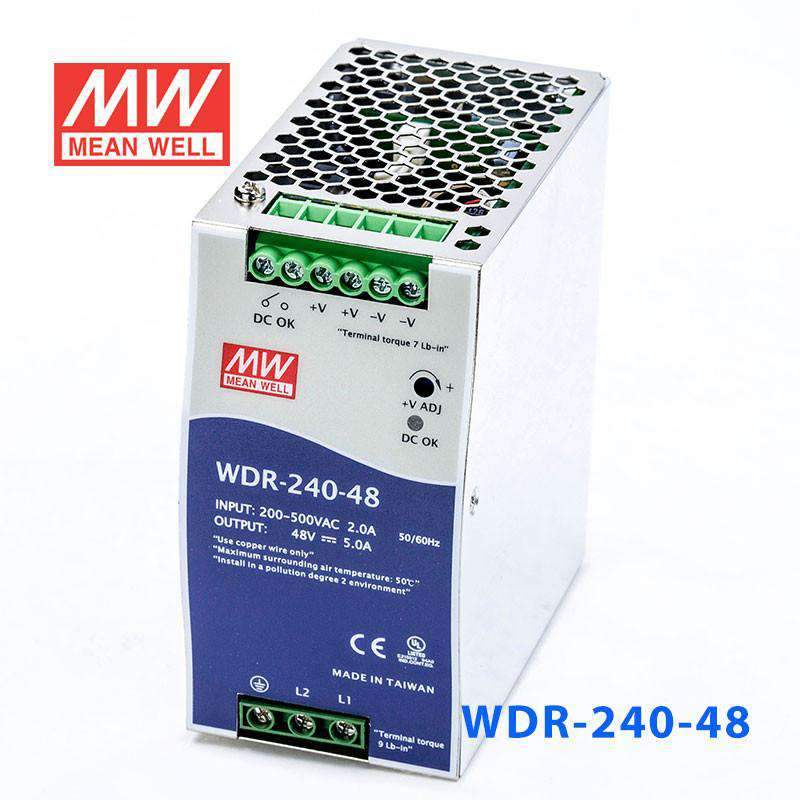

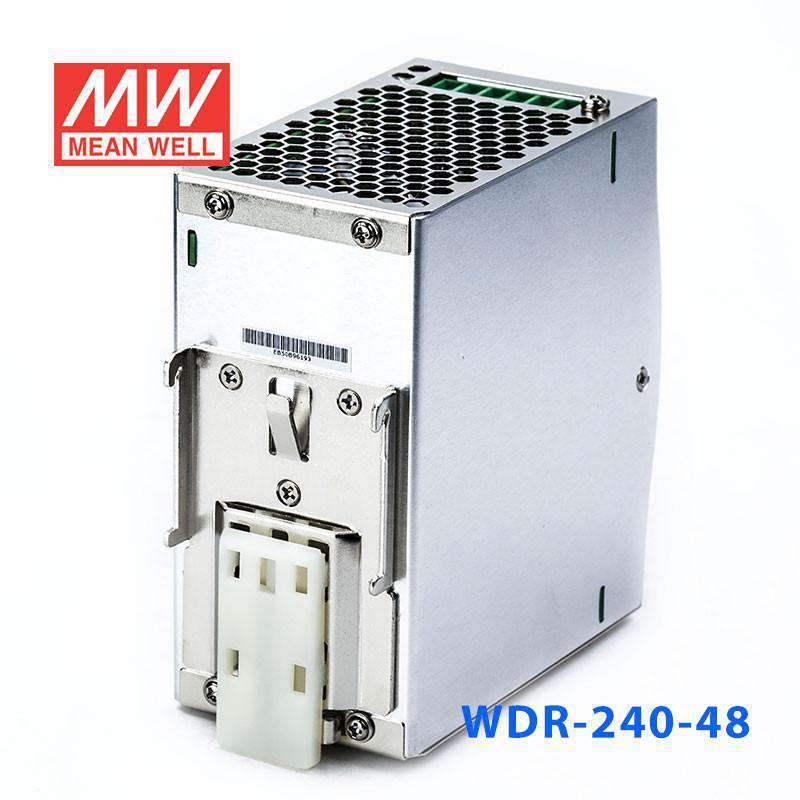

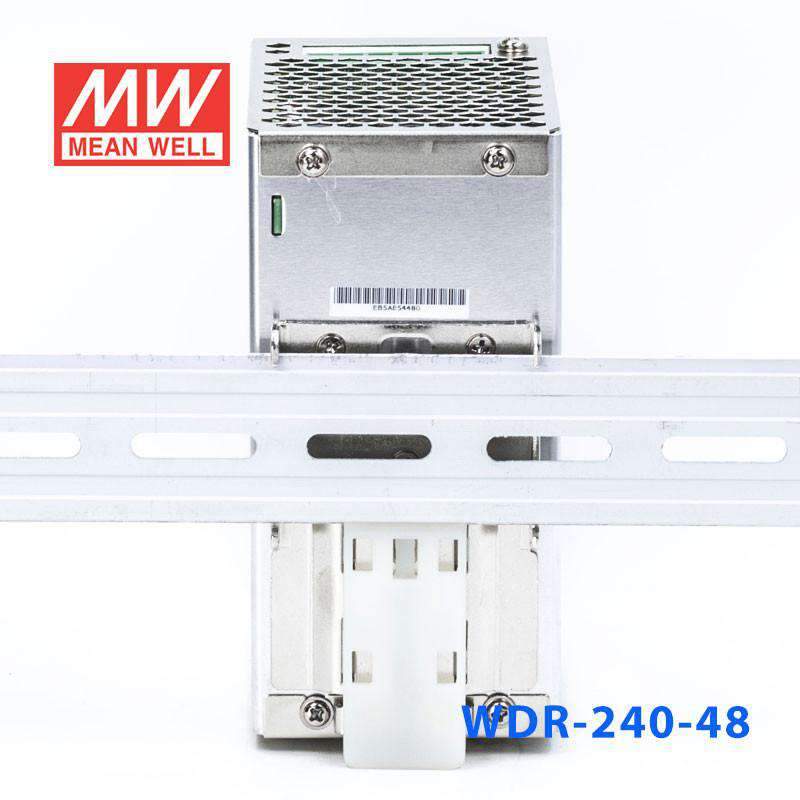

Mean Well WDR-240-48 Single Output Industrial Power Supply 240W 48V 5A - DIN Rail

Name: Mean Well WDR-240-48 Single Output Industrial Power Supply 240W 48V 5A - DIN Rail
Brand: Mean Well
SKU: WDR-240-48
Price: 138.21 USD
Availability: InStock

metal caseslim size1&2 phase180~550VAC wide inputhigh efficiency up to 93%

SKU WDR-240-48

$138.21 USD

Shipping calculated at checkout.

Select model — 4 in this family

WDR-240-48

WDR-60-48 60W 48V In stock$52.78 USD

WDR-120-48 120W 48V Low stock$79.99 USD

WDR-240-48 240W 48V In stock$138.21 USD

WDR-480-48 480W 48V In stock$182.15 USD

Product variants

In stock

Overview

WDR-240-48 is the 48V output model of this series: rated current 5A, rated power 240W, typical efficiency 91%.

Features

Single and two phase wide input range 180~550VAC
Built-in active PFC circuit compliance to BS EN/EN61000-3-2
High efficiency 91% and low power dissipation
Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection
Can be installed on DIN rail TS-35/7.5 or 15
UL 508(industrial control equipment)approved
BS EN/EN61000-6-2(BS EN/EN50082-2) industrial immunity level
Built-in DC OK relay contact
100% full load burn-in test
3 years warranty

Specifications

WDR-240-48Specifications from the official datasheet (2025-12-12 edition)

OUTPUT

DC VOLTAGE: 48V
RATED CURRENT: 5A
CURRENT RANGE: 0 ~ 5A
RATED POWER: 240W
RIPPLE & NOISE (max.)^Note.2: 150mVp-p
VOLTAGE ADJ. RANGE: 48 ~ 55V
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±1.0%
SETUP, RISE TIME: 800ms, 150ms/400VAC 1500ms, 150ms/230VAC at full load
HOLD UP TIME (Typ.): 18ms / 400VAC 18ms / 230VAC at full load

INPUT

VOLTAGE RANGE^Note.6: 180 ~ 550VAC 254 ~ 780VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≥0.84/400VAC PF≥0.84/230VAC
EFFICIENCY (Typ.): 91%
AC CURRENT (Typ.): 1A/400VAC 2A/230VAC
INRUSH CURRENT (Typ.): COLD START 50A
LEAKAGE CURRENT: <3.5mA / 530VAC

PROTECTION

OVERLOAD: 105 ~ 130% rated output power Protection type : Constant current limiting, unit will shut down after 3 sec. , auto-recovery after 1 minute if the fault condition is removed
OVER VOLTAGE: 56 ~ 65V Protection type : Shut down o/p voltage, auto-recovery after 1 minute if the fault condition is removed
OVER TEMPERATURE: 90℃±5℃ (TSW) detect on heatsink of power switch Protection type : Shut down o/p voltage, recovers automatically after temperature goes down

FUNCTION

DC OK REALY CONTACT RATINGS (max.): 60Vdc/0.3A, 30Vdc/1A, 30Vac/0.5A resistive load

ENVIRONMENT

WORKING TEMP.^Note.5: -30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6

SAFETY & EMC (Note 4)

SAFETY STANDARDS: UL508,EAC TP TC 004,BIS IS13252(Part1):2010/IEC 609501:2005(except for 48) approved,IEC62368-1 CB approved by SIQ, design refer to BS EN/EN62368-1, AS/NZS 62368.1,GL;(meet BS EN/EN60204-1)
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC O/P-DC OK:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:>100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55032 (CISPR32), BS EN/EN61204-3 Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, BS EN/EN61000-6-2 (BS EN/EN50082-2), BS EN/EN61204-3, heavy industry level, EAC TP TC 020 approved

OTHERS

MTBF: 1062.8K hrs min. Telcordia SR-332 (Bellcore) ; 141.1K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 63*125.2*113.5mm (W*H*D)
PACKING: 1.06Kg; 12pcs/13.7Kg/1.22CUFT

Test conditions and notes7

1. All parameters NOT specially mentioned are measured at 400VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
5. Installation clearances : 40mm on top, 20mm on the bottom, 5mm on the left and right side are recommended when loaded permanently with full power. In case the adjacent device is a heat source, 15mm clearance is recommended.
6. Derating may be needed under low input voltage. Please check the derating curve for more details.
7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

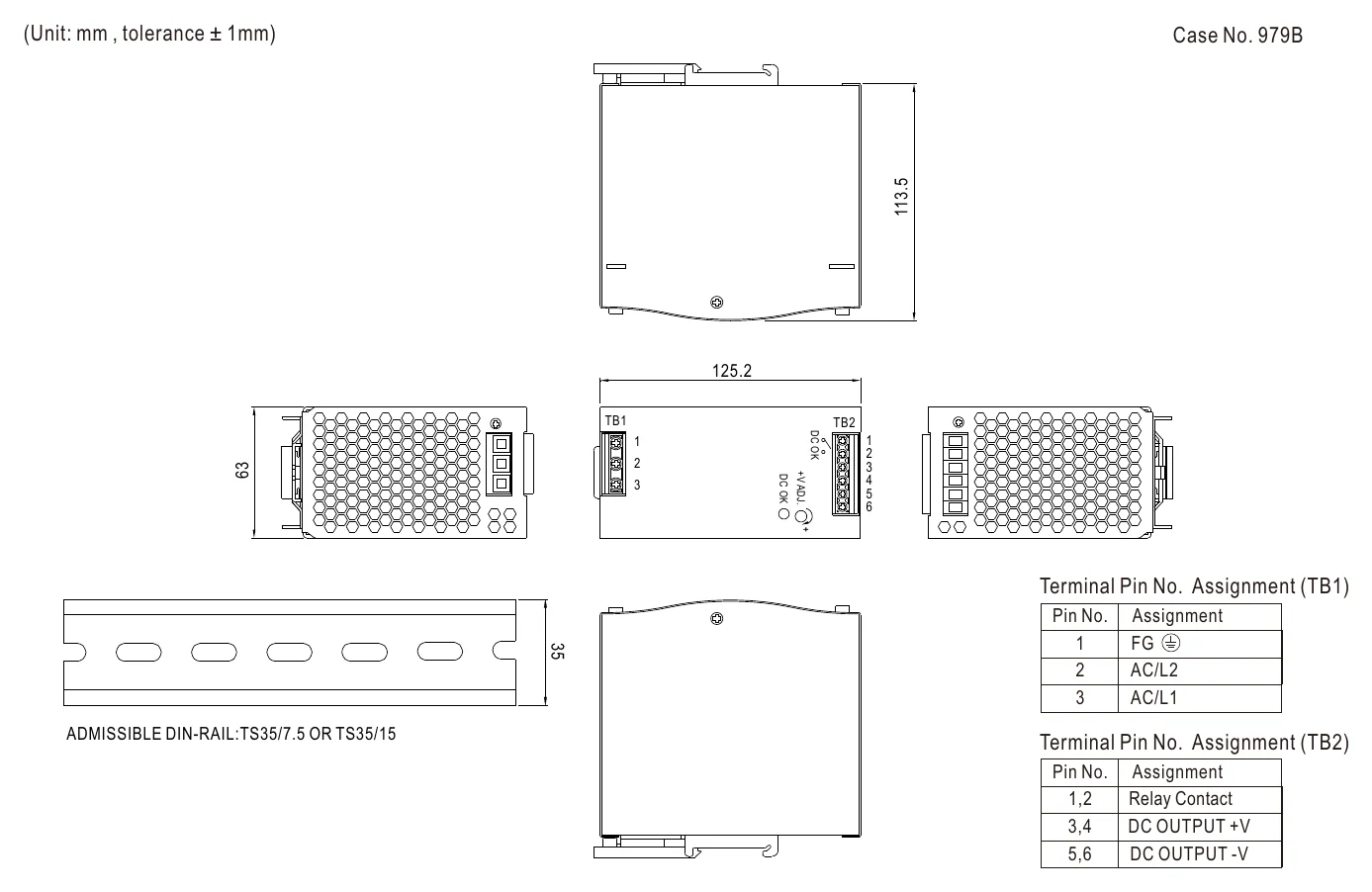

WDR-240-48 Mechanical Specification — Mechanical Specification

WDR-240-48 Block Diagram — Block Diagram

Downloads

Certificates3

CB Certificate (WDR-240)(EN) PDF Download

UL Certificate (WDR-240)(EN) PDF Download

EMC Certificate (WDR-240)(EN) PDF Download

Test reports1

Test Report (WDR-240-48)(EN) PDF Download

Catalogues2

Mean Well Catalog (Industrial) PDF Download

Mean Well DIN RAIL Catalog PDF Download

FAQ

Can I use the WDR-240-48 for a 48V control panel or industrial automation cabinet?

Yes, this model is intended for DIN rail control cabinet use where a 48V DC output is required. It provides 240W at 48V with 5A output current, and its slim metal case is sized for rail-mounted panel layouts.

Is the WDR-240-48 suitable for building management or access control equipment that runs on 48V DC?

It can fit building management or access control systems that require a 48V DC supply and stay within 240W and 5A. The DIN rail format and 125.2 × 113.5 × 63.0 mm housing make it appropriate for organized enclosure installations.

Can this 48V DIN rail power supply be used for industrial communication or network devices inside a panel?

It is suitable for panel-mounted industrial equipment that needs 48V DC, provided the connected load does not exceed 240W or 5A. The wide 180-550VAC input also helps when the supply is used in industrial control environments with different AC input conditions.

Is the WDR-240-48 meant for open-air use, or should it be installed inside an enclosure?

This unit is better suited to protected control cabinets or enclosures rather than exposed open-air locations. Its operating temperature range is -30°C to +70°C, and the DIN rail metal-case design is aimed at enclosed industrial panel use.

How does the WDR-240-48 compare with other Mean Well WDR series models?

Within the WDR series, 48V options are WDR-60-48 at 60W, 1.25A; WDR-120-48 at 120W, 2.5A; WDR-240-48 at 240W, 5A; and WDR-480-48 at 480W, 10A. Other siblings include WDR-60-12 at 60W, 12V, 5A; WDR-60-24 at 60W, 24V, 2.5A; WDR-120-12 at 120W, 12V, 10A; WDR-120-24 at 120W, 24V, 5A; WDR-240-24 at 240W, 24V, 10A; and WDR-480-24 at 480W, 24V, 20A.
