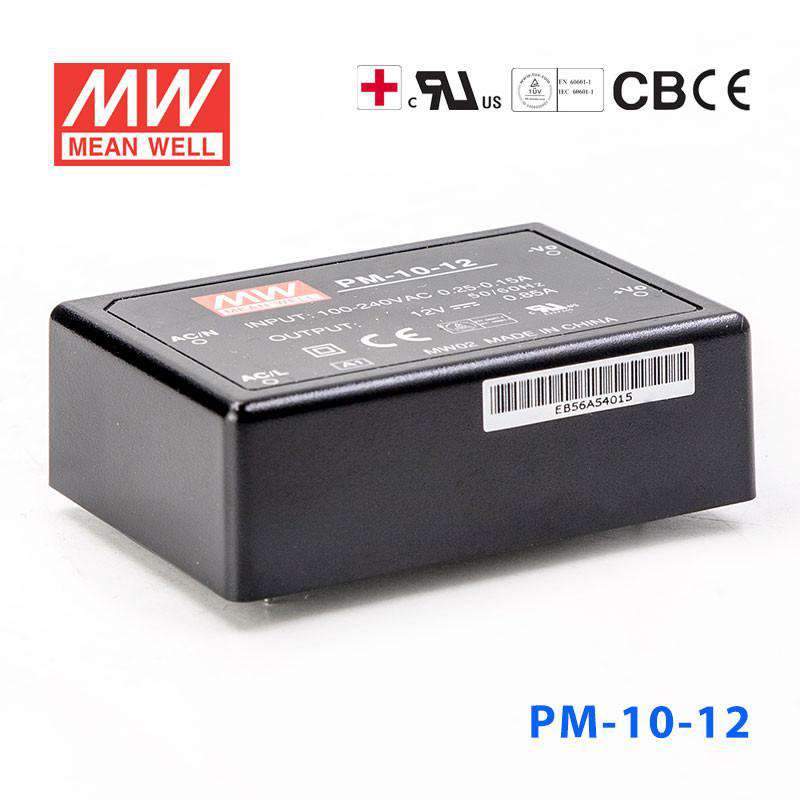

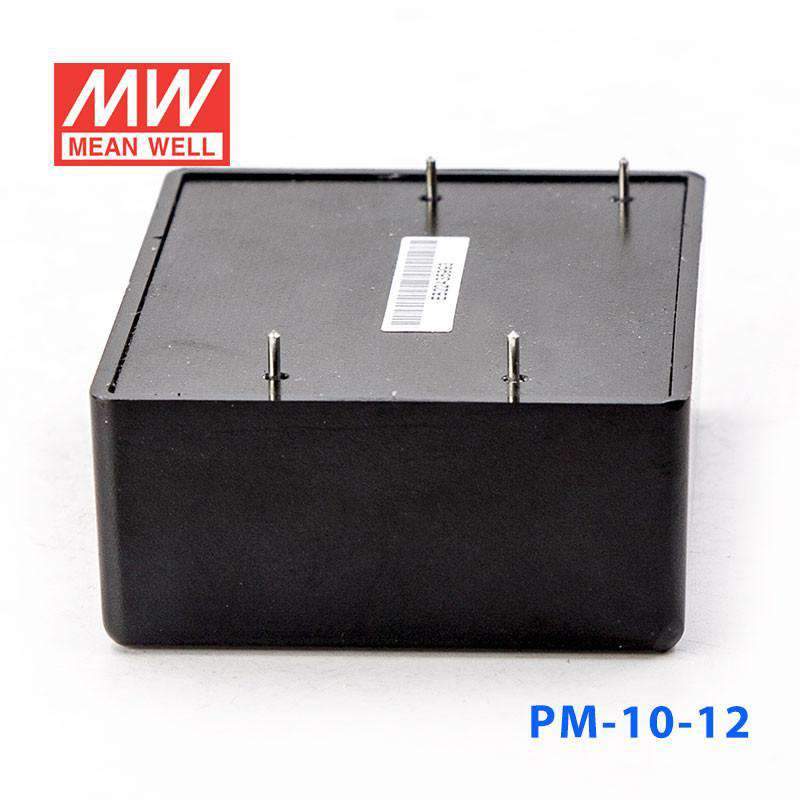

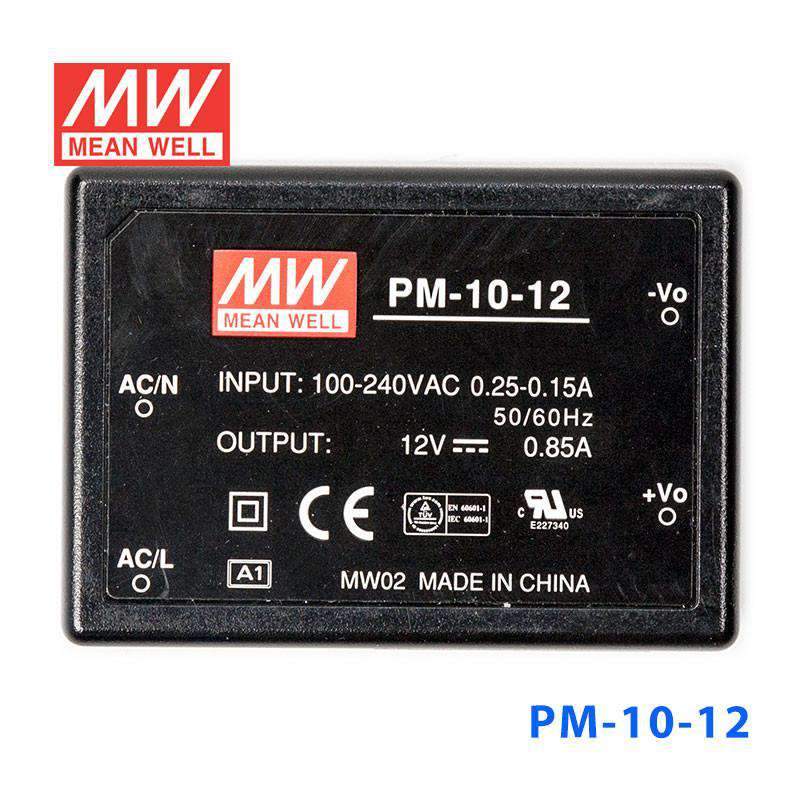

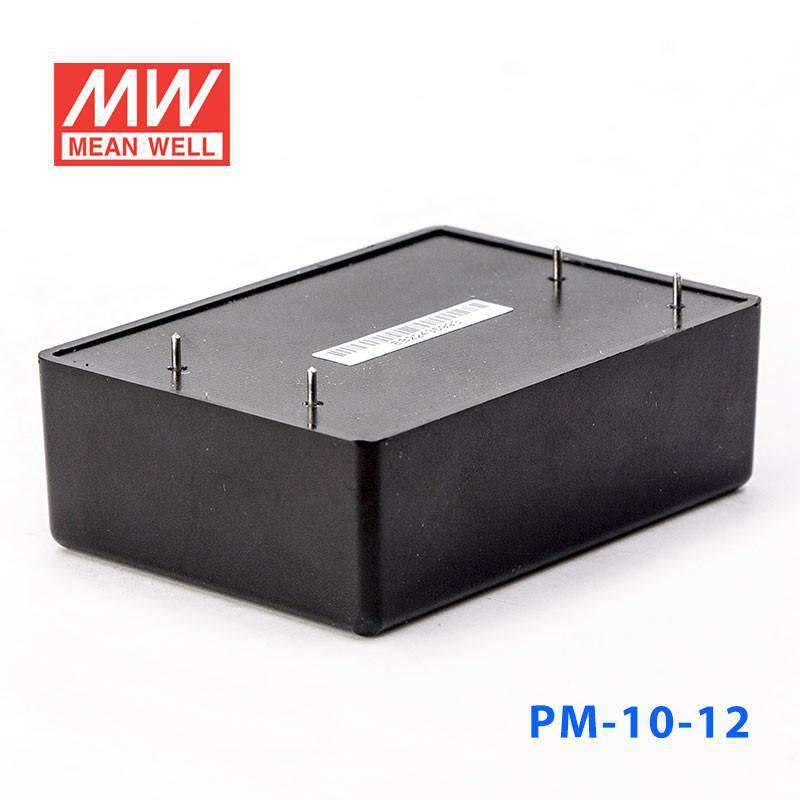

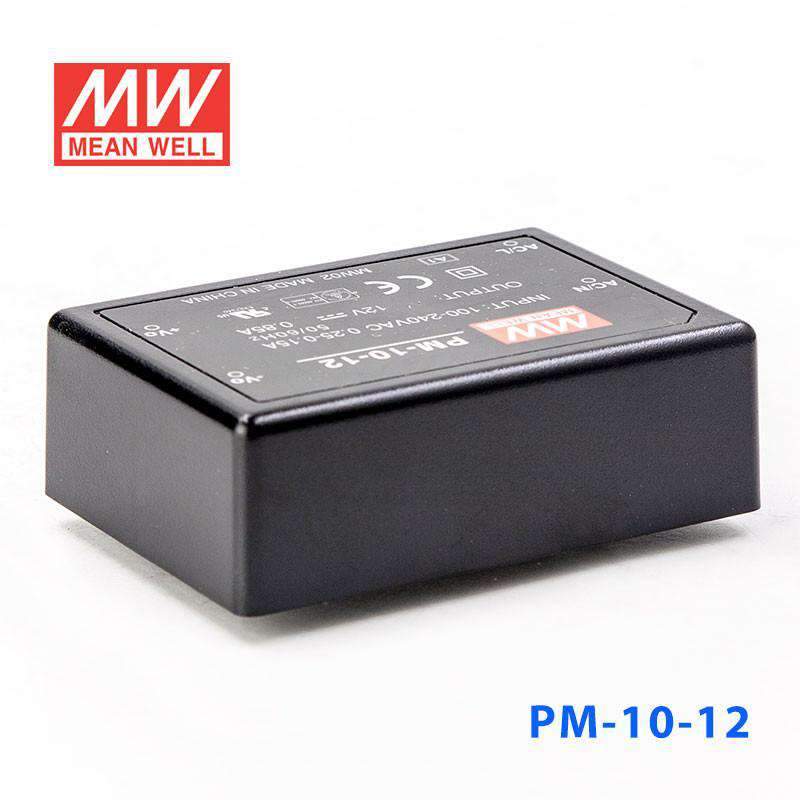

Mean Well PM-10-12 Power Supply 10W 12V
$24.01 USD
Unit price /
Unavailable
Description
Description
Features
- Universal AC input / Full range
- Protections:Short circuit/Over load/Over voltage
- Ultra-miniature size, light weight
- Cooling by free air convection
- Isolation class II
- UL60601-1/IEC60601-1/EN60601-1 medical safety approved
- No load power consumption<0.5W
- 100% full load burn-in test
- Fixed switching frequency at 67KHz
- High reliability
- 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesPM Series
-
Power Rating10.2 Watt
-
Output Voltage12 Volt
-
Rated Current0.85 Ampere
-
Input Voltage85V~264V
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length2.76 in
-
Width1.97 in
-
Height0.89 in
-
Weight0.23 lb
