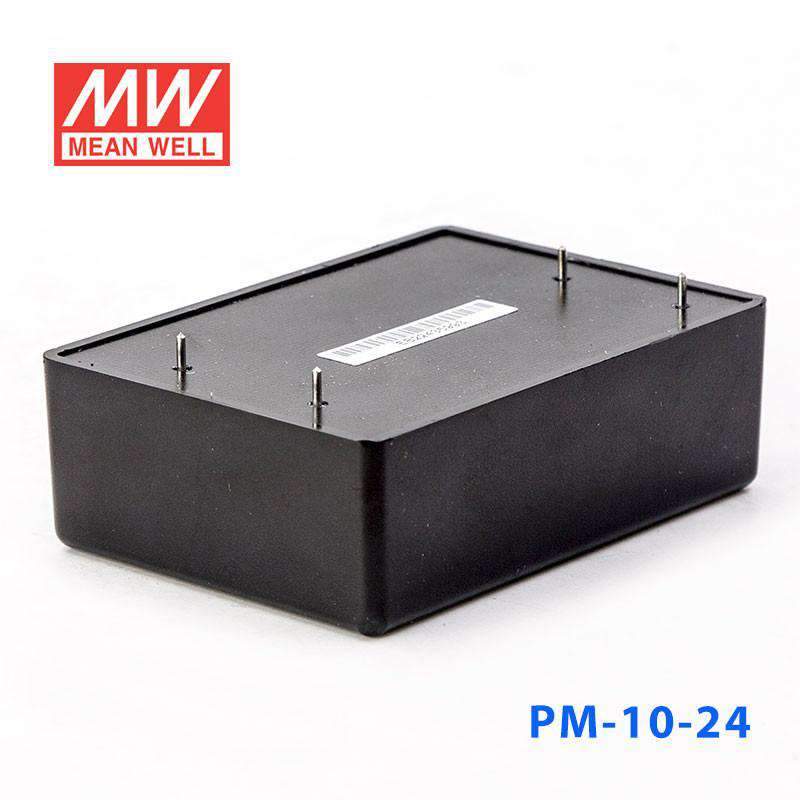

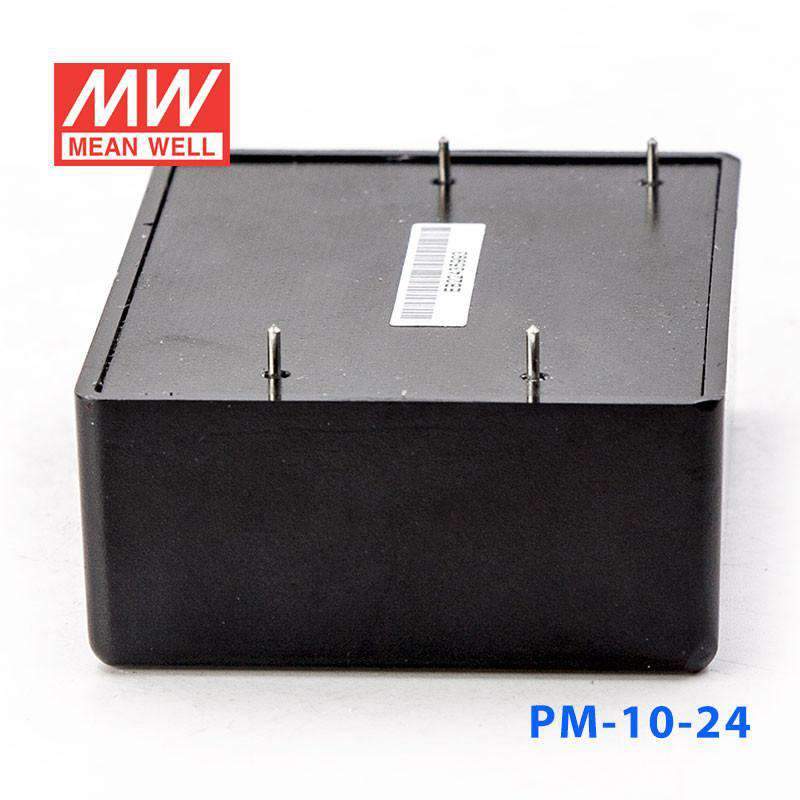

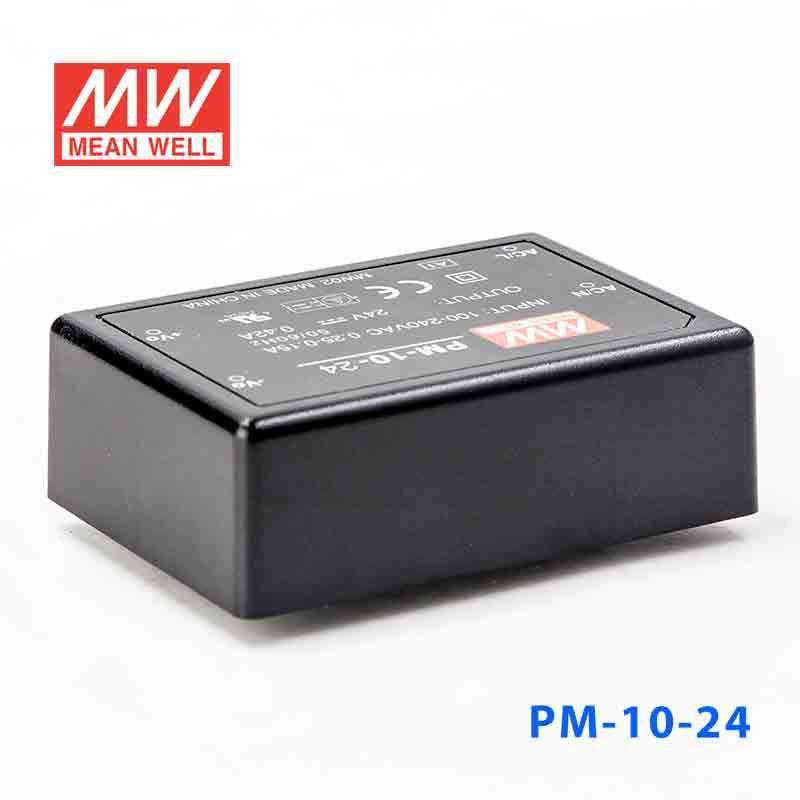

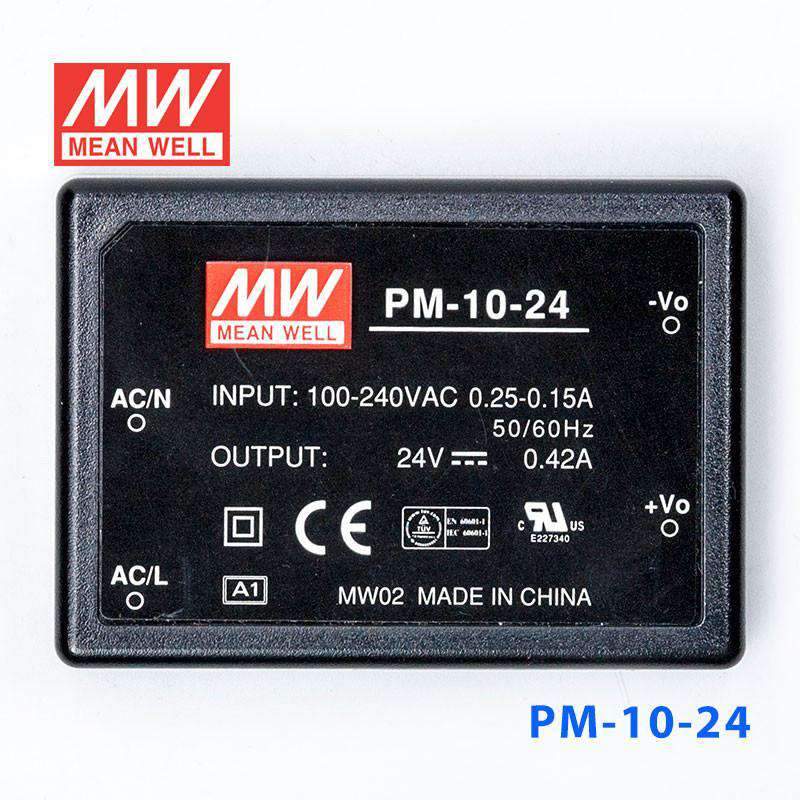

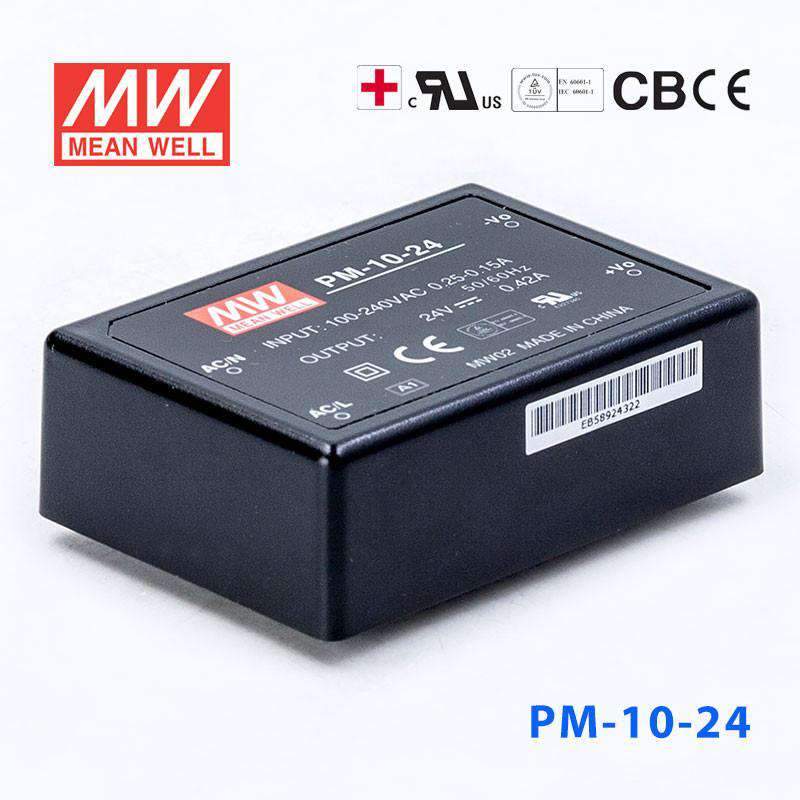

Mean Well PM-10-24 Power Supply 10W 24V

$24.01 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features

  • Universal AC input / Full range
  • Protections:Short circuit/Over load/Over voltage
  • Ultra-miniature size, light weight
  • Cooling by free air convection
  • Isolation class II
  • UL60601-1/IEC60601-1/EN60601-1 medical safety approved
  • No load power consumption<0.5W
  • 100% full load burn-in test
  • Fixed switching frequency at 67KHz
  • High reliability
  • 3 years warranty

Specifications

  • Brand
    Mean Well
  • Series
    PM Series
  • Power Rating
    10.08 Watt
  • Output Voltage
    24 Volt
  • Rated Current
    0.42 Ampere
  • Input Voltage
    85V~264V
  • Standards Met
    CB,CE,EAC,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -20°C~70°C
  • Warranty
    3 Year
  • Length
    2.76 in
  • Width
    1.97 in
  • Height
    0.89 in
  • Weight
    0.23 lb
