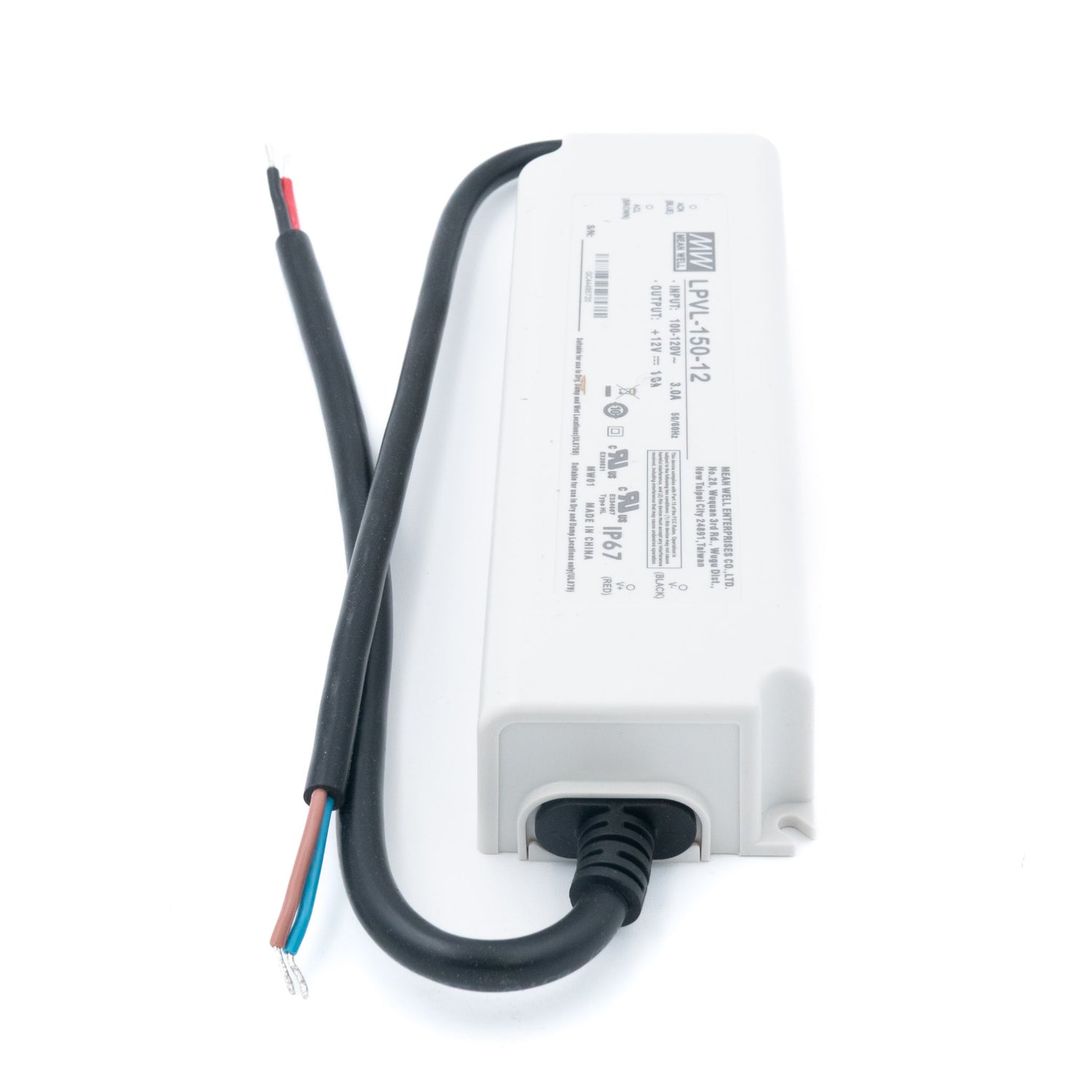

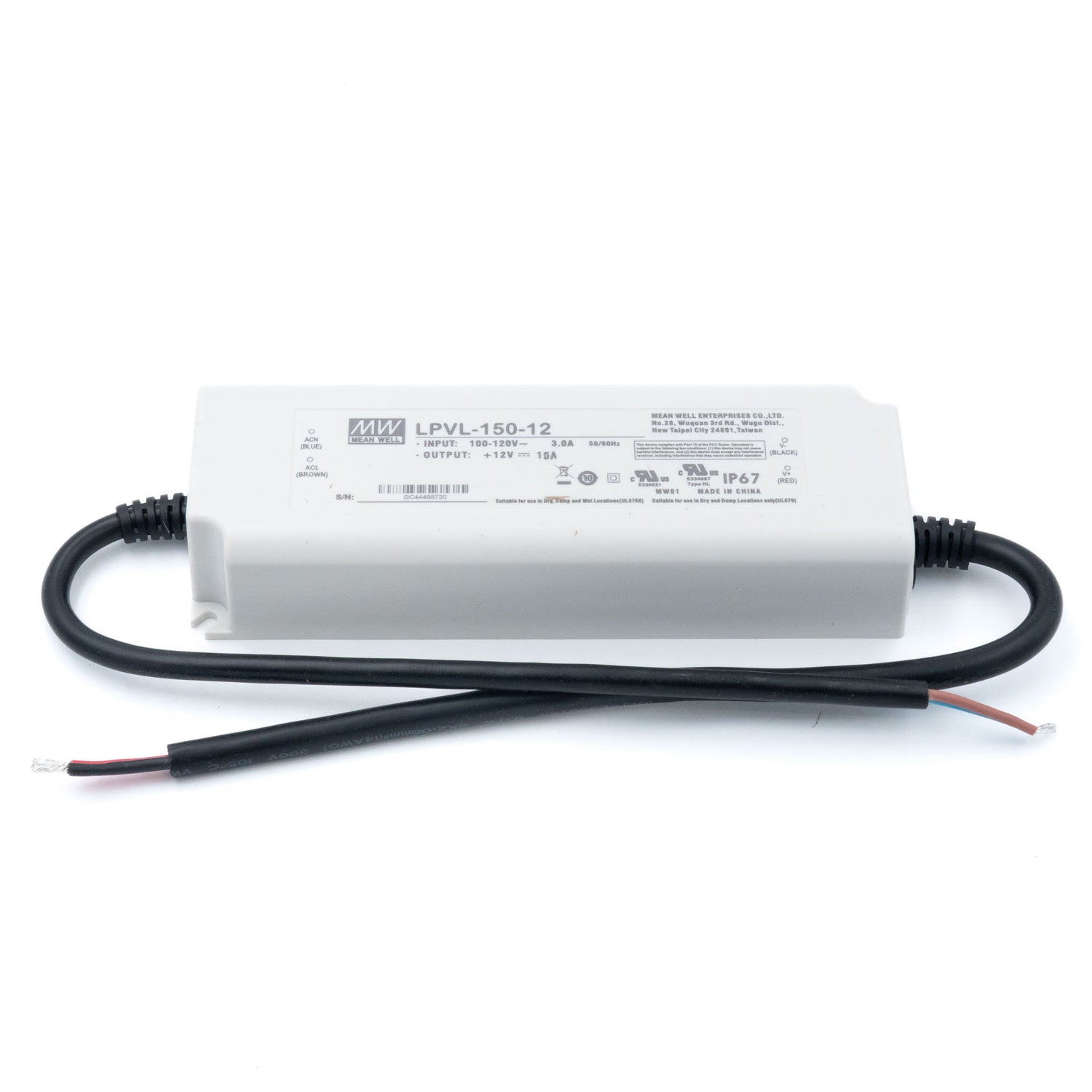

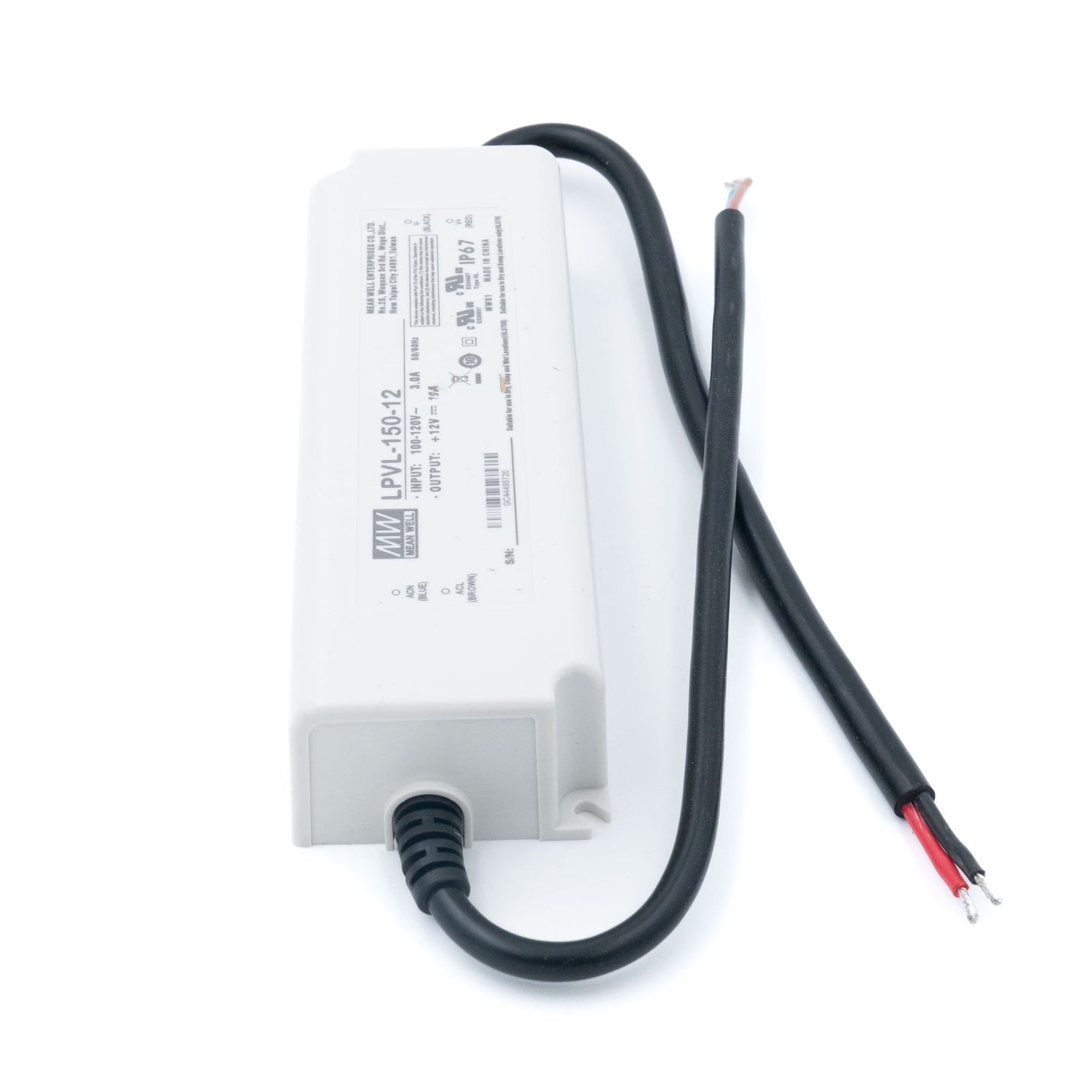

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

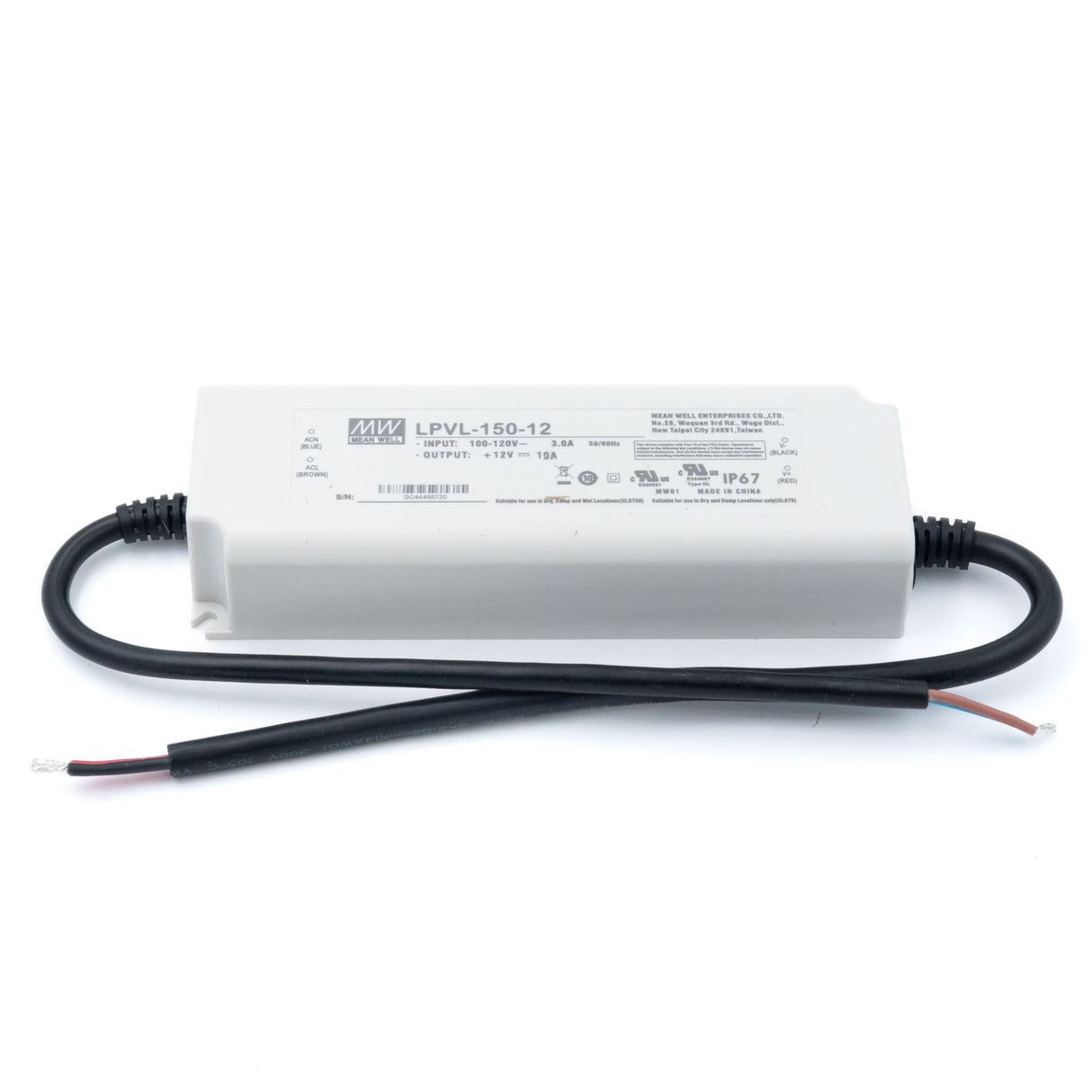

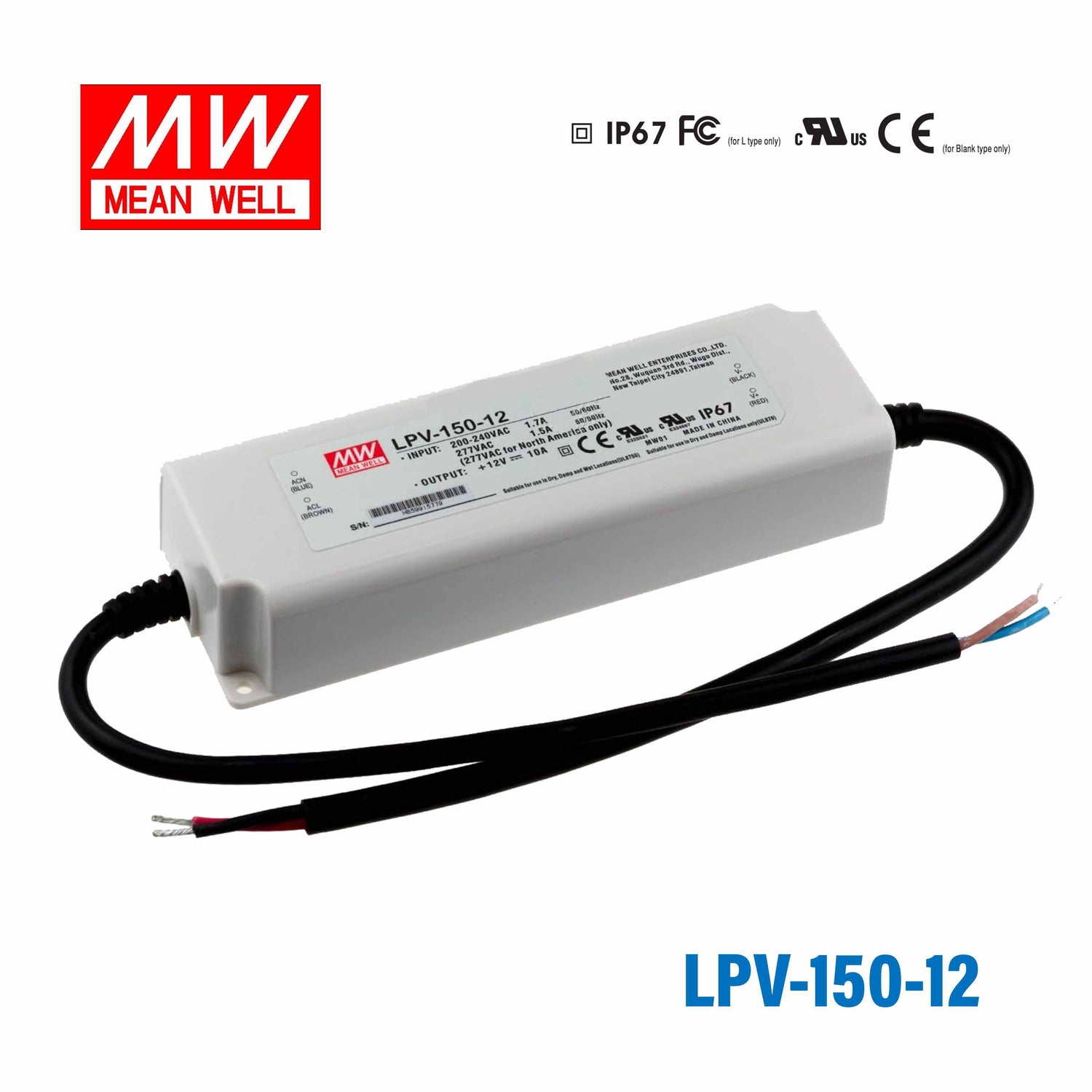

Mean Well LPV-150-12 LED Driver — 120W 12V 10A IP67 Waterproof

Name: Mean Well LPV-150-12 LED Driver — 120W 12V 10A IP67 Waterproof
Brand: Mean Well
SKU: LPV-150-12
Price: 34.24 USD
Availability: InStock

Constant VoltageCE/EAC/FCC/UL Certified180-305VAC Universal Input2-Year Warranty

SKU LPV-150-12

$34.24 USD

Shipping calculated at checkout.

In stock

Overview

LPV-150-12 is the 12V output model of this series: rated current 10A, rated power 120W, typical efficiency 87%.

LPV-150 and LPVL-150 are 150W single output power supplies that specifically and perfectly work for LED related fixture or applianc e. As a class II power unit, these two series are housed with the UL 94V-0 rated flame retardant plastic enclosure. The IP67 design allows every model to fit the use at dry, damp and wet locations. Both series are constant voltage mode design that various models with 12V, 15V, 24V, 36V and 48V are offered for LPV-150 where as 12V and 24V are provided for LPVL-150.

Features

Constant voltage design
90~132VAC input for LPVL-150 180~305VAC input for LPV-150
Fully encapsulated with IP67 level (Note.7)
ClassⅡpower unit, no FG
Protections: Short circuit/Overload/Over voltage/ Over temperature
Fully isolated plastic case
Fanless design, cooling by free air convection
100% full load burn-in test
Low cost, high reliability
Listed in UL Sign Component Manual (SAM)
Type "HL" for use in class I, Division 2 hazardous (Classified) location luminaires for LPVL-150
2 years warranty

Specifications

LPV-150-12Specifications from the official datasheet (2026-09-07 edition)

OUTPUT

DC VOLTAGE: 12V
RATED CURRENT: 10A
CURRENT RANGE: 0 ~ 10A
RATED POWER: 120W
RIPPLE & NOISE (max.)^Note.2: 200mVp-p
VOLTAGE TOLERANCE^Note.3: ±5.0%
LINE REGULATION: ±1.0%
LOAD REGULATION: ±2.0%
SETUP, RISE TIME^Note.6: LPV-150: 500ms, 50ms / 230VAC 500ms, 50ms / 277VAC; LPVL-150: 1500ms, 50ms / 115VAC
HOLD UP TIME (Typ.): LPV-150: 18ms/230VAC 20ms/277VAC at full load; LPVL-150: 10ms/115VAC at full load

INPUT

VOLTAGE RANGE^Note.4: LPV-150: 180 ~ 305VAC 254 ~ 431VDC; LPVL-150: 90~132VAC
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 87%
AC CURRENT: LPV-150: 1.7A/230VAC 1.5A/277VAC; LPVL-150: 3.0A/115VAC
INRUSH CURRENT (Typ.) Blank type: COLD START 60A(twidth=900μs measured at 50% Ipeak) at 230VAC
INRUSH CURRENT (Typ.) L type: COLD START 75A(twidth=900μs measured at 50% Ipeak) at 115VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER Blank type: 2 units (circuit breaker of type B) / 3 units (circuit breaker of type C) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER L type: 1 units (circuit breaker of type B) / 2 units (circuit breaker of type C) at 115VAC
LEAKAGE CURRENT: LPV-150: 0.25mA / 240VAC LPVL-150:0.25mA / 120VAC

PROTECTION

OVERLOAD: 110 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 13.5 ~ 18V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.: -25 ~ +65℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 40℃ for LPV-150-12,15 and LPVL-150-12,24;0~50℃ for LPV-150-24,36,48)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS Blank type: UL8750,CSA C22.2 No 250.13-12,UL879,CSA C22.2 No.207-M89,BIS IS15885(for LPV-150-12,24 only),EAC TP TC 004, IP67, IEC62368-1, BS EN/EN62368-1 approved
SAFETY STANDARDS L type: UL8750(type"HL"),CSA C22.2 No 250.13-12,UL879,CSA C22.2 No.207-M89,IP67 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC
ISOLATION RESISTANCE: I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION Blank type: Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2 Class A(≤80% load), BS EN/EN61000-3-3, EAC TP TC 020
EMC EMISSION L type: Compliance to FCC part 15
EMC IMMUNITY Blank type: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN55035, light industry level, EAC TP TC 020
EMC IMMUNITY L type: Design refer to IEC61000-4-2,3,4,5,6,8,11; light industry level

OTHERS

MTBF: 3361.2K hrs min. Telcordia SR-332 (Bellcore) ; 391.9Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 191*63*37.5mm (L*W*H)
PACKING: LPV-150: 0.79Kg;20pcs/17Kg/0.98CUFT; LPVL-150: 0.79Kg;20pcs/17Kg/0.98CUFT

Test conditions and notes10

1. All parameters NOT specially mentioned are measured at 230VAC(115VAC for LPVL) input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Derating may be needed under low input voltage. Please check the static characteristics for more details.
5. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
7. Suitable for indoor use or outdoor use without direct sunlight exposure.
8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
9. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
10. This product is not intended for LED lighting luminaire applications in the EU and China.(In the EU and China the LPF/NPF/XLG/XLC/XLN series are recommended.)

Technical drawings

LPV-150-12 Mechanical Specification — Mechanical Specification

LPV-150-12 Recommend Mounting Direction — Recommend Mounting Direction

LPV-150-12 Block Diagram — Block Diagram

LPV-150-12 Derating Curve — Derating Curve

Typical applications

Display devices for decorative & advertising accessories (Note.10)
General purpose electronics operated in dusty or damp environments

Downloads

Certificates2

UL Certificate (LPV-150)(EN) PDF Download

EMC Certificate (LPV-150)(EN) PDF Download

Test reports1

Test Report (LPV-150-12)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

What input voltage does the LPV-150-12 require, and will it work on standard 120V mains?

The LPV-150-12 accepts 180–305 VAC, which covers 200V-class and 230V international mains but does not extend down to 120V North American supplies. If your installation uses 120V mains, the LPVL-150-12 (90–132 VAC input) from the same datasheet is the 12V alternative.

How many meters of 12V LED strip can the LPV-150-12 power?

The LPV-150-12 delivers 120W at 12V. Divide 120W by your strip's rated wattage per meter — a 10 W/m strip allows up to 12 meters, and a 14.4 W/m high-density strip allows roughly 8.3 meters. Always verify the rated wattage per meter for your specific strip before finalising the run.

Is the LPV-150-12 approved for outdoor or wet-location use?

Yes. The IP67 rating means protection against dust ingress and temporary water immersion, and the datasheet rates it for indoor use or outdoor use without direct sunlight exposure, making the LPV-150-12 suitable for outdoor landscape lighting, exterior architectural LED runs at 12V, and covered sign boxes exposed to moisture.

What certifications does the LPV-150-12 hold?

The LPV-150-12 is approved to UL8750, CSA C22.2 No.250.13, UL879, BIS IS15885, EAC TP TC 004 and IEC/EN62368-1, with IP67, and its EMC complies with EN55032 Class B and EN55035. FCC Part 15 compliance is listed only for the LPVL-150 (L type) version.
