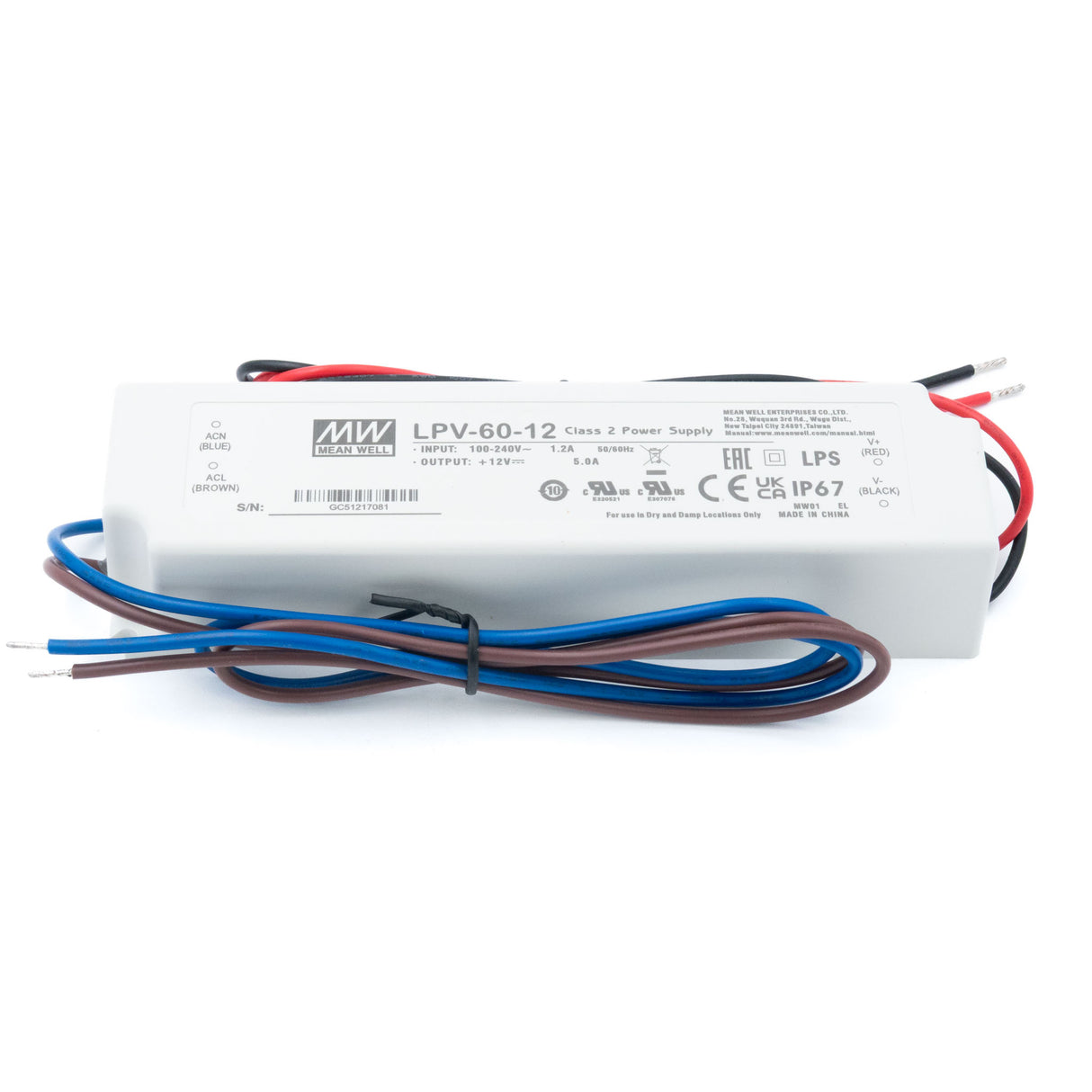

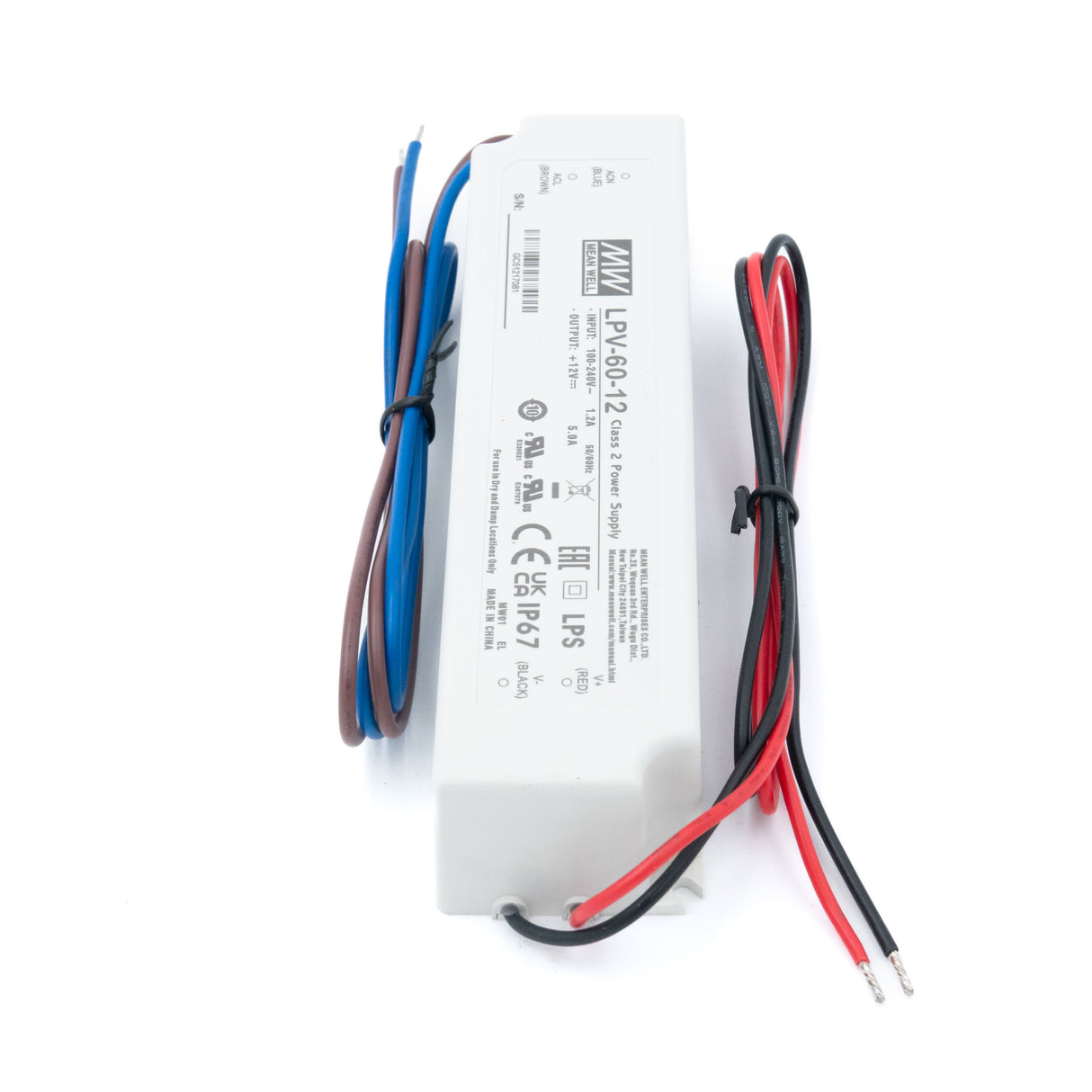

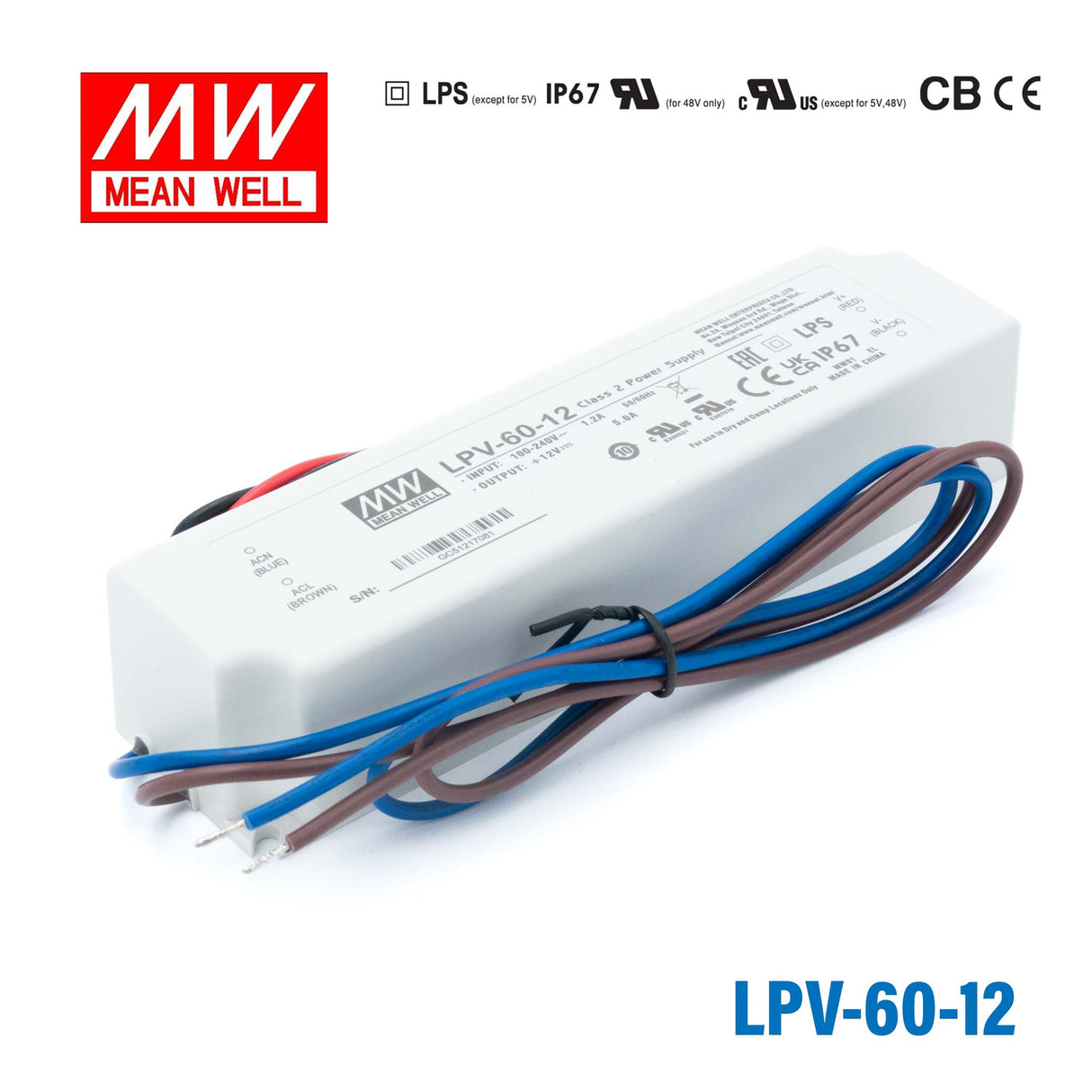

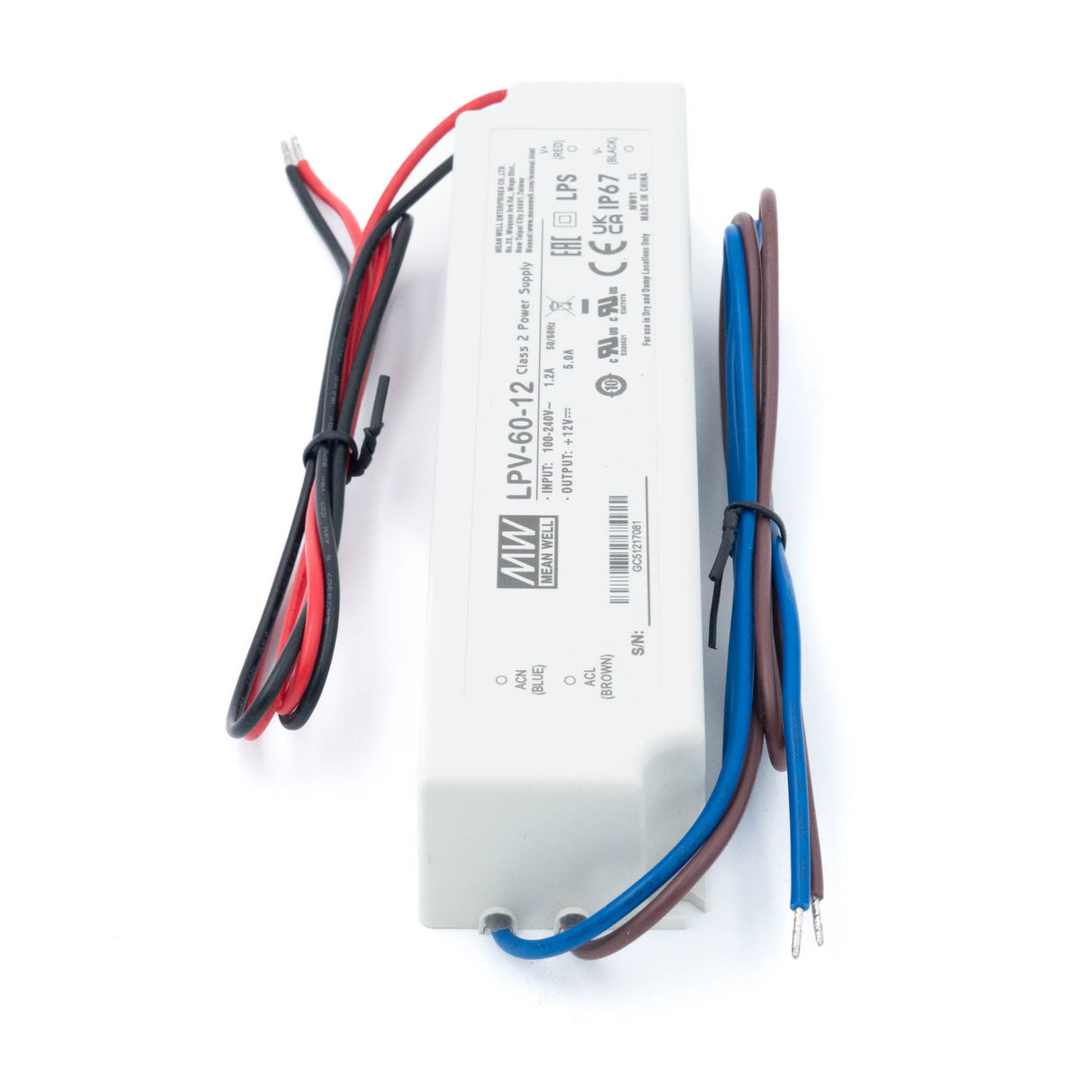

Mean Well LPV-60-12 LED Driver — 60W 12V 5A IP67 Waterproof

Name: Mean Well LPV-60-12 LED Driver — 60W 12V 5A IP67 Waterproof
Brand: Mean Well
SKU: LPV-60-12
Price: 18.9 USD
Availability: InStock

$18.90 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

The Mean Well LPV-60-12 is a 60W, 12V constant voltage LED driver with IP67 waterproof protection, engineered for reliable performance in demanding indoor and outdoor LED lighting applications. Built to Mean Well's industry-leading quality standards, it delivers stable 12V DC output at up to 5A and carries CB, CE, EAC, UL certifications for global compliance.

Accepting 90-264VAC universal AC input, the LPV-60-12 operates reliably across a wide supply range. It features built-in short circuit, overload, and over-voltage protection to safeguard connected LED loads, and is rated for operation from -30°C to +70°C making it suitable for outdoor and harsh-environment installations.

Key Features

✓Constant voltage output: 12V DC at up to 5A (60W max)
✓IP67 waterproof and dustproof — suitable for outdoor installations
✓Universal AC input: 90-264VAC
✓Certifications: CB, CE, EAC, UL
✓Wide operating temperature: -30°C to +70°C
✓Built-in protections: short circuit, overload, over-voltage
✓Compact, lightweight enclosure: 162.5 × 42.5 × 32.0 mm, 0.4 kg
✓2-year Mean Well warranty

Specifications

Brand

Mean Well
Series

LP Series
Power Rating

60 Watt
Output Voltage

12 Volt
Rated Current

5 Ampere
Input Voltage

90V~264V
Standards Met

CB,CE,EAC,UL
Operation Mode

Constant Voltage
Operating Temperature

-30°C~70°C
Warranty

2 Year
Length

6.4 in
Width

1.67 in
Height

1.26 in
Weight

0.88 lb

File Downloads

::specification::
