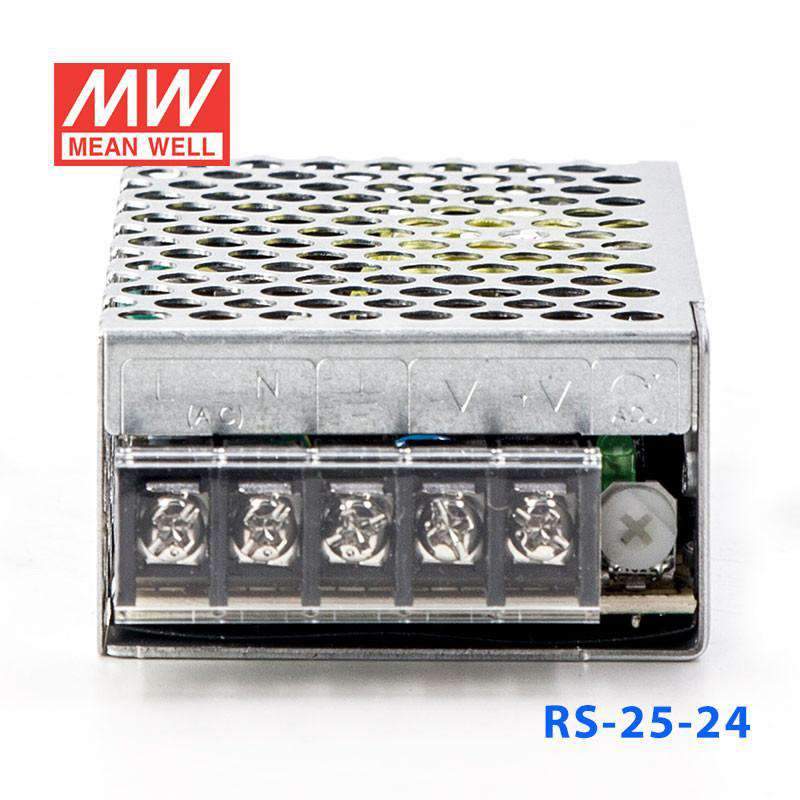

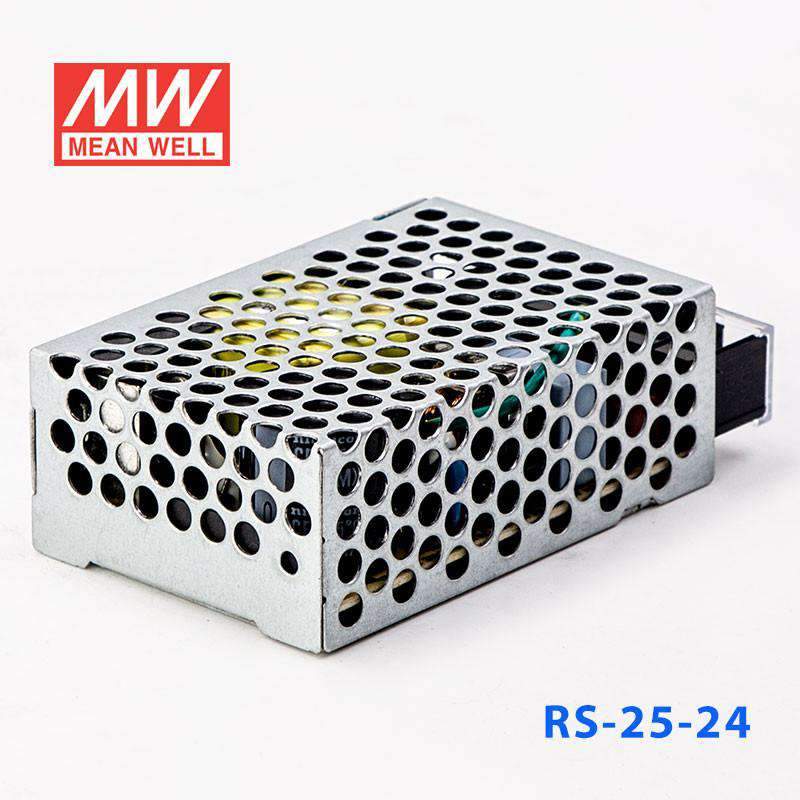

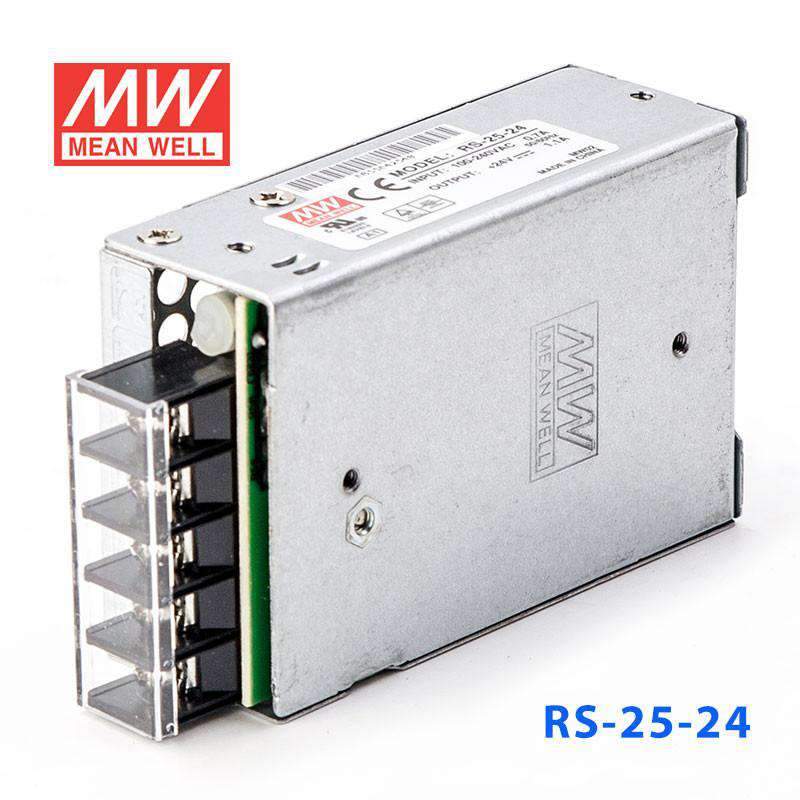

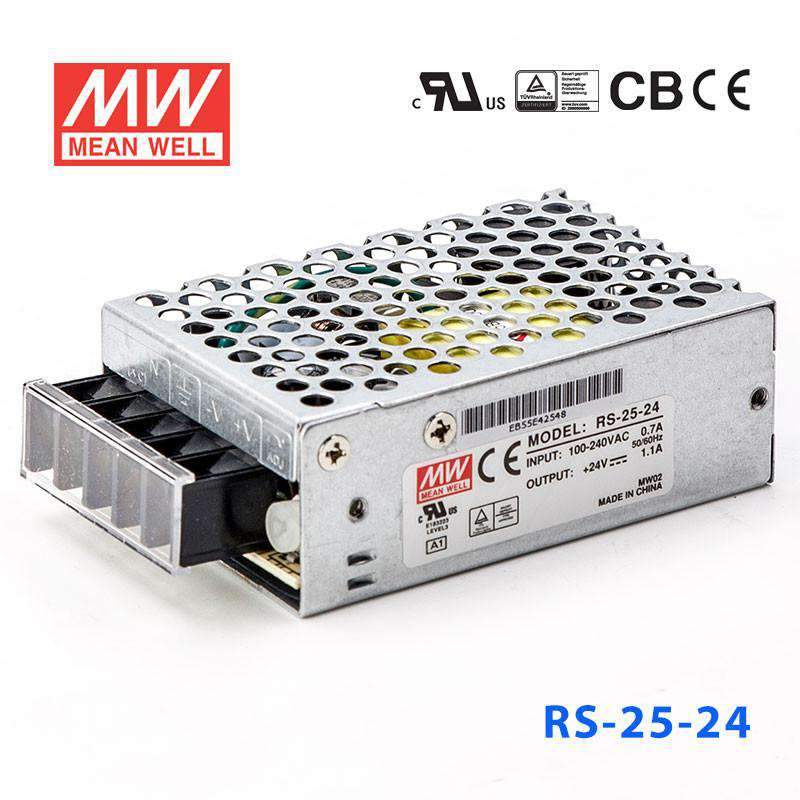

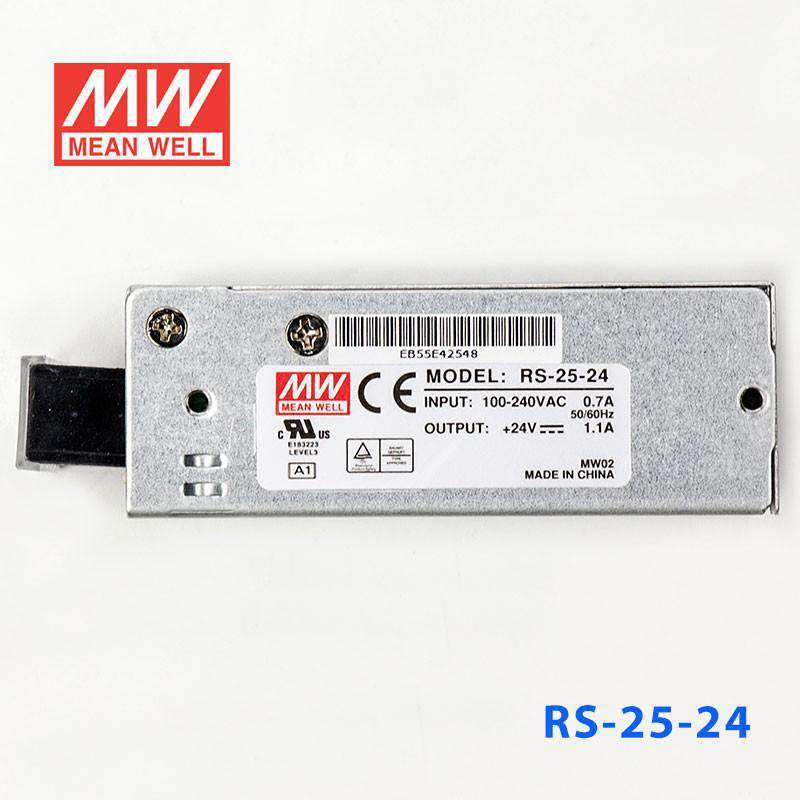

Mean Well RS-25-24 Power Supply 25W 24V
$12.61 USD
Unit price /
Unavailable
Description
Description
The RS-25 is a 25W Mean Well DIN rail power converter with a 78mm profile (input range: 125~373VDC).
Key Features
- ✓ 78mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 125~373VDC
- ✓ Cooling by free air convection — no minimum load required
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: UL62368- TUV EN62368- EAC TP TC 004,CCC GB4943.1,BSMI CNS14336-`
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesRS Series
-
Power Rating26.4 Watt
-
Output Voltage24 Volt
-
Rated Current1.1 Ampere
-
Input Voltage88V~264V
-
Standards MetBSMI,CB,CCC,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length3.07 in
-
Width2.01 in
-
Height1.1 in
-
Weight0.44 lb
