Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

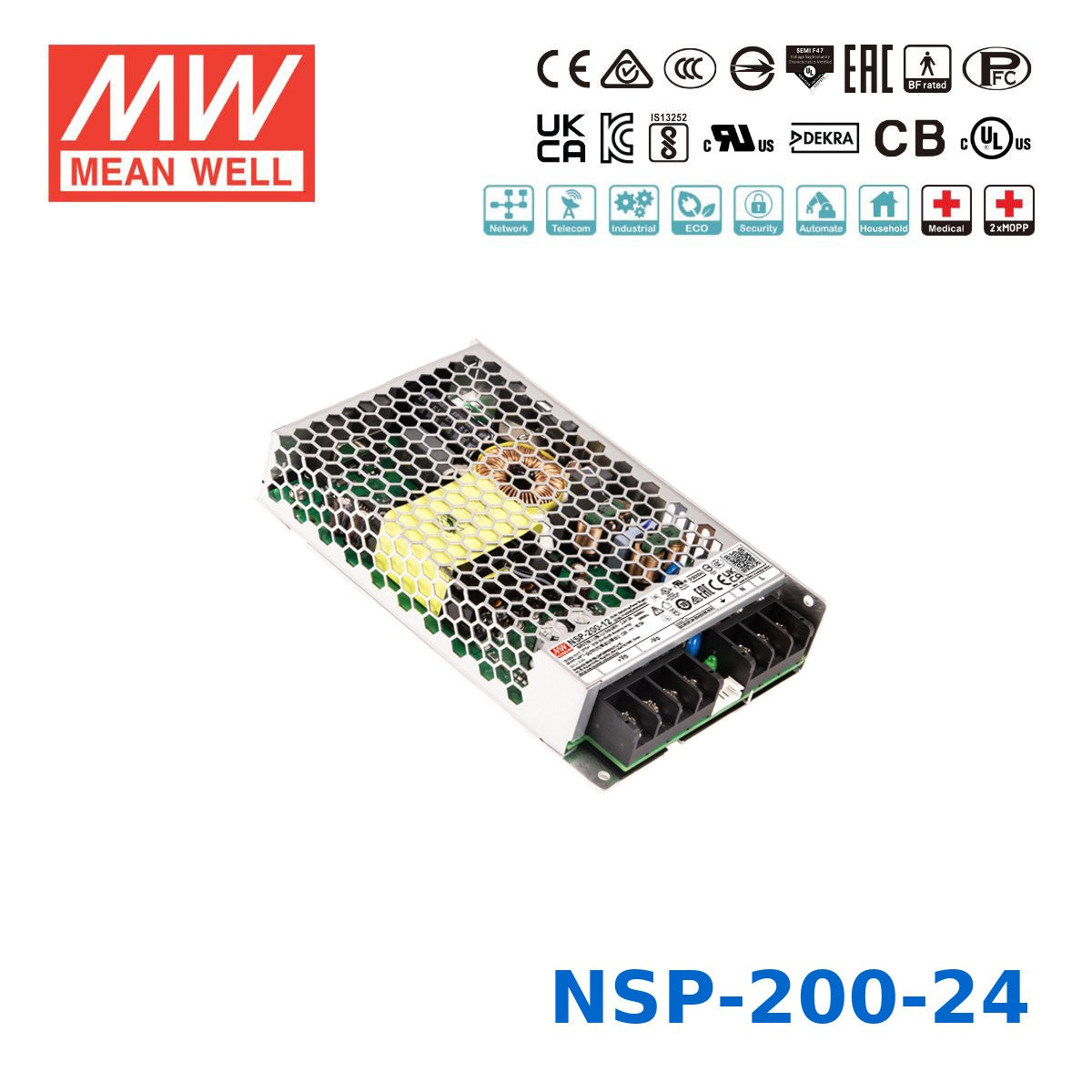

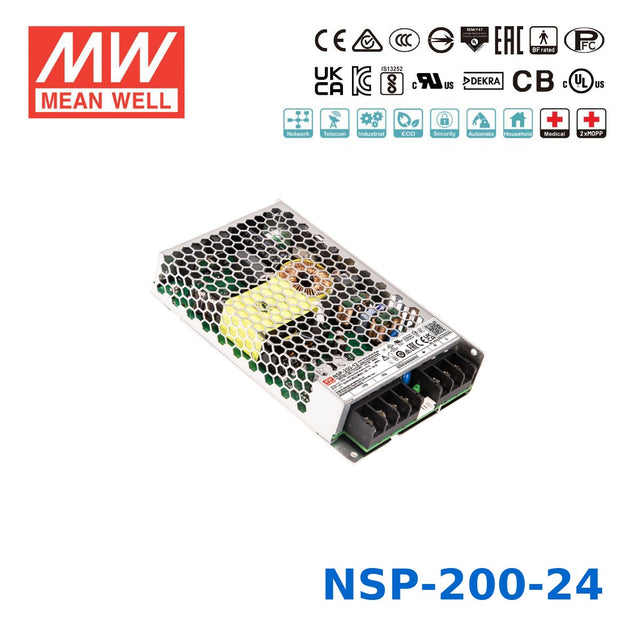

Mean Well 201.6W High Reliable Multi-Industries Power Supply 24V 8.4A

$39.33 USD
Shipping calculated at checkout.
|

Your order will be processed within 24 hours

Description

The MEAN WELL NSP-200 series is a 200W high-reliability AC/DC enclosed power supply engineered for a wide range of industrial, medical, and automation applications. With a universal 85–305VAC input and built-in active PFC, it delivers up to 94.5% efficiency and extremely low no-load power consumption for improved energy savings. The compact 159×97×30 mm design supports fanless convection cooling and operates across an ultra-wide temperature range from –40°C to +85°C. The NSP-200 series features 200% peak power capability, constant current limiting, remote ON/OFF control, remote sense, and a DC OK signal for system monitoring. Certified to global safety standards—including IEC/EN/UL 62368-1, 60601-1 (2×MOPP, BF rated), 60335-1, 61010-1, and 62477-1—the NSP-200 series ensures robust performance for industrial controllers, medical devices, security equipment, telecommunications, PoE systems, and automation projects.

Key Features

Specifications
  • Brand
    Mean Well
  • Series
    NSP Series
  • Power Rating
    201.6 Watt
  • Output Voltage
    24 Volt
  • Rated Current
    8.4 Ampere
  • Input Voltage
    85V~305V
  • Standards Met
    BSMI,CB,CCC,CE,EAC,RCM,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -40°C~85°C
  • Warranty
    5 Year
  • Length
    6.26 in
  • Width
    3.82 in
  • Height
    1.18 in
  • Weight
    1.1 lb

File Downloads

::specification::
