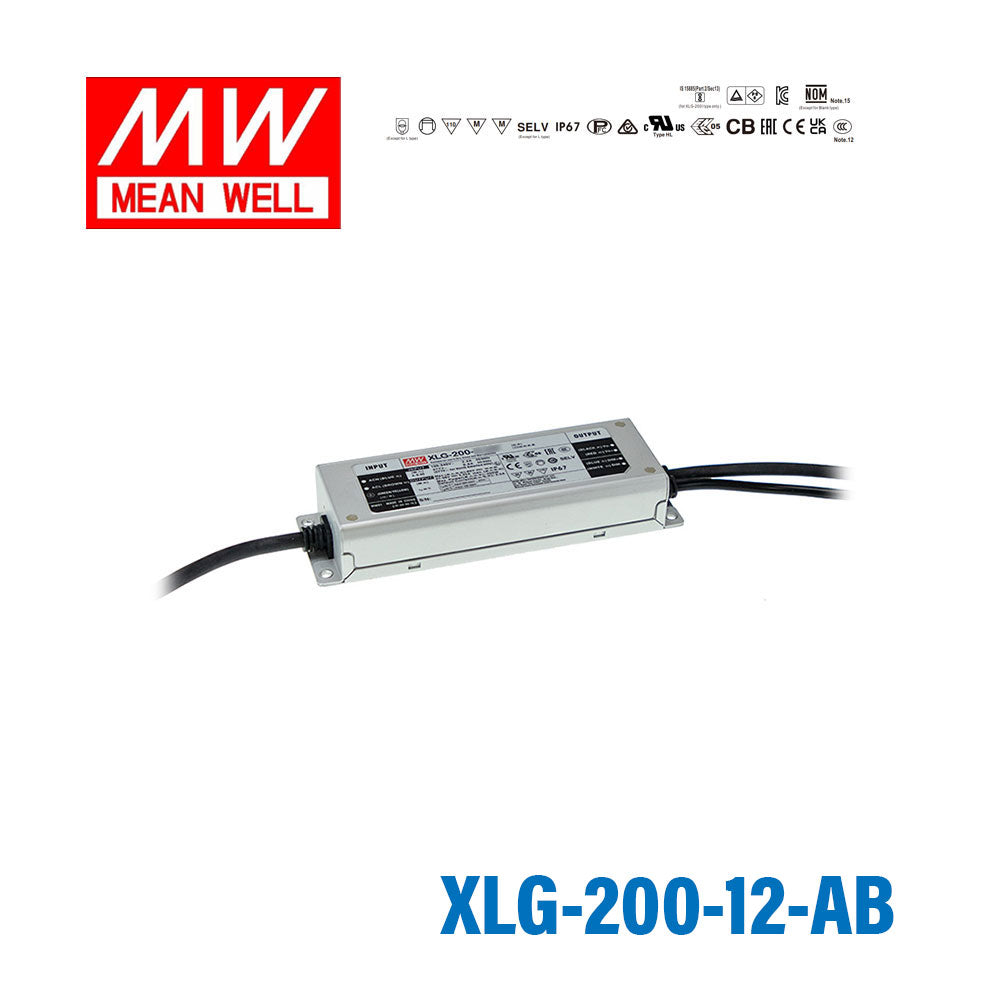

Mean Well XLG-200-12-AB Power Supply 192W 12V - Adjustable and Dimm...
Overview
XLG-200-12-AB is the 12V output model of this series: rated power 192W, typical efficiency 92%.
XLG-200 series is a 200W LED AC/DC driver featuring the constant power mode. XLG-200 operates from 100~305VAC and offers models with different rated current ranging between 700mA and 16A. Thanks to the high efficiency up to 94%, with the fanless design, the entire series is able to operate for -40℃ ~+90℃ case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. Moreover the innovative environment-adaptive capability allows this series to reliably light on the LEDs for all kinds of application environments in almost any spots that may install LED luminaire in the world. XLG-200 series comply with the latest version of IEC61347/GB/T19510.1 and UL8750 intermational safety regulations. The output and dimming circuit are also completely in accordance with the new regulations with isolation to ensure the safety of both user and luminaire system during installation.
Features
- Wide input range 100~305V AC( Class I)
- Full power output at 70~100% Constant power mode operation
- Metal case with IP67, suitable for outdoor application
- Surge protection with 6KV/4KV (10KV/6KV optional)
- 3 in 1 dimming function (Dim to off and Isolation design)
- India (EESL) version with Input Over Voltage Protection can survive input voltage stress of 440Vac for 48 hours
- Protection functions: OVP/SCP/OCP/OTP
- Life time >50,000 hrs. and 5 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 12V
- RATED CURRENT (Default)
- 16A
- RATED POWER
- 192W
- CONSTANT CURRENT REGIONNote.2
- 8.4~ 12V
- RIPPLE & NOISE (max.)Note.3
- 150mVp-p
- CURRENT ADJ. RANGE
- Adjustable for A-Type only (via the built-in potentiometer)
- CURRENT ADJ. RANGE
- 8 ~ 16A
- VOLTAGE TOLERANCENote.4
- ±3.0%
- LINE REGULATION
- ±0.5%
- LOAD REGULATION
- ±2%
- SETUP, RISE TIMENote.6
- 500ms, 100ms/230VAC, 1200ms, 100ms/115VAC
- HOLD UP TIME (Typ.)
- 10ms/ 230VAC 10ms/ 115VAC
INPUT
- VOLTAGE RANGENote.5 (12/24 table), Note.3 (L/H table)
- 100 ~ 305VAC 142 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR
- PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load
- TOTAL HARMONIC DISTORTION
- THD< 10%(@load≧50%/115VC,230VAC; @load≧75%/277VAC)
- EFFICIENCY (Typ.)
- 92%
- AC CURRENT
- 2.2A / 115VAC 1.1A / 230VAC 0.9A/277VAC
- INRUSH CURRENT(Typ.)
- COLD START 65A(twidth=550μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
- MAX. No. of PSUs on 16A CIRCUIT BREAKER
- 3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
- LEAKAGE CURRENT
- <0.75mA / 277VAC
- NO LOAD POWER CONSUMPTION
- No load power consumption <0.5W(for standard version)
PROTECTION
- OVER CURRENT
- 110~160% for CV type,95~108% for other type
- OVER CURRENT
- CV-type: Hiccup mode only; Other type: Hiccup or constant current limiting; Recovers automatically after fault condition is removed
- SHORT CIRCUIT
- CV-type: Hiccup mode only; Other type: Hiccup or constant current limiting; Recovers automatically after fault condition is removed
- OVER VOLTAGE
- 13.5 ~ 18V Shut down output voltage, re-power on to recover
- INPUT OVER VOLTAGE
- 320 ~ 390VAC (Shut down output voltage when the input voltage exceeds protection voltage,recovers automatically after fault condition is removed) Can survive input voltage stress of 440Vac for 48 hours(Input over voltage only for XLG-200I series)
- OVER TEMPERATURE
- Shut down output voltage, re-power on to recover
ENVIRONMENT
- WORKING TEMP.
- Tcase=-40 ~ +90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
- MAX. CASE TEMP.
- Tcase=+90℃
- WORKING HUMIDITY
- 20 ~ 95% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +80℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 60℃)
- VIBRATION
- 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
EMC
- SAFETY STANDARDSNote.7 (12/24 table), Note.5 (L/H table)
- UL8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384;GB/T19510.1, GB/T19510.213;EAC TP TC 004;J61347-1(H29), J61347-2-13(H29),KC61347-1,KC61347-2-13,IS15885(Part2/Sec13)(for XLG-200I type only ); NOM-058-SCFI-2017(except for Blank type);IP67 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
-
Parameter Standard Test Level Conducted BS EN/EN55015(CISPR15) ,GB/T 17743 Radiated BS EN/EN55015(CISPR15) ,GB/T 17743 Harmonic Current BS EN/EN61000-3-2 ,GB17625.1 Class C @load≥50% Voltage Flicker BS EN/EN61000-3-3 - EMC IMMUNITY
-
BS EN/EN61547
Parameter Standard Test Level ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact Radiated BS EN/EN61000-4-3 Level 3 EFT/Burst BS EN/EN61000-4-4 Level 3 Surge BS EN/EN61000-4-5 4KV/Line-Line 6KV/Line-Earth(6K/10K option) Conducted BS EN/EN61000-4-6 Level 3 Magnetic Field BS EN/EN61000-4-8 Level 4 Voltage Dips and Interruptions BS EN/EN61000-4-11 >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods
OTHERS
- MTBF
- 2300.1K hrs min. Telcordia SR-332 (Bellcore) ; 200.7Khrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 199*63*35.5mm (L*W*H)
- PACKING
- 0.85Kg;16pcs /14.2Kg /0.75CUFT
Test conditions and notes16
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
- 2. Please refer to "DRIVING METHODS OF LED MODULE"(Except for CV-type).
- 3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
- 4. Tolerance : includes set up tolerance, line regulation and load regulation.
- 5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
- 6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
- 7. Only CE/ENEC/CB is available for CV-type. XLG-200I series without UL/CSA certificate.
- 8. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
- 9. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
- 10. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
- 11. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 12. Products sourced from the Americas regions may not have the CCC/PSE/BIS/KC logo. Please contact your MEAN WELL sales for more information.
- 13. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
- 14. To fulfill requirements of the latest ErP regulation for lighting fixture, this LED driver can only be used behind a switch without permanently connected to the mains.
- 15. If you need the NOM (Mexico) certificate, Please contact MEAN WELL sales representative for details.
- 16. For A/AB type need to consider build in using to comply with Type HL application.
Technical drawings
Typical applications
- Skyscraper lighting
- Street lighting
- Floodlight Lighting
- Stage lighting
- Fishing lighting
- Horticulture lighting
- Bay lighting
- DMX power supply
- Type HL for use in class I, Division 2
Downloads
FAQ
Can the XLG-200-12-AB power 12V LED strip in an outdoor illuminated signage cabinet?
Yes. With an IP67 waterproof rating, the XLG-200-12-AB is sealed against dust and temporary water immersion, making it suitable for outdoor sign boxes, raceways, and illuminated cabinet signage exposed to rain and humidity.
How many meters of 12V LED strip can the XLG-200-12-AB drive?
The XLG-200-12-AB delivers 192W at 12V. For a 14.4 W/m strip that is about 13.3 meters (192 ÷ 14.4); for a 9.6 W/m strip, up to 20 meters. Always confirm your strip's rated power per meter and allow a 20% safety margin when sizing the installation.
Is the XLG-200-12-AB suitable for dimmable 12V LED retail display lighting?
Yes. The AB suffix indicates this model supports dimming, making it compatible with dimming controllers used in retail display lighting that requires adjustable light levels. The 192W capacity at 12V supports wide-area display or showcase illumination.
Can I use the XLG-200-12-AB for 12V LED strip lighting in a cold room or freezer application?
Yes. The -40°C to +90°C case temperature range allows reliable operation in sub-zero cold-room and freezer environments. The IP67 metal enclosure also withstands condensation that builds up as temperature differentials cause moisture in the air to collect on surfaces.
Is the XLG-200-12-AB a good fit for 12V LED backlighting in large menu boards or lightboxes?
Yes. At 192W and 12V, this driver can power substantial 12V LED strip areas used in backlit menu boards, trade show displays, and large lightbox graphics. The dimming feature also allows brightness adjustment to match ambient lighting conditions.
Does the XLG-200-12-AB accept both 120V and 277V input without manual adjustment?
Yes. The 100–305VAC wide-range input automatically handles both 120V and 277V commercial supplies, as well as 230V international grids. No jumper or voltage selector is required.
