Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

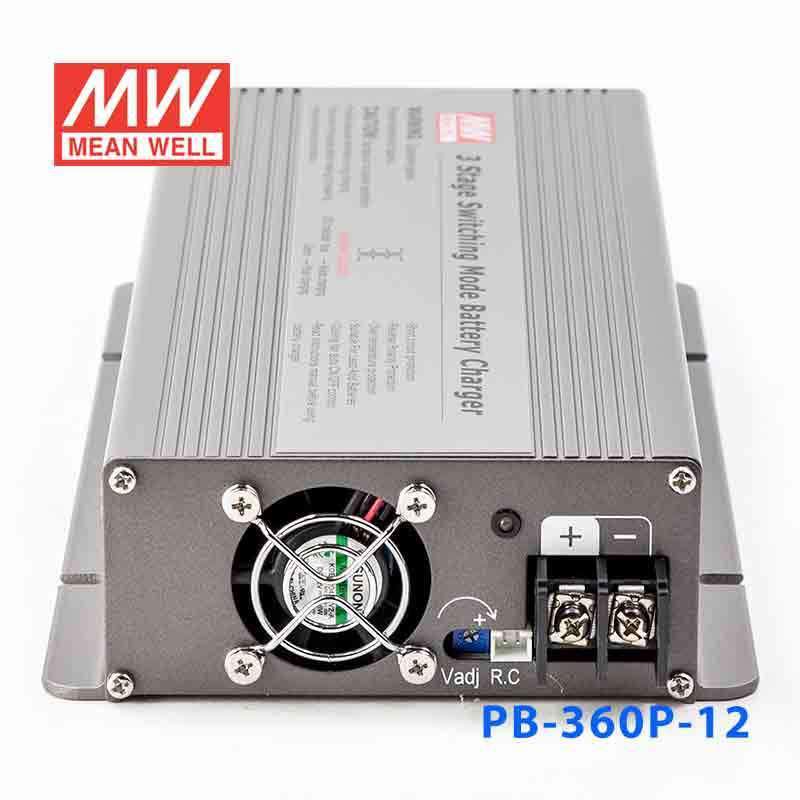

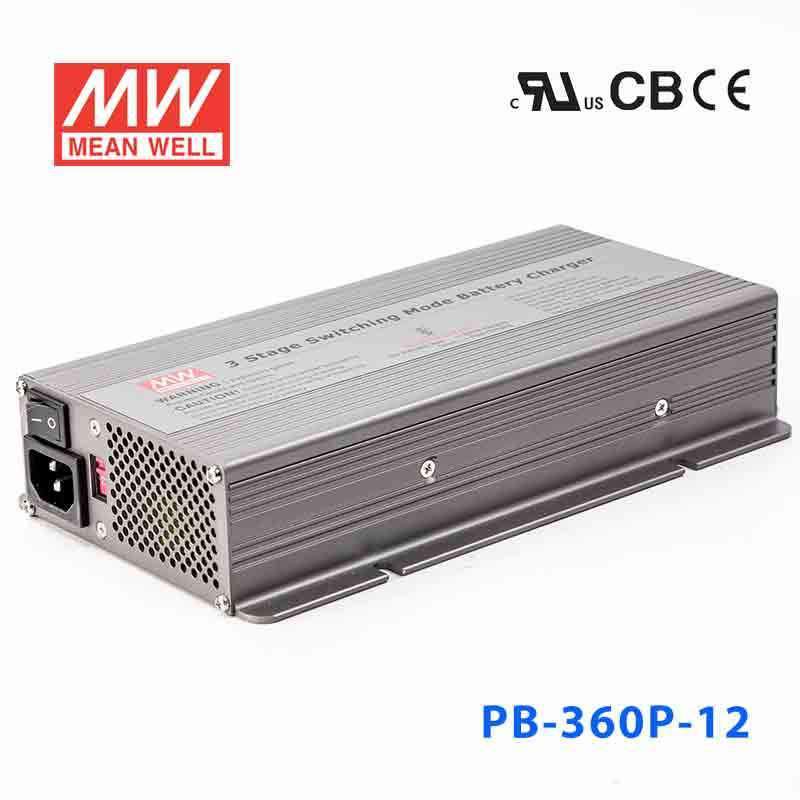

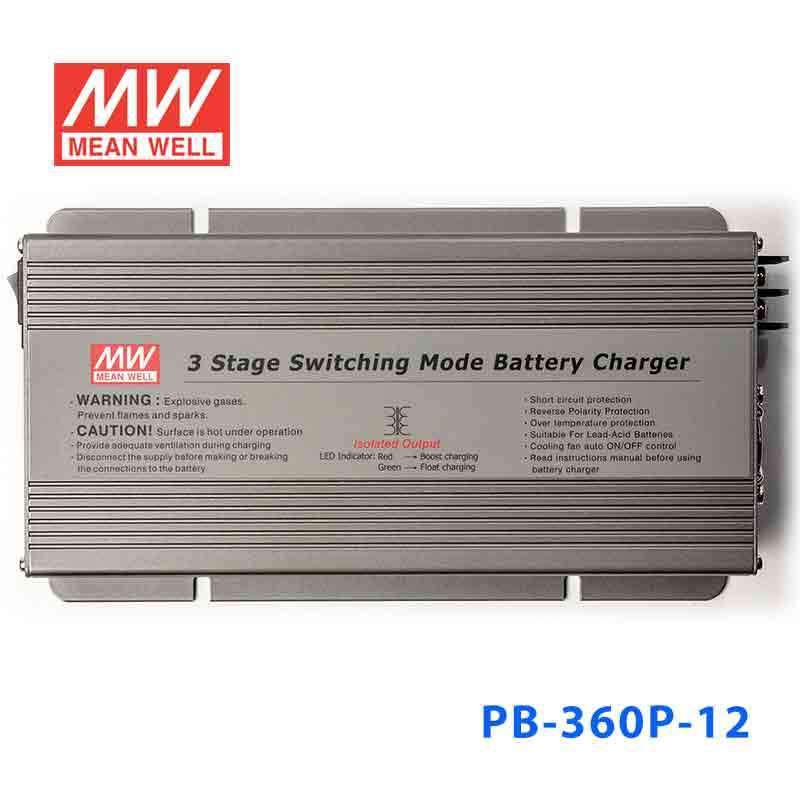

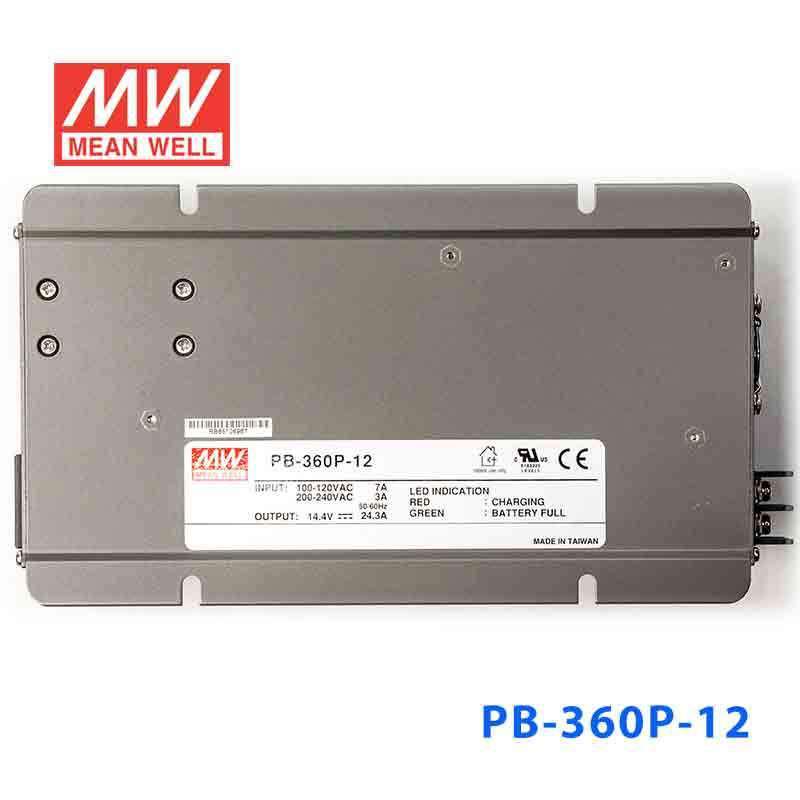

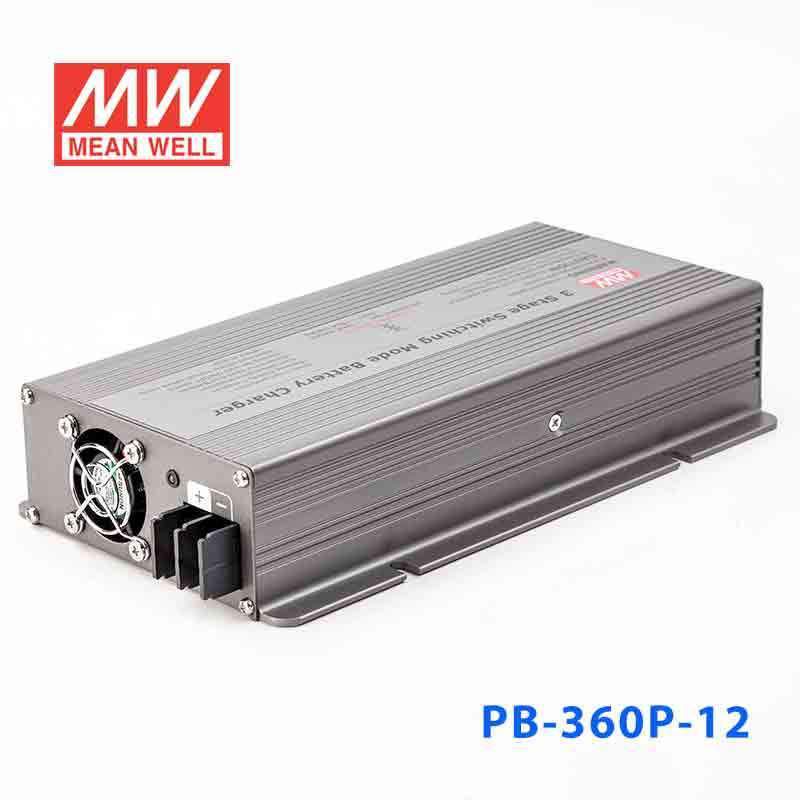

Mean Well PB-360P-12 Battery Chargers 360W 14.4V 24.3A - 3 Stage W/PFC
$116.18 USD
Unit price /
Unavailable
Description
Description
Features
| Charger for lead-acid batteries (flooded, Gel and AGM) and Li-ion batteries (lithium iron and lithium manganese) |

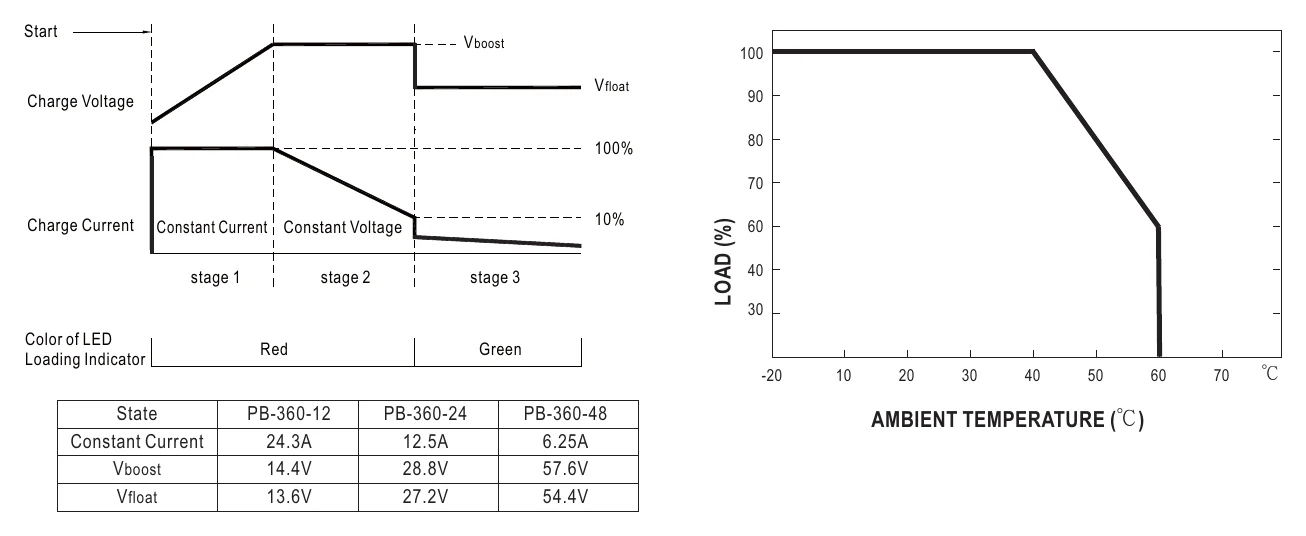

| 3 stage charging |
| AC 115/230VAC selected by switch |
| Built-in passive PFC function compliance to BS EN/EN61000-3-2 Class A (option) |
| Protection: Short circuit / Reverse polarity / Over voltage / Over temperature |
| 2 color LED loading indicator |
| Low cost, High reliability |
| 2 color LED loading indicator |
| FAN on/off control (Depends on charging current |
| 3 years warranty |
General Specification
| AC input voltage range | 90 ~ 132VAC / 180 ~ 264VAC selected by switch; 127 ~ 187VDC / 254 ~ 370VDC |
| AC inrush current (max.) | COLD START 60A |
| Over-voltage protection | Protection type: Shut down o/p voltage, re-power on to recover |
| Withstand voltage | I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC |
| Working temperature | -20~+60ºC(refer to output derating curve) |
| Safety standards | IEC60335-2-29 CB approved by TUV(except for 48V), UL62368-1, CSA C22.2 No. 62368-1, EAC TP TC 004 approved, Design refer to BS EN/EN62368-1 for P-type only |
| EMC standards |
EN55022(CISPR22) Class B,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11,EN55024 |

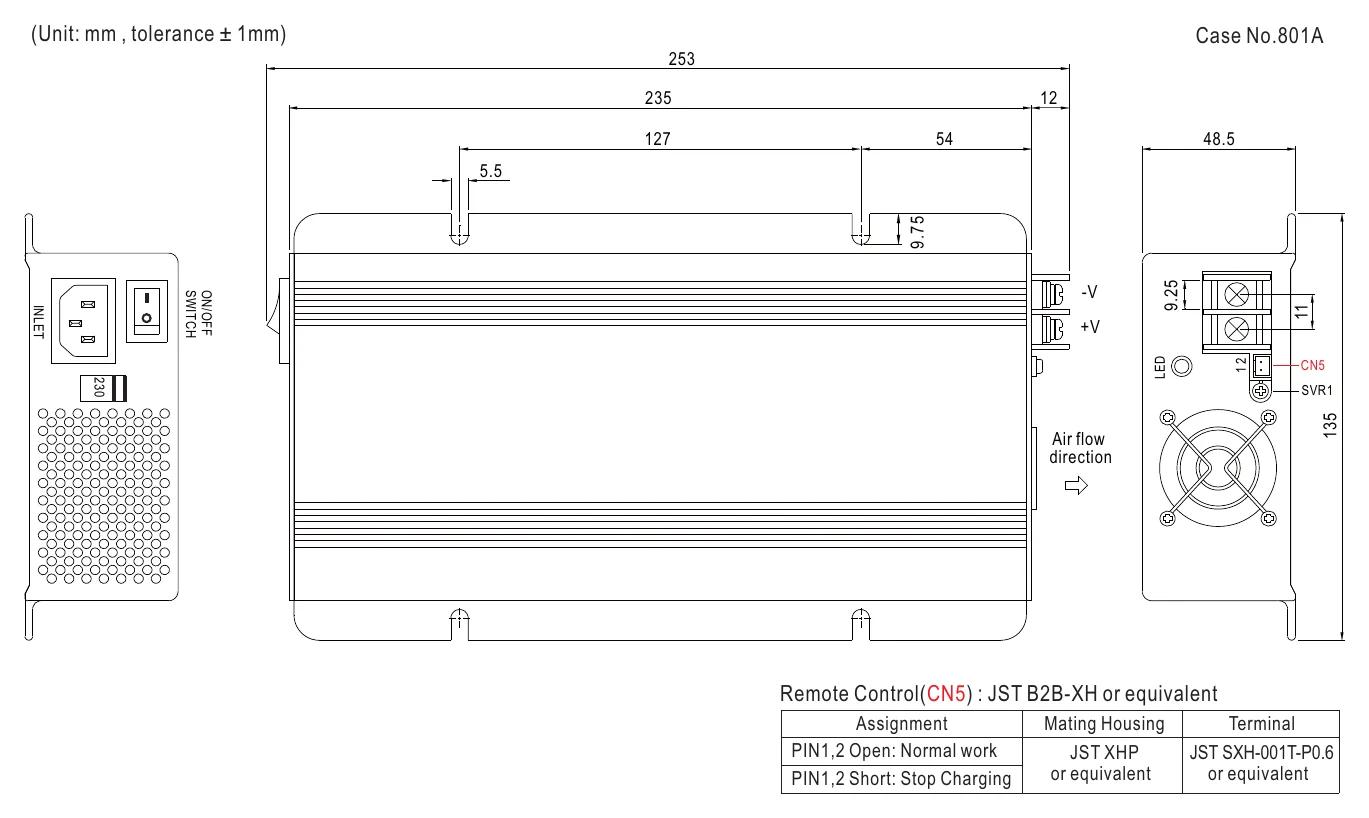

| Dimension (LxWxH) (mm) | 253 x 135 x 48.5mm |
| Packing | 1.5Kg; 6pcs/10Kg/1.03CUFT |
Specifications
Specifications
-
BrandMean Well
-
SeriesPB Series
-
Power Rating360 Watt
-
Output Voltage14.4 Volt
-
Rated Current24.3 Ampere
-
Input Voltage90V~264V
-
Standards MetCB,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~60°C
-
Warranty3 Year
-
Length9.96 in
-
Width5.32 in
-
Height1.91 in
-
Weight3.31 lb
