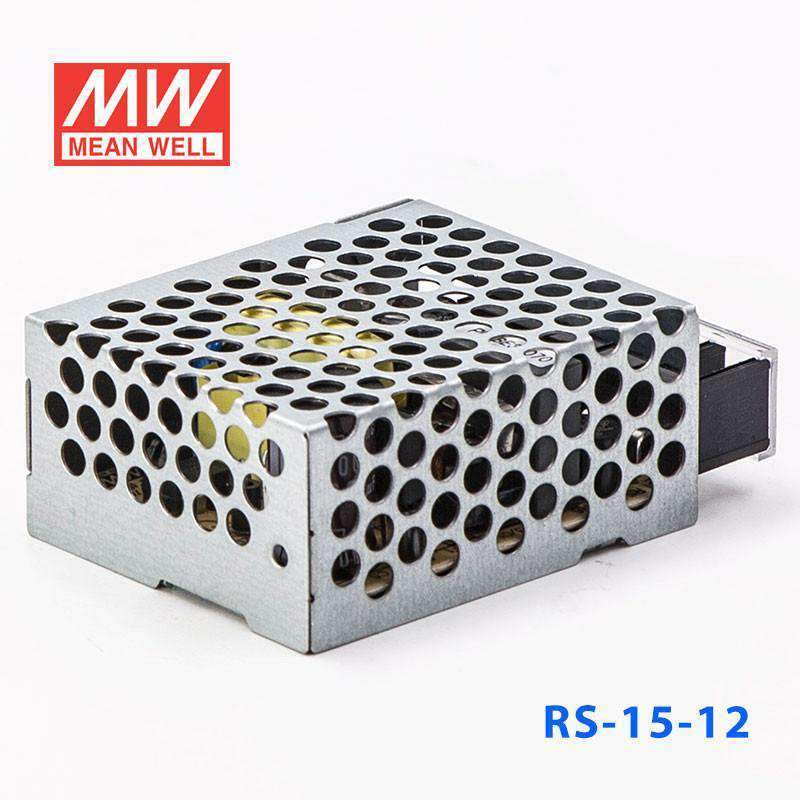

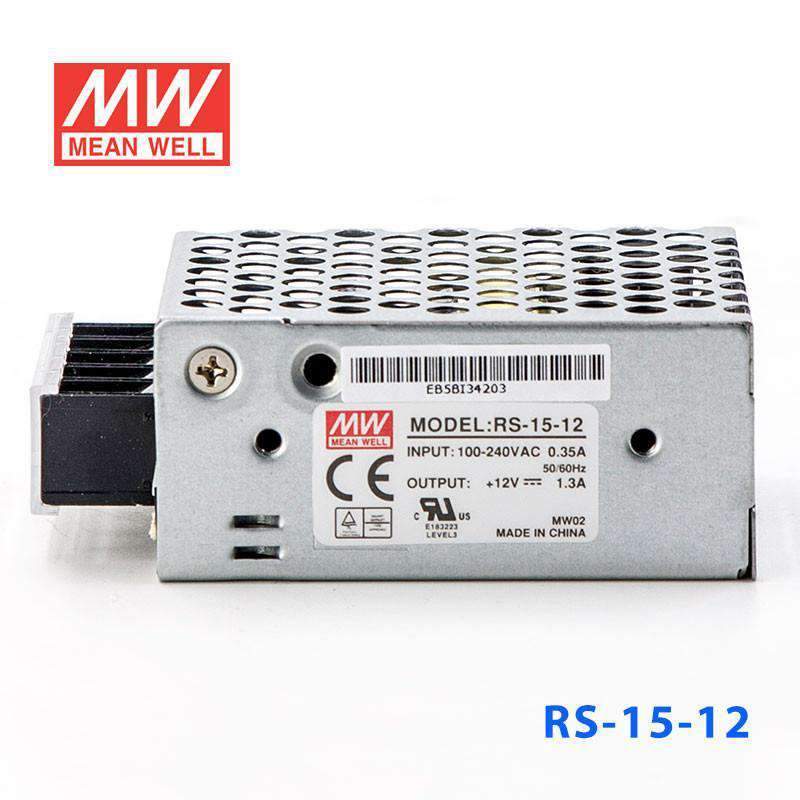

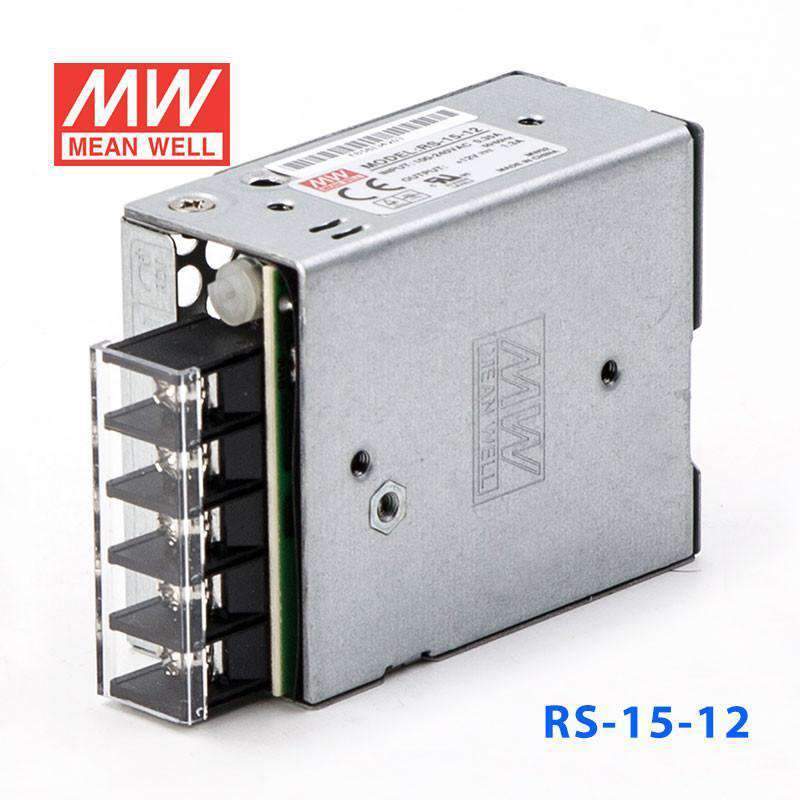

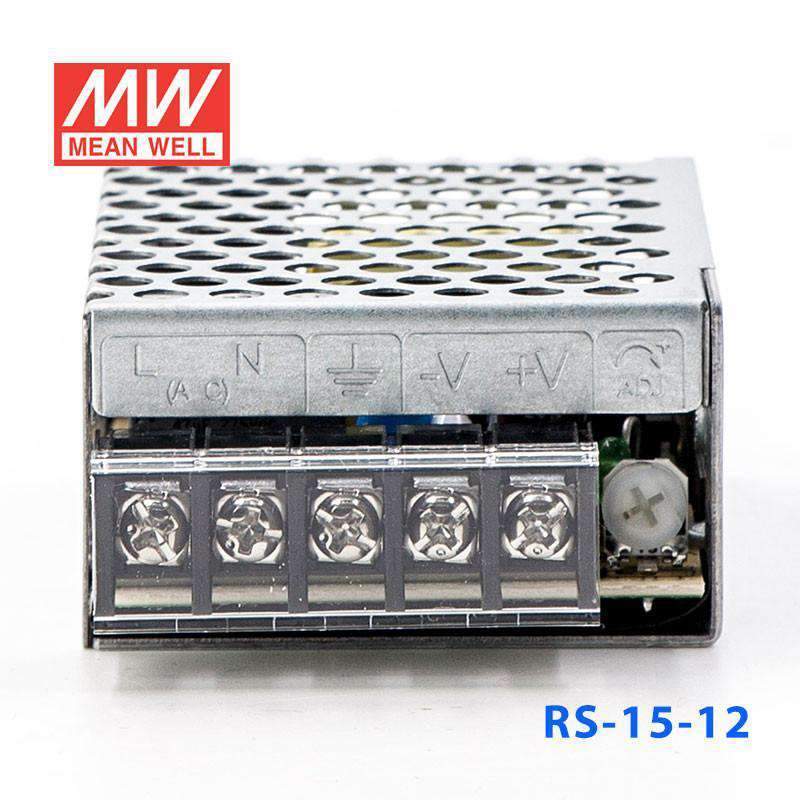

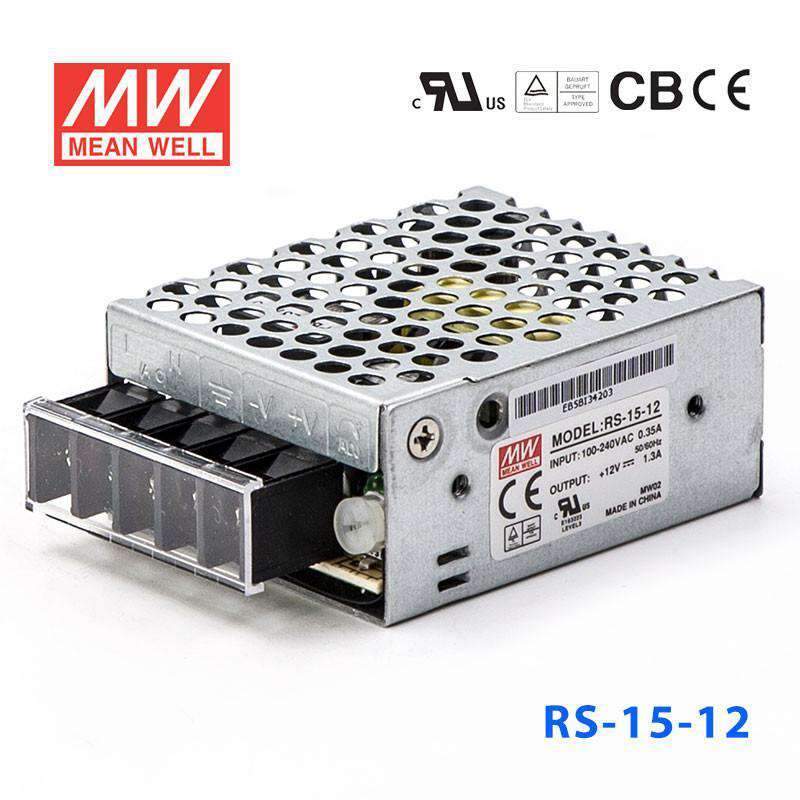

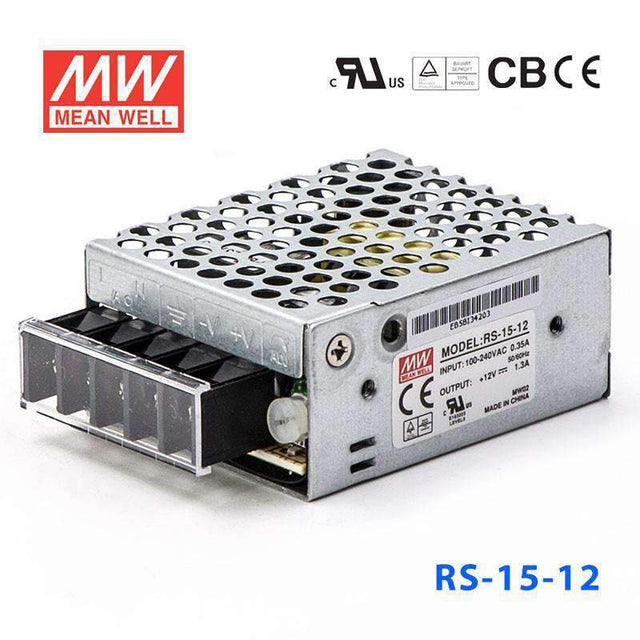

Mean Well RS-15-12 Power Supply 15W 12V 1.3A

Name: Mean Well RS-15-12 Power Supply 15W 12V 1.3A
Brand: Mean Well
SKU: RS-15-12
Price: 10.75 USD
Availability: InStock

miniature sizeeconomicalwithstand 5G vibration and 70°C operation

SKU RS-15-12

$10.75 USD

Shipping calculated at checkout.

Select model — 7 in this family

RS-15-12

RS-15-12 15W 12V In stock$10.75 USD

RS-25-12 25W 12V In stock$12.61 USD

RS-35-12 35W 12V In stock$17.32 USD

RS-50-12 50W 12V In stock$18.74 USD

RS-75-12 75W 12V In stock$22.70 USD

RS-100-12 100W 12V In stock$30.44 USD

RS-150-12 150W 12V In stock$32.60 USD

Product variants

In stock

Overview

RS-15-12 is the 12V output model of this series: rated current 1.3A, rated power 15.6W, typical efficiency 81%.

Features

Universal AC input / Full range
Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection
LED indicator for power on
100% full load burn-in test
No load power consumption<0.5W
All using 105℃ long life electrolytic capacitors
Withstand 300VAC surge input for 5 second
High operating temperature up to 70℃
Withstand 5G vibration test
High efficiency, long life and high reliability
3 years warranty

Specifications

RS-15-12Specifications from the official datasheet (2026-04-10 edition)

OUTPUT

DC VOLTAGE: 12V
RATED CURRENT: 1.3A
CURRENT RANGE: 0 ~ 1.3A
RATED POWER: 15.6W
RIPPLE & NOISE (max.)^Note.2: 120mVp-p
VOLTAGE ADJ. RANGE: 10.8 ~ 13.2V
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION^Note.4: ±0.5%
LOAD REGULATION^Note.5: ±0.5%
SETUP, RISE TIME: 1000ms, 30ms/230VAC 1000ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.): 70ms/230VAC 12ms/115VAC at full load

INPUT

VOLTAGE RANGE: 85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 81%
AC CURRENT (Typ.): 0.35A/115VAC 0.25A/230VAC
INRUSH CURRENT (Typ.): COLD START 65A / 230VAC
LEAKAGE CURRENT: <2mA / 240VAC

PROTECTION

OVERLOAD: Above 105% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 13.8 ~ 16.2V Protection type : Shut off o/p voltage, clamping by zener diode
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.: -20 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC (Note 6)

SAFETY STANDARDS: UL62368-1, TUV BS EN/EN62368-1 , AS/NZS 62368.1, EAC TP TC 004, CCC GB4943.1, BSMI CNS15598-1, BIS IS13252(Part1):2010/IEC 60950-1: 2005 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/ EN61000-3-2,-3,GB9254 class B,GB17625.1, EAC TP TC 020, CNS15936 Class B
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2, 3, 4, 5, 6, 8,11, BS EN/EN55035, BS EN/EN61000-6-1, light industry level, EAC TP TC 020

OTHERS

MTBF: 4914.9K hrs min. Telcordia SR-332 (Bellcore) ; 1608.9K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 62.5*51*28mm (L*W*H)
PACKING: 0.13Kg; 108pcs/15Kg/0.8CUFT

Test conditions and notes7

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Line regulation is measured from low line to high line at rated load.
5. Load regulation is measured from 0% to 100% rated load.
6. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 230mm*230mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

RS-15-12 Mechanical Specification — Mechanical Specification

RS-15-12 Derating Curve — Derating Curve

Downloads

Certificates3

UL Certificate (RS-15)(EN) PDF Download

CB Certificate (RS-15)(EN) PDF Download

TUV Certificate (RS-15)(EN) PDF Download

Test reports1

Test Report (RS-15-12)(EN) PDF Download

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the RS-15-12 for a small 12V sensor or relay circuit in industrial equipment?

Yes, it provides a constant 12V output with up to 1.3A and 15.6W available. That makes it appropriate for lower-power 12V control loads that do not need the higher current of larger 12V models.

Is the RS-15-12 a good fit for compact embedded 12V electronics?

It can be a good fit for embedded 12V devices that stay within 1.3A and 15.6W. Its 62.5 × 51.0 × 28.0 mm dimensions and 0.13 kg weight are useful where board or enclosure space is tight.

Can this model power a small 12V automation accessory or interface board?

Yes, if the accessory requires a regulated 12V constant-voltage supply and its demand stays at or below 1.3A. It also accepts 85-264VAC input, which helps in applications that may see different AC input conditions.

Is the RS-15-12 suitable for outdoor use or only indoor enclosures?

The specs show an operating range of -20°C to +70°C, with output derating at higher ambient temperatures, and note 5G vibration resistance. No IP rating is listed, so the product data supports temperature capability but does not confirm weather-exposed outdoor use.
