Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

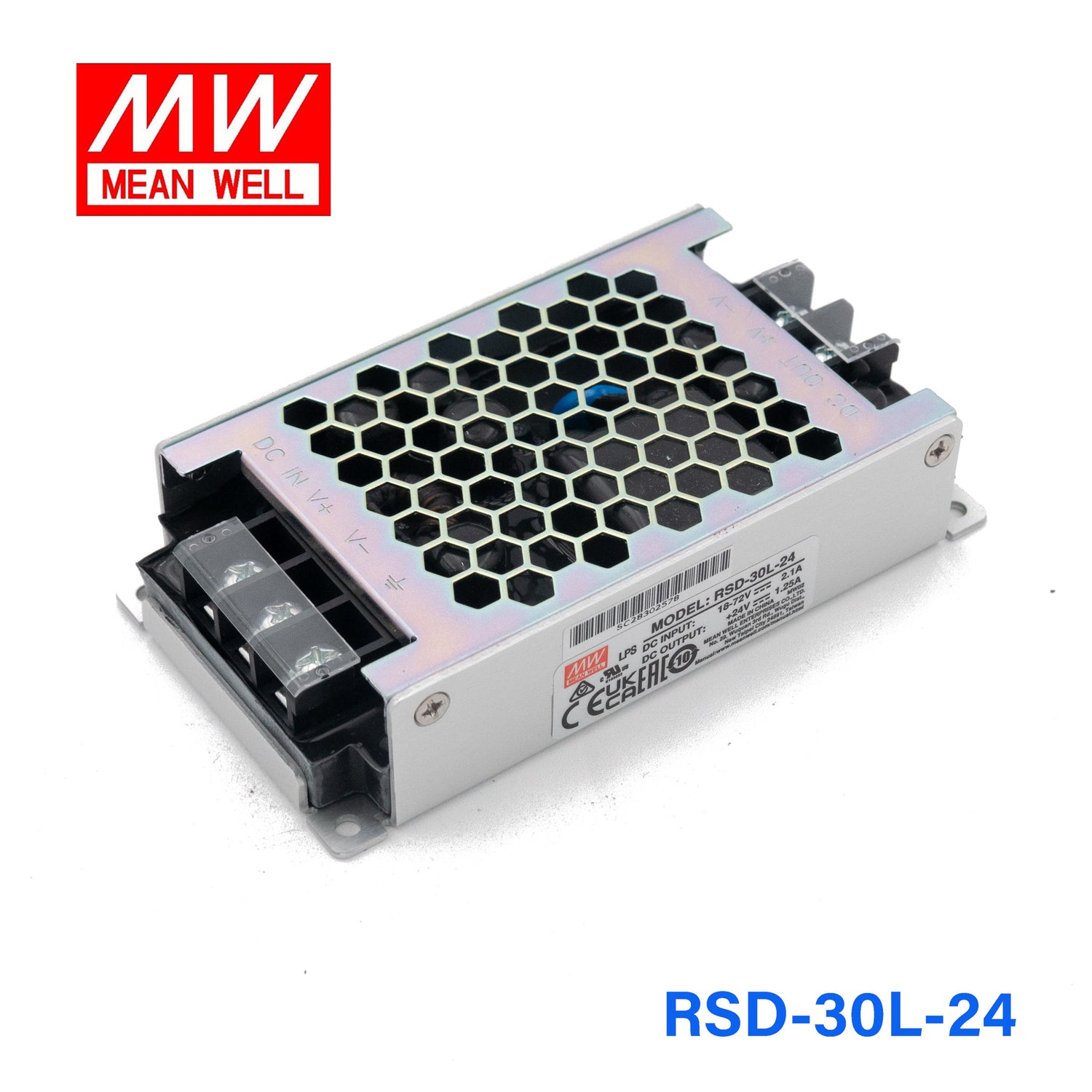

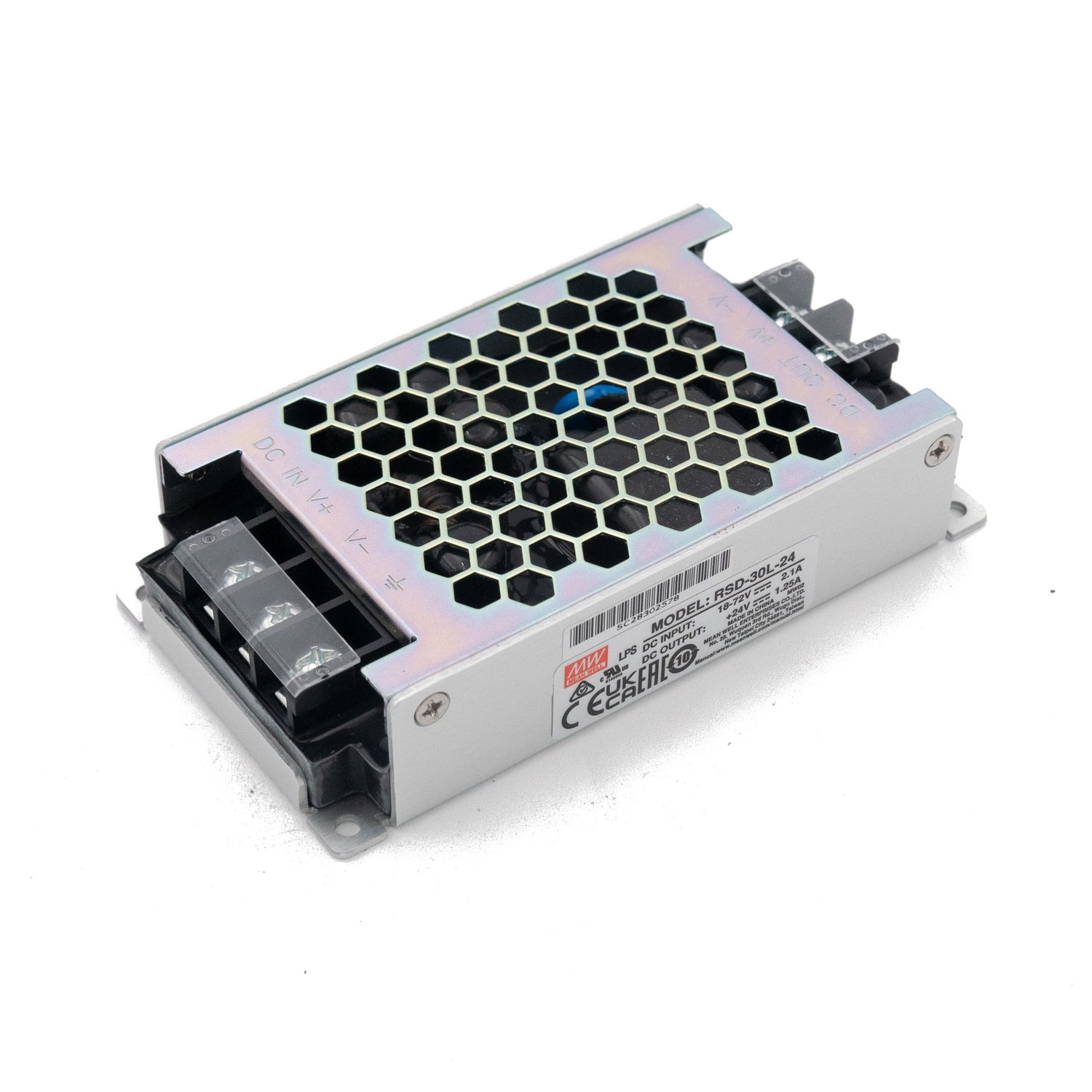

Mean Well RSD-30L-24 DC-DC Converter - 30W - 18~72V in 24V out
$35.12 USD
Unit price /
Unavailable
Description
Description
Features
| Compliance with BS EN/EN50155 and BS EN/EN45545-2 railway standard |
| Ultra compact and 1U low profile(25mm |
| 4:1 wide input range |
| No minimum load required |
| Protections: Short circuit / Overload / Over voltage / Input reverse polarity / Over temp. |
| 4000VDC I / O isolation |
| Half encapsulated, cooling by free air convection |
| -40~+70℃ wide working temperature |
| The built-in constant current limiting circuit |
| LED indicator for power on |
| 100% full load burn-in test |
| 3 years warranty |
General Specification
| Line regulation (max.) | ± 0.5% |
| Load regulation (max.) | ± 0.5% |
| Overload protection Range | 105% ~ 135% |
| Overload protection Type | Constant current limiting recovers automatically after the fault condition is removed |
| Over-voltage protection | 115% to 135% Shutdown O / P voltage, re-power on to recover |
| Withstand voltage | I / PO / P: 4kVDC, I / P-FG: 2.5kVDC, O / P-FG: 2.5kVDC, 1 minute |
| Isolation resistance | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH |
| Working temperature | -40 ~ + 85°C (refer to output derating curve) |
| Safety standards | IEC 62368-1, UL 62368-1, AS/NZS 62368-1, EAC TP TC 004 approved, Design refer to BS EN/EN62368-1 |
| EMC standards | EN55022 class B, EN50121-3-2, EN61000-4-2,3,4,5,6,8 |
| Railway standard | EN50155 / IEC60571 |
| Dimension (LxWxH) (mm) | 113 x 60 x 25mm |
| Packing | 0.25Kg; 56pcs/15Kg/0.81CUFT |
Specifications
Specifications
-
BrandMean Well
-
SeriesRSD Series
-
Power Rating30 Watt
-
Output Voltage24 Volt
-
Rated Current1.25 Ampere
-
Input Voltage18V~72V
-
Standards MetCB,CE,EAC,EMC,RCM
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty3 Year
-
Length4.45 in
-
Width2.36 in
-
Height0.98 in
-
Weight0.55 lb
