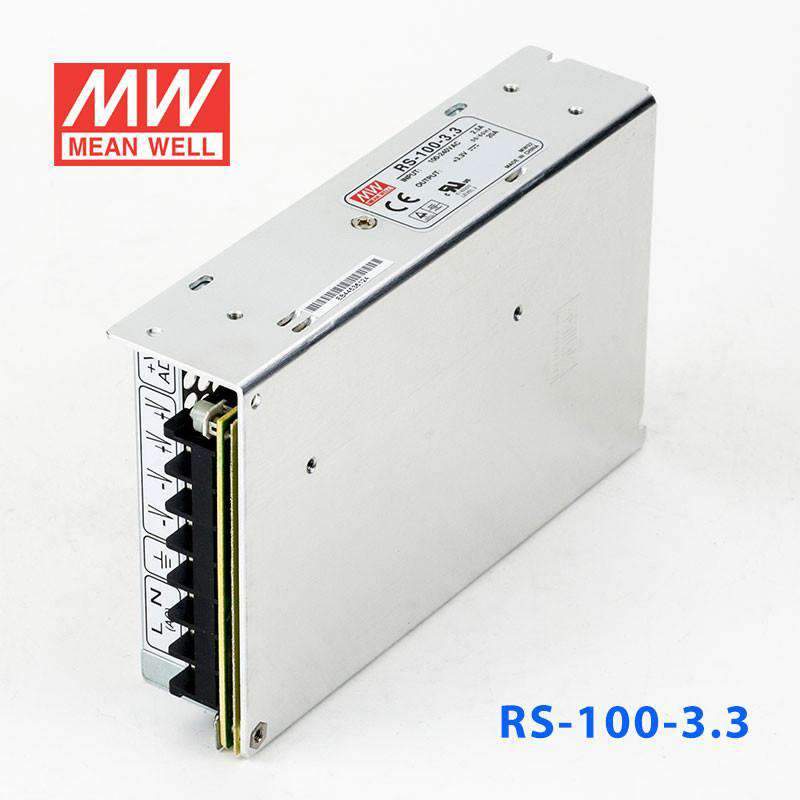

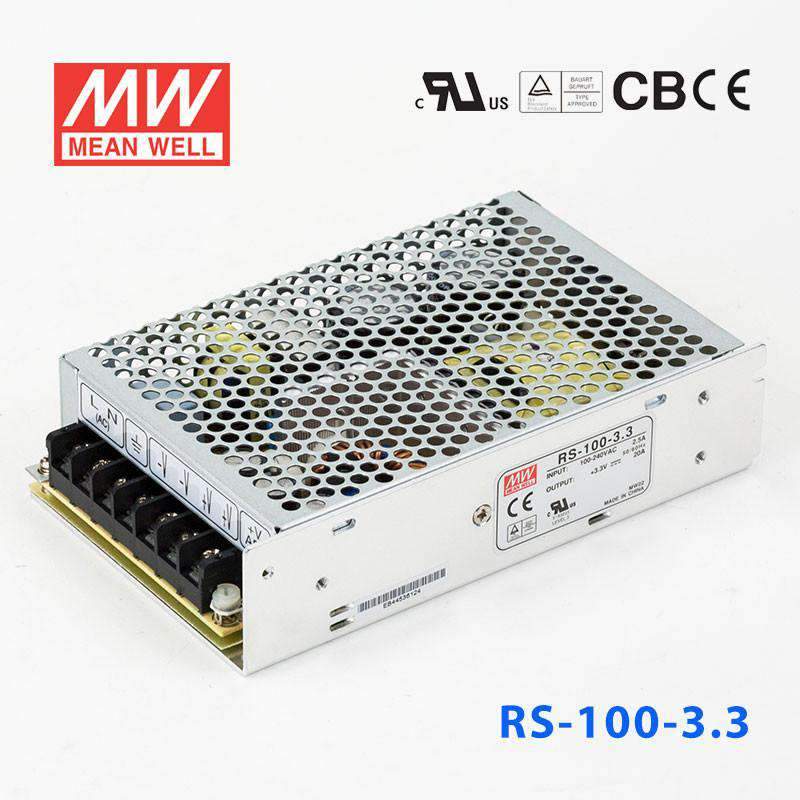

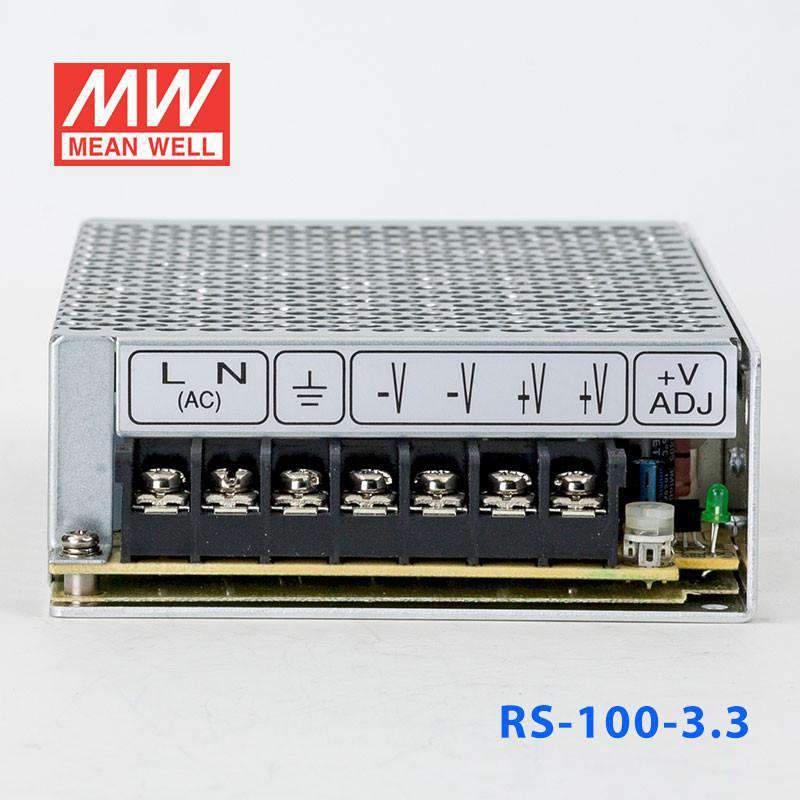

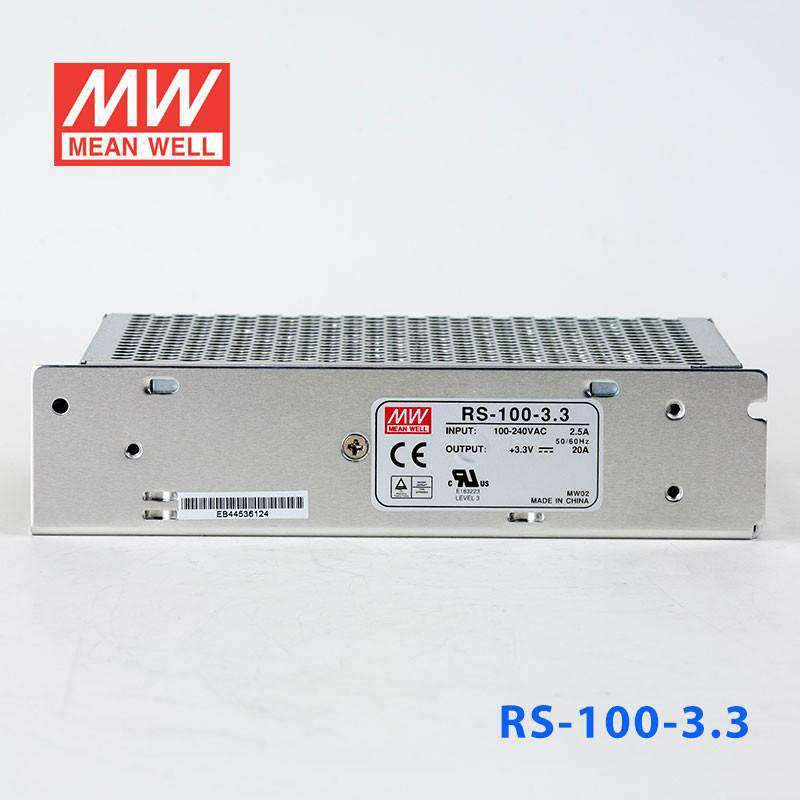

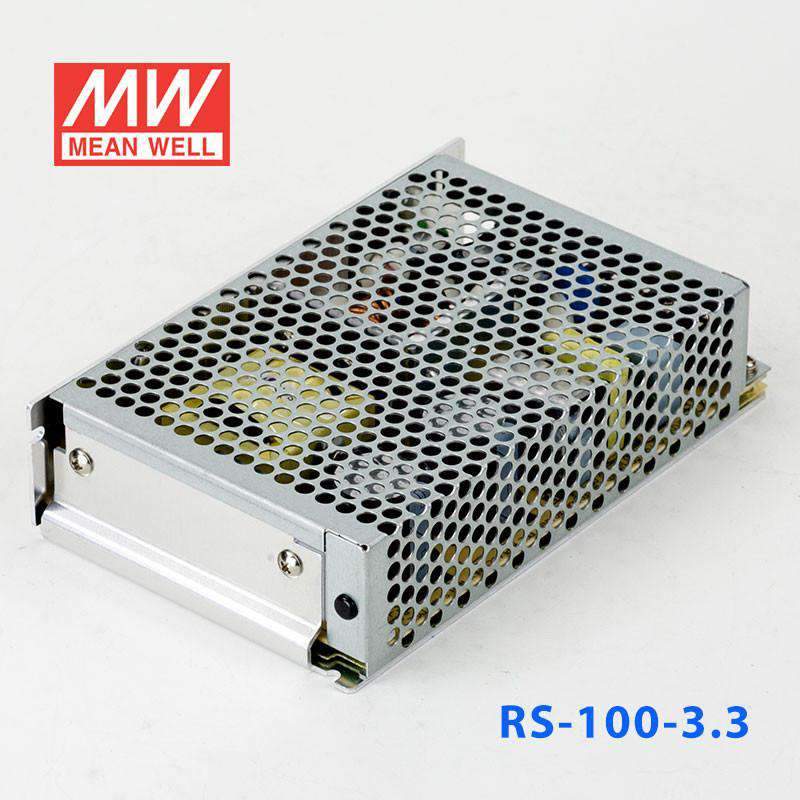

Mean Well RS-100-3.3 Power Supply 100W 3.3V 20A

Name: Mean Well RS-100-3.3 Power Supply 100W 3.3V 20A
Brand: Mean Well
SKU: RS-100-3.3
Price: 30.43 USD
Availability: InStock

miniature sizeeconomicalwithstand 5G vibration and 70°C operation

SKU RS-100-3.3

$30.43 USD

Shipping calculated at checkout.

Select model — 7 in this family

RS-100-3.3

RS-15-3.3 15W 3.3V In stock$10.95 USD

RS-25-3.3 25W 3.3V Low stock$12.61 USD

RS-35-3.3 35W 3.3V Low stock$17.43 USD

RS-50-3.3 50W 3.3V Low stock$18.73 USD

RS-75-3.3 75W 3.3V Backorder$22.69 USD

RS-100-3.3 100W 3.3V Low stock$30.43 USD

RS-150-3.3 150W 3.3V Low stock$32.59 USD

Product variants

In stock

Overview

RS-100-3.3 is the 3.3V output model of this series: rated current 20A, rated power 66W, typical efficiency 74%.

Features

Universal AC input / Full range
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
LED indicator for power on
100% full load burn-in test
All using 105℃ long life electrolytic capacitors
Withstand 300VAC surge input for 5 second
High operating temperature up to 70℃
Withstand 5G vibration test
High efficiency, long life and high reliability
3 years warranty

Specifications

RS-100-3.3Specifications from the official datasheet (2024-11-22 edition)

OUTPUT

DC VOLTAGE: 3.3V
RATED CURRENT: 20A
CURRENT RANGE: 0 ~ 20A
RATED POWER: 66W
RIPPLE & NOISE (max.)^Note.2: 80mVp-p
VOLTAGE ADJ. RANGE: 3.2V ~ 3.5V
VOLTAGE TOLERANCE^Note.3: ±3.0%
LINE REGULATION^Note.4: ±0.5%
LOAD REGULATION^Note.5: ±2.0%
SETUP, RISE TIME: 500ms, 20ms/230VAC 1200ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.): 95ms/230VAC 17ms/115VAC at full load

INPUT

VOLTAGE RANGE: 88 ~ 264VAC 125 ~ 373VDC (Withstand 300VAC surge for 5sec. Without damage)
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 74%
AC CURRENT (Typ.): 2.5A/115VAC 1.5A/230VAC
INRUSH CURRENT (Typ.): COLD START 40A/230VAC
LEAKAGE CURRENT: <2mA / 240VAC

PROTECTION

OVERLOAD: 110 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 3.8 ~ 4.45V Protection type : Hiccup mode, recovers automatically after fault condition is removed

ENVIRONMENT

WORKING TEMP.: -25 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC (Note 6)

SAFETY STANDARDS: UL62368-1, TUV BS EN/EN62368-1, AS/NZS 62368.1, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level, EAC TP TC 020

OTHERS

MTBF: 3196.6K hrs min. Telcordia SR-332 (Bellcore) ; 526.7K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 159*97*38mm (L*W*H)
PACKING: 0.6Kg; 24pcs/15.4Kg/0.83CUFT

Test conditions and notes8

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Line regulation is measured from low line to high line at rated load.
5. Load regulation is measured from 0% to 100% rated load.
6. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
7. Length of set up time is measured at cold first start. Turning ON/OFF the power supply very quickly may lead to increase of the set up time.
8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

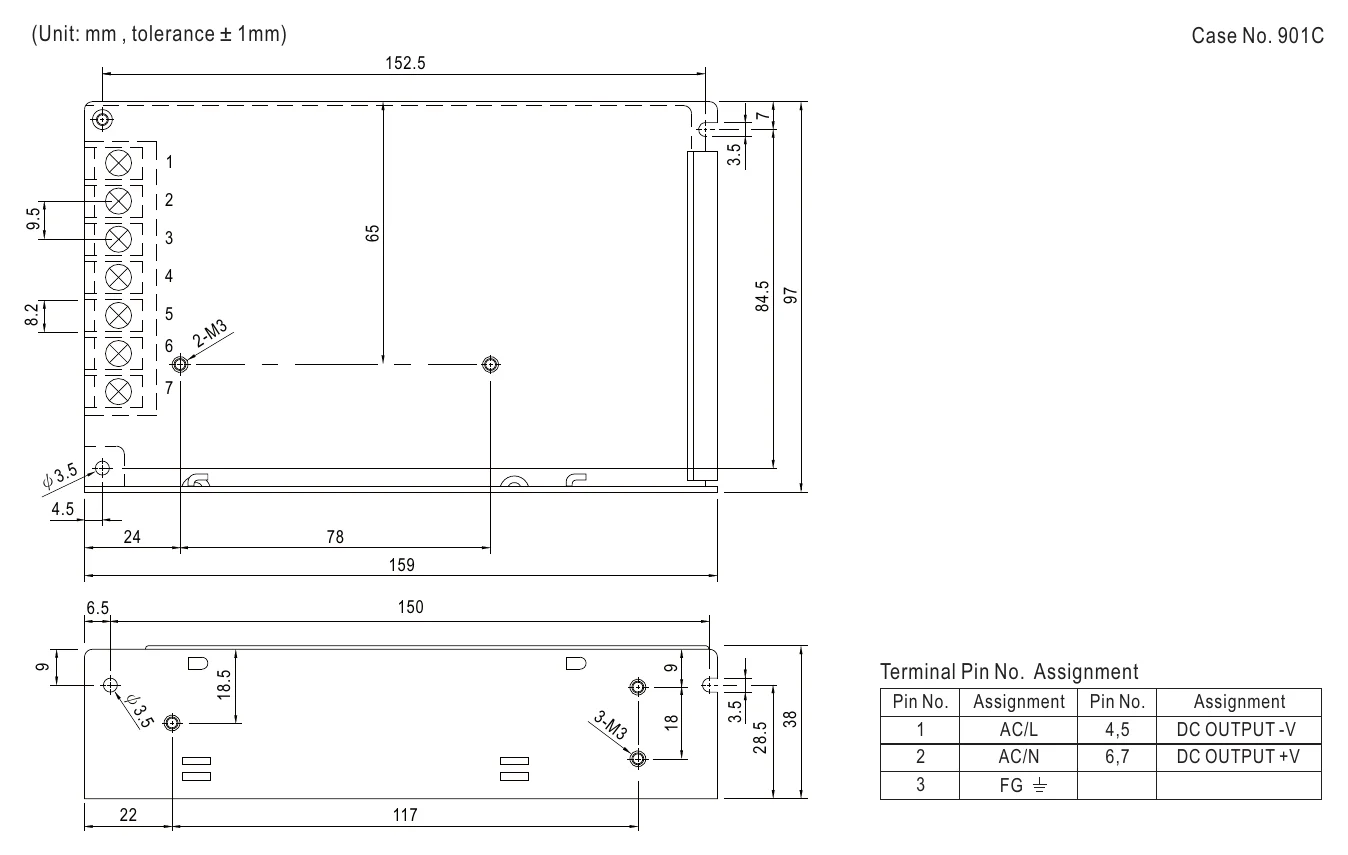

RS-100-3.3 Mechanical Specification — Mechanical Specification

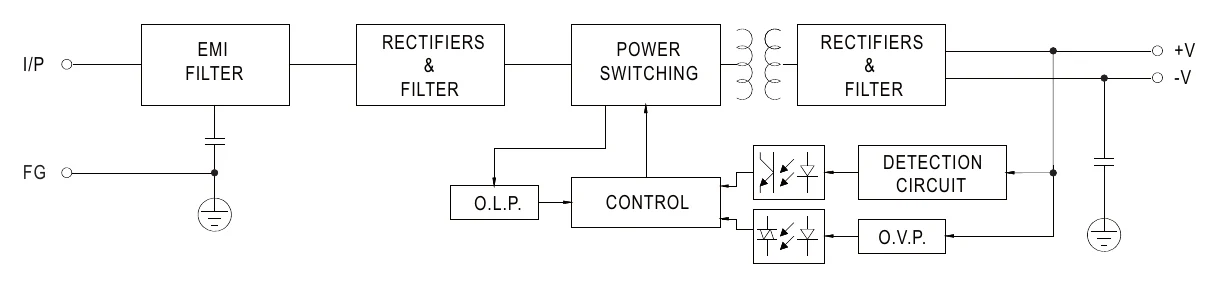

RS-100-3.3 Block Diagram — Block Diagram

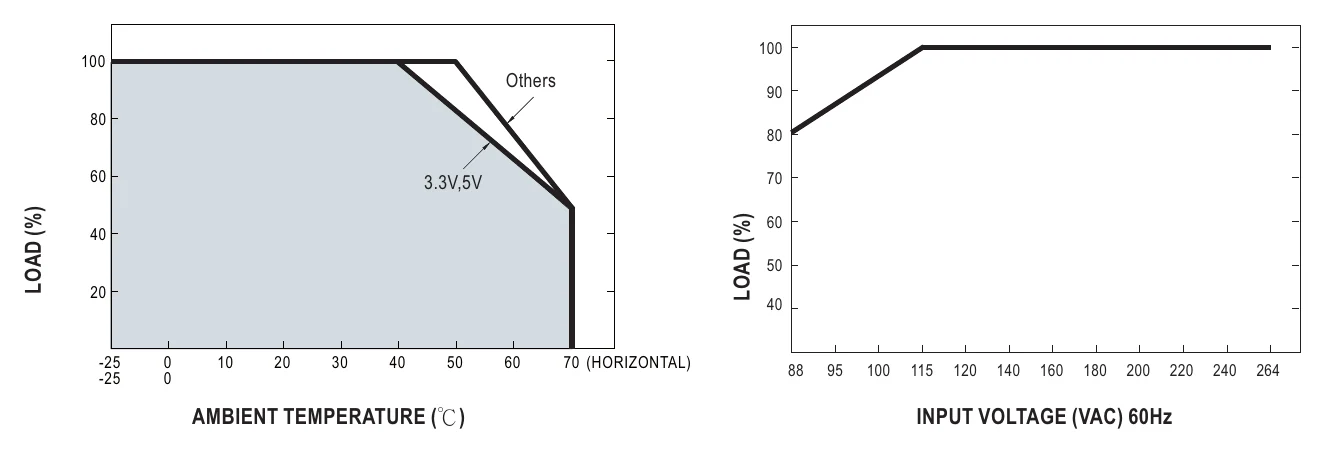

RS-100-3.3 Derating Curve — Derating Curve

Downloads

Certificates4

UL Certificate (RS-100)(EN) PDF Download

CB Certificate (RS-100)(EN) PDF Download

TUV Certificate (RS-100)(EN) PDF Download

EMC Certificate (RS-100)(EN) PDF Download

Test reports1

Test Report (RS-100-3.3)(EN) PDF Download

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the RS-100-3.3 for 3.3V logic, FPGA, or processor-heavy embedded hardware?

Yes, it is a constant-voltage 3.3V supply rated for 20A and 66W. That makes it relevant for embedded or digital hardware that needs a high-current 3.3V rail in an enclosed system.

Is the RS-100-3.3 suitable for industrial electronics that run on a 3.3V bus?

It can fit industrial electronics designed for 3.3V constant voltage, as long as the total draw remains within 20A and 66W. Its 88-264VAC input also supports equipment intended for a broad AC input range.

Can this model power multiple 3.3V control or communications boards in one enclosure?

It is suited to grouped 3.3V loads in a protected enclosure when the combined requirement stays within 20A and 66W. The compact 159.0 × 97.0 × 38.0 mm package helps where internal equipment space is tight.

Is the RS-100-3.3 rated for indoor or outdoor conditions?

The listed operating temperature range is -25°C to +70°C, and the features note 5G vibration resistance. No IP rating is provided, so the available specs support protected indoor industrial use rather than direct outdoor exposure.

How does the RS-100-3.3 compare with the other RS-100 models?

The RS-100-3.3 is rated for 66W at 3.3V 20A. Other models in the series include RS-100-5 (80W, 5V 16A), RS-100-12 (102W, 12V 8.5A), RS-100-15 (105W, 15V 7A), RS-100-24 (108W, 24V 4.5A), and RS-100-48 (110.4W, 48V 2.3A).
