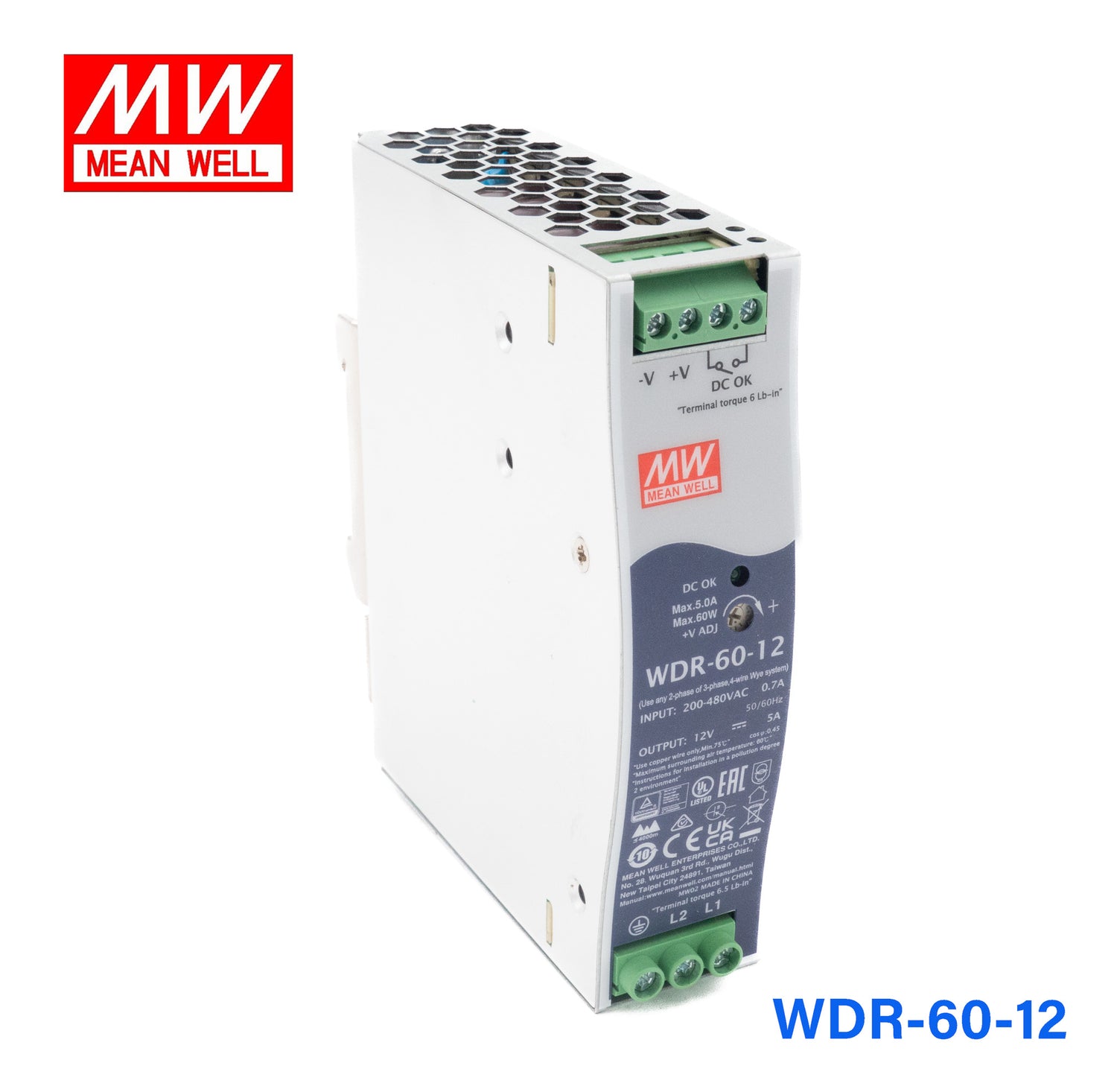

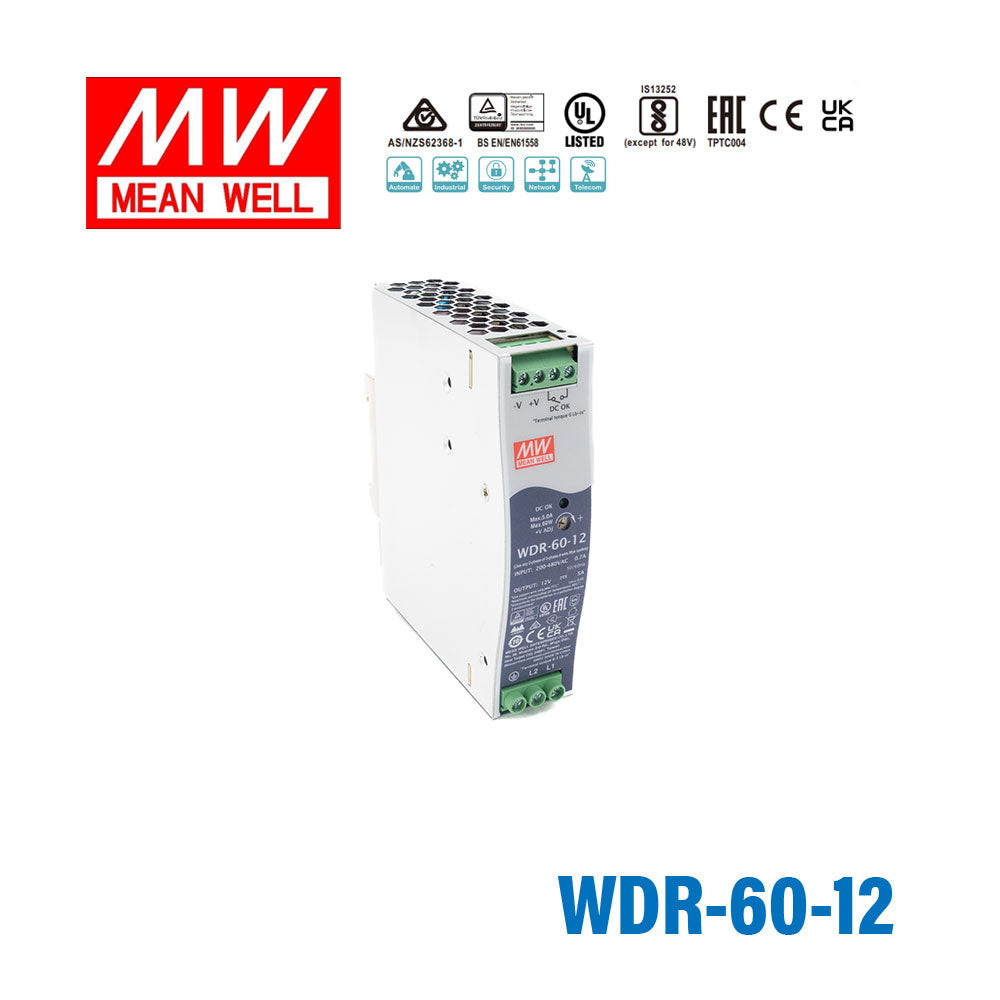

Mean Well WDR-60-12 Single Output Industrial Power Supply 60W 12V - DIN Rail

$52.78 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features

Single and two phase wide input range 180~550VAC
Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection
Built-in constant current limiting circuit

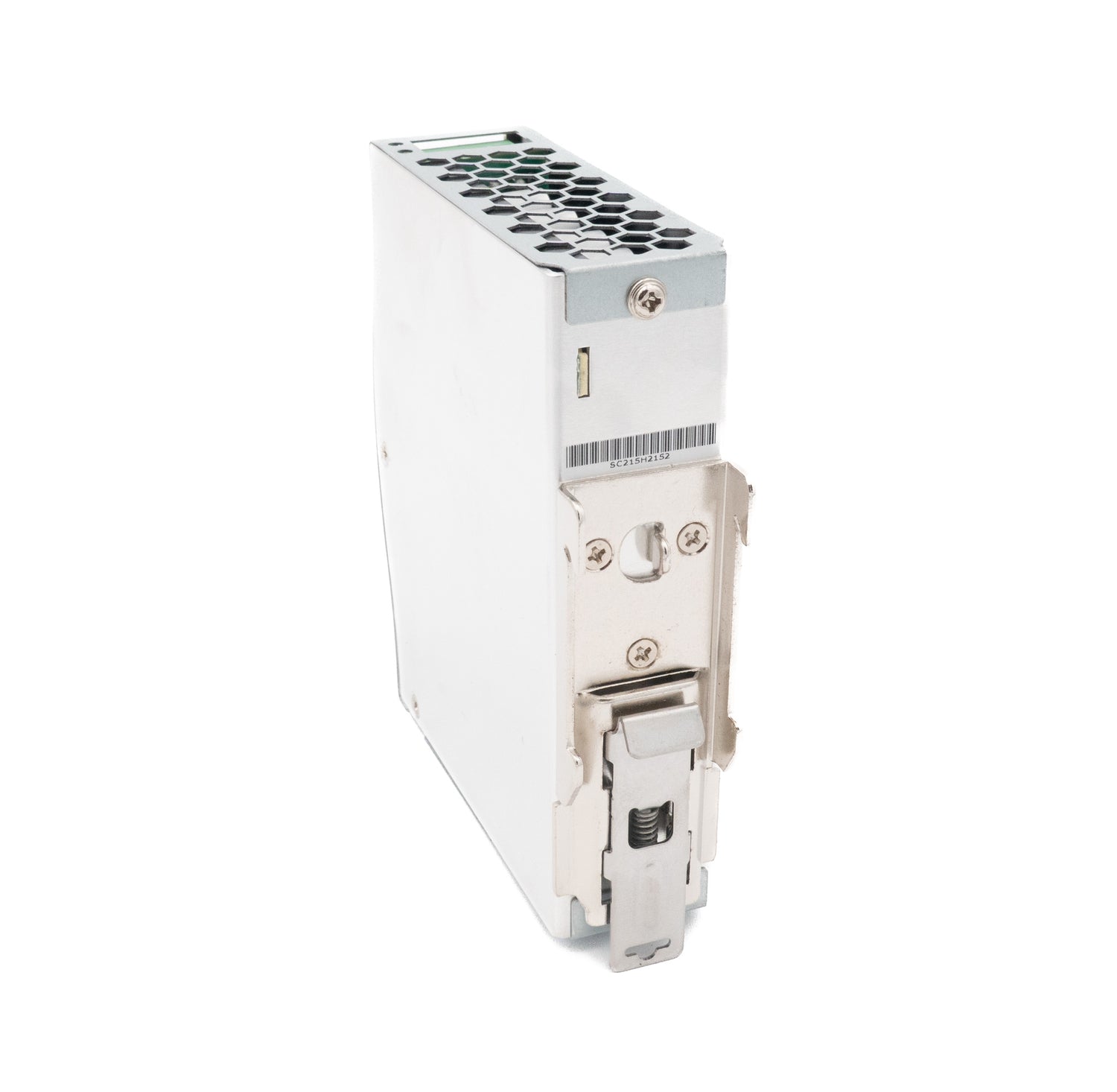

Can be installed on DIN rail TS-35 / 7.5 or 15
4.7KVac I/O high isolation(Reinforced isolation)
Over voltage category III
Built-in DC OK relay contact
DC output voltage adjustable(+20%)
3 years warranty

General Specification

AC input voltage range 180~550VAC(single and two phase); 254~780VDC
AC input current 0.4A / 400VAC, 0.7A / 230VAC
AC inrush current (max.) Cold start, 50A at 400VAC
DC adjustment range 5V: 5-6V, 12V: 12~15V, 24V: 24~29V, 48V: 48~57V
Overload protection 105%~130% rated output power, constant current limiting, auto-recovery
Over voltage protection Range 6.2~7.2V for 5V model, 16~18V for 12V model, 31~37V for 24V model, 58~60.5V for 48V model
Over voltage protection Type Shut down o/p voltage, auto-recovery
Setup, rise, hold up time 2000ms, 70ms, 10ms at full load and 230VAC; 1000ms, 70ms, 20ms at full load and 400VAC
Over temp. protection Shut down output voltage, recovers automatically after temperature goes down
Withstand voltage I/P-O/P:4.7VAC, I/P-FG:2.5kVAC, O/P-FG:0.5kVAC, O/P-DC OK:0.5kVAC
Working temperature -40~+85°C
DC OK signal Relay Contact
Leakage current <2mA at 530VAC
Vibration 10~500Hz, 2G 10 minutes / 1 cycle, period of 60 minutes each along X, Y, Z axes
Safety standards UL61010 approved ; AS/NZS 62368.1
EMC standards EN55032 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2, EN61204-3

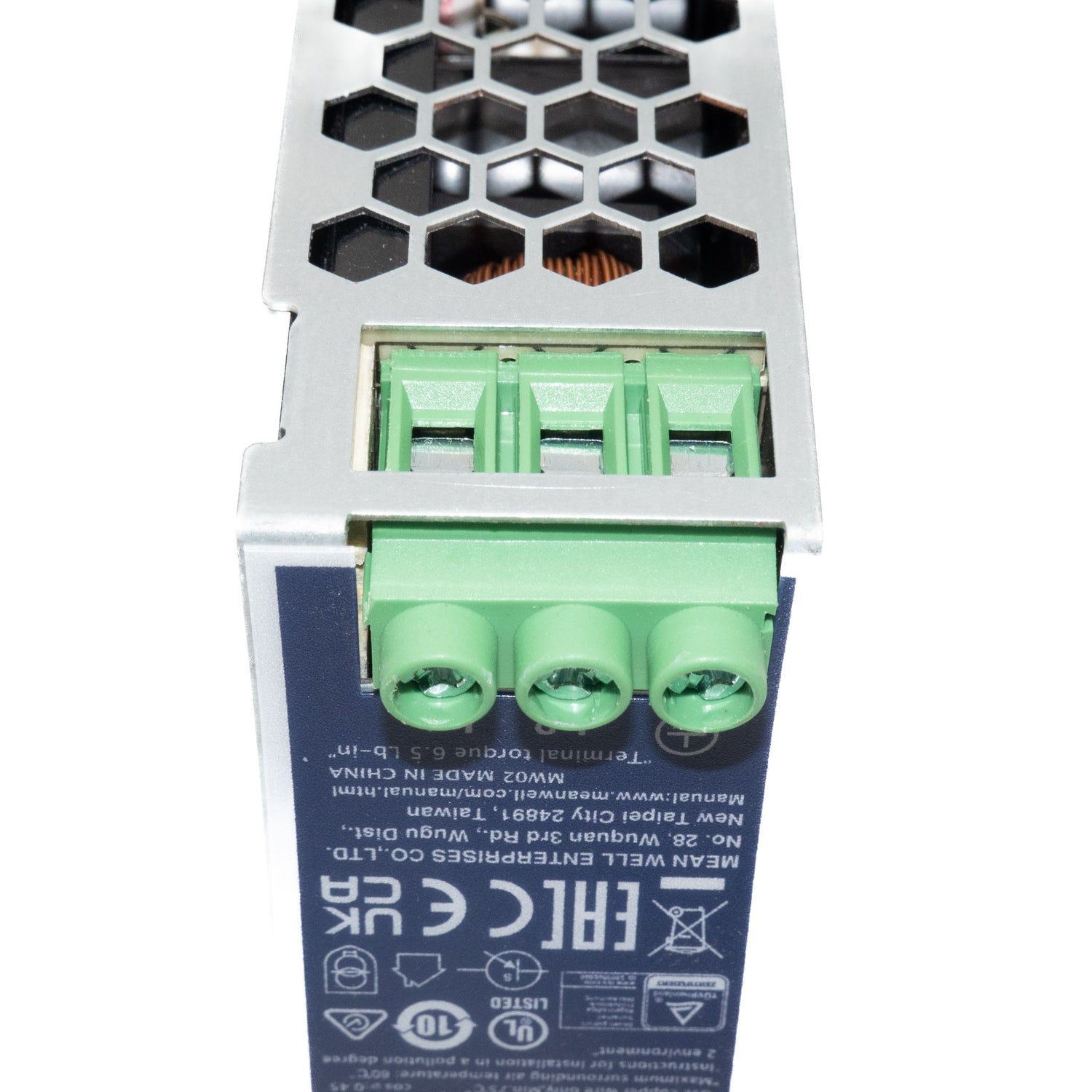

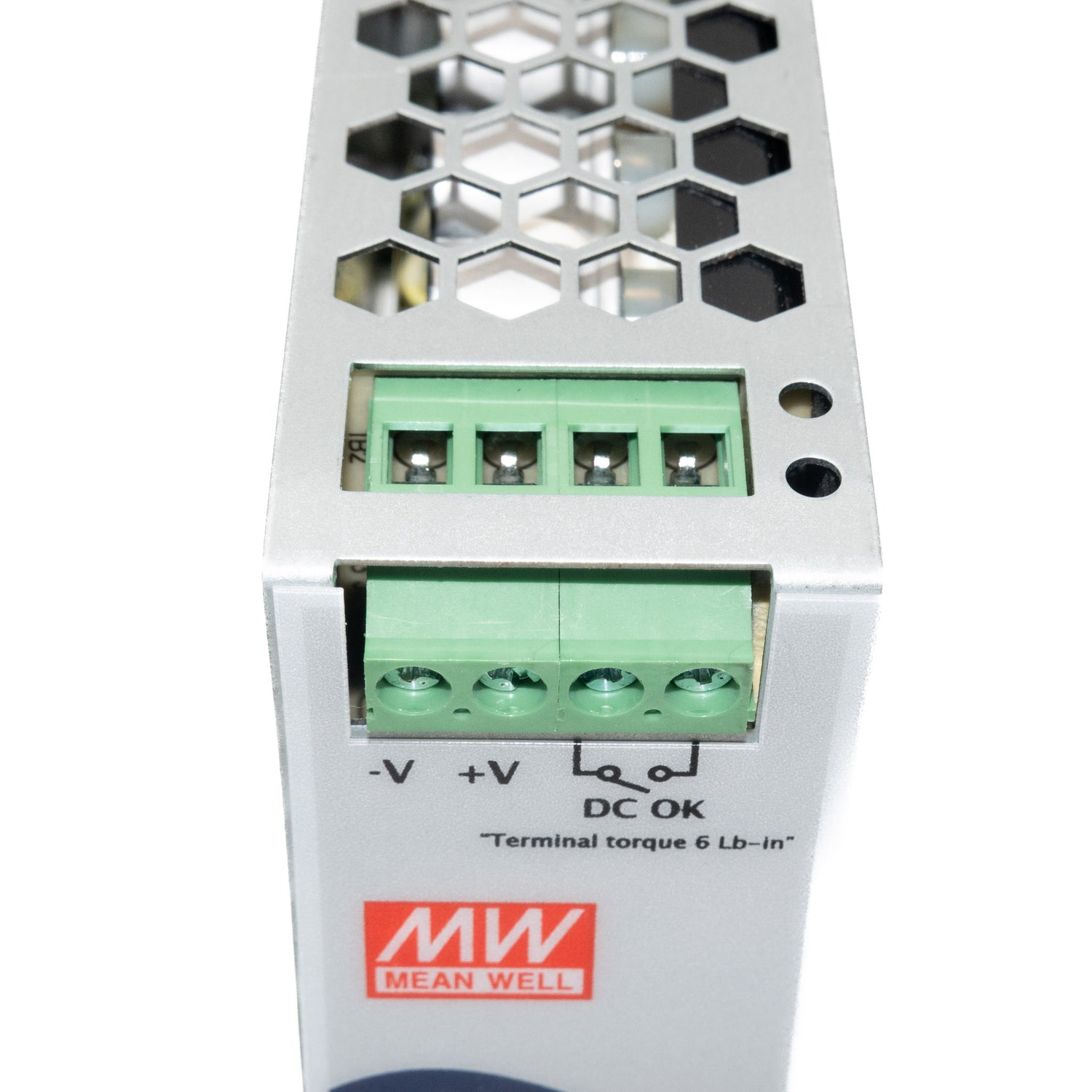

Connection I/P: 3 poles, O/P: 4 poles screw DIN terminal
Dimension (LxWxH) 32x125.2x102
Packing 28pcs / 13.6kg

Specifications

  • Brand
    Mean Well
  • Series
    WDR Series
  • Power Rating
    60 Watt
  • Output Voltage
    12 Volt
  • Rated Current
    5 Ampere
  • Input Voltage
    180V~550V
  • Standards Met
    CE,cUL,EAC,TUV
  • Operating Temperature
    -30°C~85°C
  • Warranty
    3 Year
  • Length
    4.93 in
  • Width
    4.02 in
  • Height
    1.26 in
  • Weight
    0.99 lb
