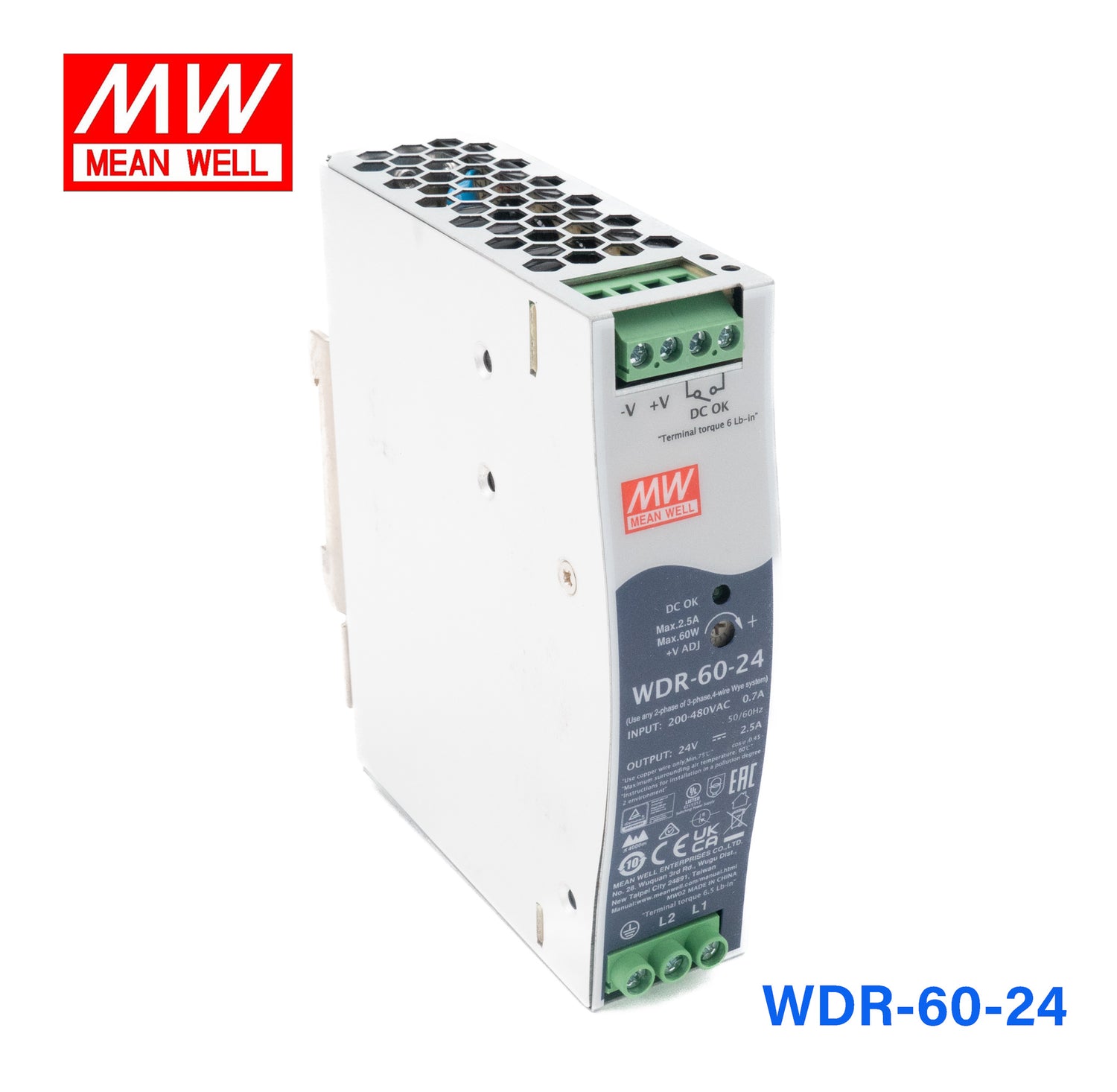

Mean Well WDR-60-24 Single Output Industrial Power Supply 60W 24V -...
$52.78 USD
Unit price /
Unavailable
Description
Description
The WDR-60 is a 60W Mean Well power converter.
Key Features
- ✓ DC output voltage adjustable ±10%
- ✓ 4.7KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature

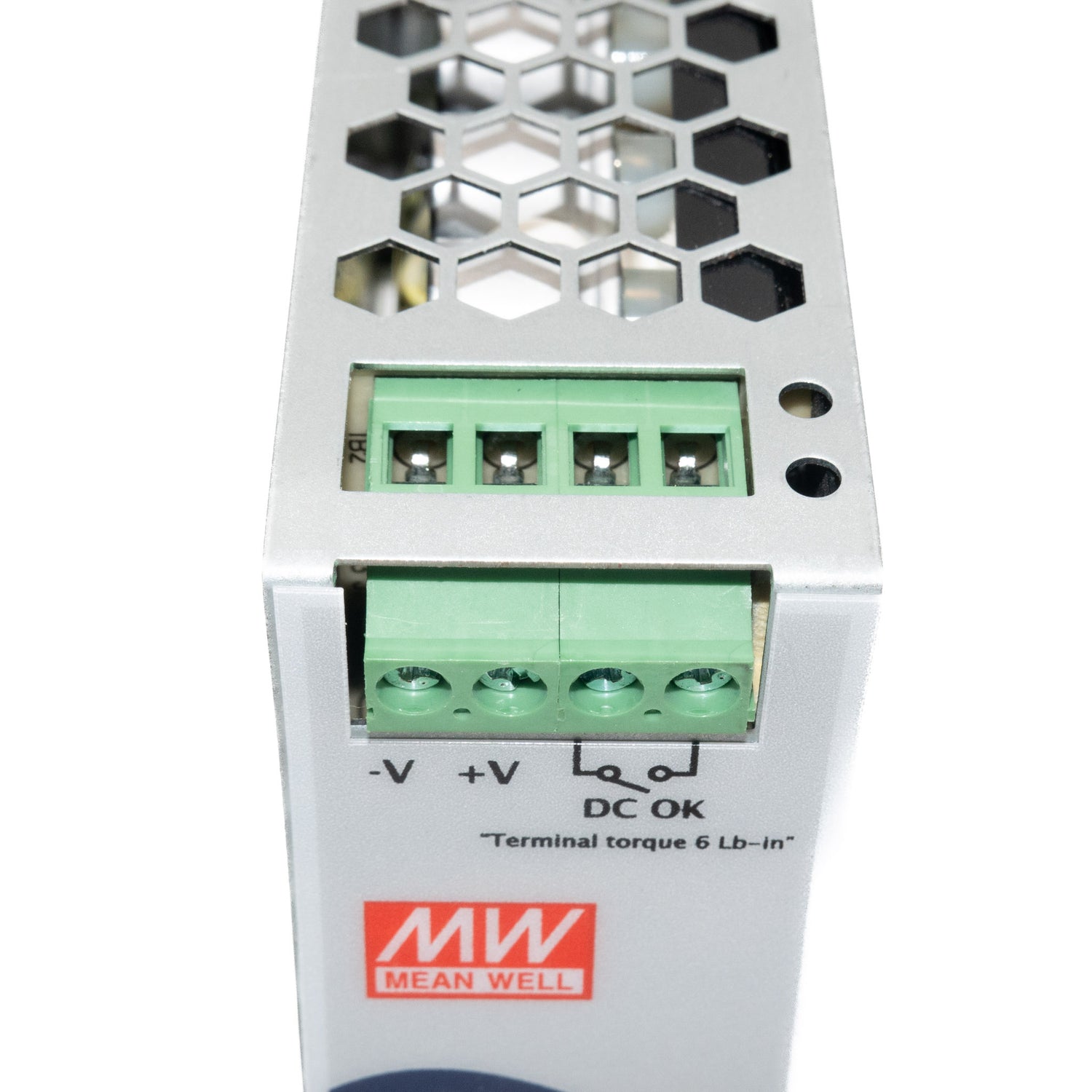

- ✓ DC OK relay contact output
- ✓ Safety approvals: UL61010 EN61558-2-16, EAC TP TC 004
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesWDR Series
-
Power Rating60 Watt
-
Output Voltage24 Volt
-
Rated Current2.5 Ampere
-
Input Voltage180V~550V
-
Standards MetCE,cUL,EAC,TUV
-
Operating Temperature-30°C~85°C
-
Warranty3 Year
-
Length4.93 in
-
Width4.02 in
-
Height1.26 in
-
Weight1.1 lb
