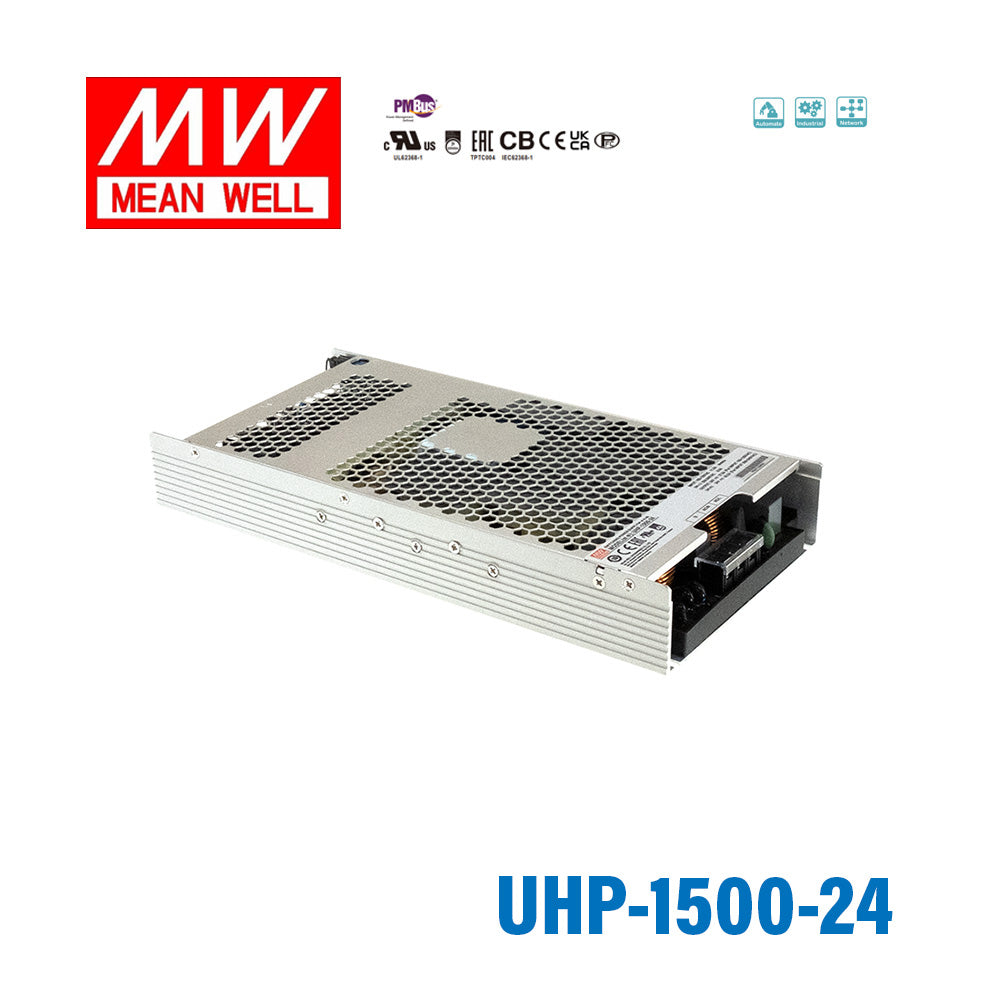

Mean Well UHP-1500-24 Power Supply 1500W 24V 62.5A

Name: Mean Well UHP-1500-24 Power Supply 1500W 24V 62.5A
Brand: Mean Well
SKU: UHP-1500-24
Price: 459.79 USD
Availability: InStock

slim and low profilefanless design

SKU UHP-1500-24

$459.79 USD

Shipping calculated at checkout.

Select model — 7 in this family

UHP-1500-24

UHP-200-24 200W 24V In stock$60.56 USD

UHP-350-24 350W 24V In stock$83.70 USD

UHP-500-24 500W 24V In stock$114.67 USD

UHP-750-24 750W 24V Low stock$231.02 USD

UHP-1000-24 1000W 24V Low stock$306.00 USD

UHP-1500-24 1500W 24V In stock$459.79 USD

UHP-2500-24 2500W 24V Backorder$676.54 USD

Product variants

In stock

Overview

UHP-1500-24 is the 24V output model of this series: rated current 62.5A, rated power 1500W, typical efficiency 95%.

UHP-1500 series is a 1500W single-output slim type power supply with 41mm of low profile design. Adopting the full range 90~264Vac input, the entire series provides an output voltage line of 24V and 48V. In addition to the high efficiency up to 96%, that the whole series operates from -30℃ ~ +70℃ under air convection without fan. UHP-1500 has the complete protection functions and 5G anti-vibration capability; It is complied with the international safety regulations such as DEKRA BS EN/EN62368-1, UL62368-1. UHP-1500 series serves as a high performance power supply solution for various industrial applications.

Features

90 ~ 264Vac input with PFC
Slim and Low profile (41mm)
Fanless and conduction-cooled design
Output voltage 50~120% and constant current 20~100% programmable
Built-in PMBus or CANBus protocol
Protections: Short circuit / Overload / Over voltage / Over temperature
-30~+70℃ working temperature
Built-in remote ON-OFF control
DC OK active signal
Operating altitude up to 5000 meter (Note.8)
LED indicator for power on
5 years warranty

Specifications

UHP-1500-24Specifications from the official datasheet (2025-12-05 edition)

OUTPUT

DC VOLTAGE: 24V
RATED CURRENT: 62.5A
RATED POWER: 1500W
RIPPLE & NOISE (max.)^Note.2: 240mVp-p
VOLTAGE ADJ. RANGE: 24 ~ 28.8V
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME^Note.4: 1800ms, 60ms/230Vac 1800ms, 60ms/115Vac at full load
HOLD UP TIME (Typ.)^Note.4: 16ms/230Vac at 75% load 10ms/230Vac at full load ; 16ms/115Vac at 75% load 10ms/115Vac at full load

INPUT

VOLTAGE RANGE^Note.4: 90 ~ 264Vac 250 ~ 370Vdc
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.)^Note.4: PF≥0.95/230Vac PF≥0.99/115Vac at full load
EFFICIENCY (Typ.): 95%
AC CURRENT (Typ.): 11A/115Vac 8A/230Vac
INRUSH CURRENT (Typ.): Cold start 30A/115Vac 60A/230Vac
LEAKAGE CURRENT: <0.75mA / 240Vac

PROTECTION

OVERLOAD: 105~125% rated current Protection type : Constant current limiting, shut down O/P voltage after 5 sec. After O/P voltage falls, re-power on to recover
SHORT CIRCUIT: Constant current limiting, unit will shutdown after 5 sec, re-power on to recover.
OVER VOLTAGE: 30 ~ 35V
OVER TEMPERATURE: Protection type :Shut down O/P voltage, recovers automatically after temperature goes down

FUNCTION

OUTPUT VOLTAGE PROGRAMMABLE(PV)^{Note 5}: Adjustment of output voltage is allowable to 50 ~ 120% of nominal output voltage Please refer to the Function Manual.
OUTPUT CURRENT PROGRAMMABLE(PC)^{Note 5}: Adjustment of constant current level is allowable to 20 ~ 100% of rated current. Please refer to the Function Manual.
REMOTE ON/OFF CONTROL: Power ON : Short circuit Power OFF : Open circuit
AUXILIARY POWER: 12V @ 0.4A tolerance ±10%, ripple=150mVp-p
DC-OK SIGNAL: The TTL signal out, PSU turn on = 4.4 ~ 5.5Vdc ; PSU turn off = -0.5 ~ 0.5Vdc. Please refer to the Function Manual.

ENVIRONMENT

WORKING TEMP.: -30 ~ +70℃(Refer to “Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL62368-1, DEKRA BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVac I/P-FG:2KVac O/P-FG:1.25KVac
ISOLATION RESISTANCE: I/P-O/P, I/P-FG,O/P-FG:100M Ohms/500Vdc/25℃/ 70%RH
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/ EN55032 (CISPR32) Class B
Radiated BS EN/ EN55032 (CISPR32) Class A
Harmonic Current BS EN/ EN61000-3-2 Class A
Voltage Flicker BS EN/ EN61000-3-3 -----; BS EN/ EN55035, BS EN/ EN61000-6-2
EMC IMMUNITY: Parameter Standard Test Level

ESD BS EN/ EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact
Radiated BS EN/ EN61000-4-3 Level 3
EFT / Burst BS EN/ EN61000-4-4 Level 3
Surge BS EN/ EN61000-6-2 2KV/Line-Line 4KV/Line-Earth
Conducted BS EN/ EN61000-4-6 Level 3
Magnetic Field BS EN/ EN61000-4-8 Level 4
Voltage Dips and Interruptions BS EN/ EN61000-4-11 >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

Parameter	Standard	Test Level
Conducted	BS EN/ EN55032 (CISPR32)	Class B
Radiated	BS EN/ EN55032 (CISPR32)	Class A
Harmonic Current	BS EN/ EN61000-3-2	Class A
Voltage Flicker	BS EN/ EN61000-3-3	-----; BS EN/ EN55035, BS EN/ EN61000-6-2

Parameter	Standard	Test Level
ESD	BS EN/ EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact
Radiated	BS EN/ EN61000-4-3	Level 3
EFT / Burst	BS EN/ EN61000-4-4	Level 3
Surge	BS EN/ EN61000-6-2	2KV/Line-Line 4KV/Line-Earth
Conducted	BS EN/ EN61000-4-6	Level 3
Magnetic Field	BS EN/ EN61000-4-8	Level 4
Voltage Dips and Interruptions	BS EN/ EN61000-4-11	>95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

OTHERS

MTBF: 535.4K hrs min. Telcordia SR-332 (Bellcore) ; 56.7K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 290*140*41mm (L*W*H)
PACKING: 2.51kg ; 6pcs/15.15kg/0.86CUFT

Test conditions and notes8

1. All parameters NOT specially mentioned are measured at 230Vac input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance :includes set up tolerance, line regulation and load regulation.
4. Derating may be needed under low input voltages. Please check the derating curve and Static characteristics for more details.
5. PV/PC functions when users do not use SVR.
6. Output will shut down after O/P voltage is below < 80% of Vset for 5 sec, re-power on to recover.
7. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 720mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies." (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

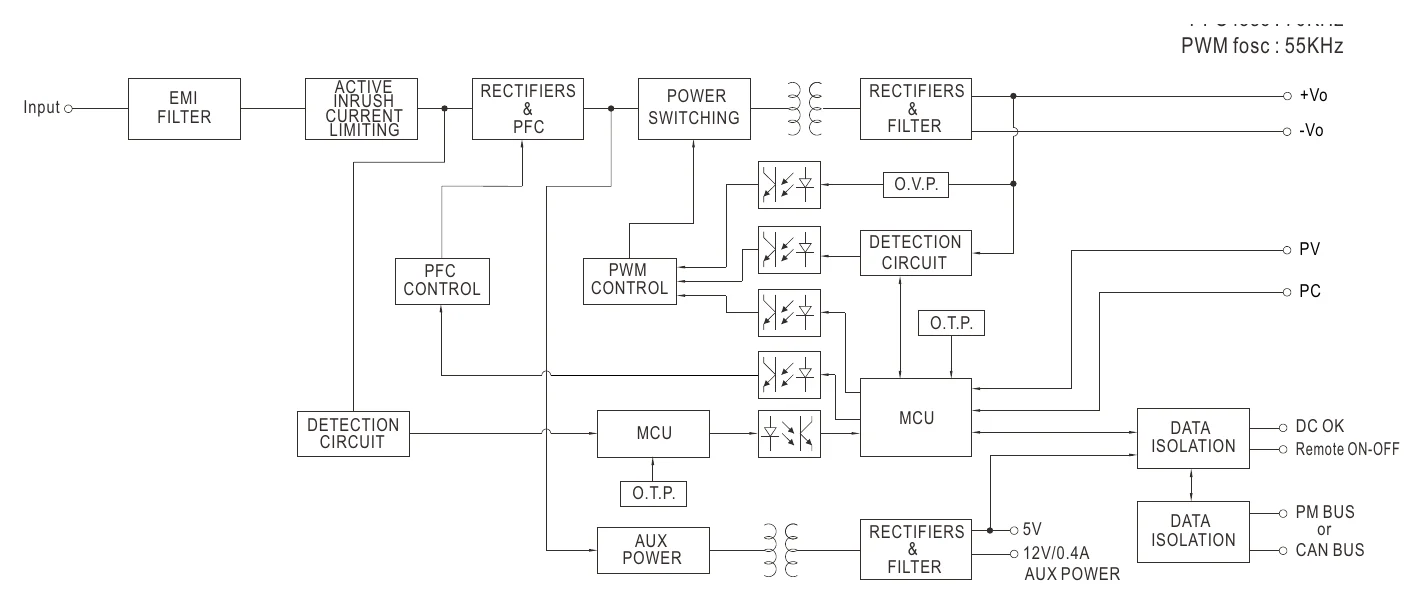

UHP-1500-24 BLOCK DIAGRAM — BLOCK DIAGRAM

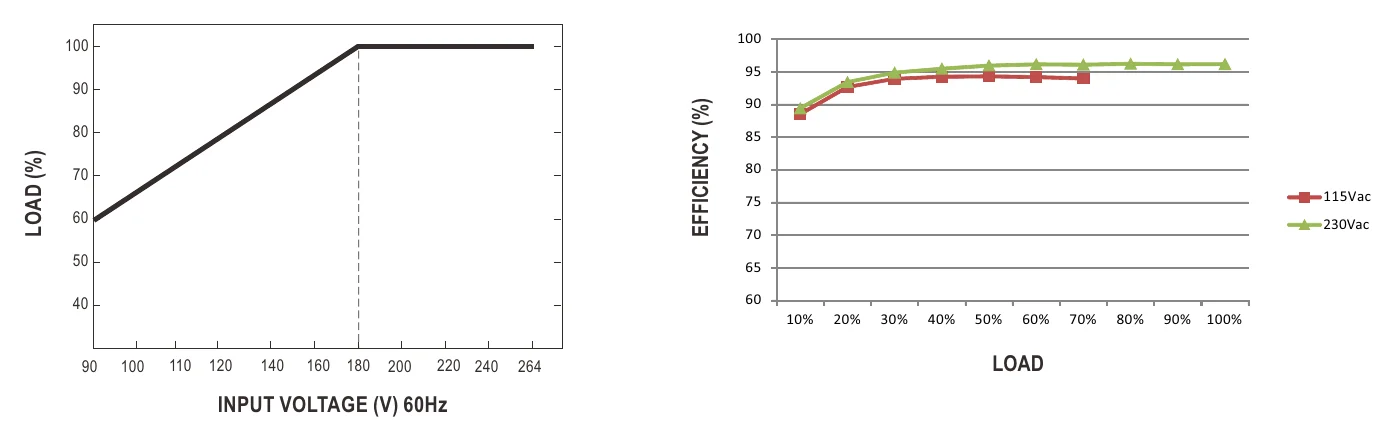

UHP-1500-24 STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

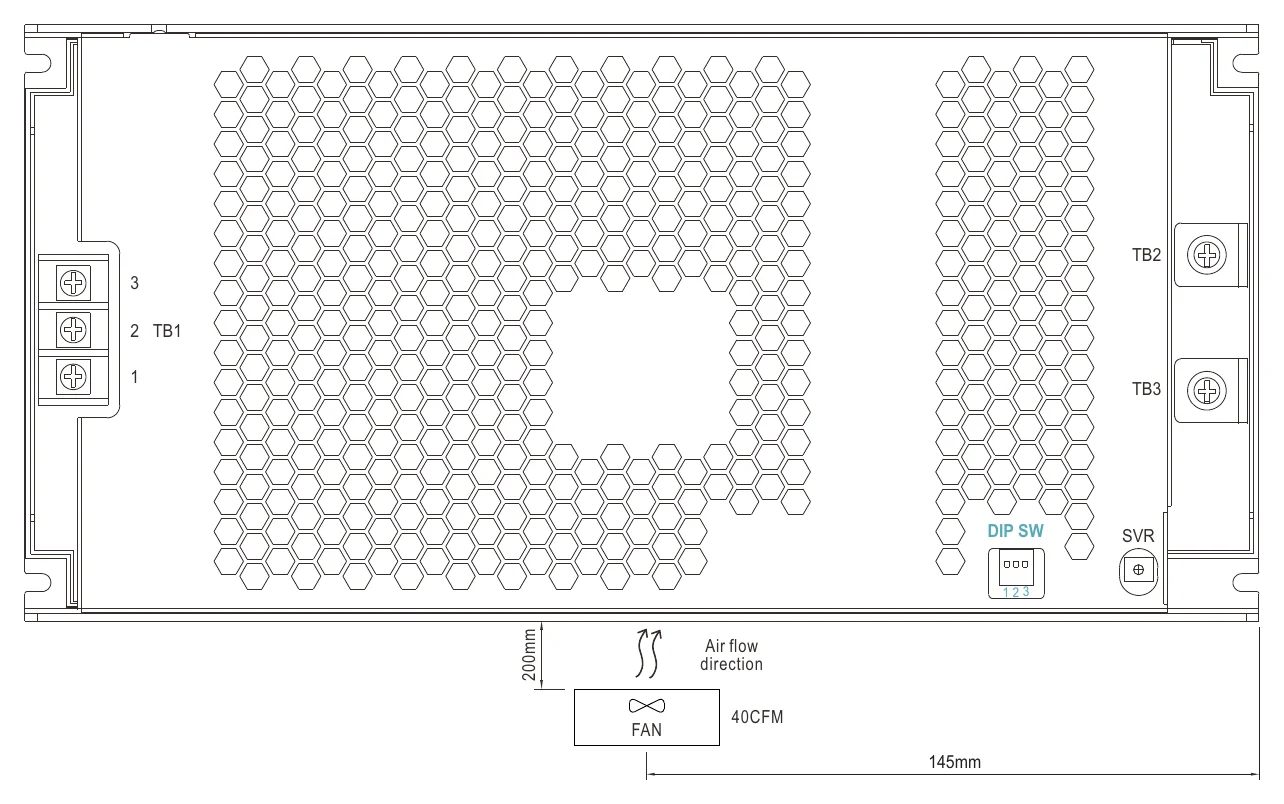

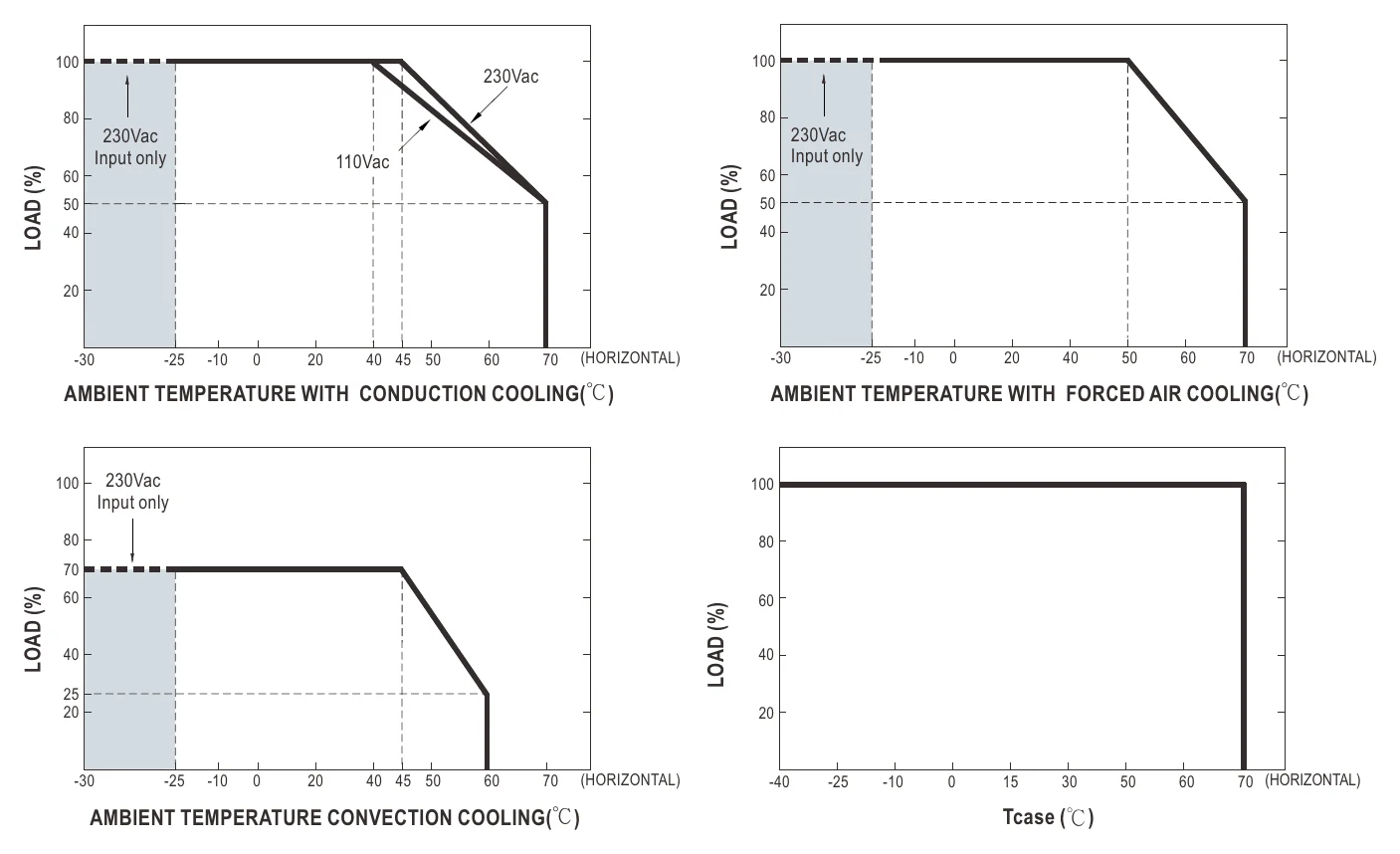

UHP-1500-24 DERATING CURVE — DERATING CURVE

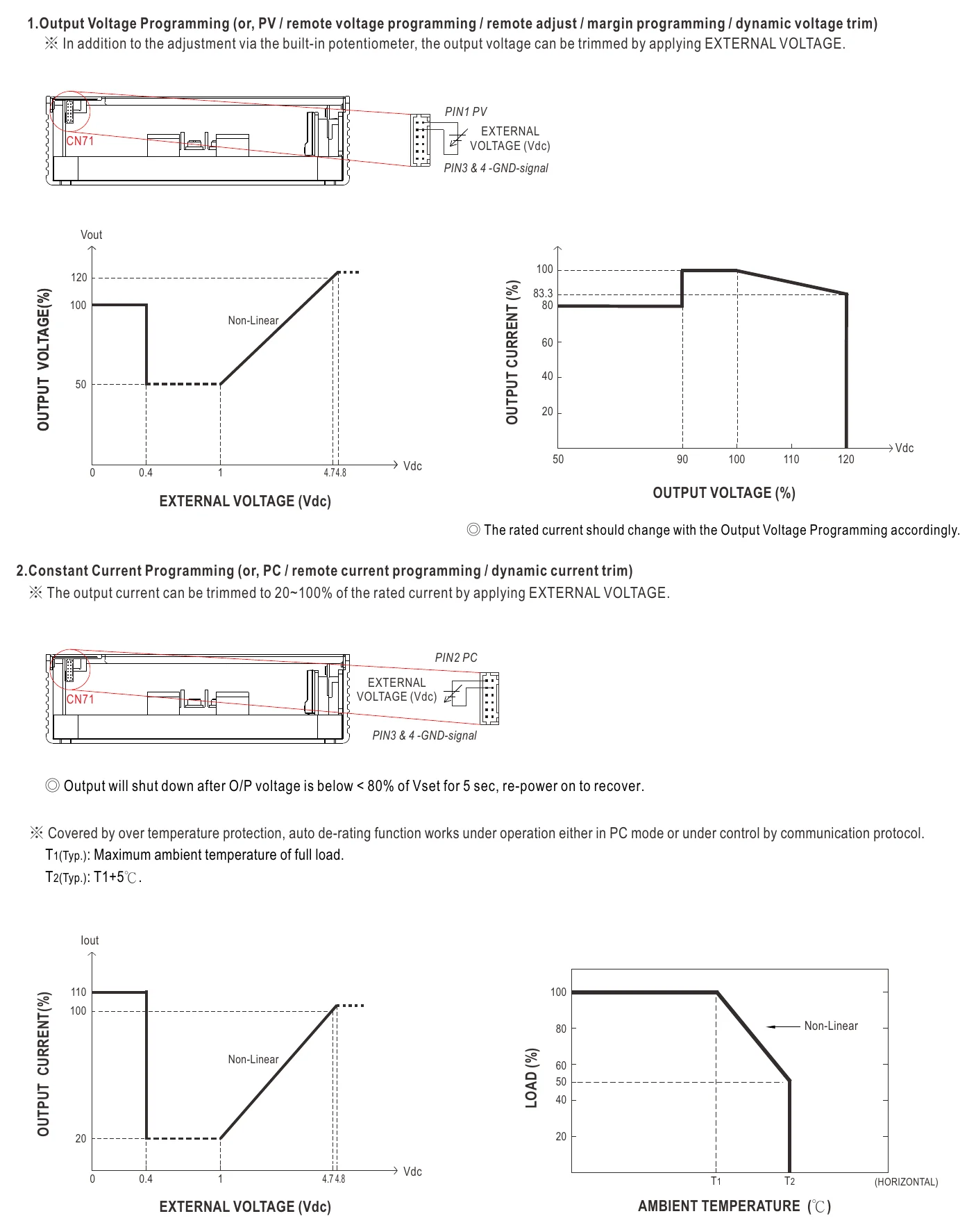

UHP-1500-24 FUNCTION MANUAL — FUNCTION MANUAL

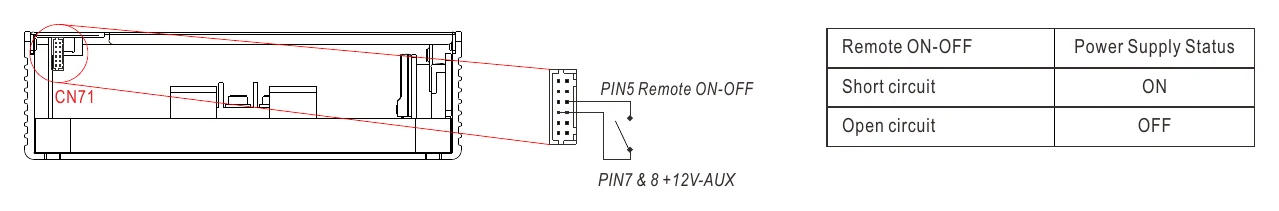

UHP-1500-24 Remote ON-OFF — Remote ON-OFF

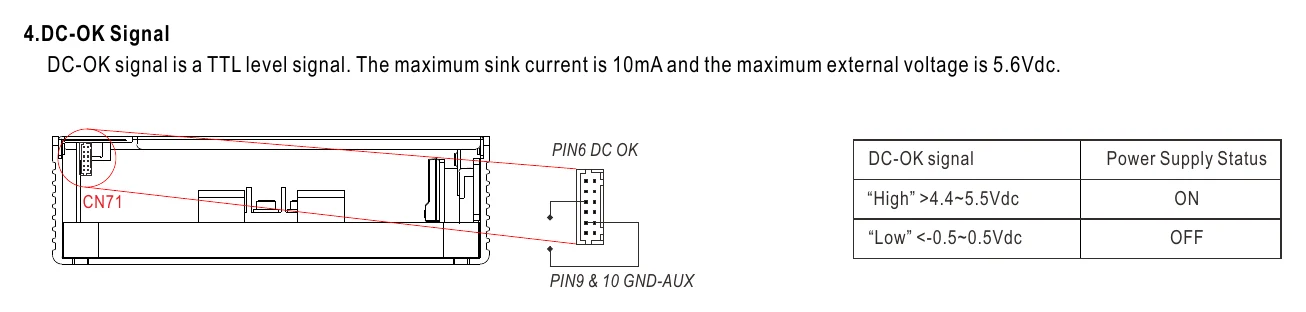

UHP-1500-24 4.DC-OK Signal — 4.DC-OK Signal

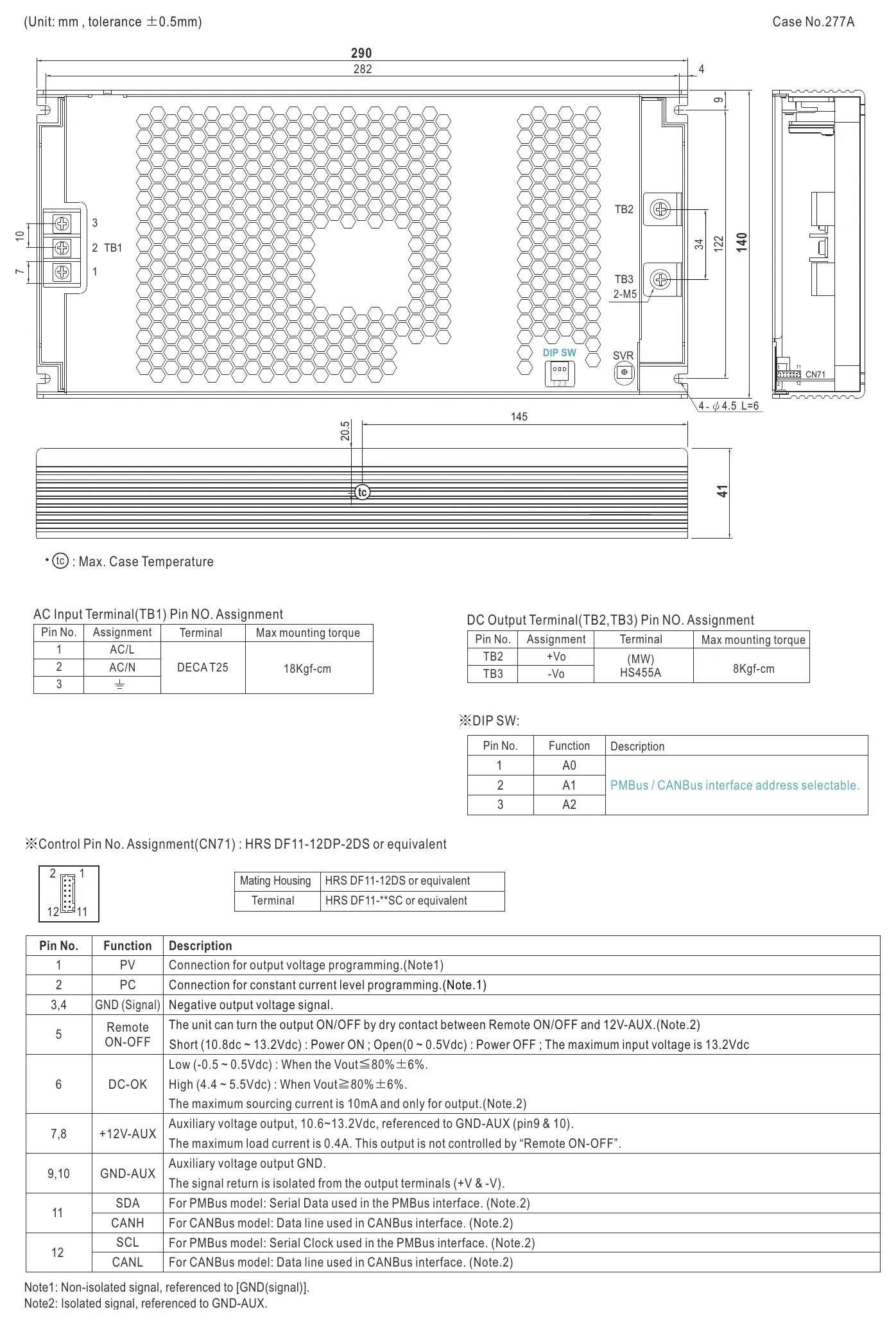

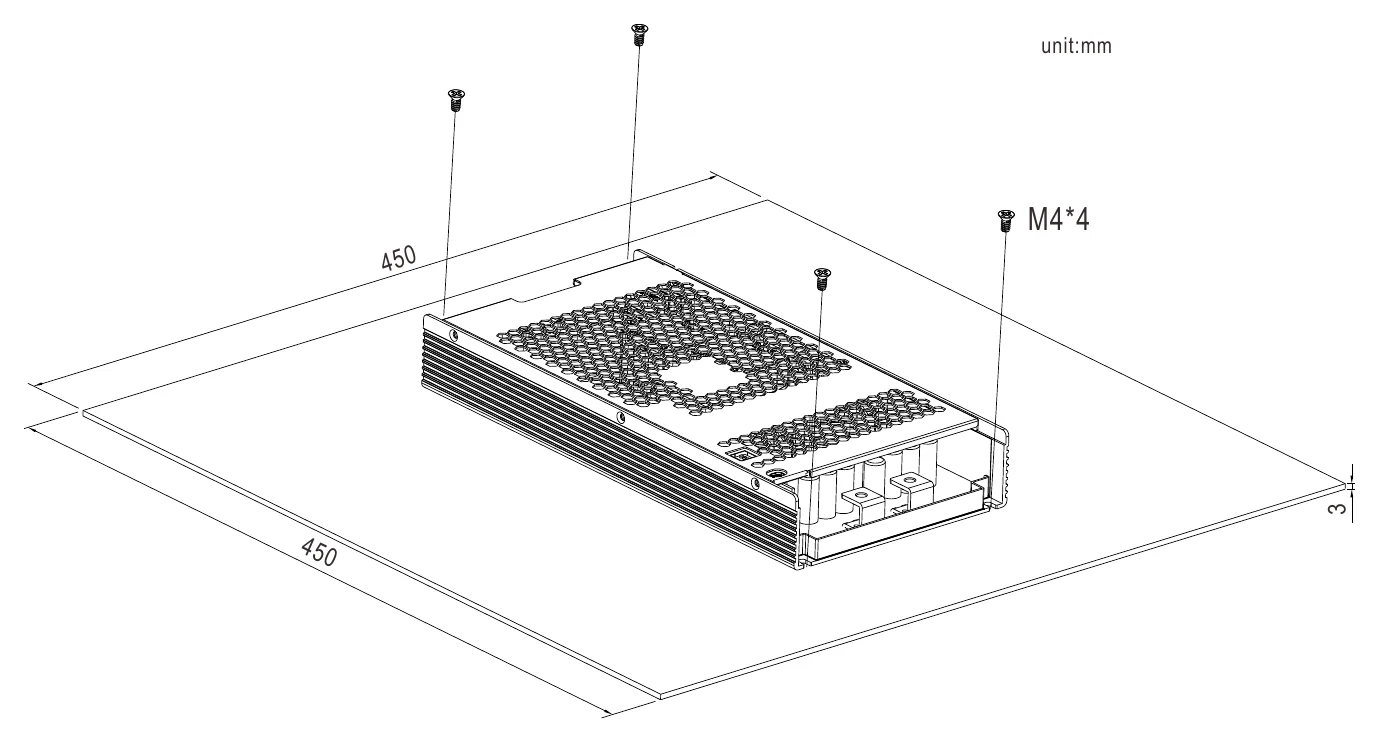

UHP-1500-24 MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

Typical applications

Industrial automation machinery
Industrial control system
Mechanical and electrical equipment
Electronic instruments, equipment or apparatus
Test and measurement instrument
Laser related machine
Charging related equipment
Household appliances
Power Sourcing Equipment of PoE (48V model: DC O/P range 48~57.6V)

Downloads

Certificates7

Mean Well UHP-1500-CB(UL)-3nd Certificate PDF Download

Mean Well UHP-1500-Dekra seal Certificate PDF Download

Mean Well UHP-1500-CB Certificate PDF Download

Mean Well UHP-1500-CB(UL) Certificate PDF Download

Mean Well UHP-1500-EMC Certificate PDF Download

Mean Well UHP-1500-CE-dec Certificate PDF Download

Mean Well UHP-1500-UK-dec Certificate PDF Download

Test reports1

Mean Well UHP-1500-24 Test Report PDF Download

Catalogues2

Mean Well Catalog (Industrial) PDF Download

Mean Well Sign Panel Catalog PDF Download

FAQ

Can I use the UHP-1500-24 for a large 24V PLC or control panel?

Yes, it is designed as a 24V constant voltage supply with 1500W output and up to 62.5A. That makes it a strong fit for higher-demand 24V industrial control cabinets, distributed I/O assemblies, and automation hardware that are built around 24V DC.

Is the UHP-1500-24 a good choice for 24V machine vision or industrial PC loads?

It can be, provided the equipment is specified for 24V DC and the total draw remains within 62.5A and 1500W. The fanless design and 41.0 mm low-profile height can also help where enclosure space and airflow planning are tight.

Can this model power a 24V automation system with multiple DC loads?

Yes, for multi-load 24V systems this unit offers a high current ceiling at 62.5A with constant voltage output. It is especially relevant for centralized 24V DC power distribution where the total system demand fits inside its 1500W rating.

Is the UHP-1500-24 intended for indoor panels or exposed outdoor mounting?

The operating temperature range is -30°C to +70°C, which supports use across a broad temperature window. Since no IP rating is provided in the listed specs, it is better treated as a power supply for protected indoor cabinets or sheltered enclosures rather than direct outdoor exposure.

How does the UHP-1500-24 compare with other 24V UHP power supplies?

The UHP-1500-24 is a 1500W, 24V model with 62.5A output. It sits at the top of the standard 24V UHP series range, which includes lower wattage models like the UHP-200, UHP-350, UHP-500, UHP-750, and UHP-1000. The UHP-1500-24 offers the highest power rating in this specific 24V lineup.
