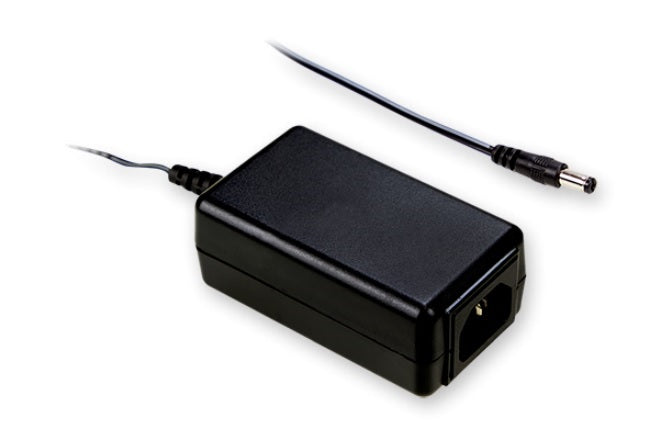

Mean Well SGAS15A09-P1J Power Supply 15W 9V 1.66A

Name: Mean Well SGAS15A09-P1J Power Supply 15W 9V 1.66A
Brand: Mean Well
SKU: SGAS15A09-P1J
Price: 18.36 USD
Availability: InStock

SKU SGAS15A09-P1J

$18.36 USD

Shipping calculated at checkout.

Available to order

Overview

SGAS15A09-P1J is the 9V output model of this series: rated current 1.66A, rated power 15W, typical efficiency 84%.

SGAS15A is a 15W compact size highly reliable, desktop style single-output green adaptor series, which is compact and convient for carry. This product is a classⅠ power unit (with FG) equipped with the standard IEC320-C14 AC inlet and accepting the input range from 90VAC to 264VAC. The whole series provides different models with output voltages ranging between 5VDC and 24VDC that it can satisfy the demands for various types of consumer electronic devices. With the efficiency up to 86% and the extremely low no-load power consumption below 0.075W, SGAS15A is compliant with USA EISA 2007/DoE, EU ErP, and meet Code of Conduct(CoC) Version 5. The superme feature allows the adaptor to save the energy when it is under either the operating mode or the standby mode. The entire series is approved for international safety regulations; moreover, it adopts the 94V-0 flame retardant plastic case that it can effectively prevent users from electric hazards.

Features

Extreme small
Universal AC input / Full range
3 pole AC inlet IEC320-C14,ClassⅠpower unit
No load power consumption<0.075W
Energy efficiency LevelⅥ
Comply with EISA 2007/DoE,EU ErP and meet CoC Version 5
Protections: Short circuit / Overload / Over voltage
Fully enclosed plastic case
Pass LPS
‧7.5V / 18V / 48V models available (by request)
Various DC plug quick adapter accessory available
3 years warranty

Specifications

SGAS15A09-P1JSpecifications from the official datasheet (2022-04-26 edition)

OUTPUT

SAFETY MODEL NO.: SGAS15A09
DC VOLTAGE^Note.2: 9V
RATED CURRENT: 1.66A
CURRENT RANGE: 0 ~1.66A
RATED POWER: 15W
RIPPLE & NOISE (max.)^Note.3: 80mVp-p
VOLTAGE TOLERANCE^Note.4: ±5.0%
LINE REGULATION^Note.5: ±0.5%
LOAD REGULATION^Note.6: ±5.0%
SETUP, RISE, HOLD UP TIME: 3000ms, 50ms, 10ms at full load

INPUT

VOLTAGE RANGE: 90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 84%
AC CURRENT: 0.4A / 100VAC
INRUSH CURRENT (max.): Cold start 30A/ 115VAC 50A / 230VAC
LEAKAGE CURRENT(max.): 0.25mA / 240VAC

PROTECTION

OVERLOAD: 105 ~ 250% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: >120% rated output voltage Protection type : Clamp by zener diode

ENVIRONMENT

WORKING TEMP.: -20 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -20 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03% / ℃ (0 ~ 40℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL62368-1, CSA C22.2 NO. 62368-1, TUV BS EN/EN62368-1 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC , I/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted emission BS EN/EN55032(CISPR32)FCC PART 15 / CISPR22, CAN ICES-3(B)/NMB-3(B) Class B
Radiated emission BS EN/EN55032(CISPR32)FCC PART 15 / CISPR22, CAN ICES-3(B)/NMB-3(B) Class B
Harmonic current BS EN/EN61000-3-2 Class A
Voltage flicker BS EN/EN61000-3-3
EMC IMMUNITY: Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact
RF field susceptibility BS EN/EN61000-4-3 Level 2, 3V/m
EFT bursts BS EN/EN61000-4-4 Level 2, 1KV
Surge susceptibility BS EN/EN61000-4-5 Level 3, 1KV/L-N 2KV/L,N-PE
Conducted susceptibility BS EN/EN61000-4-6 Level 2, 3V
Magnetic field immunity BS EN/EN61000-4-8 Level 1, 1A/m
Voltage dips , interruption BS EN/EN61000-4-11 ＞95% dip 0.5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods

Parameter	Standard	Test Level
Conducted emission	BS EN/EN55032(CISPR32)FCC PART 15 / CISPR22, CAN ICES-3(B)/NMB-3(B)	Class B
Radiated emission	BS EN/EN55032(CISPR32)FCC PART 15 / CISPR22, CAN ICES-3(B)/NMB-3(B)	Class B
Harmonic current	BS EN/EN61000-3-2	Class A
Voltage flicker	BS EN/EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact
RF field susceptibility	BS EN/EN61000-4-3	Level 2, 3V/m
EFT bursts	BS EN/EN61000-4-4	Level 2, 1KV
Surge susceptibility	BS EN/EN61000-4-5	Level 3, 1KV/L-N 2KV/L,N-PE
Conducted susceptibility	BS EN/EN61000-4-6	Level 2, 3V
Magnetic field immunity	BS EN/EN61000-4-8	Level 1, 1A/m
Voltage dips , interruption	BS EN/EN61000-4-11	＞95% dip 0.5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods

OTHERS

LIFE: 3 years : 100% load 40℃, 12hours / day
MTBF: 507Khrs min. MIL-HDBK-217F(25℃)
DIMENSION: 85.7*50.9*33.8mm (L*W*H)
PACKING: 150g ; 90pcs / 14Kg / CARTON

CONNECTOR

PLUG: See page 4~5 ; Other type available by customer requested
CABLE: See page 4~5 ; Other type available by customer requested

Test conditions and notes7

1.All parameters are specified at 230VAC input, rated load, 25℃ 70% RH ambient.
2.DC voltage: The output voltage set at point measure by plug terminal & 50% load.
3.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μf & 47μf capacitor.
4.Tolerance: includes set up tolerance, line regulation, load regulation.
5.Line regulation is measured from low line to high line at rated load.
6.Load regulation is measured from 0% to 100% rated load.
7.The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to "EMI testing of component power supplies." (as available on http://www.meanwell.com)

Technical drawings

SGAS15A09-P1J Derating Curve — Derating Curve

SGAS15A09-P1J Mechanical Specification — Mechanical Specification

SGAS15A09-P1J DC output plug — DC output plug

Typical applications

Consumer electronic devices
Telecommunication devices
Office facilities
Industrial equipments

Downloads

Datasheet1

SGAS15A09-P1J datasheetSGAS15A-SPEC.PDF · 2022-04-26 edition PDF Download

Certificates6

Mean Well SGAS15-CB Certificate PDF Download

Mean Well SGAS15-TUV Certificate PDF Download

Mean Well SGAS15A- FCC Certificate PDF Download

Mean Well SGAS15-EMC Certificate PDF Download

Mean Well SGAS15-CE-dec Certificate PDF Download

Mean Well SGAS15-UK-dec Certificate PDF Download

Test reports1

Mean Well SGAS15x09 Test Report PDF Download

FAQ

Can I use the SGAS15A09-P1J with a 9V embedded device or control module?

Yes, if the equipment is designed for 9V and draws no more than 1.66A. This unit is rated for 15W total output, which makes it suitable for lower-power 9V electronics within that range.

Is this 9V power supply a good fit for small lab or test instruments?

It can be used with compact 9V instruments or bench devices that stay within 1.66A and 15W. The wide 90-264VAC input is also useful where AC mains conditions vary between sites.

Can this model power a 9V automation accessory or industrial interface board?

It is intended for 9V output applications and can support accessories or interface boards that do not exceed 1.66A. For low-power automation hardware, the 15W rating defines the upper load limit.

What should I check before pairing this supply with a 9V device?

Check that the device requires 9V and that its demand stays within 1.66A and 15W. Matching the output voltage and staying under both current and power limits is the basic sizing requirement for this model.

Can the SGAS15A09-P1J be used in hot or cold operating areas?

The specified operating temperature range is -20°C to +70°C. The provided specs do not include an IP rating, so temperature capability is listed, but indoor or outdoor exposure should be evaluated separately.
