Mean Well SP-75-48 Power Supply 75W 48V 1.6A

Name: Mean Well SP-75-48 Power Supply 75W 48V 1.6A
Brand: Mean Well
SKU: SP-75-48
Price: 31.87 USD
Availability: InStock

SKU SP-75-48

$31.87 USD

Shipping calculated at checkout.

Select model — 3 in this family

SP-75-48

SP-75-48 75W 48V In stock$31.87 USD

SP-320-48 320W 48V Backorder$58.97 USD

SP-480-48 480W 48V Backorder$127.53 USD

Product variants

End of Life, Succeeded by RSP-75-48

In stock

Overview

SP-75-48 is the 48V output model of this series: rated current 1.6A, rated power 76.8W, typical efficiency 83%.

Features

Universal AC input / Full range
Built-in active PFC function, PF>0.93
Protections: Short circuit / Overload / Over voltage
Built-in constant current limiting circuit
Low profile: 33mm thickness
LED indicator for power on
100% full load burn-in test
Fixed switching frequency at PFC:67KHz PWM:134KHz
3 years warranty

Specifications

SP-75-48Specifications from the official datasheet (2021-09-15 edition)Download datasheet PDF

OUTPUT

DC VOLTAGE: 48V
RATED CURRENT: 1.6A
CURRENT RANGE: 0 ~ 1.6A
RATED POWER: 76.8W
RIPPLE & NOISE (max.)^Note.2: 100mVp-p
VOLTAGE ADJ. RANGE: 45.6 ~ 52.8V
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME: 800ms, 60ms at full load
HOLD UP TIME (Typ.): 36ms at full load

INPUT

VOLTAGE RANGE^Note.5: 85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.93/230VAC 0.96/115VAC at full load
EFFICIENCY (Typ.): 83%
AC CURRENT (Typ.): 1.3A/115VAC 0.7A/230VAC
INRUSH CURRENT (Typ.): COLD START 45A/230VAC
LEAKAGE CURRENT: <2mA / 240VAC

PROTECTION

OVERLOAD: 105 ~ 150% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 55.2 ~ 64.8V Protection type : Shut down o/p voltage, re-power on to recover

FUNCTION

REMOTE CONTROL(OPTION): CN3:4 ~ 10VDC POWER OFF, <0 ~ 0.8VDC POWER ON

ENVIRONMENT

WORKING TEMP.: -10 ~ +60℃ (Refer to output load derating curve)
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -20 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.05%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL60950-1 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to EN55032 (CISPR32) Class B,EN61000-3-2,-3
EMC IMMUNITY: Compliance to EN61000-4-2,3,4,5,6,8,11; ENV50204, EN55024, light industry level, criteria A

OTHERS

MTBF: 208.8K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 179*97*33mm (L*W*H)
PACKING: 0.58Kg; 20pcs/12Kg/0.72CUFT

Test conditions and notes5

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com)
5. Derating may be needed under low input voltages. Please check the derating curve for more details.

Technical drawings

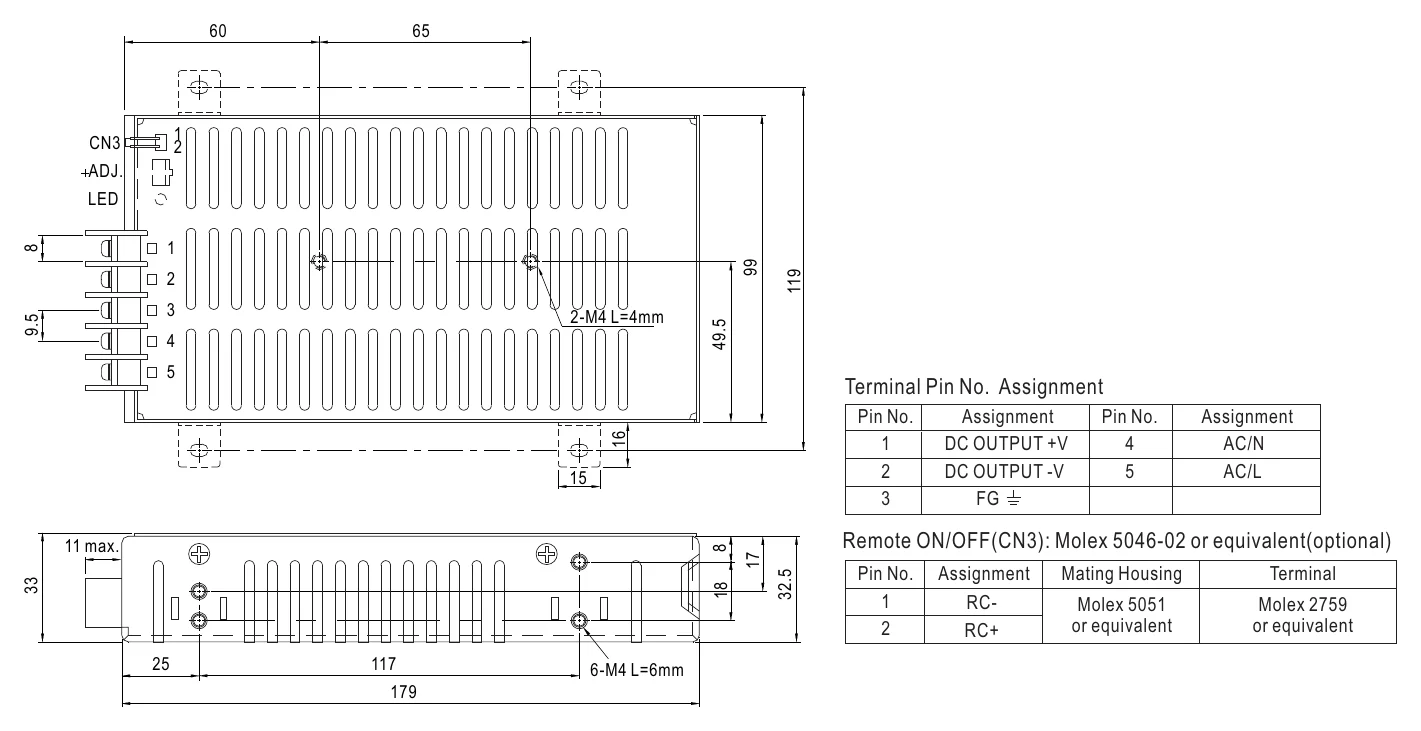

SP-75-48 Mechanical Specification — Mechanical Specification

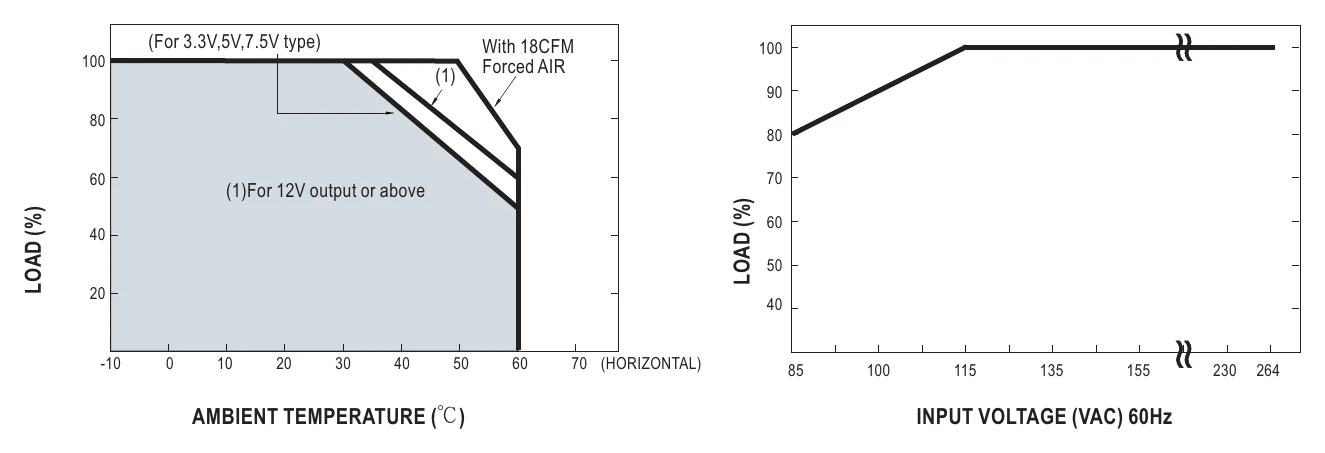

SP-75-48 Derating Curve — Derating Curve

Downloads

Datasheet1

SP-75-48 datasheetSP_75_Series_Spec_sheet.pdf · 2021-09-15 edition PDF Download

FAQ

Can I use the SP-75-48 for lower-power 48V telecom or network equipment?

Yes, this model provides a constant voltage 48V output rated for 76.8W and 1.6A. It is suited to 48V equipment that stays within that current and power envelope.

Is the SP-75-48 suitable for 48V industrial control or communication devices?

It can support 48V DC devices that need a fixed 48V supply and draw no more than 1.6A. The relatively low current rating makes it a better fit for lighter 48V loads rather than high-power 48V systems.

Can this power supply run a 48V embedded or monitoring subsystem?

Yes, if the subsystem is designed for 48V constant voltage and total demand remains at or below 76.8W. The 85-264VAC input also helps when the AC source varies across facilities.

Is the SP-75-48 rated for outdoor installations?

The operating temperature range is -10°C to +60°C. No IP rating is shown in the provided specs, so outdoor weather exposure is not confirmed from this data.

When is the SP-75-48 the right size for a 48V application?

It is the right size when the 48V load stays within 1.6A and 76.8W total. For 48V systems above 1.6A, a higher-capacity 48V model would be the better choice.
