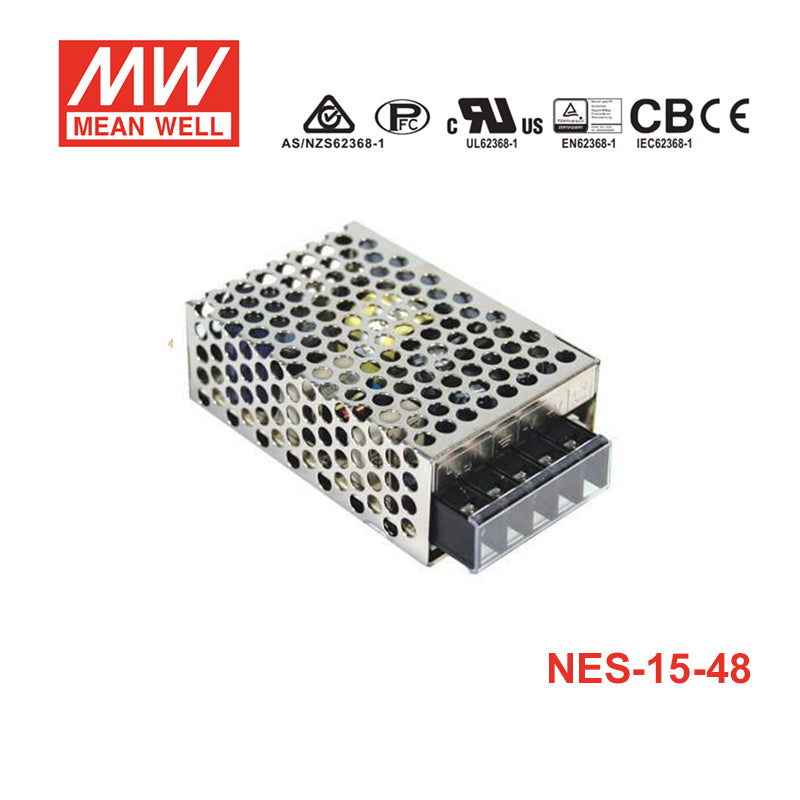

Mean Well NES-15-48 NE Series Switching Power Supply 350mA
$6.46 USD
Unit price /
Unavailable
Overview
NES-15-48 is the 48V output model of this series: rated current 0.35A, rated power 16.8W, typical efficiency 82%.
Features
- Universal AC input/Full range
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Cooling by free air convection
- 100% full load burn-in test
- 2 years warranty
Specifications
NES-15-48Specifications from the official datasheet (2012-09-24 edition)Download datasheet PDF
OUTPUT
- DC VOLTAGE
- 48V
- RATED CURRENT
- 0.35A
- CURRENT RANGE
- 0 ~ 0.35A
- RATED POWER
- 16.8W
- RIPPLE & NOISE (max.)Note.2
- 240mVp-p
- VOLTAGE ADJ. RANGE
- 43.2 ~ 52.8V
- VOLTAGE TOLERANCENote.3
- ±1.0%
- LINE REGULATIONNote.4
- ±0.5%
- LOAD REGULATIONNote.5
- ±0.5%
- SETUP, RISE TIME
- 1000ms, 30ms/230VAC 1000ms, 30ms/115VAC at full load
- HOLD UP TIME (Typ.)
- 100ms/230VAC 20ms/115VAC at full load
INPUT
- VOLTAGE RANGE
- 85 ~ 264VAC 120 ~ 370VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- EFFICIENCY (Typ.)
- 82%
- AC CURRENT (Typ.)
- 0.35A/115VAC 0.25A/230VAC
- INRUSH CURRENT (Typ.)
- COLD START 45A
- LEAKAGE CURRENT
- <2mA / 240VAC
PROTECTION
- OVERLOAD
- Above 105% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 55.2 ~ 64.8V Protection type : Shut off
- OVER TEMPERATURE
- U1 Tj 140°C typically (U1) detect on main control IC Protection type : Shut down o/p voltage, recovers automatically after temperature goes down
ENVIRONMENT
- WORKING TEMP.
- -20 ~ +60°C (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +85°C, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/°C (0 ~ 45°C)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC (Note 7)
- SAFETY STANDARDSNote.6
- UL60950-1, CB(IEC60950-1),CCC GB4943.1:2011 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH
- EMC EMISSION
- Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3
- EMC IMMUNITY
- Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, EN61000-6-1, light industry level, criteria A
OTHERS
- MTBF
- 563.5Khrs min. MIL-HDBK-217F (25°C)
- DIMENSION
- 78*51*28mm (L*W*H)
- PACKING
- 0.18Kg; 60pcs/11.8Kg/0.46CUFT
Test conditions and notes7
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. Line regulation is measured from low line to high line at rated load.
- 5. Load regulation is measured from 0% to 100% rated load.
- 6. For the request of GB4943.1,the power supply is only suitable for use in the altitude 2000m below and the non tropical climate condition.
- 7. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to "EMI testing of component power supplies." (as available on http://www.meanwell.com)
