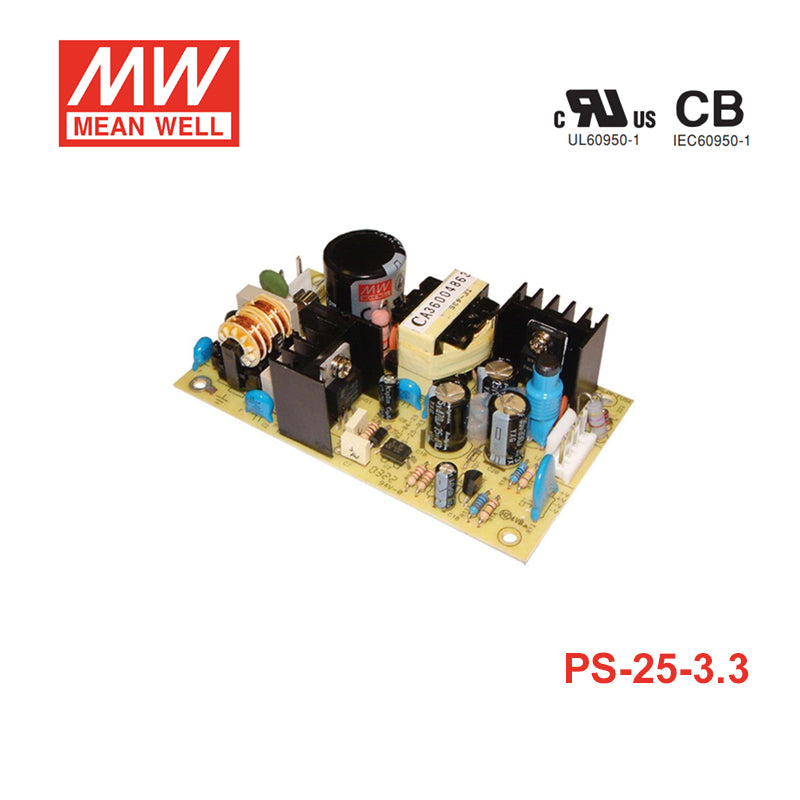

Mean Well PS-25-3.3 PCB Switching Power Supply
$8.73 USD
Unit price /
Unavailable
Features
| Universal AC input / Full range |
| Low leakage current <0.5mA |
| ProtectionsL Short circuit / Overload / Over voltage / Over temperature |
| Cooling by free air convection |
| 100% full load burn-in test. |
| Fixed switching frequency at 100KHz |
| Low cost |
| High reliability |
| 2 years warranty |
General Specification
| Line regulation (max.) | ± 0.5% |
| Load regulation (max.) | ± 2.0% |
| Overload protection Range | Above 105% rated output power |
| Overload protection Type | Hiccup mode, recovers automatically after fault condition is removed |
| Over-voltage protection | Shut off o/p voltage, clamping by zener diode |
| Withstand voltage | I/P-O/P:3KVAC | I/P-FG:2KVAC | O/P-FG:0.5KVAC |
| Isolation resistance | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 / 70% RH |
| Working temperature | -10 ~ +60 (Refer to "Derating Curve") |
| Safety standards | UL60950-1 approved |
| Dimension (LxWxH) (mm) | 107*61*28mm (L*W*H) |
| Packing | 0.14Kg; 96pcs/15Kg/1.2CUFT |
-
BrandMean Well
-
SeriesPS Series
-
Power Rating16.5 Watt
-
Output Voltage3.3 Volt
-
Rated Current5 Ampere
-
Input Voltage85V~264V
-
Standards MetCB,CE
-
Operating Temperature-10°C~60°C
-
Warranty2 Year
-
Length4.21 in
-
Width2.52 in
-
Height1.1 in
-
Weight0.31 lb
