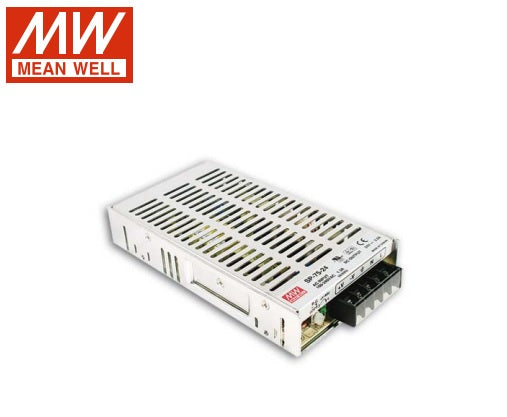

Mean Well SP-75-15 Power Supply 75W 15V 5A

Name: Mean Well SP-75-15 Power Supply 75W 15V 5A
Brand: Mean Well
SKU: SP-75-15
Price: 31.87 USD
Availability: InStock

SKU SP-75-15

$31.87 USD

Shipping calculated at checkout.

Select model — 4 in this family

SP-75-15

SP-75-15 75W 15V Low stock$31.87 USD

SP-100-15 100W 15V In stock$36.72 USD

SP-240-15 240W 15V Backorder$47.76 USD

SP-480-15 480W 15V Low stock$127.53 USD

Product variants

End of Life, Succeeded by RSP-75-15

In stock

Overview

SP-75-15 is the 15V output model of this series: rated current 5A, rated power 75W, typical efficiency 82%.

Features

Universal AC input / Full range
Built-in active PFC function, PF>0.93
Protections: Short circuit / Overload / Over voltage
Built-in constant current limiting circuit
Low profile: 33mm thickness
LED indicator for power on
100% full load burn-in test
Fixed switching frequency at PFC:67KHz PWM:134KHz
3 years warranty

Specifications

SP-75-15Specifications from the official datasheet (2021-09-15 edition)Download datasheet PDF

OUTPUT

DC VOLTAGE: 15V
RATED CURRENT: 5A
CURRENT RANGE: 0 ~ 5A
RATED POWER: 75W
RIPPLE & NOISE (max.)^Note.2: 80mVp-p
VOLTAGE ADJ. RANGE: 14.3 ~ 16.5V
VOLTAGE TOLERANCE^Note.3: ±2.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME: 800ms, 60ms at full load
HOLD UP TIME (Typ.): 36ms at full load

INPUT

VOLTAGE RANGE^Note.5: 85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.93/230VAC 0.96/115VAC at full load
EFFICIENCY (Typ.): 82%
AC CURRENT (Typ.): 1.3A/115VAC 0.7A/230VAC
INRUSH CURRENT (Typ.): COLD START 45A/230VAC
LEAKAGE CURRENT: <2mA / 240VAC

PROTECTION

OVERLOAD: 105 ~ 150% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 17.25 ~ 20.25V Protection type : Shut down o/p voltage, re-power on to recover

FUNCTION

REMOTE CONTROL(OPTION): CN3:4 ~ 10VDC POWER OFF, <0 ~ 0.8VDC POWER ON

ENVIRONMENT

WORKING TEMP.: -10 ~ +60℃ (Refer to output load derating curve)
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -20 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.05%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL60950-1 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to EN55032 (CISPR32) Class B,EN61000-3-2,-3
EMC IMMUNITY: Compliance to EN61000-4-2,3,4,5,6,8,11; ENV50204, EN55024, light industry level, criteria A

OTHERS

MTBF: 208.8K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 179*97*33mm (L*W*H)
PACKING: 0.58Kg; 20pcs/12Kg/0.72CUFT

Test conditions and notes5

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com)
5. Derating may be needed under low input voltages. Please check the derating curve for more details.

Technical drawings

SP-75-15 Mechanical Specification — Mechanical Specification

SP-75-15 Derating Curve — Derating Curve

Downloads

Datasheet1

SP-75-15 datasheetSP_75_Series_Spec_sheet.pdf · 2021-09-15 edition PDF Download

FAQ

Can the SP-75-15 power 15V industrial instrumentation or control electronics?

Yes, it delivers a constant voltage 15V output rated for 75W and 5A. It is appropriate for 15V industrial electronics that stay within that power and current range.

Is this 15V power supply suitable for embedded development or test equipment?

It can be used where a regulated 15V source is required and total draw does not exceed 5A. The 75W rating gives a clear upper limit for combined 15V loads on a bench or fixture.

Can I use the SP-75-15 for 15V sensors, interface boards, or automation modules?

Yes, for 15V automation or control hardware that needs constant voltage and remains within 75W total. It is best suited to grouped 15V loads whose combined current stays at or below 5A.

Does the SP-75-15 work in demanding indoor temperature conditions?

The listed operating temperature range is -10°C to +60°C, so it is specified for a broad temperature range. An IP rating is not listed, so the provided specs do not establish outdoor or wet-environment use.

Is this the right choice if my 15V system needs exactly 15V but not a large amount of current?

Yes, this model is intended for fixed 15V output and can supply up to 5A. If your 15V system needs more than 75W or more than 5A, you would need a larger 15V model.
