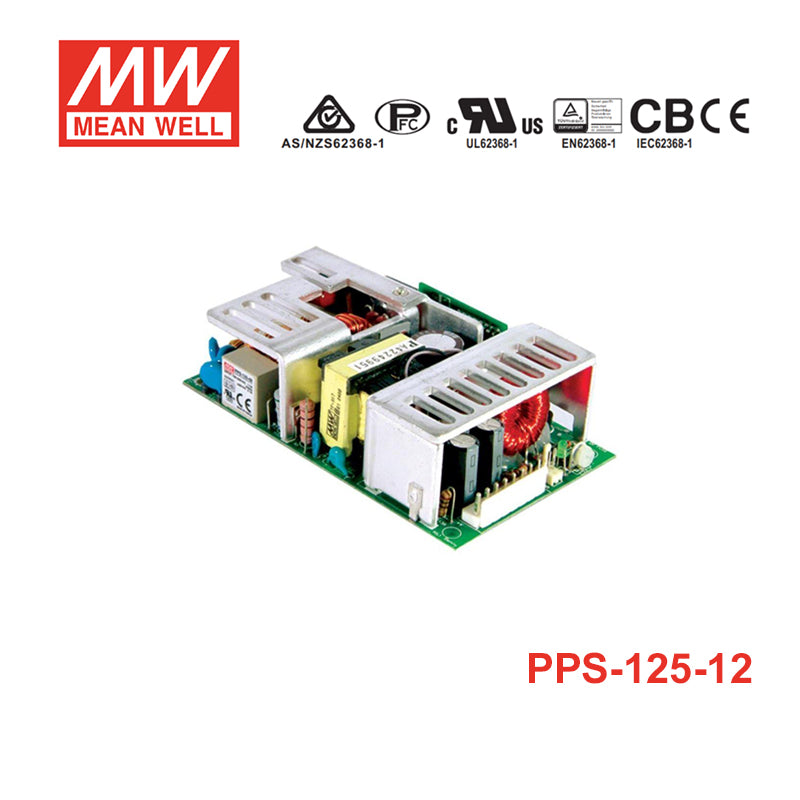

Meanwell PPS-125-12 PCB Switching Power Supply
$29.98 USD
Unit price /
Unavailable
Description
Description
Features
| Universal AC input / Full range |
| Built-in active PFC function |
| ProtectionsL Short circuit / Overload / Over voltage |
| PWM control and regulated |
| High power density 6.117W/inch³ |
| Built-in remote sense function |
| LED indicator for power on |
| 100% full load burn-in test. | 125W with 18CFM FAN |
| 5"x3" compact size |
| 3 years warranty |
General Specification
| Line regulation (max.) | ± 0.5% |
| Load regulation (max.) | ± 1.0% |
| Overload protection Range | 130 ~ 160% rated output power |
| Overload protection Type | Fold back current limiting, recovers automatically after fault condition is removed |
| Over-voltage protection | Hiccup mode, recovers automatically after fault condition is removed |
| Withstand voltage | I/P-O/P:3KVAC | I/P-FG:2KVAC | O/P-FG:0.5KVAC |
| Isolation resistance | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 / 70% RH |

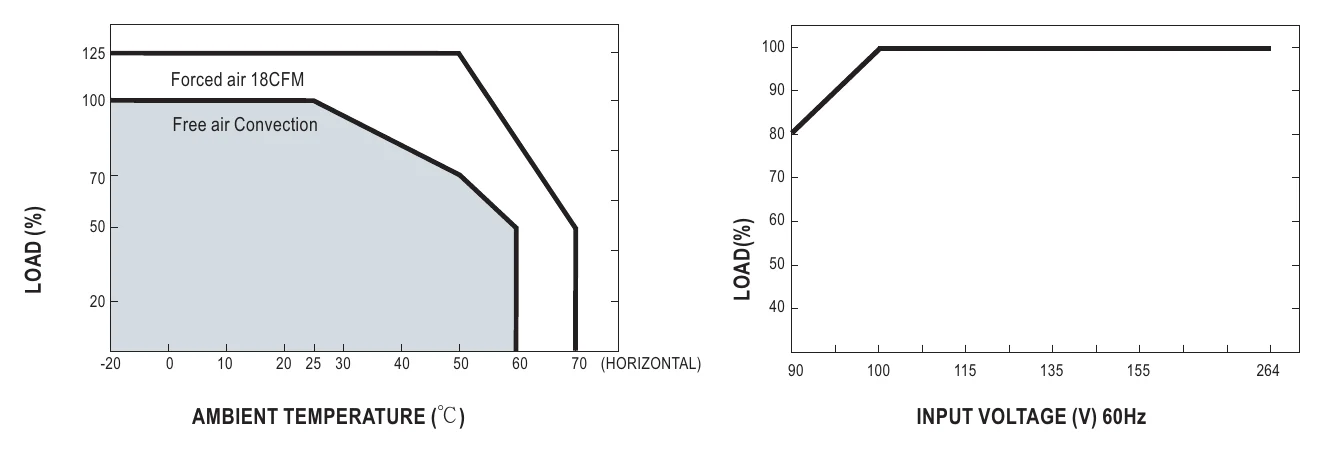

| Working temperature | -20 ~ +70 (Refer to "Derating Curve") |
| Safety standards | UL62368-1, TUV EN62368-1, AS/NZS 62368.1 approved |

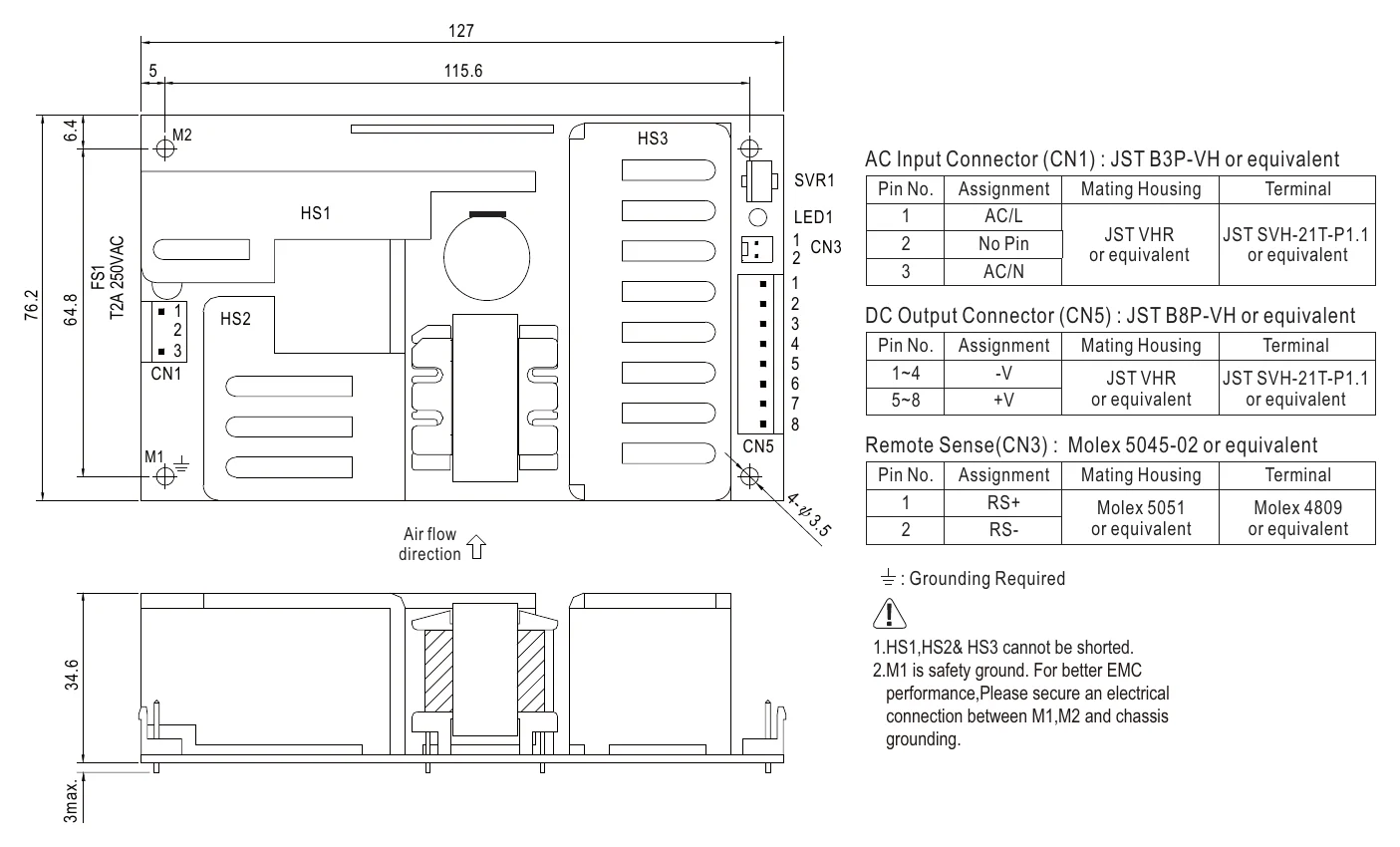

| Dimension (LxWxH) (mm) | 127*76.2*34.6mm (L*W*H) |
| Packing | 0.37Kg; 36pcs/14.3Kg/0.96CUFT |
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well PPS Series
-
Power Rating102 Watt
-
Output Voltage12 Volt
-
Rated Current8.5 Ampere
-
Input Voltage90V~264V
-
Standards MetCB,CE,EN,UL
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length5 in
-
Width3 in
-
Height1.36 in
-
Weight0.82 lb
