Mean Well SP-150-27 Power Supply 150W 27V 5.6A

Name: Mean Well SP-150-27 Power Supply 150W 27V 5.6A
Brand: Mean Well
SKU: SP-150-27
Price: 41.24 USD
Availability: InStock

SKU SP-150-27

$41.24 USD

Shipping calculated at checkout.

Select model — 2 in this family

SP-150-27

SP-150-27 150W 27V Backorder$41.24 USD

SP-320-27 320W 27V Backorder$58.97 USD

Product variants

End of Life, Succeeded by RSP-150-27

Available to order

Overview

SP-150-27 is the 27V output model of this series: rated current 5.6A, rated power 151.2W, typical efficiency 85%.

Features

Universal AC input / Full range
Built-in active PFC function, PF>0.93
Protections: Short circuit / Overload / Over voltage / Over temperature
Built-in constant current limiting circuit
Remote ON-OFF control(Optional)
LED indicator for power on
100% full load burn-in test
Fixed switching frequency at PFC:67KHz PWM:134KHz
3 years warranty

Specifications

SP-150-27Specifications from the official datasheet (2021-09-15 edition)Download datasheet PDF

OUTPUT

DC VOLTAGE: 27V
RATED CURRENT: 5.6A
CURRENT RANGE: 0 ~ 5.6A
RATED POWER: 151.2W
RIPPLE & NOISE (max.)^Note.2: 150mVp-p
VOLTAGE ADJ. RANGE: 25.7 ~ 29.7V
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME: 700ms, 40ms at full load
HOLD UP TIME (Typ.): 20ms at full load

INPUT

VOLTAGE RANGE^Note.5: 85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.93/230VAC PF>0.97/115VAC at full load
EFFICIENCY (Typ.): 85%
AC CURRENT (Typ.): 2.5A/115VAC 1.2A/230VAC
INRUSH CURRENT (Typ.): COLD START 45A/230VAC
LEAKAGE CURRENT: <2mA / 240VAC

PROTECTION

OVERLOAD: 105 ~ 150% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 29.7 ~ 36.45V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

FUNCTION

REMOTE CONTROL(OPTION): CN1:4 ~ 10VDC POWER ON, <0 ~ 0.8VDC POWER OFF

ENVIRONMENT

WORKING TEMP.: -10 ~ +55℃ (Refer to output load derating curve)
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -20 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.05%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS: UL60950-1 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to EN55032 (CISPR32) Class B,EN61000-3-2,-3
EMC IMMUNITY: Compliance to EN61000-4-2,3,4,5,6,8,11; ENV50204, EN55024, light industry level, criteria A

OTHERS

MTBF: 191.2K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 199*99*50mm (L*W*H)
PACKING: 0.76Kg; 20pcs/16.4Kg/1.21CUFT

Test conditions and notes5

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com)
5. Derating may be needed under low input voltages. Please check the derating curve for more details.

Technical drawings

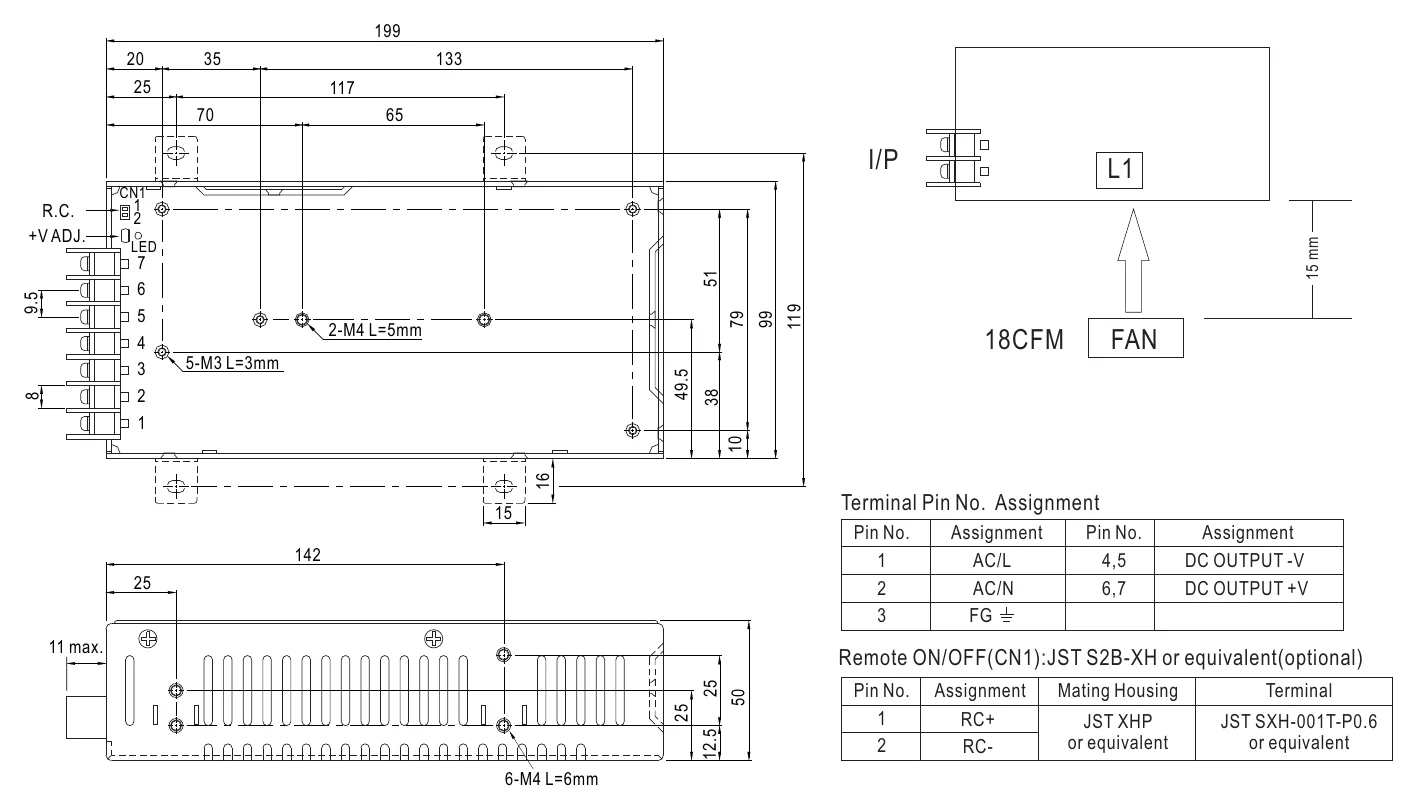

SP-150-27 Mechanical Specification — Mechanical Specification

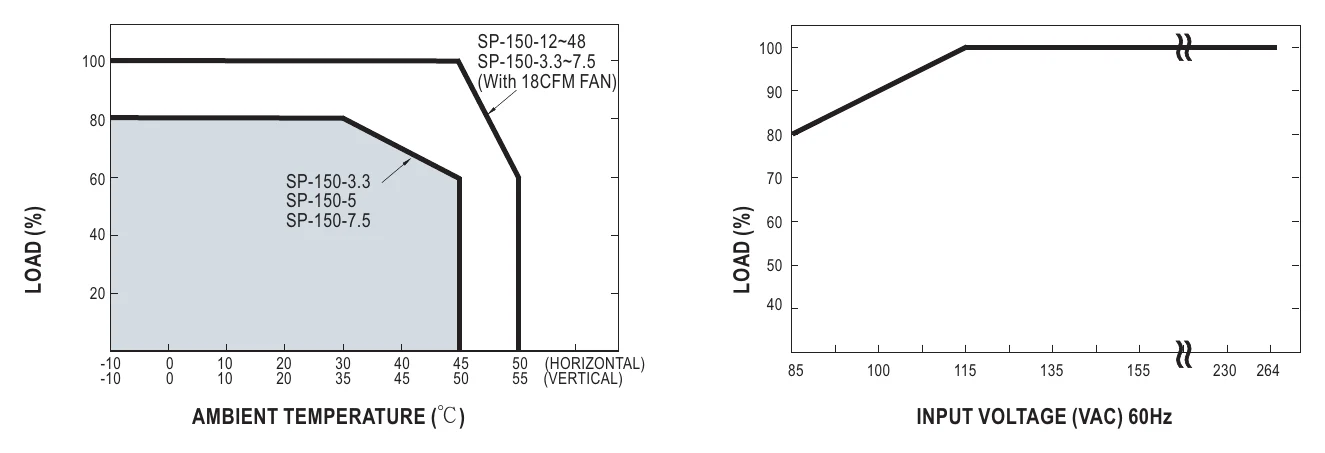

SP-150-27 Derating Curve — Derating Curve

Downloads

Datasheet1

SP-150-27 datasheetSP_150_spec.pdf · 2021-09-15 edition PDF Download

FAQ

Can I use the SP-150-27 for equipment that specifically requires 27V DC?

Yes, if the equipment is designed for a 27V constant-voltage supply and its load does not exceed 5.6A or 151.2W. It is intended for systems that actually call for 27V, not for loads specified only for 24V or another voltage.

Is the SP-150-27 suitable for industrial or automation subsystems built around a 27V rail?

It can be suitable for industrial, embedded, or automation equipment that uses a regulated 27V DC bus and stays within 151.2W and 5.6A. The wide 85-264VAC input also supports use across different AC input environments.

Can this power supply be used on a 27V development bench or validation fixture?

Yes, for a bench or validation setup that requires 27V constant voltage and draws no more than 5.6A or 151.2W. It is a better match for 27V-specific testing than a nearby 24V model when the target load is rated for 27V.

Is the SP-150-27 rated for outdoor conditions?

The published specs state an operating temperature range of -10°C to +55°C, but they do not provide an IP rating. That means the datasheet information supports indoor use unless an external enclosure is used for environmental protection.

How does the SP-150-27 compare with other 27V models in the listed SP range?

The listed 27V siblings are SP-75-27, SP-100-27, SP-150-27 (151.2W, 5.6A), SP-200-27, SP-320-27, and SP-500-27. The main differences are output power and available current at 27V.
