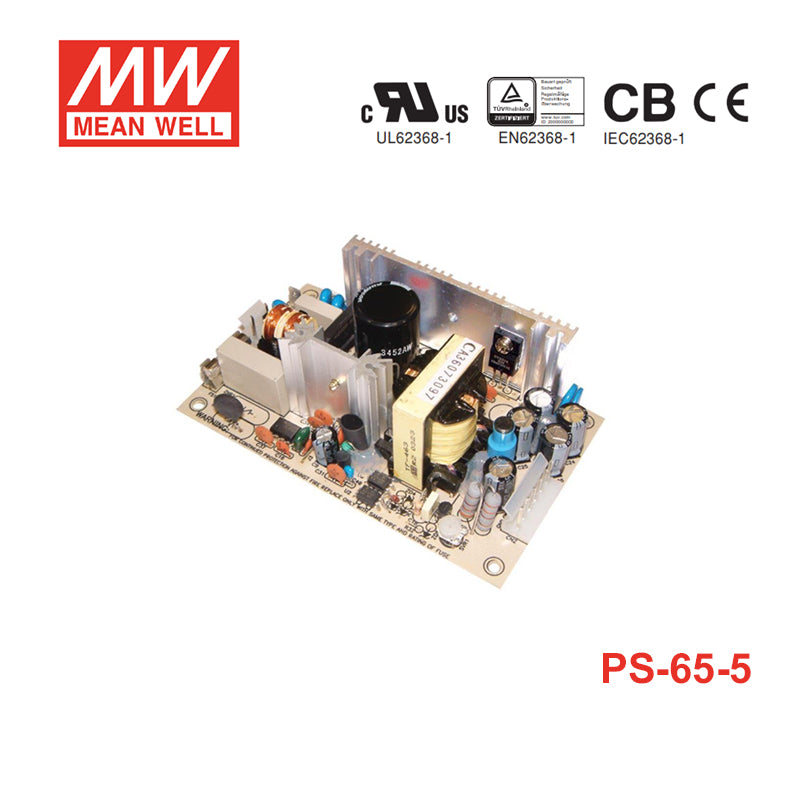

Mean Well PS-65-5 PCB Switching Power Supply
$9.55 USD
Unit price /
Unavailable
Description
Description
Features
| Universal AC input / Full range |
| Low leakage current <0.75mA |
| ProtectionsL Short circuit / Overload / Over voltage |
| Cooling by free air convection |
| 100% full load burn-in test. |
| Fixed switching frequency at 65KHz |
| 2 years warranty |
General Specification
| Line regulation (max.) | ± 1.0% |
| Load regulation (max.) | ± 3.0% |
| Overload protection Range | 73 ~ 105W(3.3V : 51 ~ 75W)(5V : 70 ~ 105W) rated output power |
| Overload protection Type | Hiccup mode, recovers automatically after fault condition is removed |
| Over-voltage protection | Hiccup mode, recovers automatically after fault condition is removed |
| Withstand voltage | I/P-O/P:3KVAC | I/P-FG:2KVAC | O/P-FG:0.5KVAC |
| Isolation resistance | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25ў/ 70% RH |
| Working temperature | -10 ~ +60 (Refer to "Derating Curve") |
| Safety standards | UL62368-1, TUV EN62368-1 approved |
| Dimension (LxWxH) (mm) | 127*76*42mm (L*W*H) |
| Packing | 0.21Kg; 54pcs/14.2Kg/1.28CUFT |
Specifications
Specifications
-
BrandMean Well
-
SeriesPS Series
-
Power Rating60 Watt
-
Output Voltage5 Volt
-
Rated Current12 Ampere
-
Input Voltage90V~264V
-
Standards MetCB,CE
-
Operating Temperature-10°C~60°C
-
Warranty2 Year
-
Length5 in
-
Width2.99 in
-
Height1.65 in
-
Weight0.46 lb
