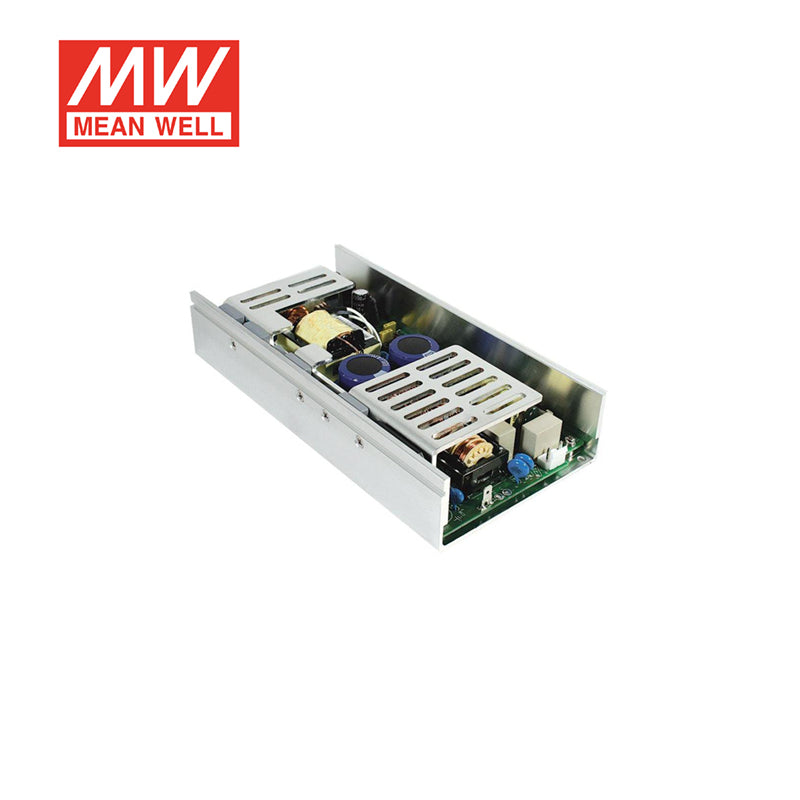

Mean Well USP-225-24 PFC Switching Power Supply
$44.92 USD
Unit price /
Unavailable
Description
Description
Features
| Universal AC input / Full range |
| Built-in active PFC circuit compliance to EN61000-3-2 |
| Protection: Short circuit / Over current / Over voltage / Over Temperature |
| Free air convection for 150W and forced air convection for 225W |
| High power density 4.7w/inch³ |
| Active AC surge current limiting |
| U-bracket low profile:38mm |
| 3 years warranty |
General Specification
| Line regulation (max.) | ± 0.5% |
| Load regulation (max.) | ± 1.0% |
| Overload protection Range | 105 ~ 150% rated output power |
| Overload protection Type | Constant current limiting, recovers automatically after fault condition is removed |
| Over-voltage protection | Shut down o/p voltage, re-power on to recover |
| Withstand voltage | I/P-O/P:3KVAC | I/P-FG:1.5KVAC | O/P-FG:0.5KVAC |
| Isolation resistance | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 / 70% RH |
| Working temperature | -20 ~ +65 ℃ (Refer to "Derating Curve") |
| Safety standards | UL60950-1, TUV EN60950-1 approved |
| Dimension (LxWxH) (mm) | 202*101.5*38mm (L*W*H) |
| Packing | 0.85Kg; 16pcs/14.6Kg/0.76CUFT(ESC-240) |
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well USP Series
-
Power Rating225.6 Watt
-
Output Voltage24 Volt
-
Rated Current9.4 Ampere
-
Input Voltage90V~264V
-
Standards MetCB,CE,EN,UL
-
Operating Temperature-20°C~65°C
-
Warranty3 Year
-
Length7.95 in
-
Width4 in
-
Height1.5 in
-
Weight1.87 lb
