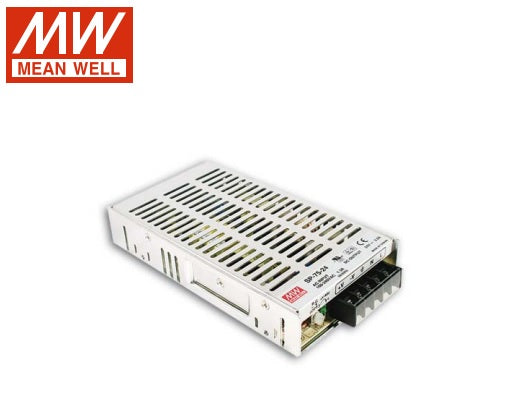

Mean Well SP-75-13.5 Power Supply 75W 13.5V 5.6A

Name: Mean Well SP-75-13.5 Power Supply 75W 13.5V 5.6A
Brand: Mean Well
SKU: SP-75-13.5
Price: 31.87 USD
Availability: InStock

SKU SP-75-13.5

$31.87 USD

Shipping calculated at checkout.

Select model — 2 in this family

SP-75-13.5

SP-75-13.5 75W 13.5V In stock$31.87 USD

SP-200-13.5 200W 13.5V Backorder$47.76 USD

Product variants

End of Life, Succeeded by RSP-75-13.5

In stock

Overview

SP-75-13.5 is the 13.5V output model of this series: rated current 5.6A, rated power 75.6W, typical efficiency 82%.

Features

Universal AC input / Full range
Built-in active PFC function, PF>0.93
Protections: Short circuit / Overload / Over voltage
Built-in constant current limiting circuit
Low profile: 33mm thickness
LED indicator for power on
100% full load burn-in test
Fixed switching frequency at PFC:67KHz PWM:134KHz
3 years warranty

Specifications

SP-75-13.5Specifications from the official datasheet (2021-09-15 edition)Download datasheet PDF

OUTPUT

DC VOLTAGE: 13.5V
RATED CURRENT: 5.6A
CURRENT RANGE: 0 ~ 5.6A
RATED POWER: 75.6W
RIPPLE & NOISE (max.)^Note.2: 80mVp-p
VOLTAGE ADJ. RANGE: 12.8 ~ 14.9V
VOLTAGE TOLERANCE^Note.3: ±2.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME: 800ms, 60ms at full load
HOLD UP TIME (Typ.): 36ms at full load

INPUT

VOLTAGE RANGE^Note.5: 85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.93/230VAC 0.96/115VAC at full load
EFFICIENCY (Typ.): 82%
AC CURRENT (Typ.): 1.3A/115VAC 0.7A/230VAC
INRUSH CURRENT (Typ.): COLD START 45A/230VAC
LEAKAGE CURRENT: <2mA / 240VAC

PROTECTION

OVERLOAD: 105 ~ 150% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 15.53 ~ 18.23V Protection type : Shut down o/p voltage, re-power on to recover

FUNCTION

REMOTE CONTROL(OPTION): CN3:4 ~ 10VDC POWER OFF, <0 ~ 0.8VDC POWER ON

ENVIRONMENT

WORKING TEMP.: -10 ~ +60℃ (Refer to output load derating curve)
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -20 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.05%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL60950-1 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to EN55032 (CISPR32) Class B,EN61000-3-2,-3
EMC IMMUNITY: Compliance to EN61000-4-2,3,4,5,6,8,11; ENV50204, EN55024, light industry level, criteria A

OTHERS

MTBF: 208.8K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 179*97*33mm (L*W*H)
PACKING: 0.58Kg; 20pcs/12Kg/0.72CUFT

Test conditions and notes5

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com)
5. Derating may be needed under low input voltages. Please check the derating curve for more details.

Technical drawings

SP-75-13.5 Mechanical Specification — Mechanical Specification

SP-75-13.5 Block Diagram — Block Diagram

SP-75-13.5 Derating Curve — Derating Curve

Downloads

Datasheet1

SP-75-13.5 datasheetSP_75_Series_Spec_sheet.pdf · 2021-09-15 edition PDF Download

FAQ

Can I use the SP-75-13.5 for 13.5V control or communications equipment?

Yes, this unit provides a constant voltage 13.5V output rated for 75.6W and 5.6A. It is suitable for 13.5V equipment as long as the total load stays within those limits.

Is the SP-75-13.5 a fit for alarm, access-control, or monitoring hardware that uses 13.5V DC?

It can be used for 13.5V DC hardware when the required power remains at or below 75.6W. The 5.6A output capacity matters most when several 13.5V devices share one supply.

Can this model support a 13.5V embedded system or service fixture?

Yes, if the system is designed for a fixed 13.5V source and does not exceed 5.6A. The 85-264VAC input also makes it practical where AC mains can vary by site.

Is the SP-75-13.5 meant for harsh indoor conditions or outdoor exposure?

Its specified operating temperature range is -10°C to +60°C, which covers a wide range of indoor industrial environments. No IP rating is provided, so outdoor or washdown suitability is not confirmed by these specs.

How do I know if 75.6W is enough for my 13.5V load?

This model is sized for loads up to 75.6W total at 13.5V, with up to 5.6A available. If your equipment needs more than 5.6A at 13.5V, you would need a higher-capacity 13.5V supply.
