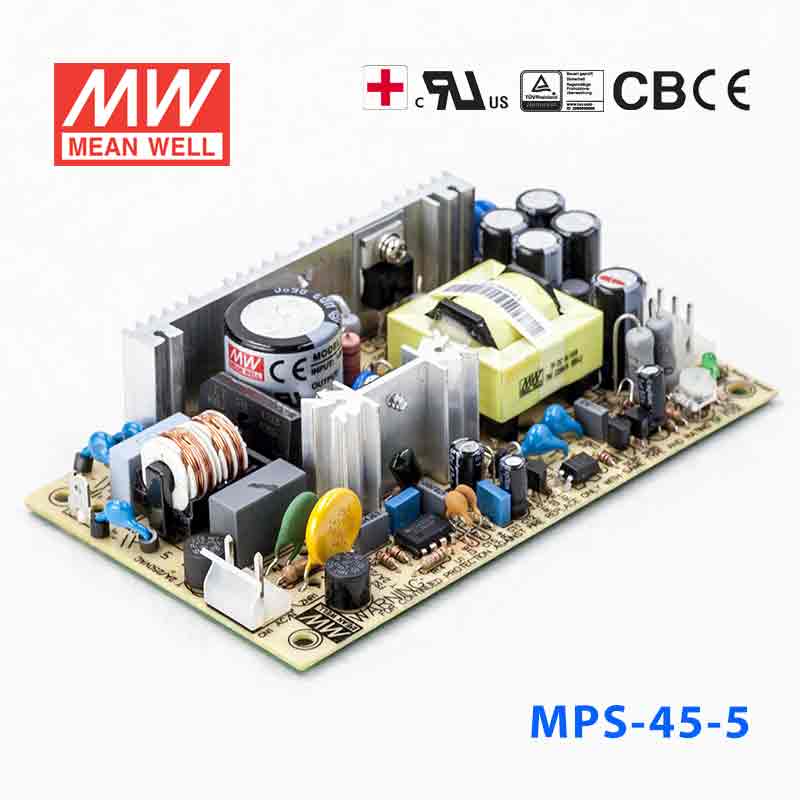

Mean Well MPS-45-13.5 Power Supply 45W 13.5V

$44.98 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

MEAN WELL MPS-45 Series Power Supplies are 45W singlel output medical type power supplies with 3 years warranty.

Features

  • Universal AC input / Full range
  • Low leakage current <250pA
  • Protections: Short circuit / Overload / Over voltage
  • Cooling by free air convection
  • Medical safety approved (2 x MOPP between primary to secondary)
  • 100% full load burn-in test
  • Fixed switching frequency at 45KHz
  • 3 years warranty

Specifications

  • Brand
    Mean Well
  • Series
    MPS Series
  • Power Rating
    44.55 Watt
  • Output Voltage
    13.5 Volt
  • Rated Current
    3.3 Ampere
  • Input Voltage
    90V~264V
  • Standards Met
    CB,CE,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -10°C~60°C
  • Warranty
    3 Year
  • Length
    5 in
  • Width
    2.99 in
  • Height
    1.1 in
  • Weight
    0.4 lb
