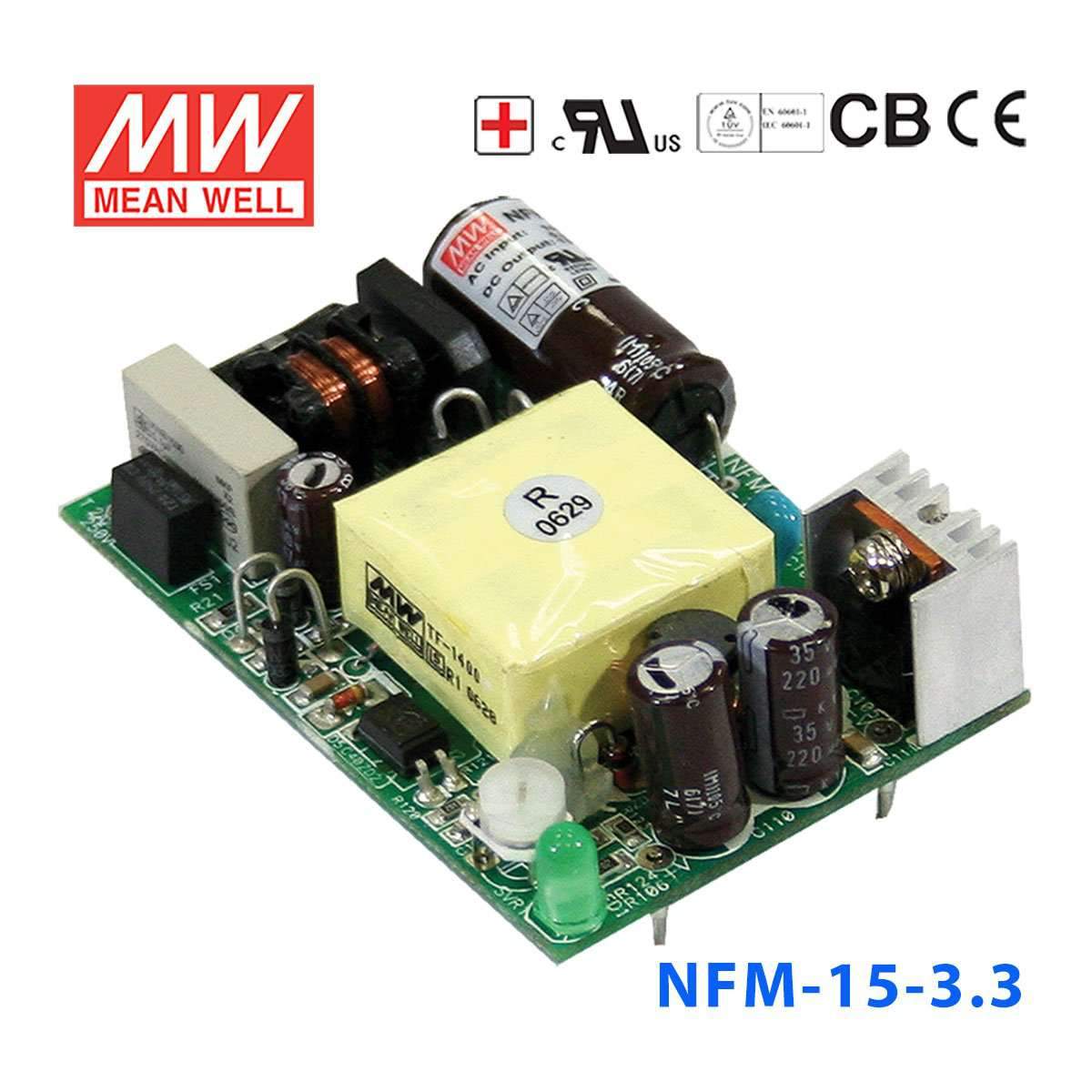

Mean Well NFM-15-3.3 Power Supply 15W 3.3V
$21.61 USD
Unit price /
Unavailable
Description
Description
AC-DC Single output Medical Open frame power supply; Output 3.3Vdc at 0.63A; PCB mount; 2xMOPP; NFM-15-3.3 is succeeded by MFM-15-3.3
Specifications
Specifications
-
BrandMean Well
-
SeriesNFM Series
-
Power Rating11.5 Watt
-
Output Voltage3.3 Volt
-
Rated Current3.5 Ampere
-
Input Voltage85V~264V
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length2.76 in
-
Width1.89 in
-
Height0.87 in
-
Weight1.43 lb
