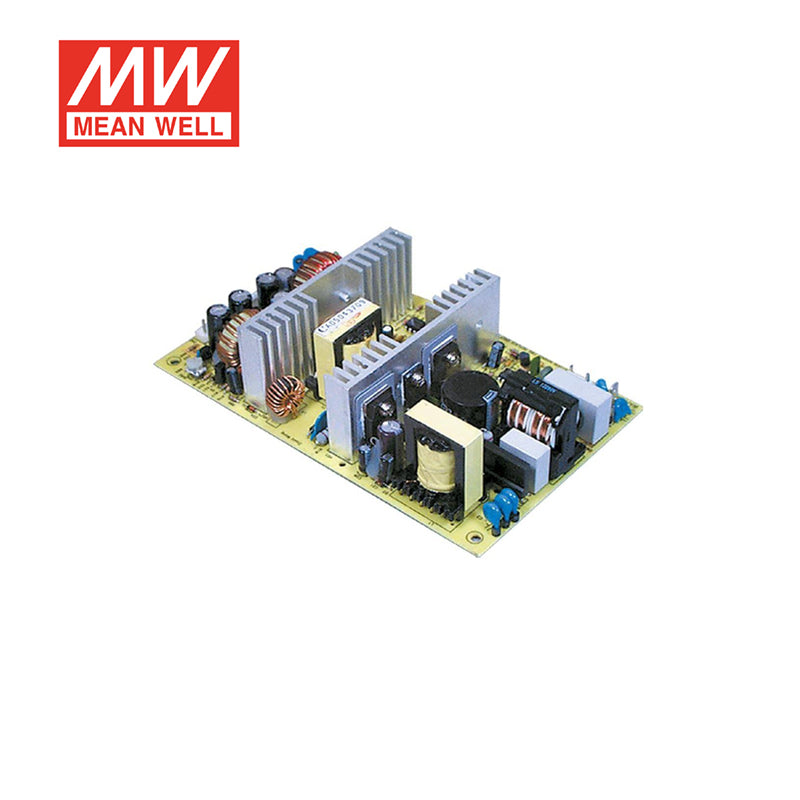

Meanwell PPQ-100C 100W Quad Output with PFC Switching Power Supply
$30.37 USD
Unit price /
Unavailable
Description
Description
Features
| Universal AC input / Full range |
| Built-in active PFC function, PF>0.95 |
| Protections: Short circuit / Overload / Over voltage |
| Cooling by free air convection |
| 100% full load burn-in test |
| Fixed switching frequency at 70KHz |
| 3 years warranty |
General Specification
| Line regulation (max.) | ± 1.0% |
| Load regulation (max.) | ± 2.0% |
| Overload protection Range | 105 ~ 135% rated output power |
| Overload protection Type | Hiccup mode, recovers automatically after fault condition is removed |
| Over-voltage protection | Shut down o/p voltage, re-power on to recover |
| Withstand voltage | I/P-O/P:3KVAC | I/P-FG:1.5KVAC | O/P-FG:0.5KVAC |
| Isolation resistance | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH |
| Working temperature | -10 ~ +60 ℃ (Refer to "Derating Curve") |
| Safety standards | UL60950-1, TUV EN60950-1 approved |
| Dimension (LxWxH) (mm) | 177.8*107.95*38mm (L*W*H) |
| Packing | 0.62Kg; 24pcs/15.9Kg/1.34CUFT |
Specifications
Specifications
-
BrandMean Well
-
SeriesPPQ Series
-
Power Rating101 Watt
-
Output Voltage5 Volt
-
Rated Current10 Ampere
-
Input Voltage90V~264V
-
Standards MetCB,CE,EN,UL
-
Operating Temperature-10°C~60°C
-
Warranty3 Year
-
Length7 in
-
Width4.25 in
-
Height1.5 in
-
Weight1.37 lb
