Mean Well

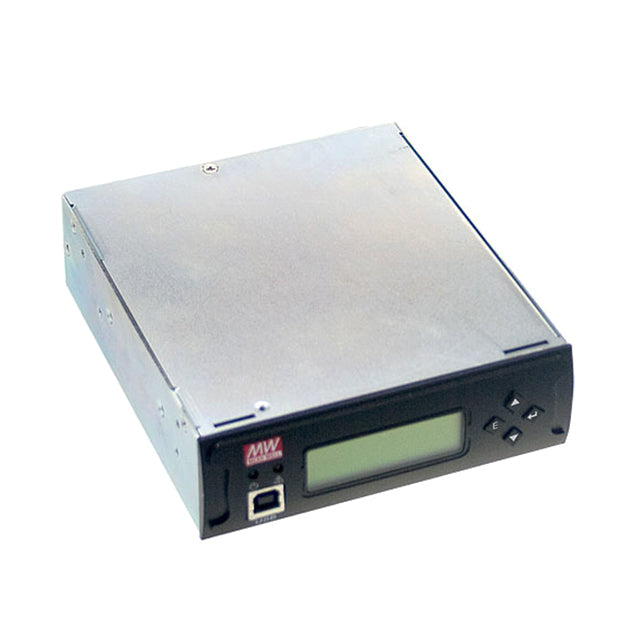

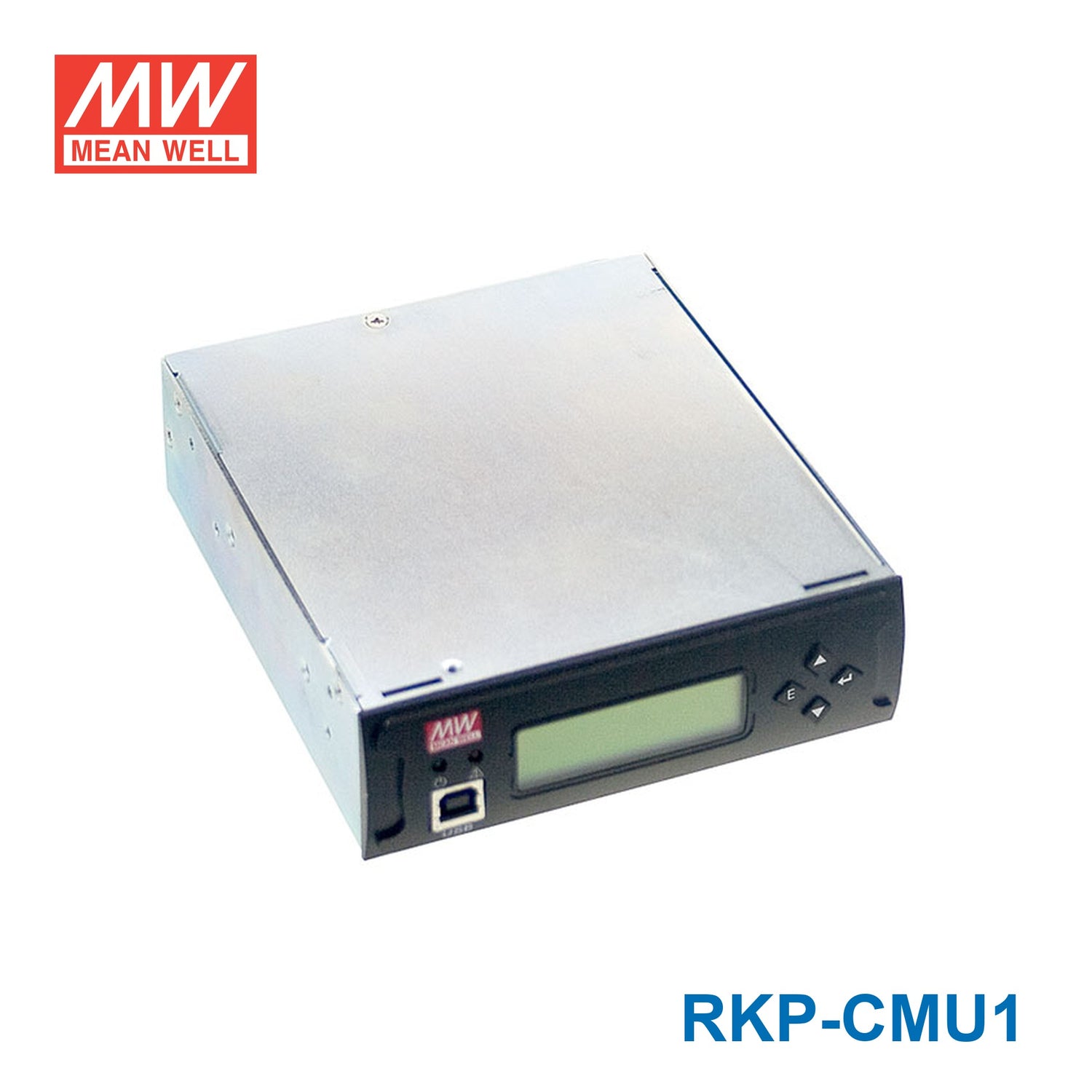

Mean Well RKP-CMU1 Power and Control Monitor System for RCP-2000 Series

1U low profilewindows-based PC communication software4 user programmable relay outputs
SKU RKP-CMU1
$311.32 USD
Shipping calculated at checkout.
In stock
|

Overview

RKP-CMU1 is a fully digitalized control / monitor unit for the RKP-1U power system. Equipped with USB, RS-232, and ethernet interface, it can be connected locally to PC to execute the control and monitoring tasks. With built-in 4 configurable relay contacts, users can flexibility monitor specific events or alarms and react suitable action accordingly.

Features

  • 1U low profile/19-inch rack mountable
  • Front panel LCD and buttons for on-site service without PC
  • USB-, RS-232 or Ethernet interface for PC connection locally or remote monitoring and control via GSM modem
  • Alarm/event log with time and date
  • Windows-based PC communication software
  • Easy wire connections on rear side
  • 4 user programmable relay outputs for traditional remote monitoring or warning
  • 5 years warranty

Specifications

RKP-CMU1Specifications from the official datasheet (2026-07-23 edition)

OUTPUT

DIGITAL METERNote.6
Display the DC output voltage, current, and internal temperature
CONTROL OUTPUTNote.6
PMBus signal
LED INDICATOR
Green: Power on Red:Alarm
RELAY CONTACT
4 user programmable relay, relay contact rating(max.): 30V/1A resistive

INPUT

VOLTAGE RANGENote.3
12 ~ 15VDC
CURRENT
1A/12VDC 0.8A/15VDC
MONITORING INPUTSNote.6
PMBus signal

FUNCTION

DISPLAY
LCD 16x2 Alphanumeric Matrix Display / PC Web Page Display
MONITOR
Output Voltage / Load Current / Temperature / Input Voltage
CONTROL
Output Voltage, Current Limit, ON/OFF
COMM. INTERFACE
USB, RS-232, Ethernet
MODEL SUPPORTED
RCP-1600, RCP-2000, DRP-3200

ENVIRONMENT

WORKING TEMP.Note.1
-25 ~ +70℃
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH non-condensing
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS
EAC TP TC 004 approved, design refer to TUV BS EN/ EN62368-1
WITHSTAND VOLTAGENote.2
O/P-FG:0.7KVDC
ISOLATION RESISTANCENote.2
O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/ EN55032 (CISPR32) Conduction Class B, Radiation Class A ; BS EN/ EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/ EN61000-4-2,3,4,5,6,8,11, BS EN/ EN61000-6-1( BS EN/ EN50082-2) , BS EN/ EN55035 , light industry level , EAC TP TC 020

OTHERS

MTBF
671.5K hrs min. Telcordia SR-332 (Bellcore) ; 110.5K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
147.5*127*41mm (L*W*H)
PACKING
0.8Kg; 16pcs/13.8Kg/0.79CUFT

Certifications & ratings

Marked features
Industrial, Telecom
Test conditions and notes6
  1. 1. LCD may freeze under -10℃.
  2. 2. SK100 and all of signal connectors (except CN502, CN503, and USB port) are considered as O/P.
  3. 3. Recommanded use MEAN WELL power adaptor series: GS12, GS15, GS18, GE12, GE18, GST18.
  4. 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 720mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
  5. 5. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  6. 6. Please refer to respective specs of PSU models for the maximum number RKP-CMU1 can control and monitor.

Technical drawings

RKP-CMU1 Function Manual
Function Manual
RKP-CMU1 Mechanical Specification (Single Unit)
Mechanical Specification (Single Unit)
RKP-CMU1 Mechanical Specification (Rack System)
Mechanical Specification (Rack System)
RKP-CMU1 RKP-CMU1
RKP-CMU1

Typical applications

  • Industrial automation
  • Distributed power architecture system
  • Wireless/telecommunication solution
  • Redundant power system
  • Electric vehicle charger system
  • Constant current source system

Downloads

FAQ

What is the Mean Well RKP-CMU1 used for?

The Mean Well RKP-CMU1 is a power and control monitor system designed for Mean Well RCP-2000 series rack power systems. It provides local and remote monitoring and control functions, making it useful in applications where power system status and event visibility are important.

Is the RKP-CMU1 compatible with power supplies outside the RCP-2000 series?

The RKP-CMU1 supports the RCP-1600, RCP-2000, and DRP-3200 models. Compatibility is stated for these specific series rather than for unrelated power supply families.

What monitoring and interface options does the RKP-CMU1 include?

The RKP-CMU1 includes a front-panel LCD and buttons for on-site service without requiring a PC. For communication, it supports USB, RS-232, and Ethernet interfaces, and it can also be used for remote monitoring and control via GSM modem.

Can the RKP-CMU1 provide alarm or event history for troubleshooting?

Yes. The unit includes an alarm and event log with time and date information, which helps users review past system conditions and alerts. It also provides 4 user-programmable relay outputs for traditional remote monitoring or warning functions.

What are the environmental operating limits of the RKP-CMU1?

The specified operating temperature range for the RKP-CMU1 is -25°C to 70°C. This gives it a broad temperature range suitable for demanding commercial and industrial environments, subject to the overall system design.

What are the physical format and weight of the Mean Well RKP-CMU1?

The RKP-CMU1 is a 1U low profile unit for 19-inch rack mounting. Its listed weight is 0.8Kg, which supports integration into rack-based power system environments.
