Mean Well

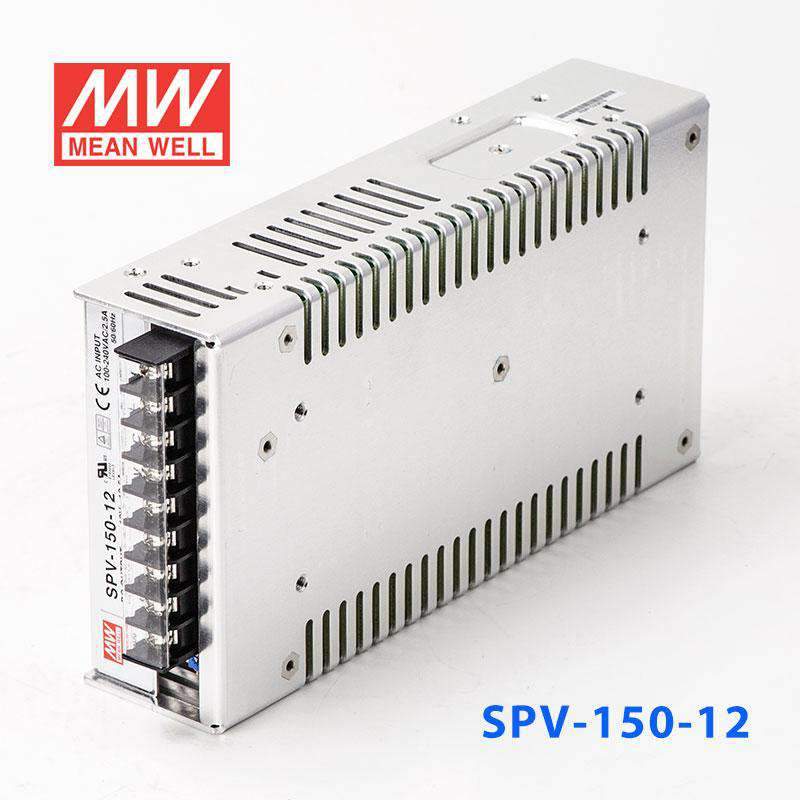

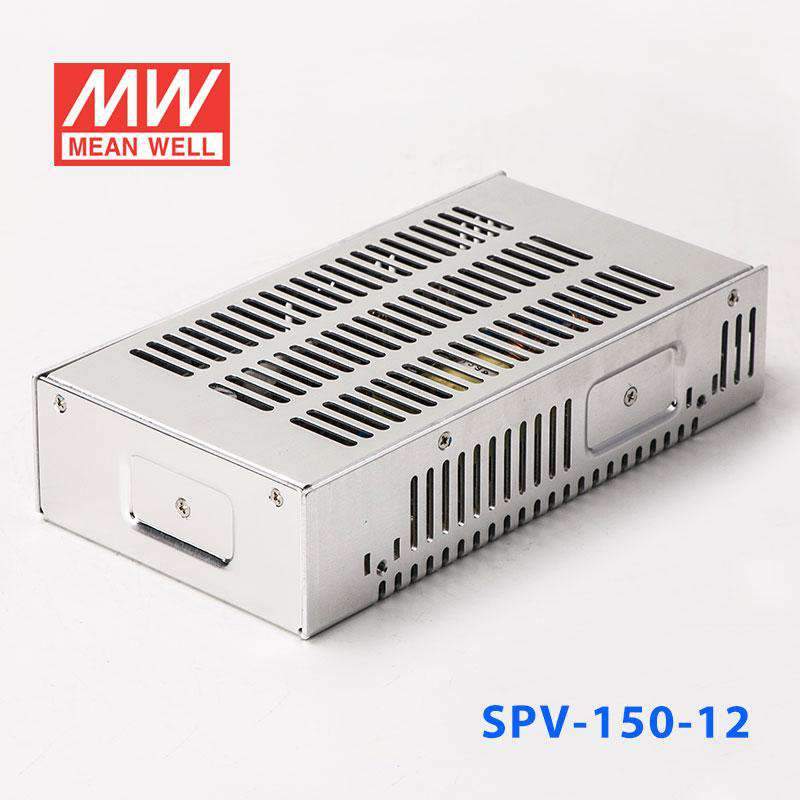

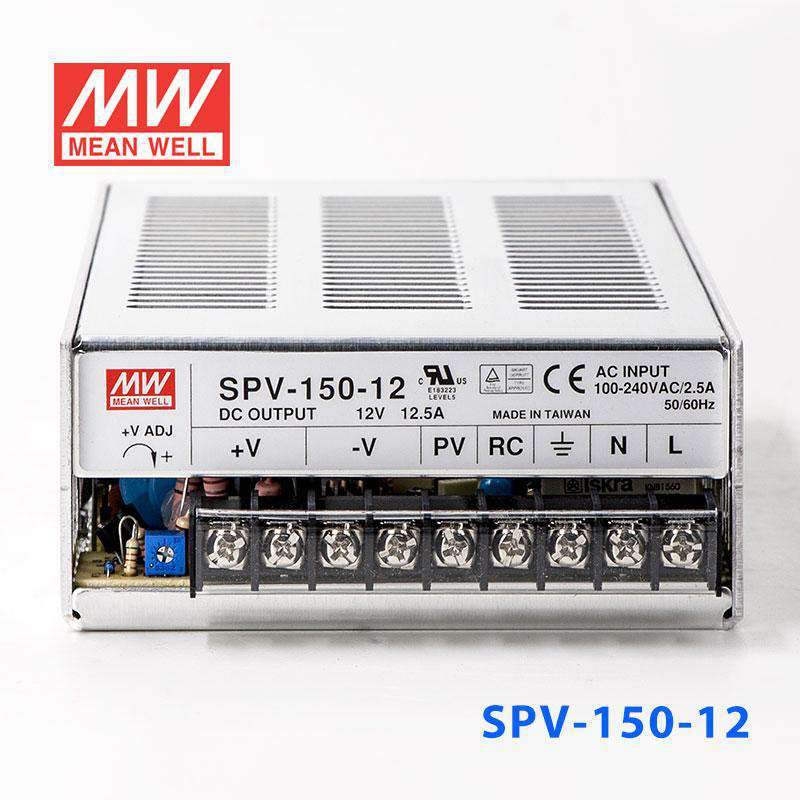

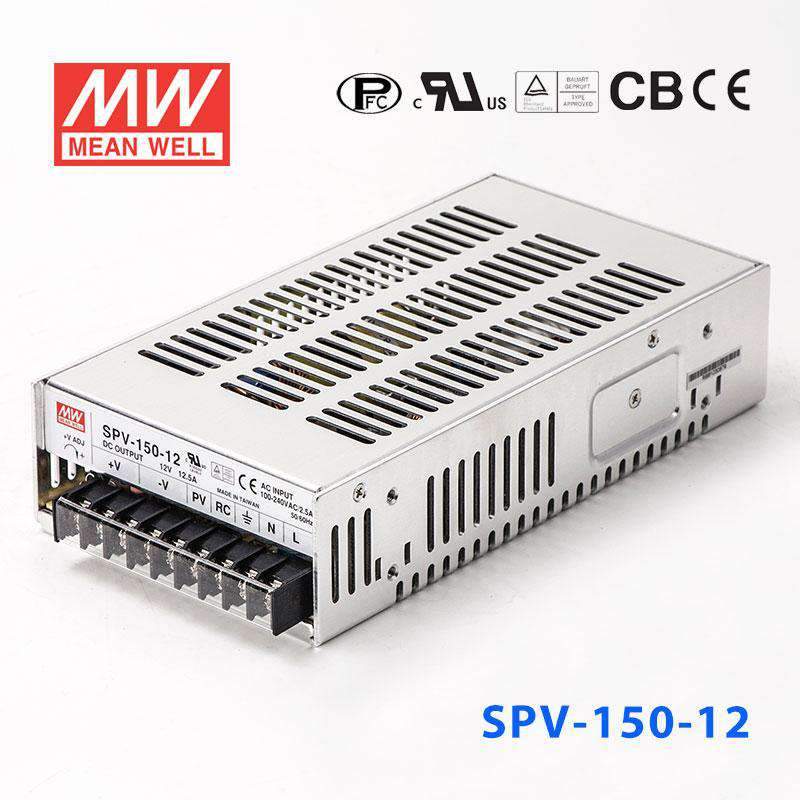

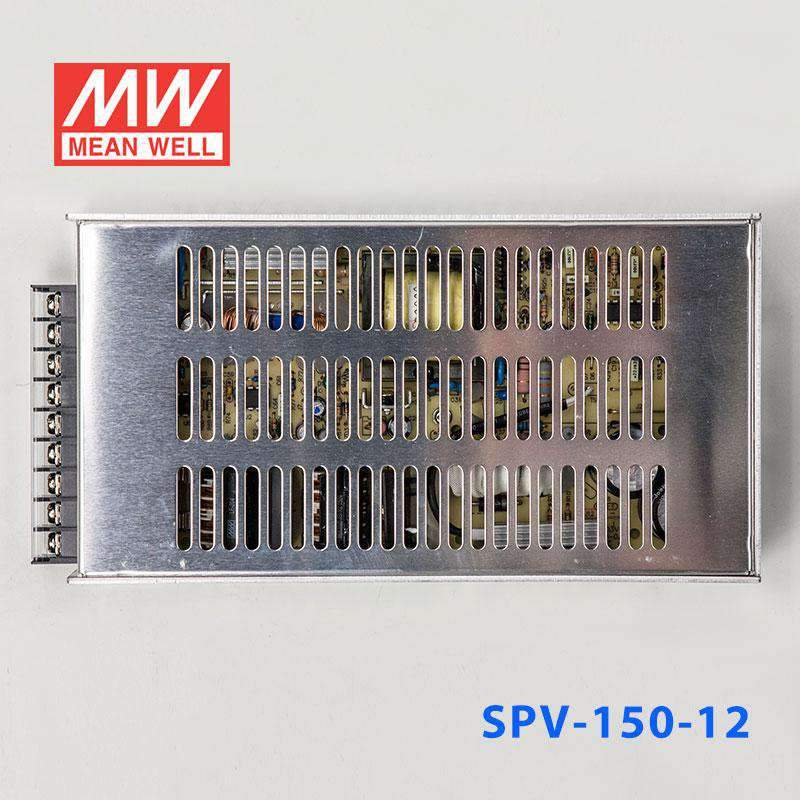

Mean Well SPV-150-12 power supply 150W 12V 12.5A

built-in active PFC functionPF>0.94output voltage programmable from 20%~110% by 1~5.5VDC external control signal
SKU SPV-150-12
$78.38 USD
Shipping calculated at checkout.
In stock
|

Overview

SPV-150-12 is the 12V output model of this series: rated current 12.5A, rated power 150W, typical efficiency 82%.

Features

  • Universal AC input / Full range
  • Built-in active PFC function, PF>0.94
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Cooling by free air convection
  • Output voltage programmable from 20~110% by 1~5.5VDC external control signal
  • Built-in remote ON-OFF control
  • Fixed switching frequency at 100KHz
  • 3 years warranty

Specifications

SPV-150-12Specifications from the official datasheet (2024-11-22 edition)

OUTPUT

DC VOLTAGE
12V
RATED CURRENT
12.5A
CURRENT RANGE
0 ~ 12.5A
RATED POWER
150W
RIPPLE & NOISE (max.)Note.2
150mVp-p
VOLTAGE ADJ. RANGE
10.8 ~ 13.2V
VOLTAGE TOLERANCENote.3
±1.0%
LINE REGULATION
±0.3%
LOAD REGULATION
±0.5%
SETUP, RISE TIME
800ms, 50ms/230VAC 2500ms, 50ms/115VAC at full load
HOLD UP TIME (Typ.)
16ms/230VAC 16ms/115VAC at full load

INPUT

VOLTAGE RANGENote.5
88 ~ 264VAC 124 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF>0.94/230VAC PF>0.98/115VAC at full load
EFFICIENCY (Typ.)
82%
AC CURRENT (Typ.)
2.5A/115VAC 1.25A/230VAC
INRUSH CURRENT (Typ.)
20A/115VAC 45A/230VAC
LEAKAGE CURRENT
<1mA / 240VAC

PROTECTION

OVERLOAD
105 ~ 150% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE
13.8 ~ 16.2V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE
Shut down o/p voltage, recovers automatically after temperature goes down

FUNCTION

REMOTE CONTROL
4 ~ 10VDC power off, <0 ~ 0.8VDC power on
OUTPUT VOLTAGE TRIM
2.4 ~ 13.2V

ENVIRONMENT

WORKING TEMP.
-20 ~ +65℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY EMC (Note 4)

SAFETY STANDARDS
UL60950-1, TUV BS EN/ EN62368-1, IEC62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/ EN55032 (CISPR32) Class B, BS EN/ EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/ EN61000-4-2,3,4,5,6,8,11, BS EN/ EN55024, light industry level, EAC TP TC 020

OTHERS

MTBF
2112.6K hrs min. Telcordia SR-332 (Bellcore) ; 210.3K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
215*115*50mm (L*W*H)
PACKING
1.1Kg; 12pcs/14Kg/0.92CUFT
Test conditions and notes6
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  5. 5. Derating may be needed under low input voltages. Please check the derating curve for more details.
  6. 6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

SPV-150-12 Mechanical Specification
Mechanical Specification
SPV-150-12 Block Diagram
Block Diagram
SPV-150-12 Derating Curve
Derating Curve
SPV-150-12 SUPSV-
SUPSV-

Downloads

FAQ

Can I use the SPV-150-12 for 12V industrial control panels or automation accessories?

Yes, it is suitable for 12V constant-voltage loads used in industrial control and automation systems. The unit provides 12V output at 12.5A with a total power rating of 150W.

Is the SPV-150-12 a fit for 12V LED signage or display lighting systems?

It can support 12V constant-voltage LED systems when the total load stays within 150W and 12.5A. The supply also accepts a wide 88-264VAC input range, which is useful across different AC power environments.

Can this power supply be used for 12V embedded or IT equipment that needs stable low-voltage power?

Yes, it is designed for constant-voltage 12V output and can power embedded or IT devices that match its 150W and 12.5A limits. The built-in active PFC function with PF>0.94 may also matter in systems where input power quality is specified.

Would the SPV-150-12 work for 12V security, communications, or monitoring hardware in commercial systems?

Yes, it is appropriate for 12V communications, monitoring, and security hardware that uses a constant-voltage supply and fits within 150W. The 88-264VAC input range and certifications including UL60950-1, TUV BS EN/EN62368-1, IEC62368-1, and EAC TP TC 004 are relevant for commercial and industrial power environments.

Is the SPV-150-12 meant for outdoor use or only protected indoor locations?

The operating temperature range is -20°C to +65°C, so it can handle moderate temperature variation. No IP rating is listed, so the published specs do not indicate direct outdoor exposure or wet-location suitability without additional protection.

How does the SPV-150-12 compare with the related SPV family models?

Among the listed siblings, the SPV-150-12 is 150W, 12V, 12.5A; the SPV-150-24 is 150W, 24V, 6.25A; and the SPV-150-48 is 150W, 48V, 3.125A. The list also includes SPV-300-12 at 300W, 12V, 25A, SPV-300-24 at 300W, 24V, 12.5A, and SPV-300-48 at 300W, 48V, 6.25A.
