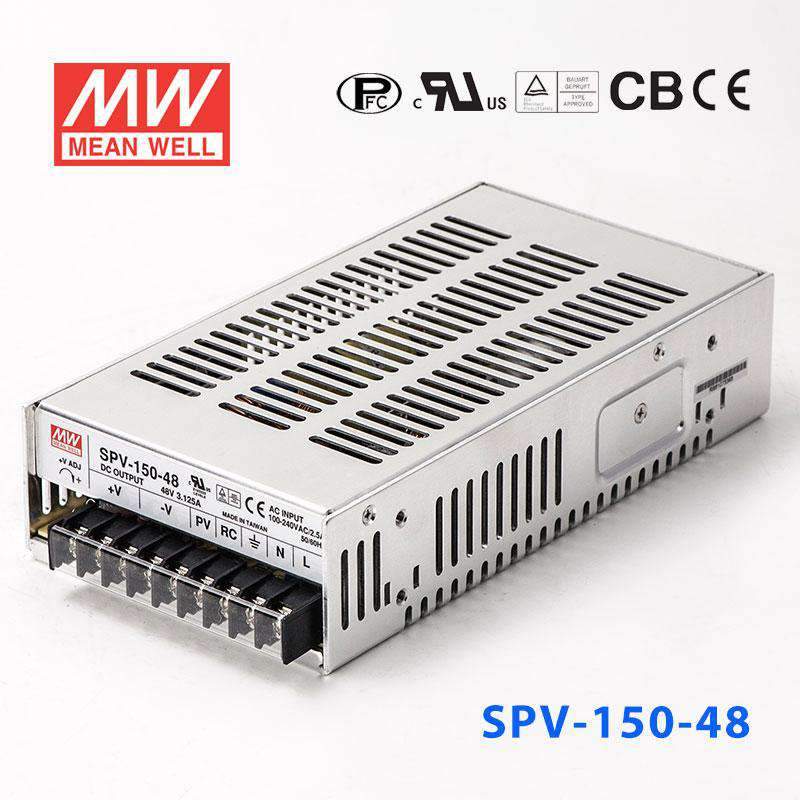

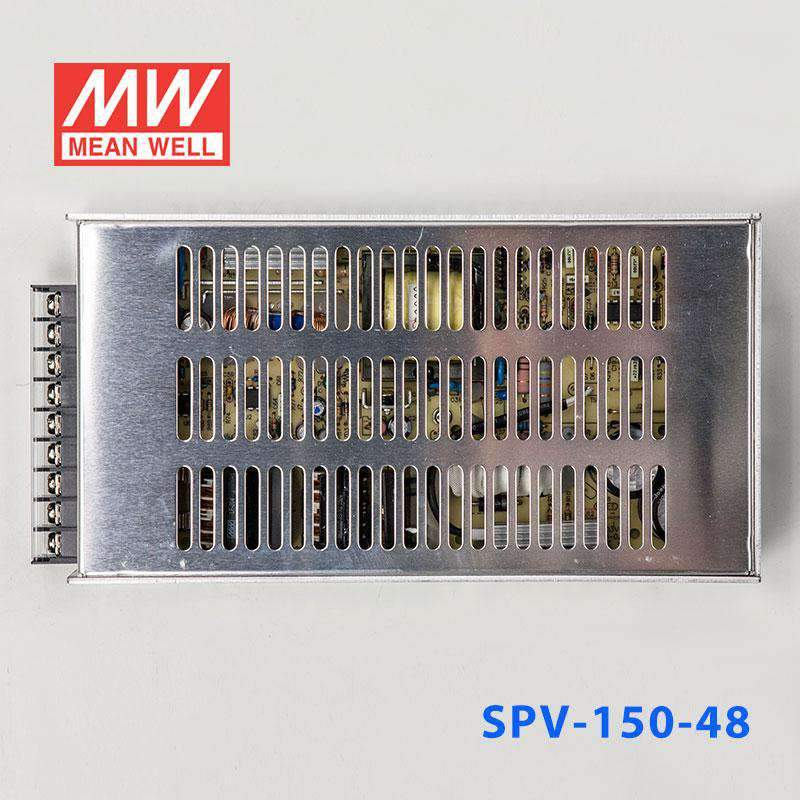

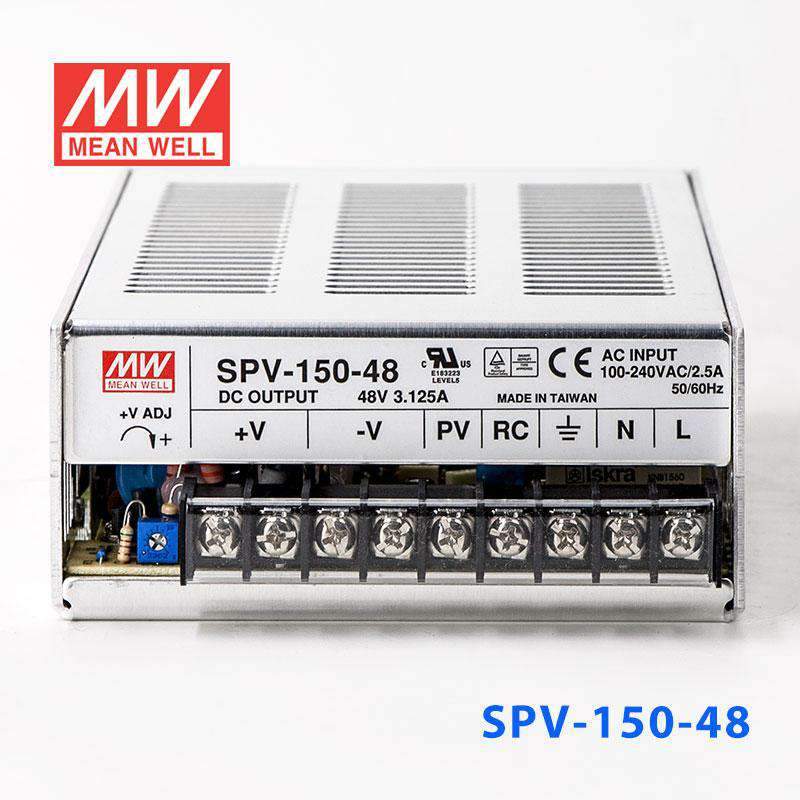

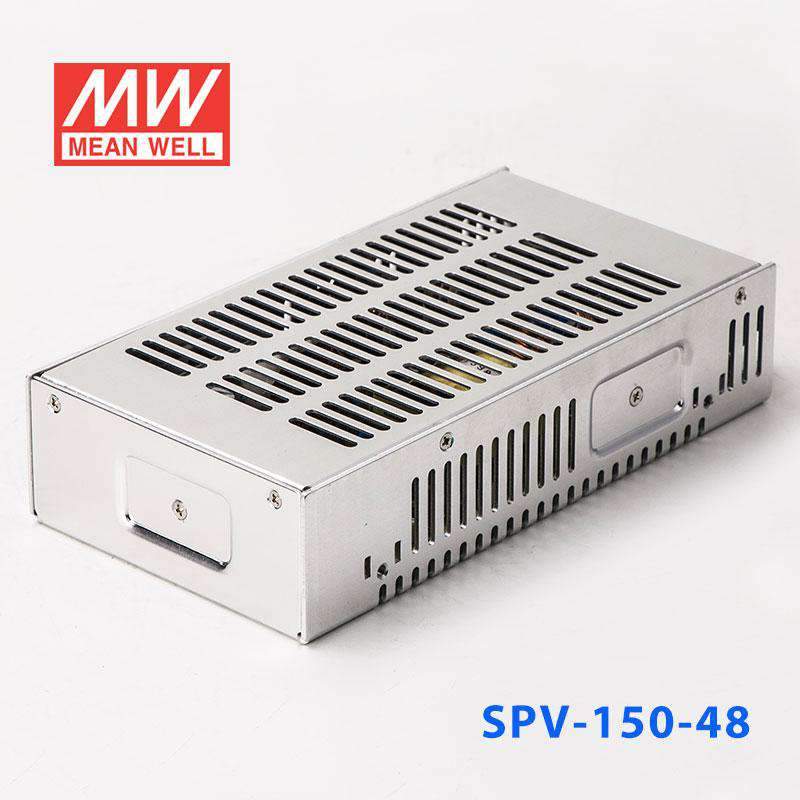

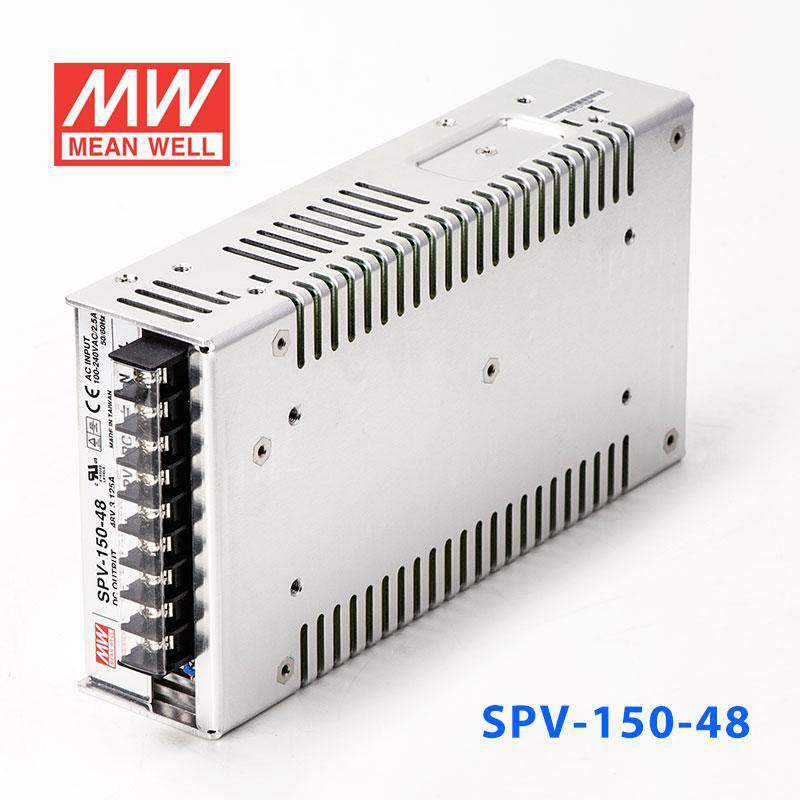

Mean Well SPV-150-48 power supply 150W 48V 3.125A

Name: Mean Well SPV-150-48 power supply 150W 48V 3.125A
Brand: Mean Well
SKU: SPV-150-48
Price: 78.38 USD
Availability: InStock

built-in active PFC functionPF>0.94output voltage programmable from 20%~110% by 1~5.5VDC external control signal

SKU SPV-150-48

$78.38 USD

Shipping calculated at checkout.

Available to order

Overview

SPV-150-48 is the 48V output model of this series: rated current 3.125A, rated power 150W, typical efficiency 83%.

Features

Universal AC input / Full range
Built-in active PFC function, PF>0.94
Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection

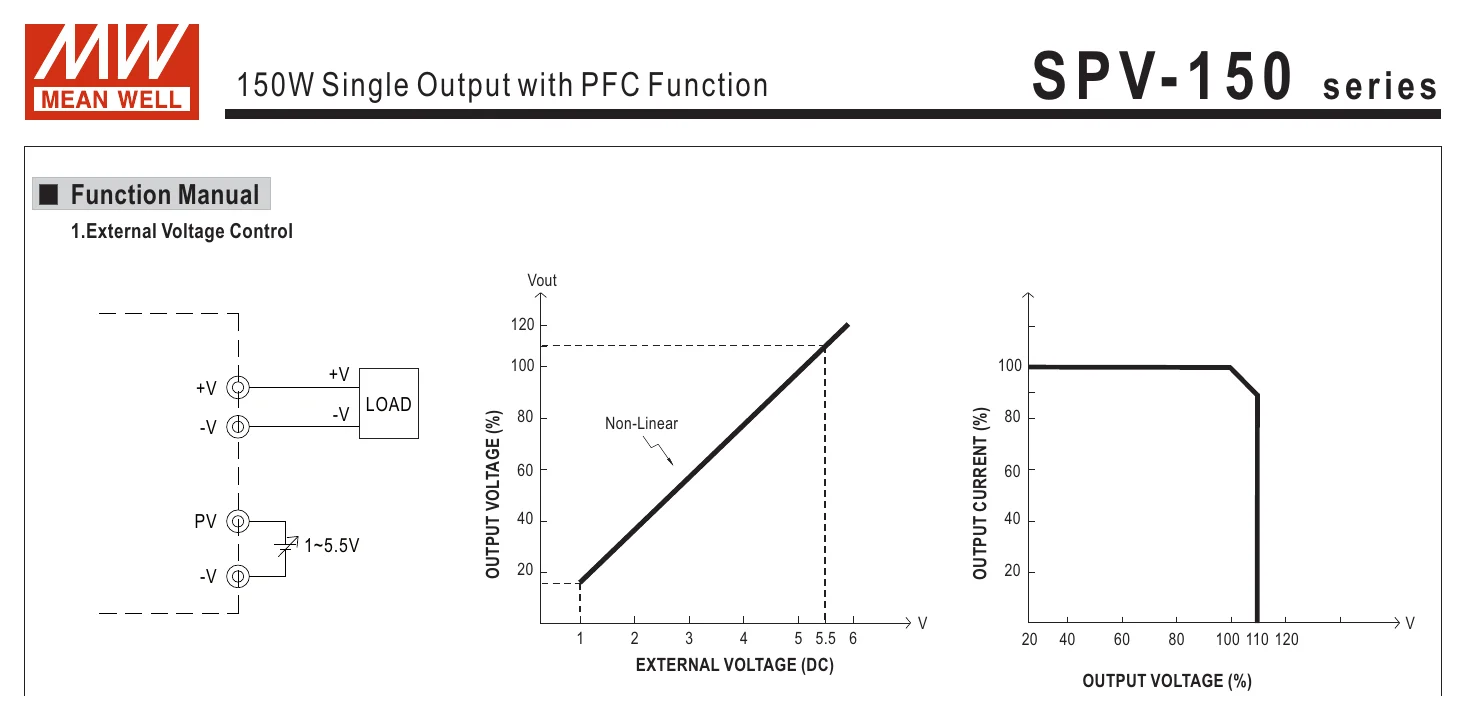

Output voltage programmable from 20~110% by 1~5.5VDC external control signal
Built-in remote ON-OFF control
Fixed switching frequency at 100KHz
3 years warranty

Specifications

SPV-150-48Specifications from the official datasheet (2024-11-22 edition)

OUTPUT

DC VOLTAGE: 48V
RATED CURRENT: 3.125A
CURRENT RANGE: 0 ~ 3.125A
RATED POWER: 150W
RIPPLE & NOISE (max.)^Note.2: 240mVp-p
VOLTAGE ADJ. RANGE: 41 ~ 52.8V
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.2%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME: 800ms, 50ms/230VAC 2500ms, 50ms/115VAC at full load
HOLD UP TIME (Typ.): 16ms/230VAC 16ms/115VAC at full load

INPUT

VOLTAGE RANGE^Note.5: 88 ~ 264VAC 124 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.94/230VAC PF>0.98/115VAC at full load
EFFICIENCY (Typ.): 83%
AC CURRENT (Typ.): 2.5A/115VAC 1.25A/230VAC
INRUSH CURRENT (Typ.): 20A/115VAC 45A/230VAC
LEAKAGE CURRENT: <1mA / 240VAC

PROTECTION

OVERLOAD: 105 ~ 150% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 57.6 ~ 67.2V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

FUNCTION

REMOTE CONTROL: 4 ~ 10VDC power off, <0 ~ 0.8VDC power on
OUTPUT VOLTAGE TRIM: 9.6 ~ 52.8V

ENVIRONMENT

WORKING TEMP.: -20 ~ +65℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY EMC (Note 4)

SAFETY STANDARDS: UL60950-1, TUV BS EN/ EN62368-1, IEC62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/ EN55032 (CISPR32) Class B, BS EN/ EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/ EN61000-4-2,3,4,5,6,8,11, BS EN/ EN55024, light industry level, EAC TP TC 020

OTHERS

MTBF: 2112.6K hrs min. Telcordia SR-332 (Bellcore) ; 210.3K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 215*115*50mm (L*W*H)
PACKING: 1.1Kg; 12pcs/14Kg/0.92CUFT

Test conditions and notes6

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
5. Derating may be needed under low input voltages. Please check the derating curve for more details.
6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

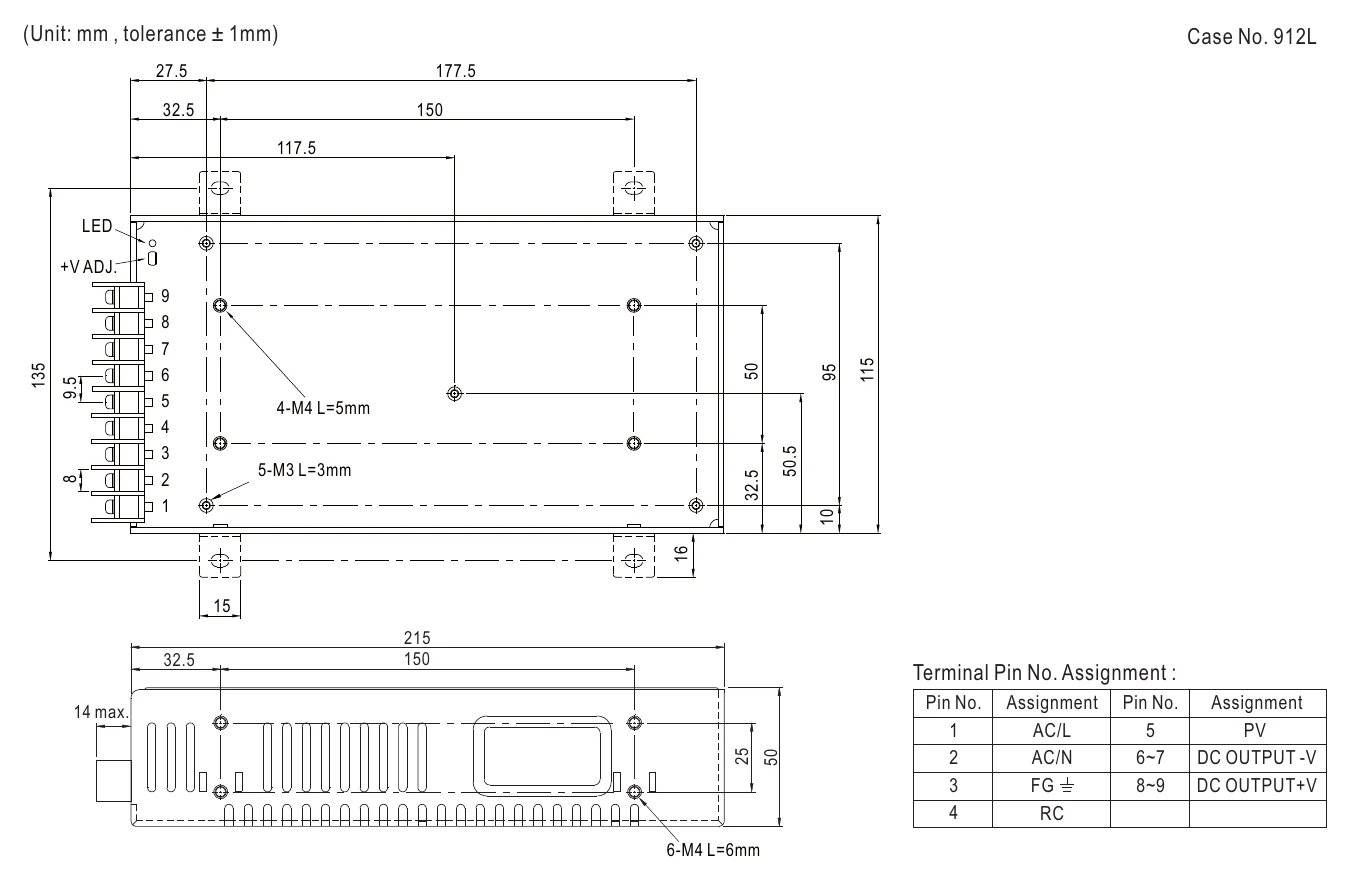

SPV-150-48 Mechanical Specification — Mechanical Specification

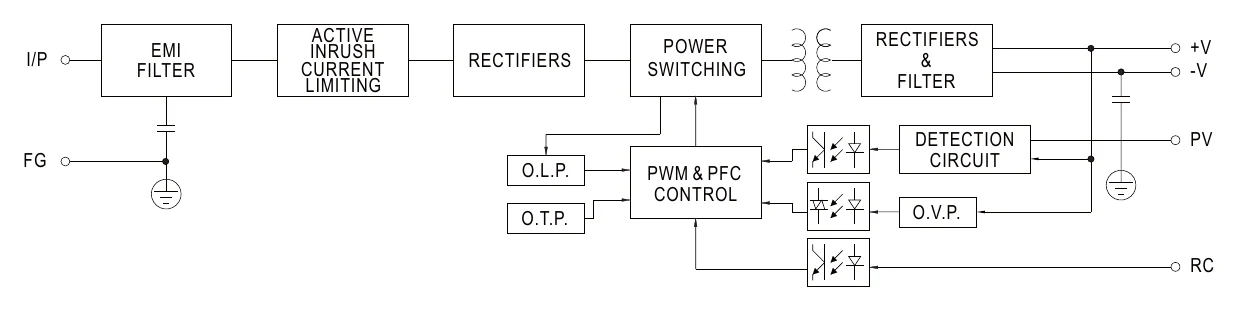

SPV-150-48 Block Diagram — Block Diagram

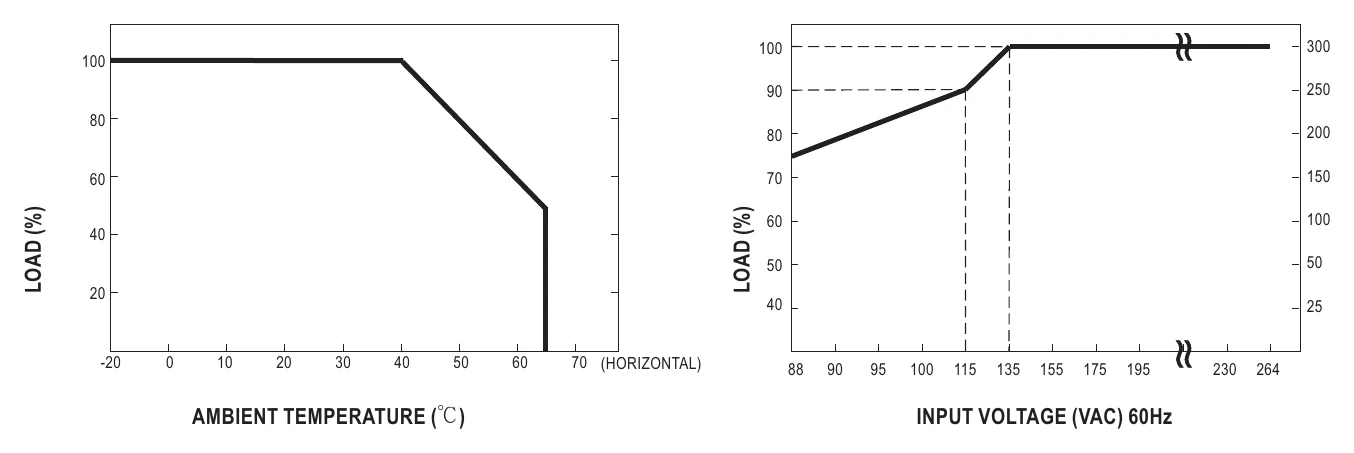

SPV-150-48 Derating Curve — Derating Curve

Downloads

Certificates4

CB Certificate (SPV-150)(EN) PDF Download

TUV Certificate (SPV-150)(EN) PDF Download

EMC Certificate (SPV-150)(EN) PDF Download

UL Certificate (SPV-150)(EN) PDF Download

Test reports1

Test Report (SPV-150-48)(EN) PDF Download

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the SPV-150-48 for 48V industrial networking or telecom equipment?

Yes, it is suitable for 48V constant-voltage equipment that stays within 150W and 3.12A. That makes it relevant for telecom and industrial networking hardware designed around a 48V DC bus.

Is the SPV-150-48 a good option for 48V automation or control systems?

It can support 48V automation or control loads that need constant-voltage output and fit within 150W. The unit delivers 48V at 3.12A and accepts 88-264VAC input.

Can this model power 48V LED or commercial lighting equipment?

It can be used for 48V constant-voltage lighting or LED systems as long as the total demand remains within 150W and 3.12A. The supply also offers output voltage programmability from 20%~110% using a 1~5.5VDC external control signal.

Would the SPV-150-48 fit embedded or communications hardware that needs regulated 48V DC?

Yes, it is intended for applications that require a regulated 48V constant-voltage source rather than lower-voltage rails. Certifications listed are CE, EAC, TÜV, and UL, and the model includes active PFC with PF>0.94.

Is the SPV-150-48 suitable for outdoor exposure or temperature-variable enclosures?

Its operating range is -20°C to +65°C, so it is specified for a defined temperature window. No IP rating is listed, which means the published data does not confirm direct outdoor exposure or water-resistant use.

How does the SPV-150-48 differ from other SPV power supplies in the same family?

The listed 150W variants are SPV-150-12 at 12V and 12.5A, SPV-150-24 at 24V and 6.25A, and SPV-150-48 at 48V and 3.12A. Other siblings shown are SPV-1500-12, SPV-1500-24, and SPV-1500-48 at 150W and 2.4V, plus SPV-300-12 at 300W, 12V, 25A, SPV-300-24 at 300W, 24V, 12.5A, and SPV-300-48 at 300W, 48V, 6.25A.
