Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

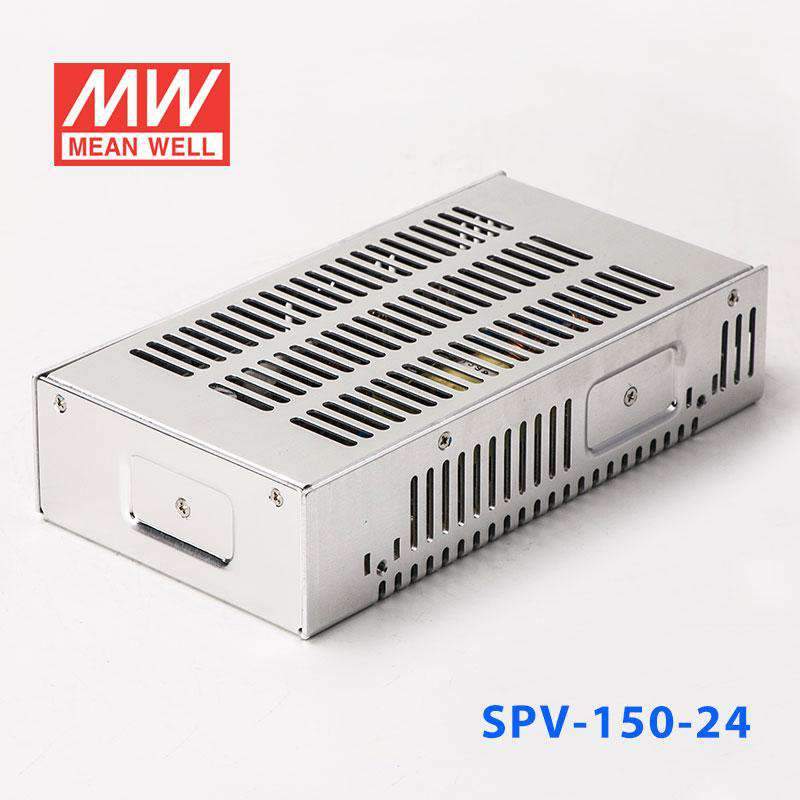

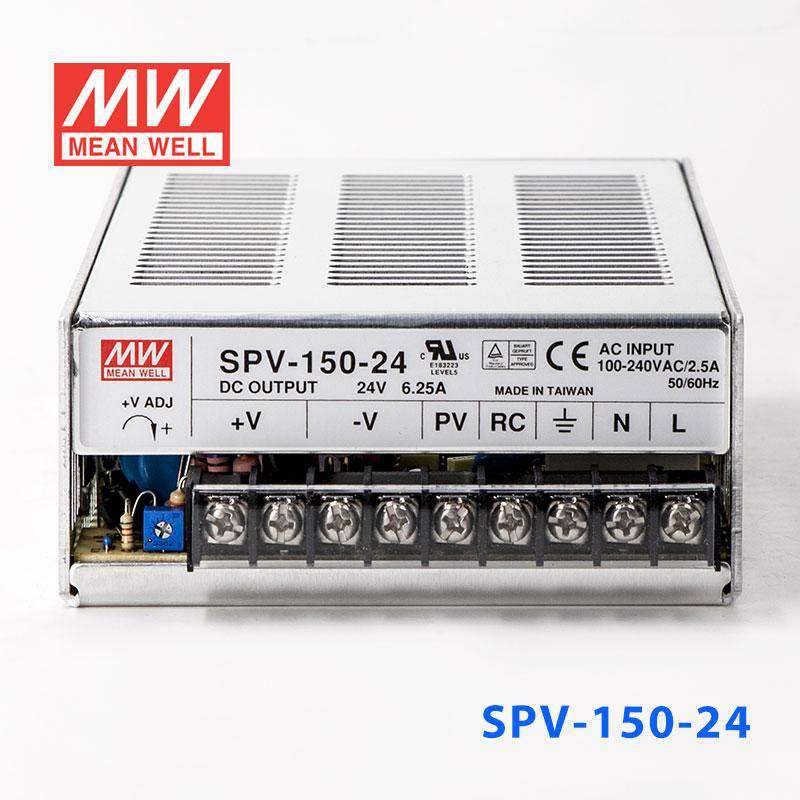

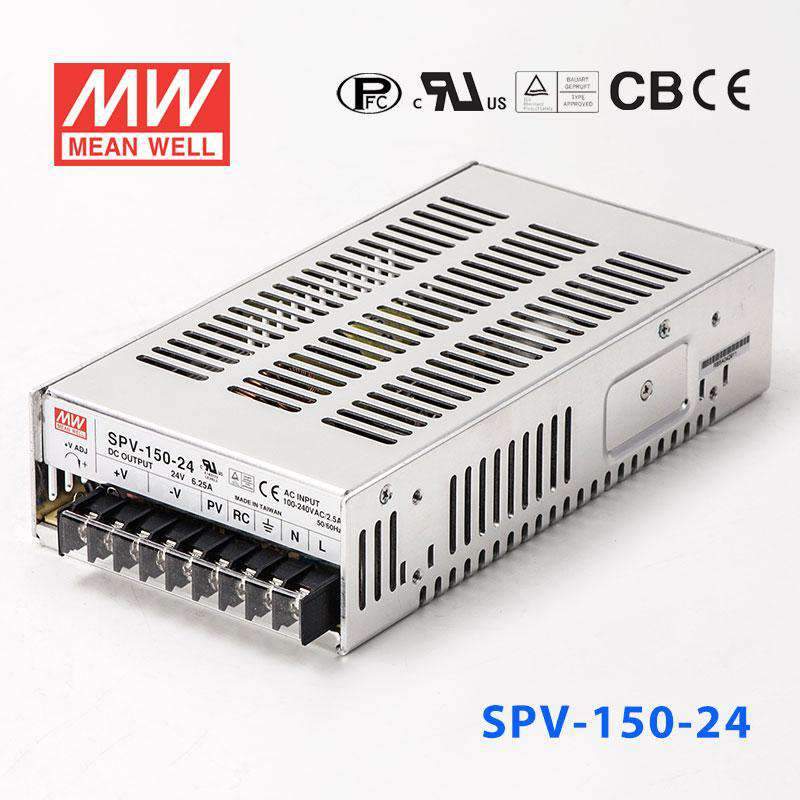

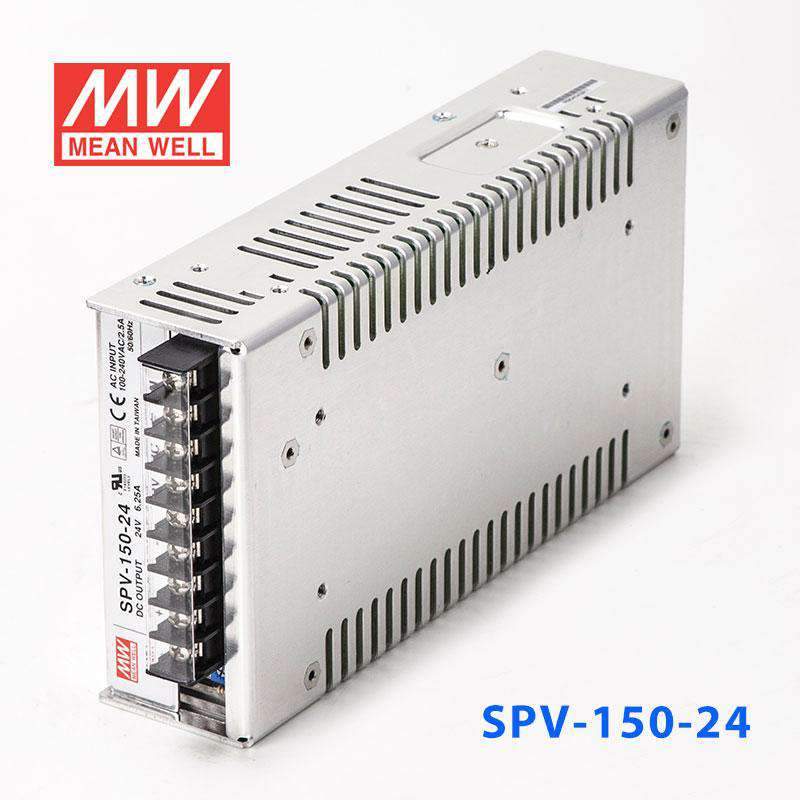

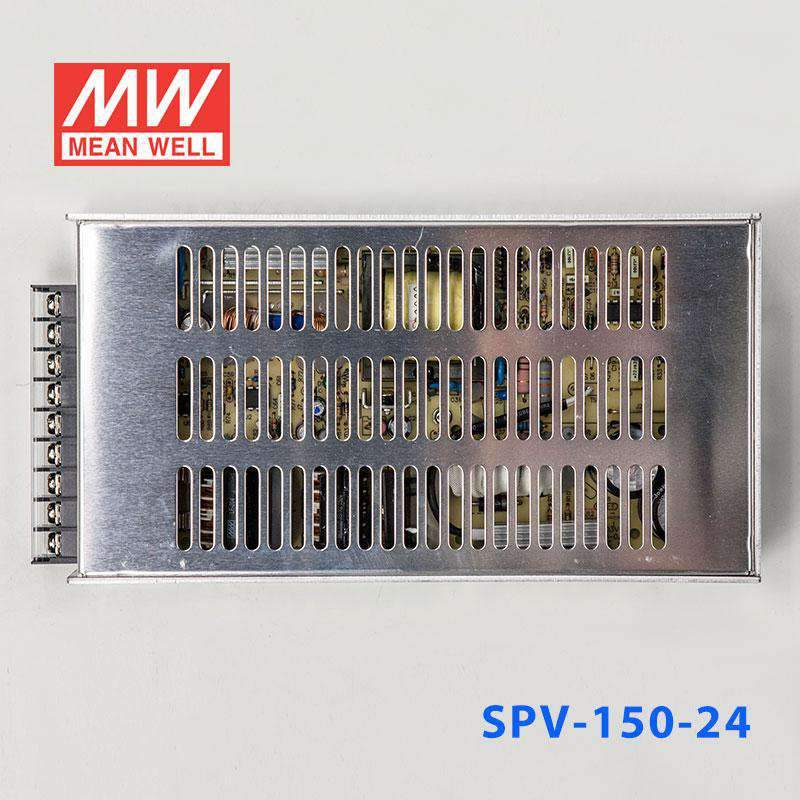

Mean Well SPV-150-24 power supply 150W 24V 6.25A

Name: Mean Well SPV-150-24 power supply 150W 24V 6.25A
Brand: Mean Well
SKU: SPV-150-24
Price: 78.38 USD
Availability: InStock

built-in active PFC functionPF>0.94output voltage programmable from 20%~110% by 1~5.5VDC external control signal

SKU SPV-150-24

$78.38 USD

Shipping calculated at checkout.

Available to order

Overview

SPV-150-24 is the 24V output model of this series: rated current 6.25A, rated power 150W, typical efficiency 83%.

Features

Universal AC input / Full range
Built-in active PFC function, PF>0.94
Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection
Output voltage programmable from 20~110% by 1~5.5VDC external control signal
Built-in remote ON-OFF control
Fixed switching frequency at 100KHz
3 years warranty

Specifications

SPV-150-24Specifications from the official datasheet (2024-11-22 edition)

OUTPUT

DC VOLTAGE: 24V
RATED CURRENT: 6.25A
CURRENT RANGE: 0 ~ 6.25A
RATED POWER: 150W
RIPPLE & NOISE (max.)^Note.2: 150mVp-p
VOLTAGE ADJ. RANGE: 20 ~ 26.4V
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.2%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME: 800ms, 50ms/230VAC 2500ms, 50ms/115VAC at full load
HOLD UP TIME (Typ.): 16ms/230VAC 16ms/115VAC at full load

INPUT

VOLTAGE RANGE^Note.5: 88 ~ 264VAC 124 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.94/230VAC PF>0.98/115VAC at full load
EFFICIENCY (Typ.): 83%
AC CURRENT (Typ.): 2.5A/115VAC 1.25A/230VAC
INRUSH CURRENT (Typ.): 20A/115VAC 45A/230VAC
LEAKAGE CURRENT: <1mA / 240VAC

PROTECTION

OVERLOAD: 105 ~ 150% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 27.6 ~ 32.4V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

FUNCTION

REMOTE CONTROL: 4 ~ 10VDC power off, <0 ~ 0.8VDC power on
OUTPUT VOLTAGE TRIM: 4.8 ~ 26.4V

ENVIRONMENT

WORKING TEMP.: -20 ~ +65℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY EMC (Note 4)

SAFETY STANDARDS: UL60950-1, TUV BS EN/ EN62368-1, IEC62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/ EN55032 (CISPR32) Class B, BS EN/ EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/ EN61000-4-2,3,4,5,6,8,11, BS EN/ EN55024, light industry level, EAC TP TC 020

OTHERS

MTBF: 2112.6K hrs min. Telcordia SR-332 (Bellcore) ; 210.3K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 215*115*50mm (L*W*H)
PACKING: 1.1Kg; 12pcs/14Kg/0.92CUFT

Test conditions and notes6

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
5. Derating may be needed under low input voltages. Please check the derating curve for more details.
6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

SPV-150-24 Mechanical Specification — Mechanical Specification

SPV-150-24 Block Diagram — Block Diagram

SPV-150-24 Derating Curve — Derating Curve

Downloads

Certificates4

CB Certificate (SPV-150)(EN) PDF Download

TUV Certificate (SPV-150)(EN) PDF Download

EMC Certificate (SPV-150)(EN) PDF Download

UL Certificate (SPV-150)(EN) PDF Download

Test reports1

Test Report (SPV-150-24)(EN) PDF Download

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the SPV-150-24 for 24V PLC accessories, relays, or industrial control hardware?

Yes, it is suited to 24V constant-voltage industrial loads that stay within 150W and 6.25A. That makes it a practical choice for many PLC-related accessories, relays, and control devices built around 24V systems.

Is the SPV-150-24 appropriate for 24V automation sensors, actuators, or interface devices?

It can power 24V automation devices that require constant-voltage input and fit inside the unit's 150W capacity. The rated output is 24V at 6.25A, and the input range is 88-264VAC.

Can this model be used for 24V LED or signage applications?

Yes, it is intended for 24V constant-voltage loads, so it can be used for 24V LED and signage systems within 150W and 6.25A. It also includes output voltage programmability from 20%~110% by a 1~5.5VDC external control signal.

Would the SPV-150-24 fit telecommunications or embedded systems that distribute 24V DC?

It is a reasonable fit for telecom or embedded equipment that expects a regulated 24V constant-voltage source. The supply delivers up to 150W, supports 88-264VAC input, and includes active PFC with PF>0.94.

Can the SPV-150-24 be used in outdoor cabinets or exposed environments?

The temperature specification is -20°C to +65°C, so the unit is rated for a defined operating range. Because no IP rating is provided, the published specs do not confirm suitability for exposed outdoor, washdown, or dust-heavy conditions without an enclosure.

What are the main differences between the SPV-150-24 and its sibling models?

In the 150W group, the SPV-150-12 is 12V and 12.5A, the SPV-150-24 is 24V and 6.25A, and the SPV-150-48 is 48V and 3.125A. The sibling list also includes SPV-300-12 at 300W, 12V, 25A, SPV-300-24 at 300W, 24V, 12.5A, and SPV-300-48 at 300W, 48V, 6.25A.
