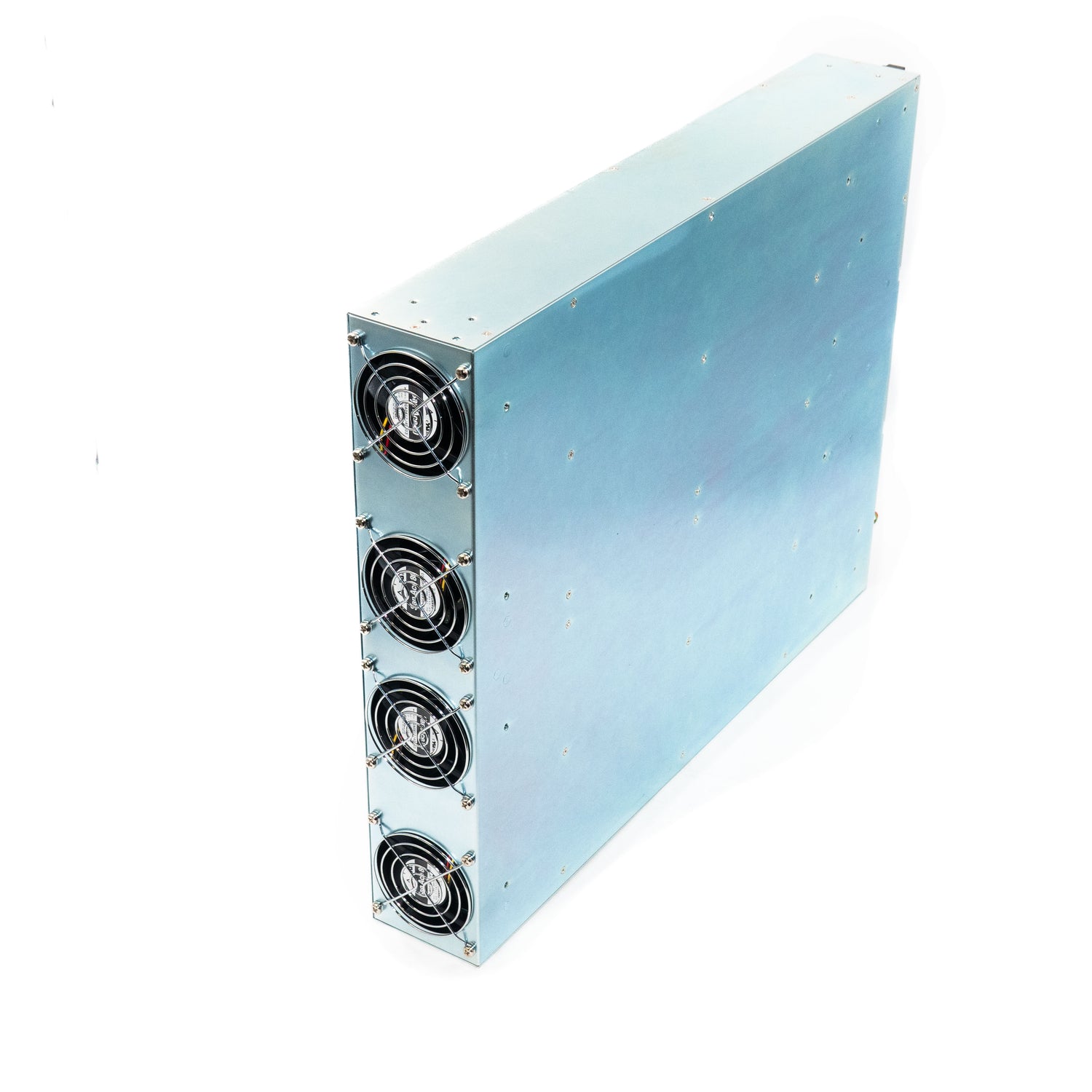

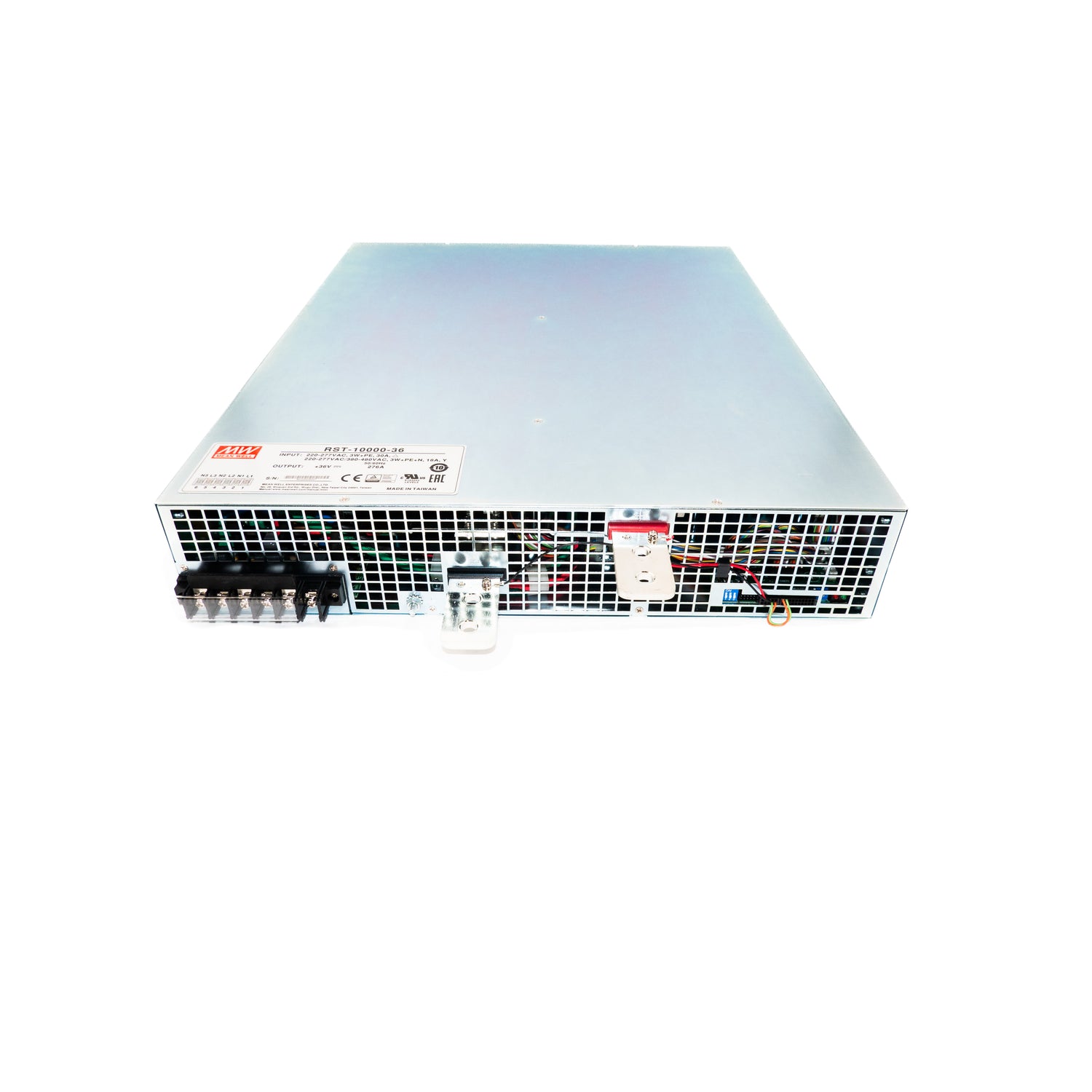

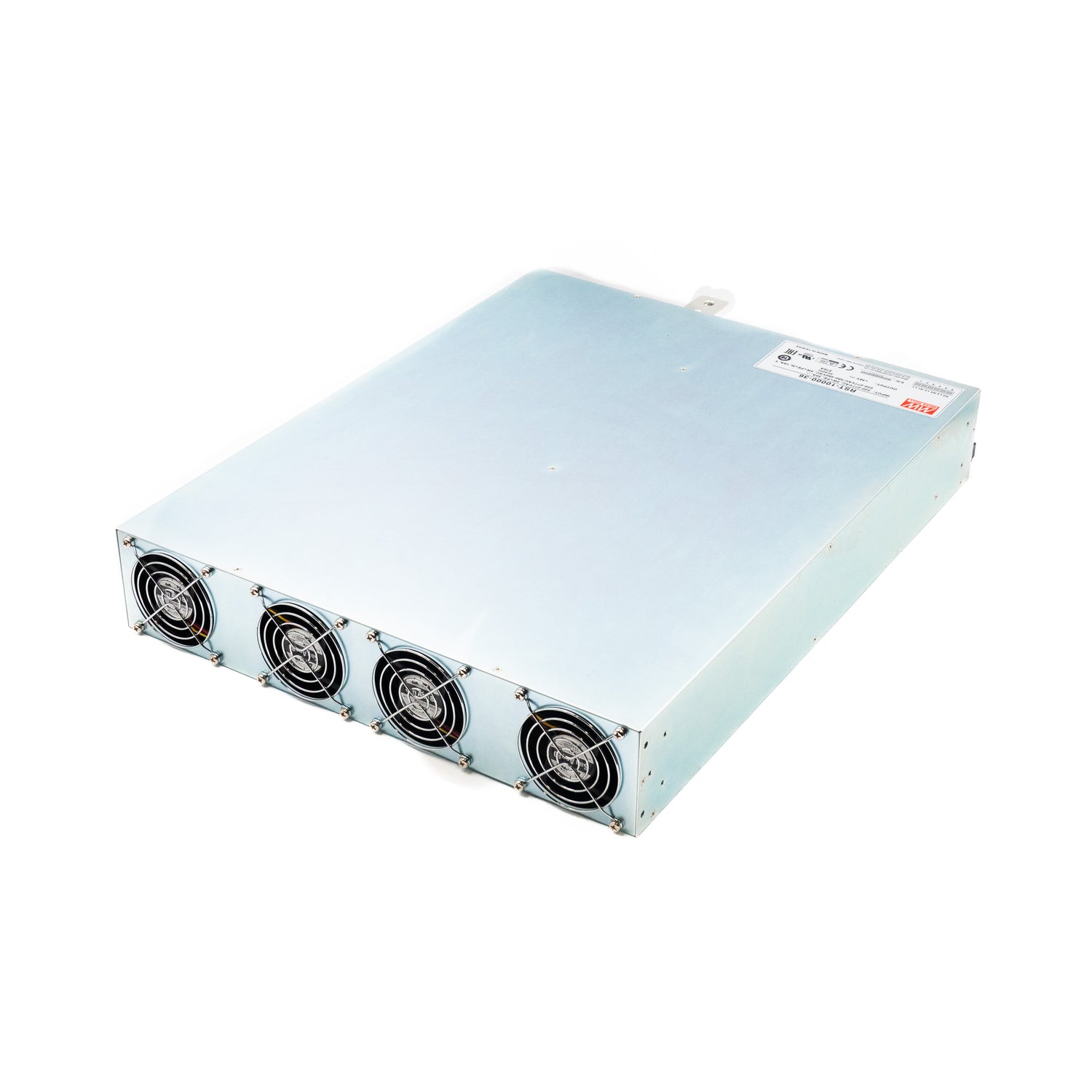

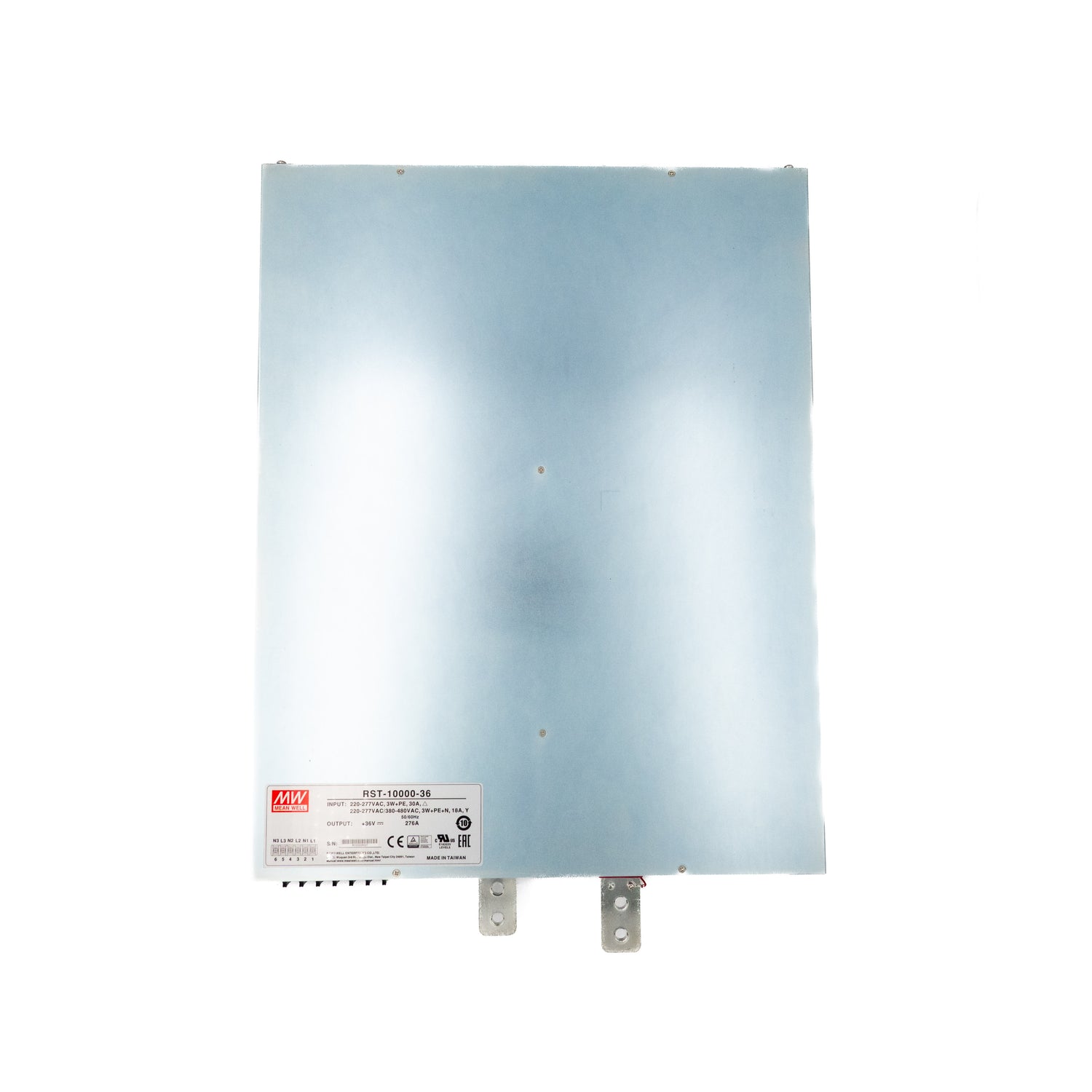

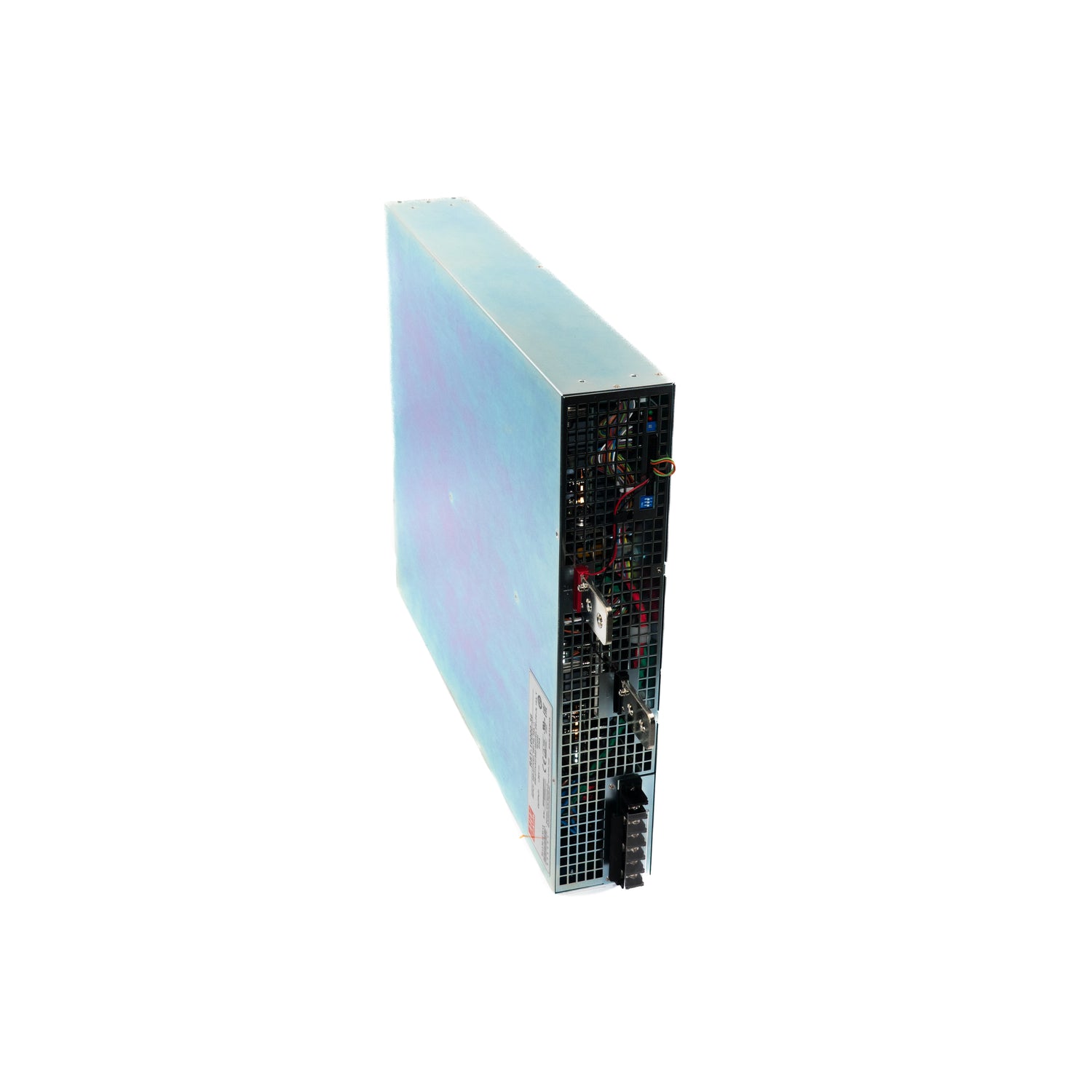

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

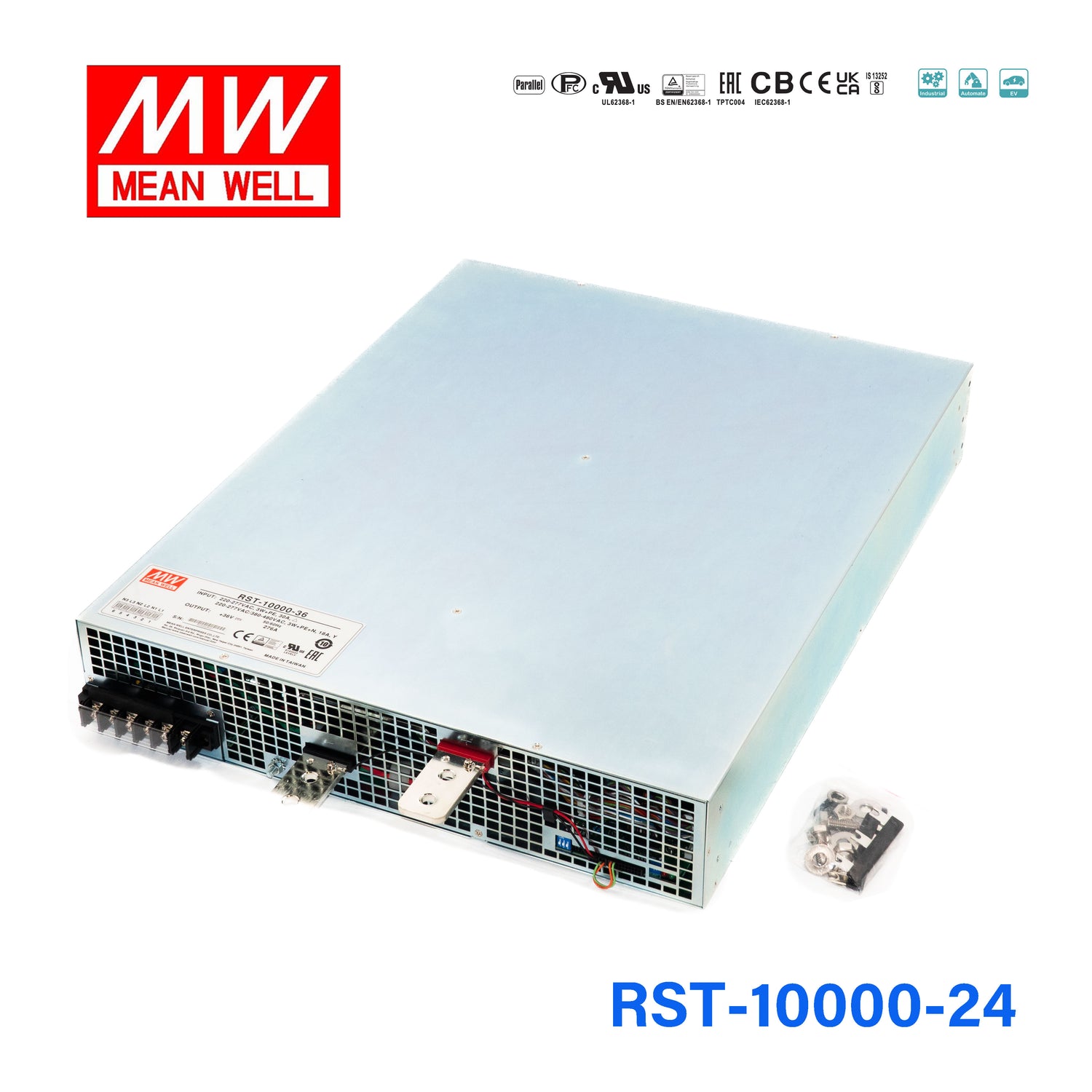

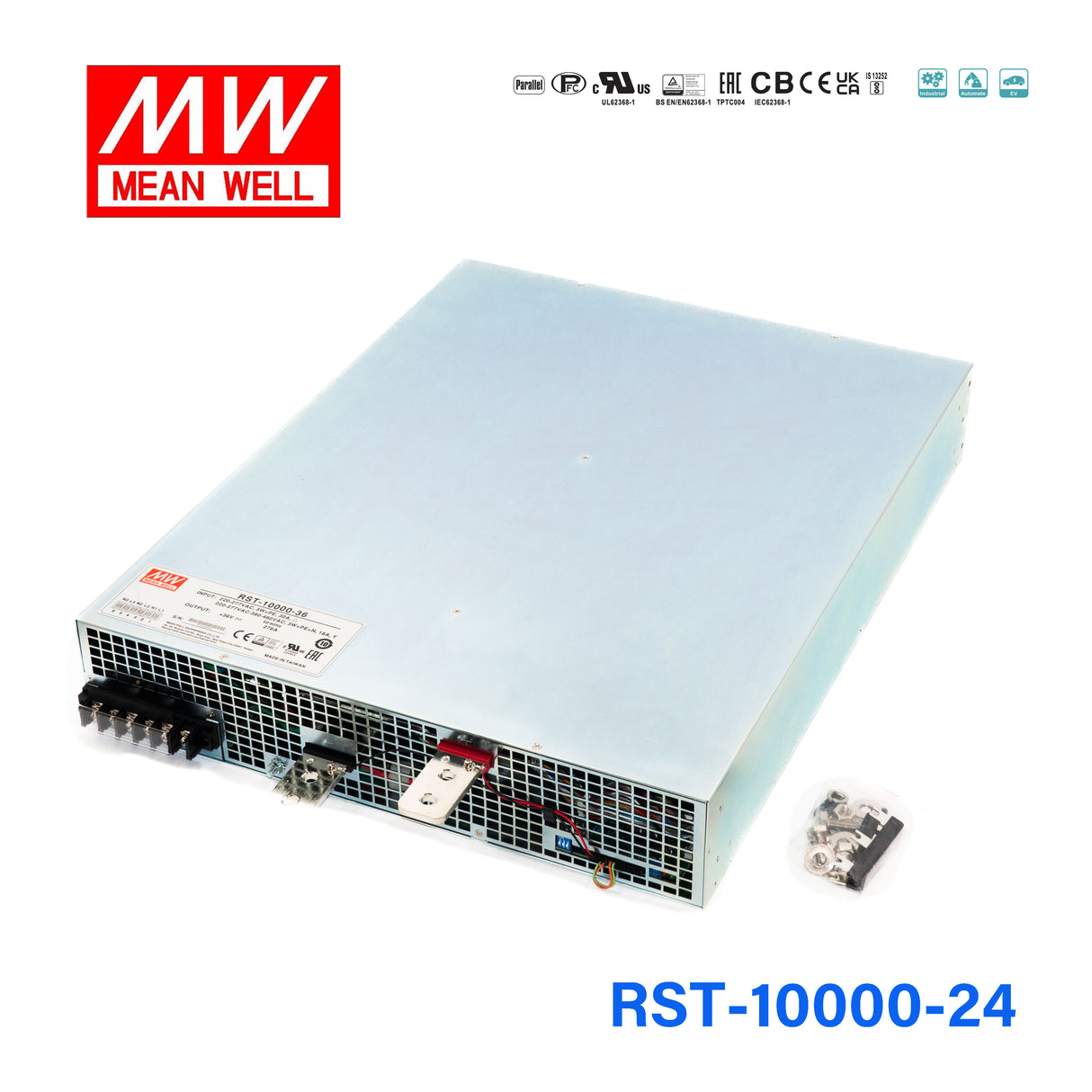

Mean Well RST-10000-24 Power Supply 9600W 24V 400A

Name: Mean Well RST-10000-24 Power Supply 9600W 24V 400A
Brand: Mean Well
SKU: RST-10000-24
Price: 3206.77 USD
Availability: InStock

high efficiency up to 90.5%output voltage and constant current level programmableactive current sharing up to 20000W(1+1)

SKU RST-10000-24

$3,206.77 USD

Shipping calculated at checkout.

In stock

Overview

RST-10000-24 is the 24V output model of this series: rated current 400A, rated power 9600W, typical efficiency 89%.

RST-10000 is a 10KW single output enclosed type AC/DC power supply. This series operates for the wide range three phase AC input (3 phase 3 wire / △196~305VAC or 3 phase 4 wire / Y 340~530VAC) and offers the models with the DC output mostly demanded from the industry. Each model is cooled by the built-in fan with fan speed control, working for the temperature up to 70℃. Moreover, RST-10000 provides vast design flexibility by equipping various built-in functions such as the output programming, active current sharing, remote ON-OFF control, auxiliary power, etc.

Features

3ψ 3-wire / △ 196~305VAC or 3ψ 4-wire / Y 340~530VAC wide input range
Built-in active PFC function
High efficiency up to 91%
Forced air cooling by built-in DC fan
Output voltage and constant current level programmable
Active current sharing up to 20000W (1+1)
Built-in remote ON-OFF control / Remote sense / Auxiliary power / Alarm signal
Protections: Short circuit / Overload / Over voltage / Over temperature / Fan fail
5 years warranty

Specifications

RST-10000-24Specifications from the official datasheet (2026-01-12 edition)

OUTPUT

DC VOLTAGE: 24V
RATED CURRENT: 400A
CURRENT RANGE: 0 ~ 400A
RATED POWER: 9600W
RIPPLE & NOISE (max.)^Note.2: 150mVp-p
VOLTAGE ADJ. RANGE: 23.5 ~ 28.8V Can be adjusted via built-in potentiometer
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME: 2200ms, 80ms at full load
HOLD UP TIME (Typ.): 20ms / 230VAC at 75% load 14ms / 230VAC at full load

INPUT

VOLTAGE RANGE: 3ψ 3-wire / △ 196 ~ 305VAC or 3ψ 4-wire / Y 340 ~ 530VAC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): 0.95/230VAC(400VAC) at full load
EFFICIENCY (Typ.): 89%
AC CURRENT (Typ.): 30A/230VAC(3ψ 3-wire / △) 18A/400VAC(3ψ 4-wire / Y)
INRUSH CURRENT (Typ.): 150A/230VAC(3ψ 3-wire / △) 100A/400VAC(3ψ 4-wire / Y)
LEAKAGE CURRENT: <7mA /△305VAC(Y 530VAC)

PROTECTION

OVERLOAD(OLP): 100 ~ 112% rated output power User selectable continuous constant current limiting or constant current limiting with delay shutdown after 5 seconds, re-power on to recover
OVER VOLTAGE: 30 ~ 33.6V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

FUNCTION

REMOTE SENSE: Compensate voltage drop on the load wiring up to 0.3V. Please refer to the Function Manual.
CURRENT SHARING: Up to 20000W or (1+1) units. Please refer to the Function Manual.
AUXILIARY POWER: 12V@0.1A(Only for Remote ON/OFF control)
REMOTE ON-OFF CONTROL: Please refer to the Function Manual.
OUTPUT VOLTAGE PROGRAMMABLE: Adjustment of output voltage is allowable to between 20 ~ 120% of nominal output voltage. Please refer to the Function Manual.
CONSTANT CURRENT LEVEL PROGRAMMABLE: Adjustment of constant current level is allowable to between 20 ~ 100% of rated current. Please refer to the Function Manual.
ALARM SIGNAL OUTPUT: AC fail, DC OK, fan fail, OTP. Please refer to the Function Manual.

ENVIRONMENT

WORKING TEMP.: -30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC (Note 6)

SAFETY STANDARDS: UL62368-1, CAN/CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1, IS13252(Part1)/IEC60950-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE^Note.4: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE^Note.4: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/ EN55032 (CISPR32) Class A
Radiated BS EN/ EN55032 (CISPR32) Class A
Harmonic Current BS EN/ EN61000-3-2
Voltage Flicker BS EN/ EN61000-3-3
EMC IMMUNITY: BS EN/ EN55035, BS EN/ EN61000-6-2

Parameter Standard Test Level

ESD BS EN/ EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact
Radiated BS EN/ EN61000-4-3 Level 3
EFT / Burst BS EN/ EN61000-4-4 Level 3
Surge BS EN/ EN61000-4-5 Level 4, 4KV/Line-Earth; Level 3, 2KV/Line-Line
Conducted BS EN/ EN61000-4-6 Level 3
Magnetic Field BS EN/ EN61000-4-8 Level 4
Voltage Dips and Interruptions BS EN/ EN61000-4-11 >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

Parameter	Standard	Test Level
Conducted	BS EN/ EN55032 (CISPR32)	Class A
Radiated	BS EN/ EN55032 (CISPR32)	Class A
Harmonic Current	BS EN/ EN61000-3-2
Voltage Flicker	BS EN/ EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/ EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact
Radiated	BS EN/ EN61000-4-3	Level 3
EFT / Burst	BS EN/ EN61000-4-4	Level 3
Surge	BS EN/ EN61000-4-5	Level 4, 4KV/Line-Earth; Level 3, 2KV/Line-Line
Conducted	BS EN/ EN61000-4-6	Level 3
Magnetic Field	BS EN/ EN61000-4-8	Level 4
Voltage Dips and Interruptions	BS EN/ EN61000-4-11	>95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

OTHERS

MTBF: 147.5K hrs min. Telcordia SR-332 (Bellcore) ; 17.1K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 540*424*83.5mm (L*W*H)
PACKING: 23.5Kg; 1pcs/23.5Kg/2.82CUFT

Test conditions and notes7

1. All parameters NOT specially mentioned are measured at △230VAC(Y 400VAC) input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. During withstand voltage and isolation resistance testing, the screw "A" shall be temporarily removed, and shall be installed back after the testing.
5. There is high possibility to trigger the floating over voltage protection when PV voltage is trimmed from a high voltage level to a lower voltage level at light load or no load condition. It is suggested that turn off the power supply and set PV voltage to the lowest level, then adjust output voltage to a desired value.
6. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 1300mm*900mm metal plate with 2mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

RST-10000-24 Block Diagram — Block Diagram

RST-10000-24 Derating Curve — Derating Curve

RST-10000-24 Static Characteristics — Static Characteristics

RST-10000-24 Function Manual — Function Manual

RST-10000-24 10000W Power Supply with Single Output — 10000W Power Supply with Single Output

RST-10000-24 10000W Power Supply with Single Output (2) — 10000W Power Supply with Single Output (2)

RST-10000-24 OUTPUTVOLTAGE(%) — OUTPUTVOLTAGE(%)

RST-10000-24 LEVEL(%)CURRENTCONSTANT — LEVEL(%)CURRENTCONSTANT

RST-10000-24 4.Select Overload Protection (OLP) Mode — 4.Select Overload Protection (OLP) Mode

RST-10000-24 Illustration (page 7) — Illustration (page 7)

RST-10000-24 Mechanical Specification — Mechanical Specification

Typical applications

Factory control or automation apparatus
Test and measurement instrument
Laser related machine
Burn-in facility
RF application
Electric scooter or vehicle charge station
Constant current source

Downloads

Certificates4

CB Certificate(RST-10000)(EN) PDF Download

TUV Certificate(RST-10000)(EN) PDF Download

EMC Certificate(RST-10000)(EN) PDF Download

UL Certificate(RST-10000)(EN) PDF Download

Test reports1

Test Report(RST-10000-24)(EN) PDF Download

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the RST-10000-24 as a centralized 24V power source for a large industrial automation cabinet?

Yes, this unit provides a 24V constant-voltage output with up to 400A and 9600W capacity. That makes it appropriate for centralized 24VDC systems where many loads share the same DC bus and the total demand stays within those ratings.

Is the RST-10000-24 suitable for high-current 24V test benches or burn-in systems?

It can be used in 24V test or burn-in environments that need substantial DC power, because it is rated for 9600W at 24V and 400A. The feature set also includes programmable output voltage and programmable constant current level, which can be useful in controlled production or lab environments.

Can this power supply support large 24V PLC, relay, and I/O loads in one enclosure?

Yes, the 24V constant-voltage output and 400A maximum output current make it suitable for consolidating large groups of 24V industrial loads. Its active current sharing capability up to 20000W (1+1) also supports higher-capacity redundant or parallel DC power architectures within the stated limits.

Is the RST-10000-24 intended for outdoor or harsh exposed locations?

The listed operating temperature range is -30C to +70C, which supports demanding indoor industrial conditions. The provided specifications do not include an IP rating, so it should be treated as a power supply for protected installations rather than exposed outdoor or washdown use.

What are the main output options across the related RST power supply models?

The listed siblings are RST-10000-36 at 9936W, 36V, 276A; RST-10000-48 at 10080W, 48V, 210A; RST-5000-24 at 4800W, 24V, 200A; RST-5000-36 at 4968W, 36V, 138A; RST-5000-48 at 5040W, 48V, 105A; RST-7K5-115 at 7475W, 115V, 65A; RST-7K5-115L at 7475W, 115V, 65A; RST-7K5-230 at 7452W, 230V, 32.4A; RST-7K5-230L at 7452W, 230V, 32.4A; RST-7K5-380 at 7515W, 380V, 19.77A; and RST-7K5-380L at 7515W, 380V, 19.77A. Compared with those, the RST-10000-24 is the 24V, 9600W, 400A option in the 10000 series.
