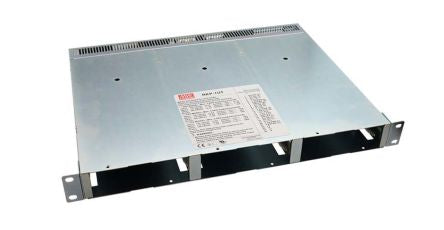

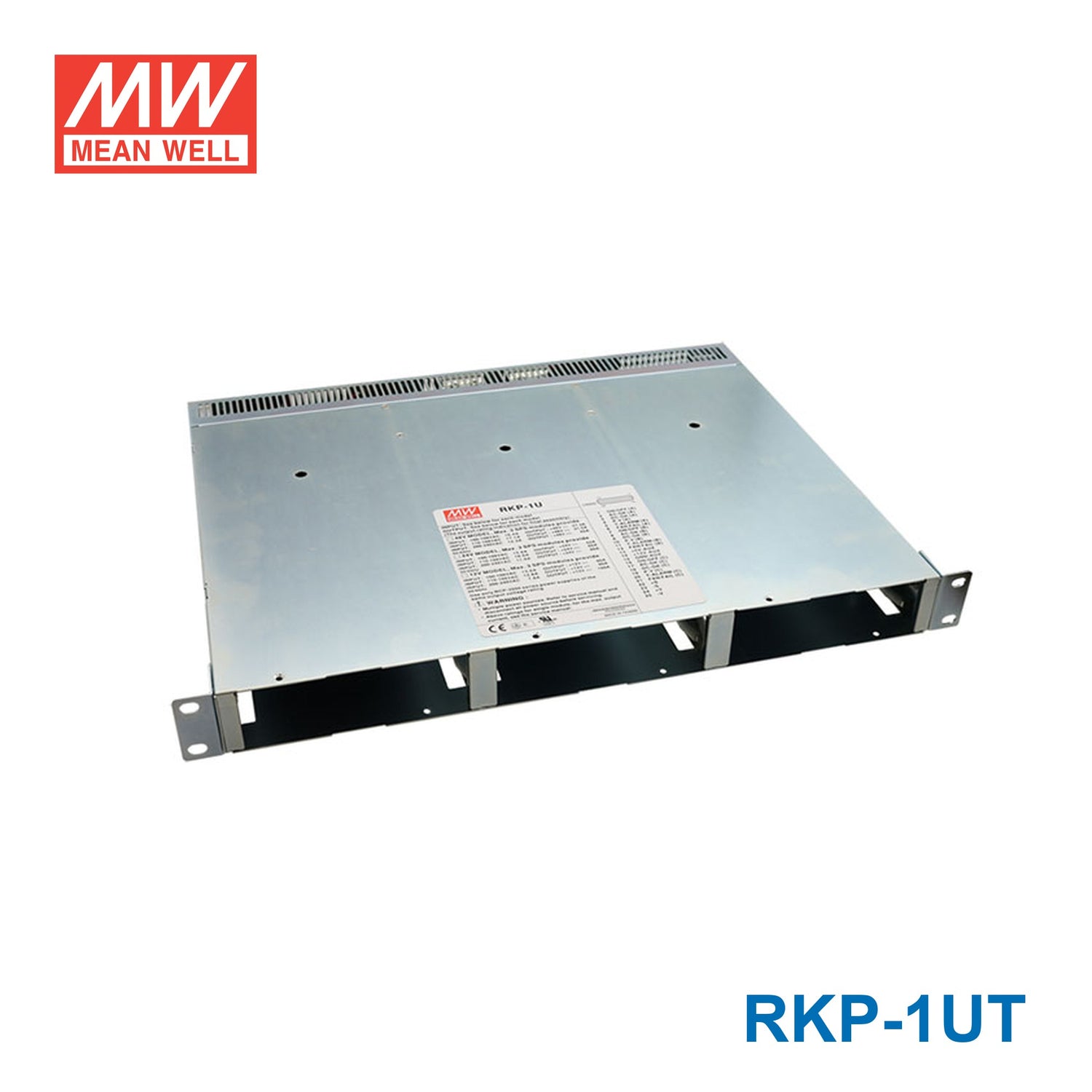

Mean Well RKP-1UT AC-DC 19" Rack for 3 Units of RCP-2000 with ...
$455.30 USD
Unit price /
Unavailable
Description
Description
Features
| Universal AC input/Full range |
| 1U profile 19" rack shelf, fitting three 2000W modules up to 6000W with active current sharing |
| Output voltage programmable |
| Support hot swap(hot plug) |
| Built-in PMBus protocol |
| 5 years warranty |
General Specification
| AC input voltage range | 90~264VAC; 127~370VDC |
| Leakage current | <3.5mA / 230VAC |
| Auxiliary power | 5V@0.3A, 12V@0.8A |
| Withstand voltage | I/P-O/P: 3KVAC, I/P-FG: 2KVAC, O/P-FG: 0.7KVDC |
| Working temperature | -30~+70ºC (refer to output derating curve) |
| Safety standards | UL62368-1, CSA C22.2 , TUV EN62368-1 approved |
| EMC standards | EN55032 class A, EN61000-4-2,3,4,5,6,8,11 |
| Case No | 959A |
| Dimension (LxWxH) (mm) | Rack 350.8*482.6*44(with mounting bracket); 350.8*440*44(without mounting bracket) |
| Packing | 1pcs/14.1Kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesRCP Series
-
Warranty3 Year
-
Length18.9 in
-
Width13.78 in
-
Height1.73 in
-
Weight10.36 lb
