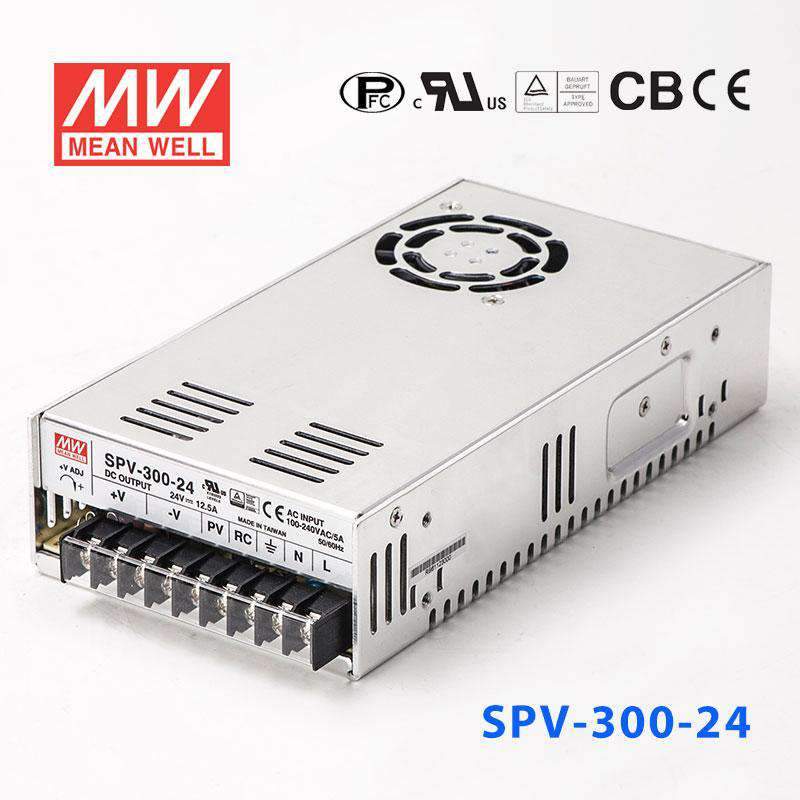

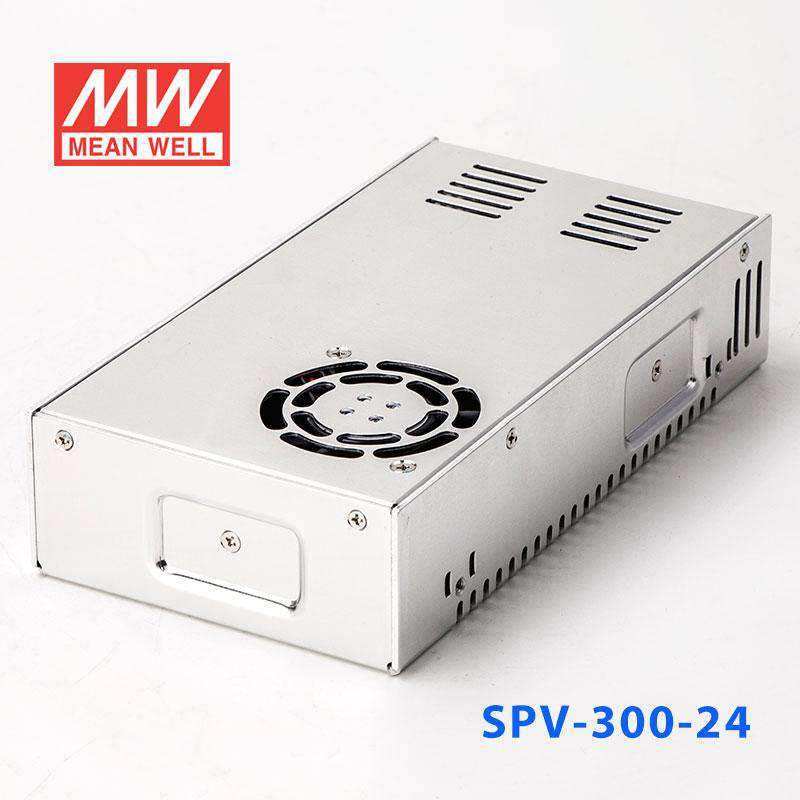

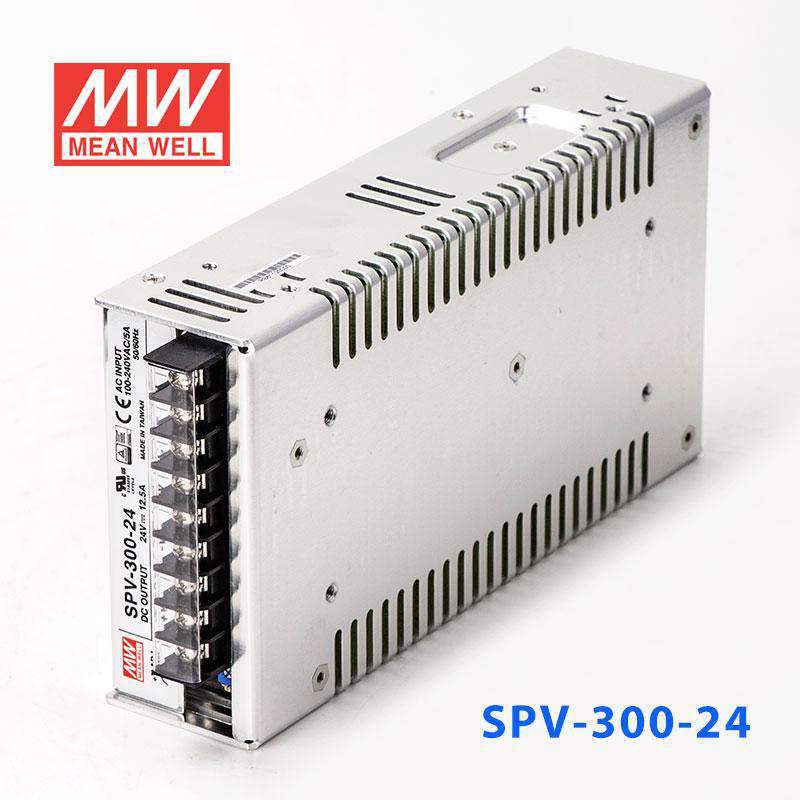

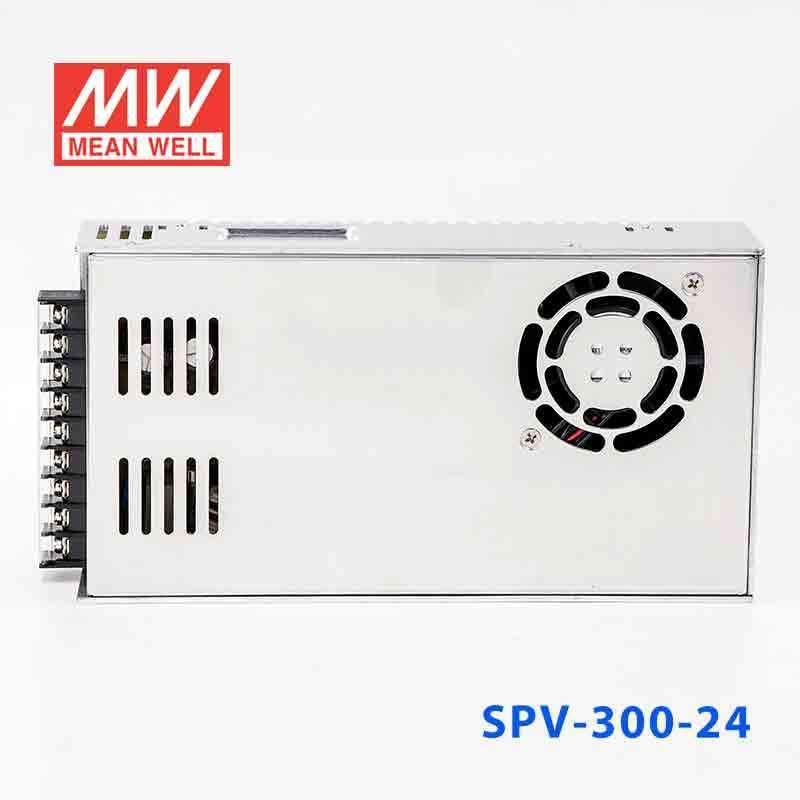

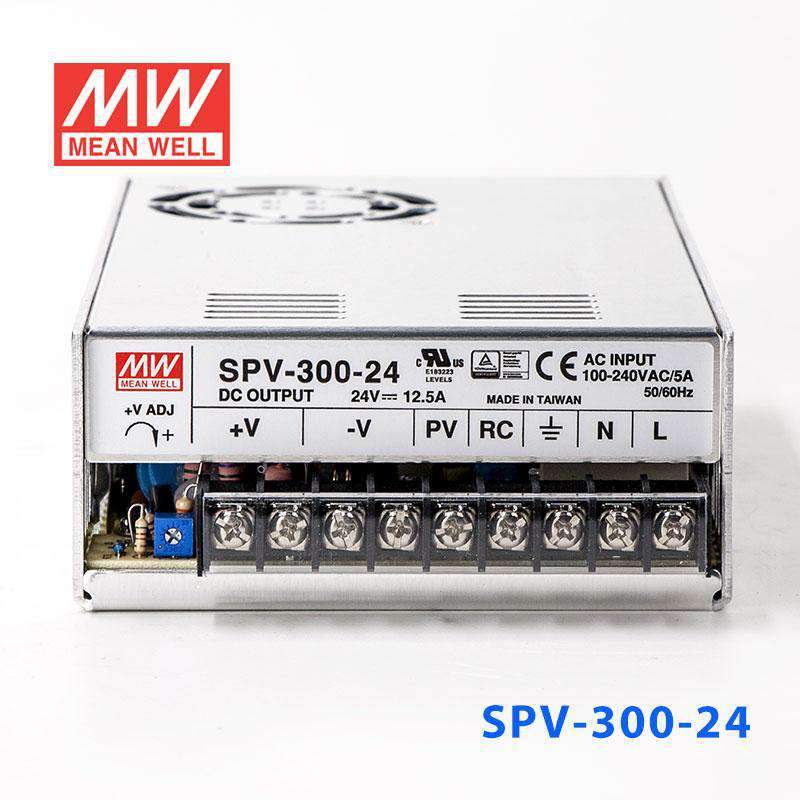

Mean Well SPV-300-24 power supply 300W 24V 12.5A

Name: Mean Well SPV-300-24 power supply 300W 24V 12.5A
Brand: Mean Well
SKU: SPV-300-24
Price: 98.99 USD
Availability: InStock

built-in active PFC functionPF>0.95output voltage programmable from 20%~110% by 1~5.5VDC external control signal

SKU SPV-300-24

$98.99 USD

Shipping calculated at checkout.

In stock

Overview

SPV-300-24 is the 24V output model of this series: rated current 12.5A, rated power 300W, typical efficiency 85%.

Features

Universal AC input / Full range
Built-in active PFC function, PF>0.95
Protections: Short circuit / Overload / Over voltage / Over temperature
Forced air cooling by built-in DC Fan
Output voltage programmable from 20~110% by 1~5.5VDC external control signal
Built-in remote ON-OFF control
Built-in fan speed control
Fixed switching frequency at 100KHz
3 years warranty

Specifications

SPV-300-24Specifications from the official datasheet (2024-11-22 edition)

OUTPUT

DC VOLTAGE: 24V
RATED CURRENT: 12.5A
CURRENT RANGE: 0 ~ 12.5A
RATED POWER: 300W
RIPPLE & NOISE (max.)^Note.2: 150mVp-p
VOLTAGE ADJ. RANGE: 20 ~ 26.4V
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.2%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME: 800ms, 50ms/230VAC 2500ms, 50ms/115VAC at full load
HOLD UP TIME (Typ.): 16ms/230VAC 16ms/115VAC at full load

INPUT

VOLTAGE RANGE^Note.5: 88 ~ 264VAC 124 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.95/230VAC PF>0.98/115VAC at full load
EFFICIENCY (Typ.): 85%
AC CURRENT (Typ.): 3.6A/115VAC 1.8A/230VAC
INRUSH CURRENT (Typ.): 20A/115VAC 45A/230VAC
LEAKAGE CURRENT: <1mA / 240VAC

PROTECTION

OVERLOAD: 105 ~ 135% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 27.6 ~ 32.4V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

FUNCTION

REMOTE CONTROL: 4 ~ 10VDC power off, <0 ~ 0.8VDC power on
OUTPUT VOLTAGE TRIM: 4.8 ~ 26.4V

ENVIRONMENT

WORKING TEMP.: -20 ~ +65℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY EMC (Note 4)

SAFETY STANDARDS: UL60950-1, TUV BS EN/ EN62368-1 , IEC62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/ EN55032 (CISPR32) Class B, BS EN/ EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/ EN61000-4-2,3,4,5,6,8,11, BS EN/ EN55024, light industry level, EAC TP TC 020

OTHERS

MTBF: 2116.3K hrs min. Telcordia SR-332 (Bellcore) ; 210.6K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 215*115*50mm (L*W*H)
PACKING: 1.1Kg; 12pcs/14Kg/0.92CUFT

Test conditions and notes6

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
5. Derating may be needed under low input voltages. Please check the derating curve for more details.
6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

SPV-300-24 Mechanical Specification (Unit: mm — Mechanical Specification (Unit: mm

SPV-300-24 Block Diagram — Block Diagram

SPV-300-24 Derating Curve — Derating Curve

Downloads

Certificates4

EMC Certificate (SPV-300)(EN) PDF Download

UL Certificate (SPV-300)(EN) PDF Download

TUV Certificate (SPV-300)(EN) PDF Download

CB Certificate (SPV-300)(EN) PDF Download

Test reports1

Test Report (SPV-300-24)(EN) PDF Download

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the SPV-300-24 for 24V PLC, sensor, or actuator power?

Yes, this is a constant-voltage 24V power supply rated for 300W and 12.5A, which fits many 24V industrial automation loads. It is intended for systems that need a regulated 24V DC source rather than current-controlled output.

Is the SPV-300-24 suitable for 24V industrial control panels?

It can be a good fit for 24V control cabinets where the total DC load stays within 300W and 12.5A. The 88-264VAC input also supports use in installations with a broad AC input range.

Can this model power 24V machine lighting or inspection lighting?

Yes, the SPV-300-24 provides constant 24V output with up to 12.5A, which is relevant for larger 24V lighting loads in industrial or automation settings. The 300W rating gives more headroom than smaller 24V supplies in the same family.

Is the SPV-300-24 appropriate for 24V embedded systems or test fixtures?

Yes, it is suitable where a fixture or embedded platform is designed around a constant 24V rail and needs up to 300W. The active PFC feature with PF>0.95 may also be relevant in systems where input power quality matters.

Can the SPV-300-24 be used indoors or outdoors?

The specified operating range is -20°C to +65°C. The datasheet does not list an IP rating, and the unit uses forced air cooling by a built-in DC fan, so it is intended for indoor use in a controlled environment.
