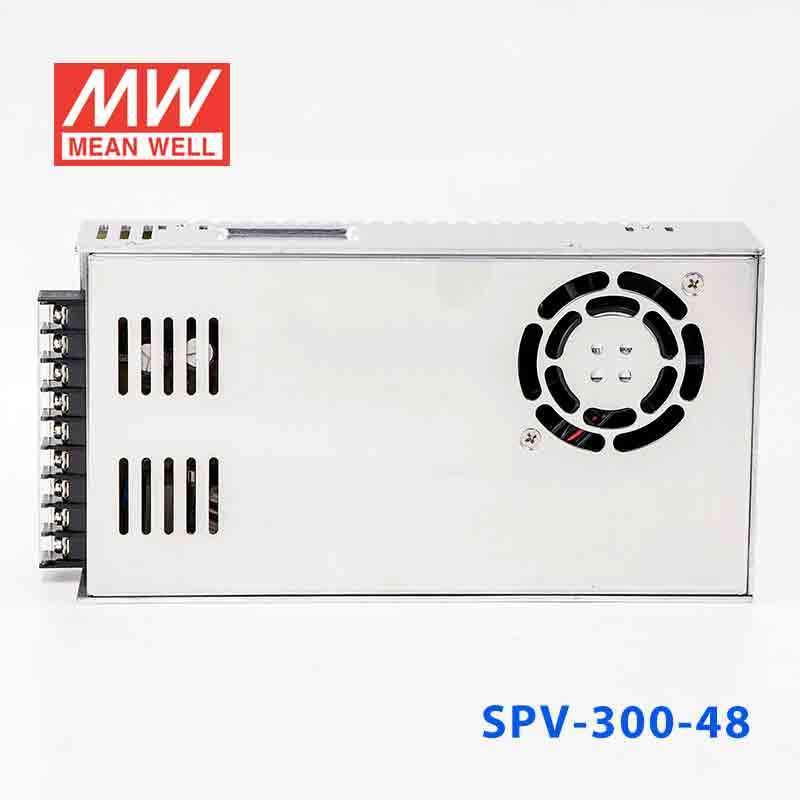

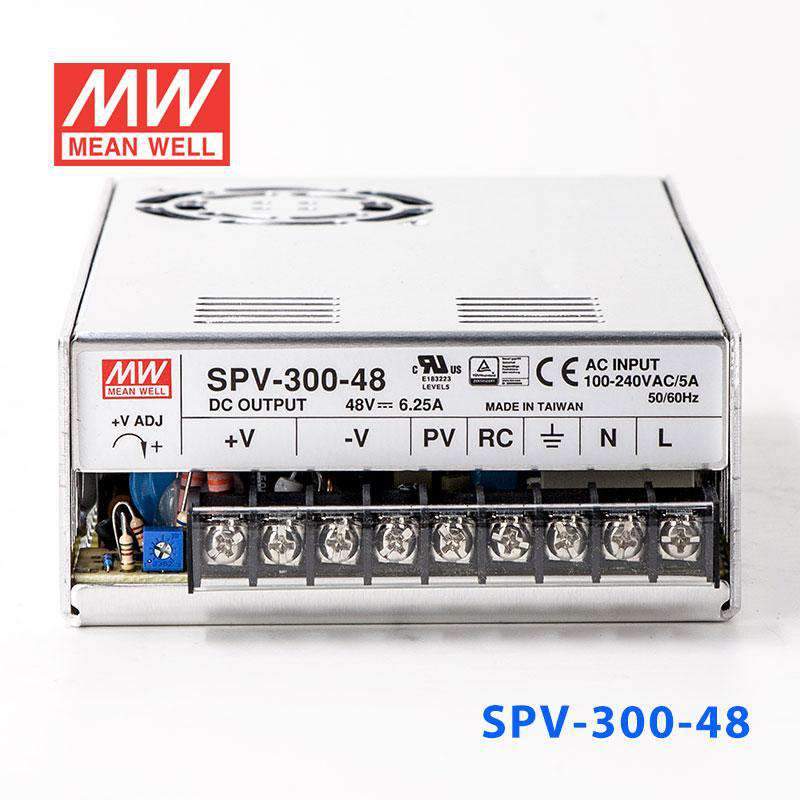

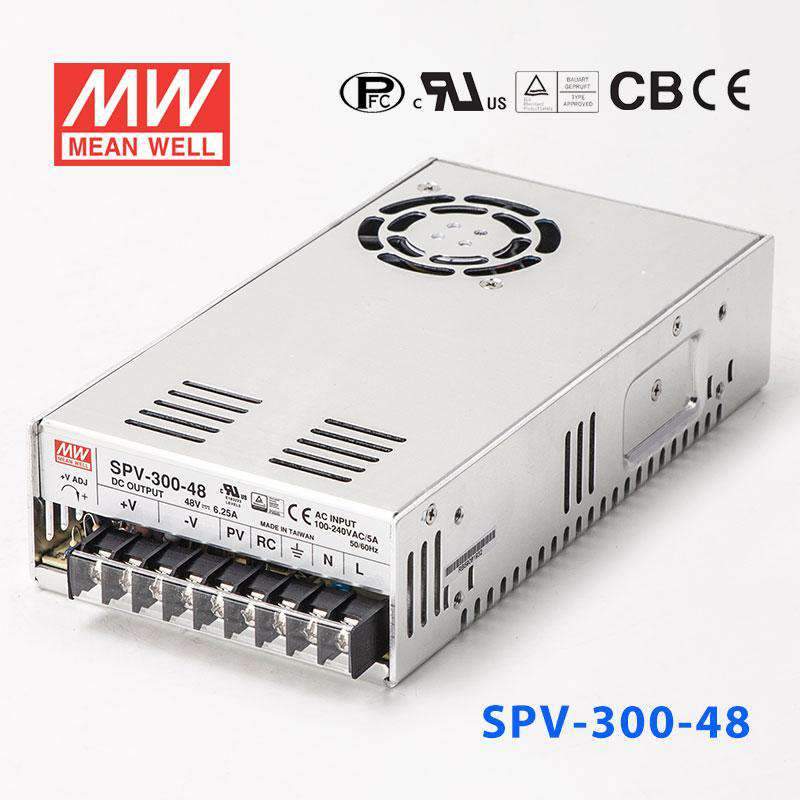

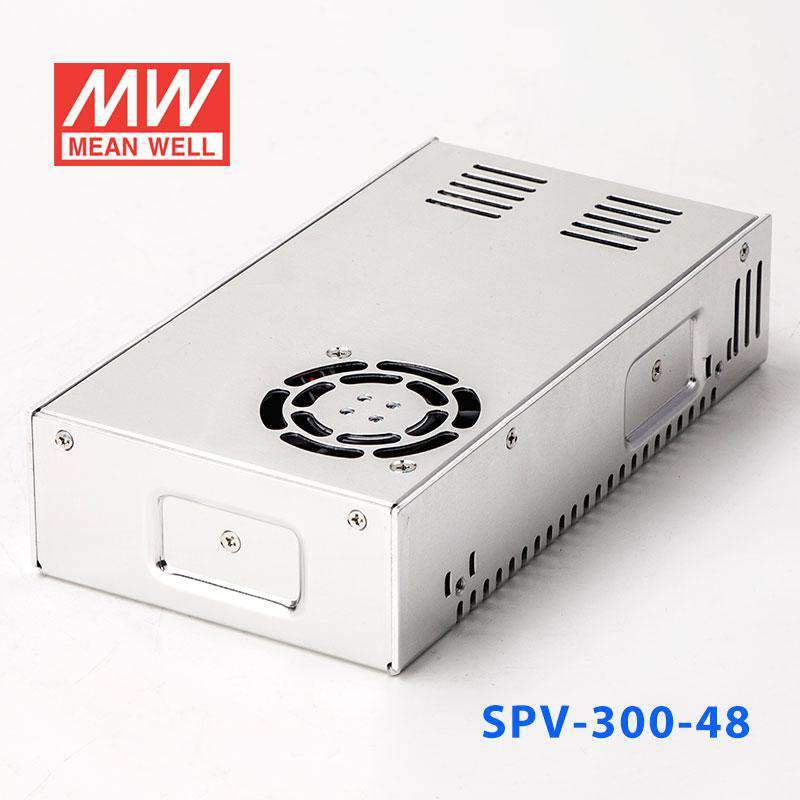

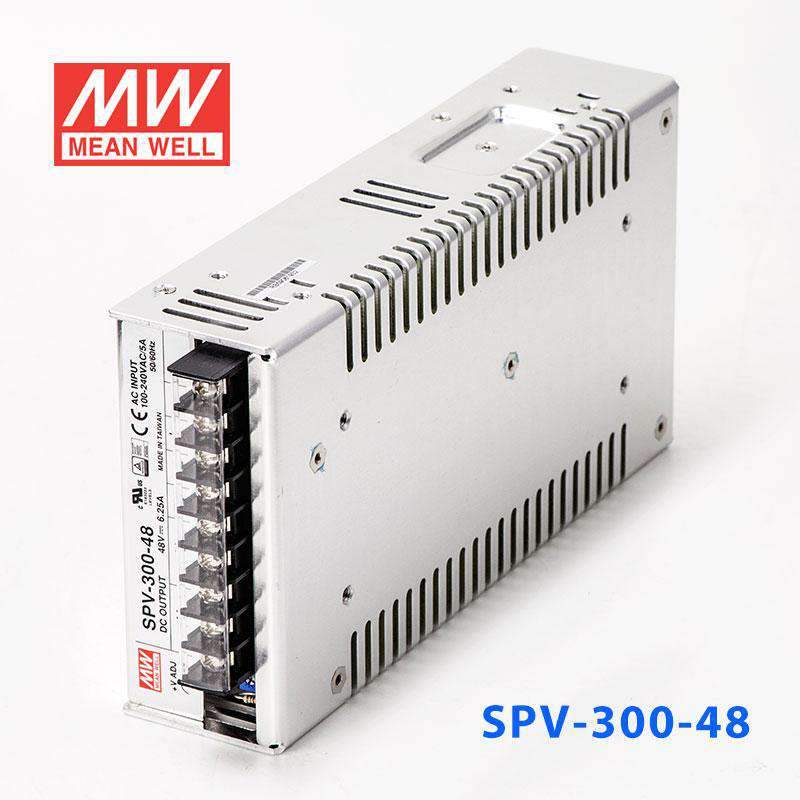

Mean Well SPV-300-48 power supply 300W 48V 6.25A

Name: Mean Well SPV-300-48 power supply 300W 48V 6.25A
Brand: Mean Well
SKU: SPV-300-48
Price: 98.99 USD
Availability: InStock

built-in active PFC functionPF>0.95output voltage programmable from 20%~110% by 1~5.5VDC external control signal

SKU SPV-300-48

$98.99 USD

Shipping calculated at checkout.

Available to order

Overview

SPV-300-48 is the 48V output model of this series: rated current 6.25A, rated power 300W, typical efficiency 86.5%.

Features

Universal AC input / Full range
Built-in active PFC function, PF>0.95
Protections: Short circuit / Overload / Over voltage / Over temperature
Forced air cooling by built-in DC Fan
Output voltage programmable from 20~110% by 1~5.5VDC external control signal
Built-in remote ON-OFF control
Built-in fan speed control
Fixed switching frequency at 100KHz
3 years warranty

Specifications

SPV-300-48Specifications from the official datasheet (2024-11-22 edition)

OUTPUT

DC VOLTAGE: 48V
RATED CURRENT: 6.25A
CURRENT RANGE: 0 ~ 6.25A
RATED POWER: 300W
RIPPLE & NOISE (max.)^Note.2: 240mVp-p
VOLTAGE ADJ. RANGE: 41 ~ 52.8V
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.2%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME: 800ms, 50ms/230VAC 2500ms, 50ms/115VAC at full load
HOLD UP TIME (Typ.): 16ms/230VAC 16ms/115VAC at full load

INPUT

VOLTAGE RANGE^Note.5: 88 ~ 264VAC 124 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.95/230VAC PF>0.98/115VAC at full load
EFFICIENCY (Typ.): 86.5%
AC CURRENT (Typ.): 3.6A/115VAC 1.8A/230VAC
INRUSH CURRENT (Typ.): 20A/115VAC 45A/230VAC
LEAKAGE CURRENT: <1mA / 240VAC

PROTECTION

OVERLOAD: 105 ~ 135% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 57.6 ~ 67.2V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

FUNCTION

REMOTE CONTROL: 4 ~ 10VDC power off, <0 ~ 0.8VDC power on
OUTPUT VOLTAGE TRIM: 9.6 ~ 52.8V

ENVIRONMENT

WORKING TEMP.: -20 ~ +65℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY EMC (Note 4)

SAFETY STANDARDS: UL60950-1, TUV BS EN/ EN62368-1 , IEC62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/ EN55032 (CISPR32) Class B, BS EN/ EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/ EN61000-4-2,3,4,5,6,8,11, BS EN/ EN55024, light industry level, EAC TP TC 020

OTHERS

MTBF: 2116.3K hrs min. Telcordia SR-332 (Bellcore) ; 210.6K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 215*115*50mm (L*W*H)
PACKING: 1.1Kg; 12pcs/14Kg/0.92CUFT

Test conditions and notes6

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
5. Derating may be needed under low input voltages. Please check the derating curve for more details.
6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

SPV-300-48 Mechanical Specification (Unit: mm — Mechanical Specification (Unit: mm

SPV-300-48 Block Diagram — Block Diagram

SPV-300-48 Derating Curve — Derating Curve

Downloads

Certificates4

EMC Certificate (SPV-300)(EN) PDF Download

UL Certificate (SPV-300)(EN) PDF Download

TUV Certificate (SPV-300)(EN) PDF Download

CB Certificate (SPV-300)(EN) PDF Download

Test reports1

Test Report (SPV-300-48)(EN) PDF Download

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the SPV-300-48 for 48V telecom or network power applications?

It can be used where the equipment requires a constant 48V DC source and the total load stays within 300W and 6.25A. That makes it relevant for 48V IT, telecom, and communications hardware designed for a 48V bus.

Is the SPV-300-48 suitable for 48V industrial automation equipment?

Yes, this model provides constant 48V output at up to 6.25A, which fits automation or control equipment built around a 48V DC rail. The 300W rating is useful when multiple 48V loads are fed from one supply.

Can the SPV-300-48 power 48V embedded or lab test systems?

Yes, it is appropriate for 48V embedded platforms, benches, or fixtures that need a regulated constant-voltage source up to 300W. The 88-264VAC input also supports use across a wide AC input range.

Is this a good fit for 48V DC distribution inside equipment cabinets?

It can be, as long as the cabinet loads are designed for constant 48V input and stay within 6.25A and 300W. The built-in active PFC function and PF>0.95 may also matter in higher-power cabinet systems.

Is the SPV-300-48 rated for outdoor environments?

No, the SPV-300-48 is an open-frame unit with no IP rating listed in the specifications. It is designed for indoor use within a protective enclosure and is not suitable for outdoor environments.
