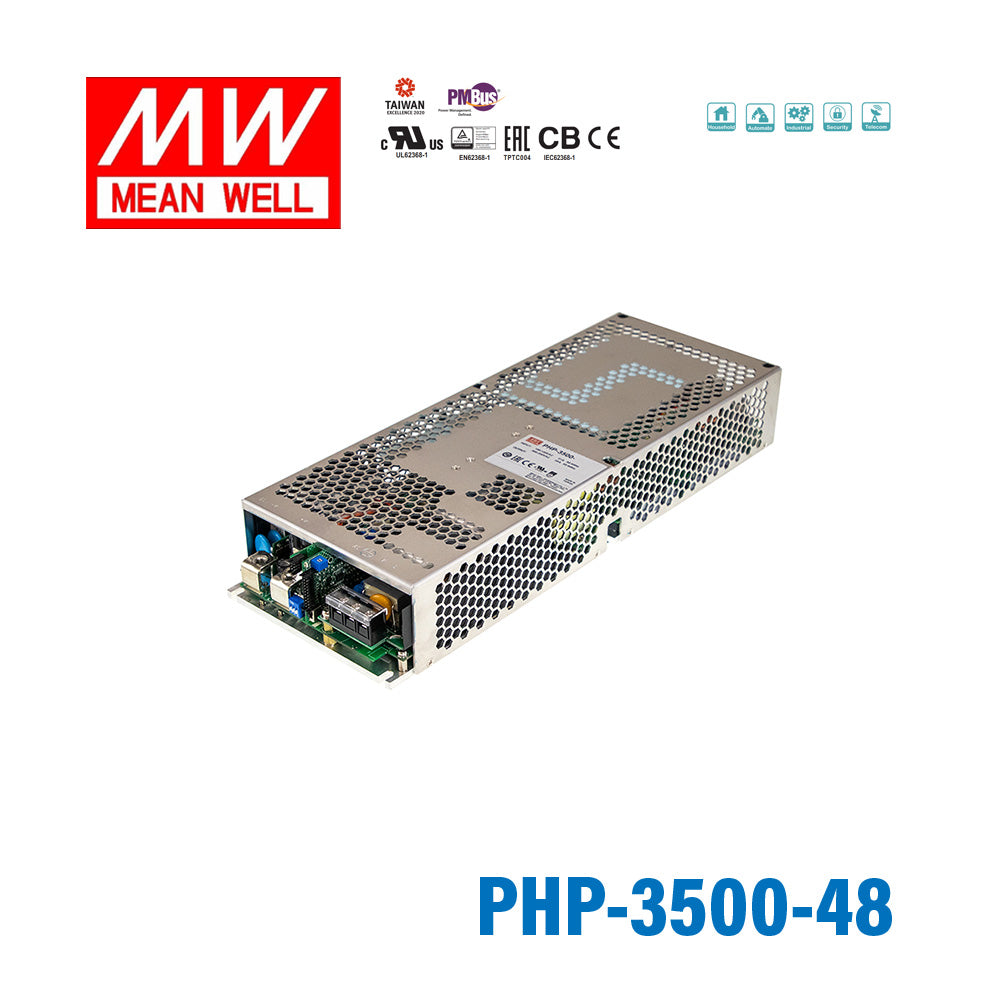

Mean Well PHP-3500-48 power supply 3500W 48V 73A

Name: Mean Well PHP-3500-48 power supply 3500W 48V 73A
Brand: Mean Well
SKU: PHP-3500-48
Price: 1285.71 USD
Availability: InStock

slim and low profile(60mm)fanlesscooling by water conductionoutput voltage and constant current level programmablehigh efficiency up to 96%active current sharing up to 14000W(3+1)

SKU PHP-3500-48

$1,285.71 USD

Shipping calculated at checkout.

In stock

Overview

PHP-3500-48 is the 48V output model of this series: rated current 73A, rated power 3504W, typical efficiency 96%.

PHP-3500 series is a 3500W single-output slim type power supply with 60mm of low profile design. Adopting the full range 90~264Vac input, the entire series provides an output voltage line of 24V and 48V. In addition to the high efficiency up to 96%, that the whole series operates from -30℃ ~ +70℃ under air convection without fan. PHP-3500 has the complete protection functions and 2G anti-vibration capability; it complies with the international safety regulations such as TUV BS EN/EN62368-1, UL62368-1, and design refers to BS EN/EN61558-1 and BS EN/EN60335-1. PHP-3500 series serves as a high performance power supply solution for various industrial applications.

Features

90 ~ 264Vac input with PFC
Slim and Low profile (60mm)
Fanless design, cooling by water conduction
Built-in PMBus or CANBus protocol
Output voltage and constant current level programmable
Protections: Short circuit / Overload / Over voltage / Over temperature
-30 ~ +70℃ working temperature
Built-in remote ON-OFF control
DC OK active signal

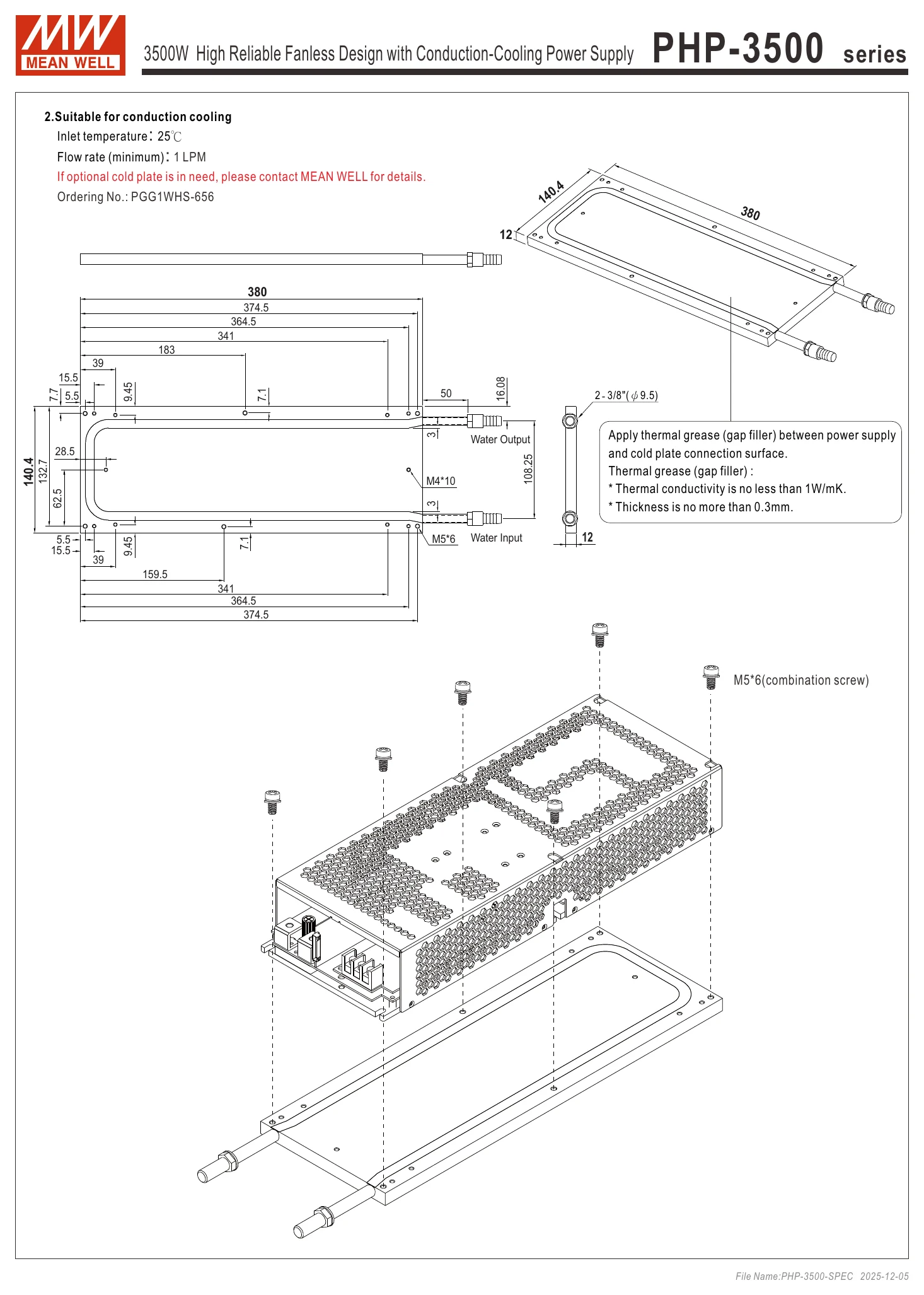

Optional cold plate for quick implementation
OVCⅢ Operating altitude up to 3000 meter (Note.9)
LED indicator for power on
High efficiency up to 96%

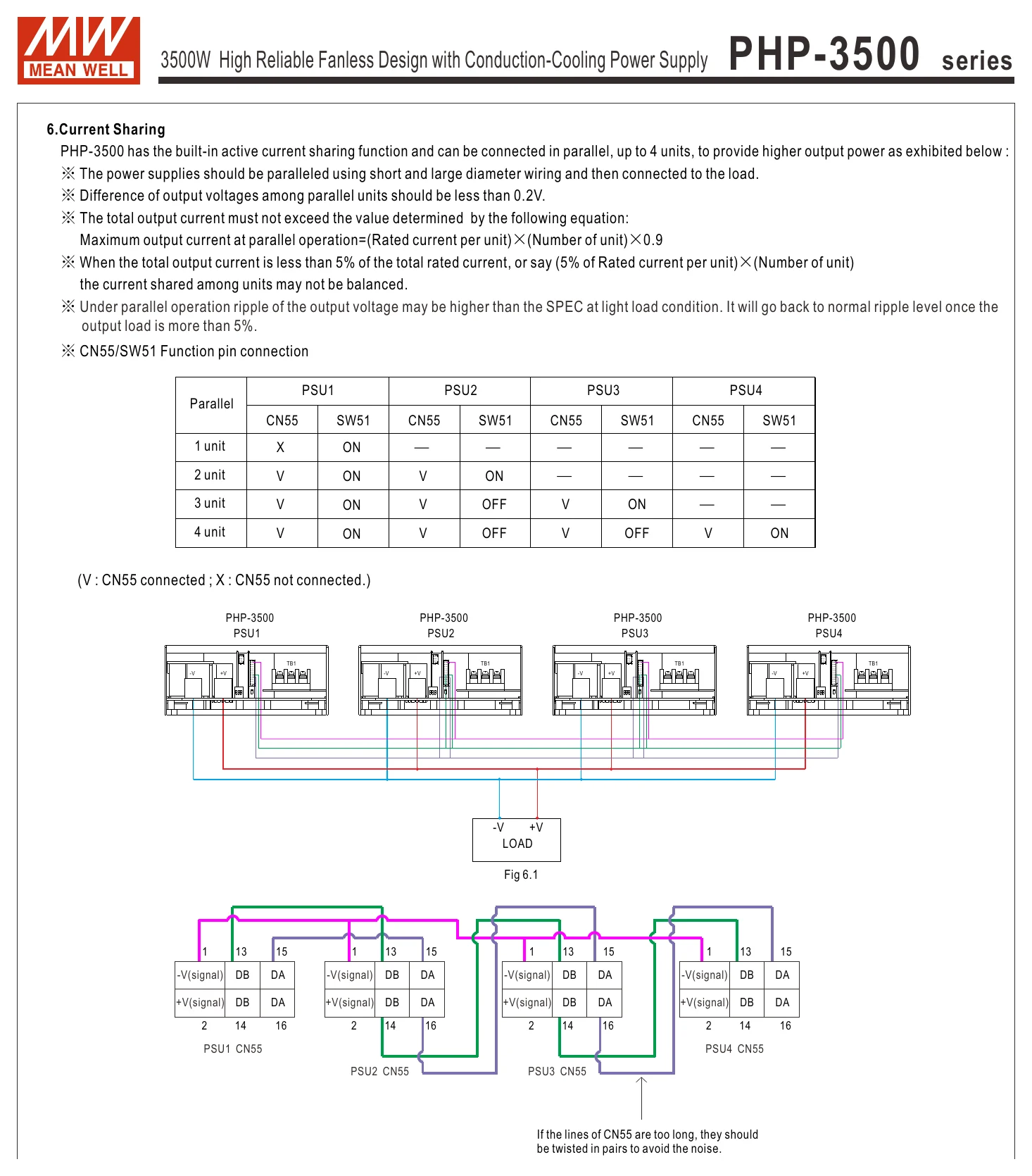

Active current sharing up to 14000W (3+1)
5 years warranty

Specifications

PHP-3500-48Specifications from the official datasheet (2025-12-05 edition)

OUTPUT

DC VOLTAGE: 48V
RATED CURRENT: 73A
RATED POWER: 3504W
RIPPLE & NOISE (max.)^Note.2: 480mVp-p
VOLTAGE ADJ. RANGE: By built-in potentiometer, SVR
VOLTAGE ADJ. RANGE: 48~57.6V
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME^Note.4: 1500ms, 60ms/230Vac 1500ms, 60ms/115Vac at full load
HOLD UP TIME (Typ.)^Note.4: 16ms/230Vac at 75% load 10ms/230Vac at full load ; 16ms/115Vac at 75% load 10ms/115Vac at full load

INPUT

VOLTAGE RANGE^Note.4: 90 ~ 264Vac 127 ~ 370Vdc
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.)^Note.4: PF≥0.95/230Vac PF≥0.99/115Vac at full load
EFFICIENCY (Typ.)^Note.10: 96%
AC CURRENT (Typ.): 20A/115Vac 20A/230Vac
INRUSH CURRENT (Typ.): Cold start 30A/115Vac 80A/230Vac
LEAKAGE CURRENT: 2mA / 240Vac

PROTECTION

OVERLOAD: 105 ~ 115% rated current Protection type : Constant current limiting, shut down O/P voltage after 5 sec. After O/P voltage falls, re-power on to recover
OVER VOLTAGE: 60 ~ 72V Protection type :Shut down O/P voltage,re-power on to recover
OVER TEMPERATURE: Protection type :Shut down O/P voltage, recovers automatically after temperature goes down

FUNCTION

OUTPUT VOLTAGE PROGRAMMABLE(PV)^Note.5,6: Adjustment of output voltage is allowable to 50 ~ 120% of nominal output voltage. Please refer to the Function Manual.
OUTPUT CURRENT PROGRAMMABLE(PC)^Note.6: Adjustment of constant current level is allowable to 20 ~ 100% of rated current. Please refer to the Function Manual.

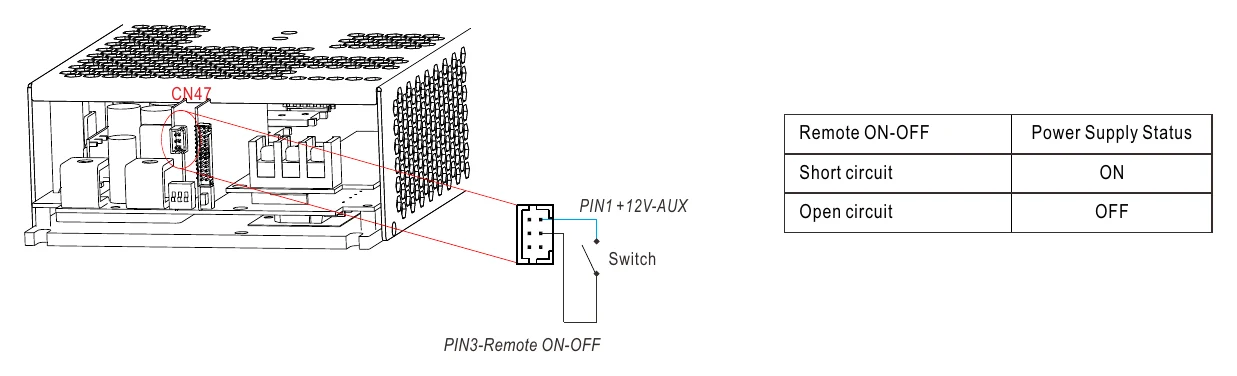

REMOTE ON/OFF CONTROL: Power ON : Short circuit Power OFF : Open circuit
AUXILIARY POWER: 12V@0.5A tolerance±10%, ripple 150mVp-p
DC-OK SIGNAL: The TTL signal out, PSU turn on = -0.5 ~ 0.5Vdc ; PSU turn off = 3.5 ~ 5.5Vdc. Please refer to the Function Manual.

ENVIRONMENT

WORKING TEMP.: -30 ~ +70℃Baseplate temperature (Refer to “Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
OVER VOLTAGE CATEGORY: Ⅱ; According to EN61558; altitude up to 5000 meters.

SAFETY & EMC (Note.8)

SAFETY STANDARDS: UL62368-1, CAN/CSA C22.2 No. 62368-1,TUV BS EN/EN62368-1, EAC TP TC 004 approved ; design refers to BS EN/EN61558-1, BS EN/EN60335-1
WITHSTAND VOLTAGE: I/P-O/P:3KVac I/P-FG:2KVac O/P-FG:1.25KVac
ISOLATION RESISTANCE: I/P-O/P, I/P-FG,O/P-FG:100M Ohms/500Vdc/25℃/ 70%RH
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032 (CISPR32) Class A
Radiated BS EN/EN55032 (CISPR32) Class A
Harmonic Current BS EN/EN61000-3-12
Voltage Flicker BS EN/EN61000-3-3
EMC IMMUNITY: BS EN/EN55035

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact
Radiated BS EN/EN61000-4-3 Level 3
EFT / Burst BS EN/EN61000-4-4 Level 3
Surge BS EN/EN61000-6-2 2KV/Line-Line 4KV/Line-Earth
Conducted BS EN/EN61000-4-6 Level 3
Magnetic Field BS EN/EN61000-4-8 Level 4
Voltage Dips and Interruptions BS EN/EN61000-4-11 >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

Parameter	Standard	Test Level
Conducted	BS EN/EN55032 (CISPR32)	Class A
Radiated	BS EN/EN55032 (CISPR32)	Class A
Harmonic Current	BS EN/EN61000-3-12
Voltage Flicker	BS EN/EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact
Radiated	BS EN/EN61000-4-3	Level 3
EFT / Burst	BS EN/EN61000-4-4	Level 3
Surge	BS EN/EN61000-6-2	2KV/Line-Line 4KV/Line-Earth
Conducted	BS EN/EN61000-4-6	Level 3
Magnetic Field	BS EN/EN61000-4-8	Level 4
Voltage Dips and Interruptions	BS EN/EN61000-4-11	>95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

OTHERS

MTBF: 544.8K hrs min. Telcordia SR-332 (Bellcore) ; 56.3K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: Forced-air cooling: 380*141.4*60mm (L*W*H) Water cooling: 380*141.4*72mm (L*W*H)
PACKING: 4.5Kg;4pcs/19Kg/2.46CUFT

Certifications & ratings

Forced-air cooling: 380*141.4*60mm
Water cooling: 380*141.4*72mm

Test conditions and notes10

1. All parameters NOT specially mentioned are measured at 230Vac input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance :includes set up tolerance, line regulation and load regulation.
4. Derating may be needed under low input voltages. Please check the derating curve and Static characteristics for more details.
5. Without water or fan cooling to provide adequate heat dissipation, OTP might be triggered if trimming output voltage by PV signal toward upper or bottom limits of nominal voltage. Under such condition, enhanced cooling on PSU is highly recommended.
6. PV/PC function when users are not operating on PMBus. SVR functions when users are neither operation on PMBus nor using PV/PC.
7. Output will shut down after O/P voltage is below < 80% of Vset for 5 sec, re-power on to recover.
8. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 600mm*900mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
9. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
10. The efficiency is measured at 75% load.

Technical drawings

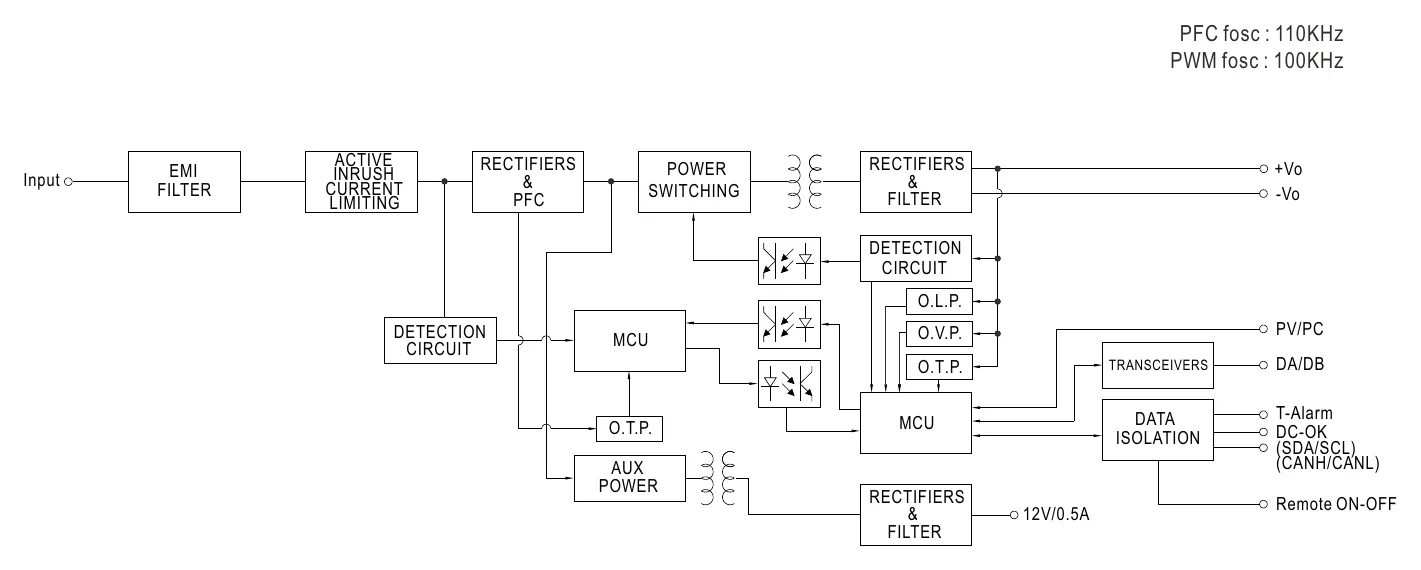

PHP-3500-48 BLOCK DIAGRAM — BLOCK DIAGRAM

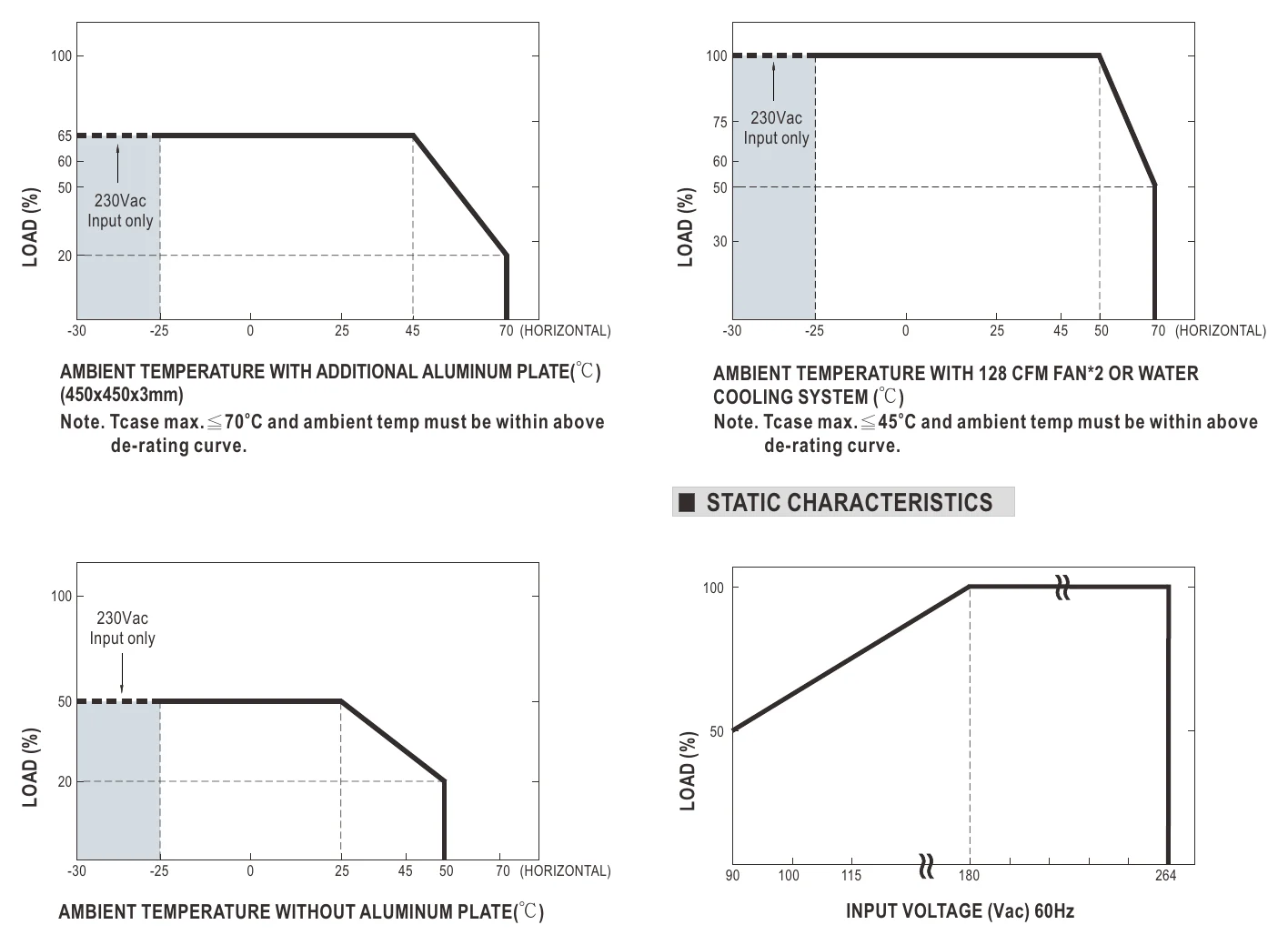

PHP-3500-48 DERATING CURVE — DERATING CURVE

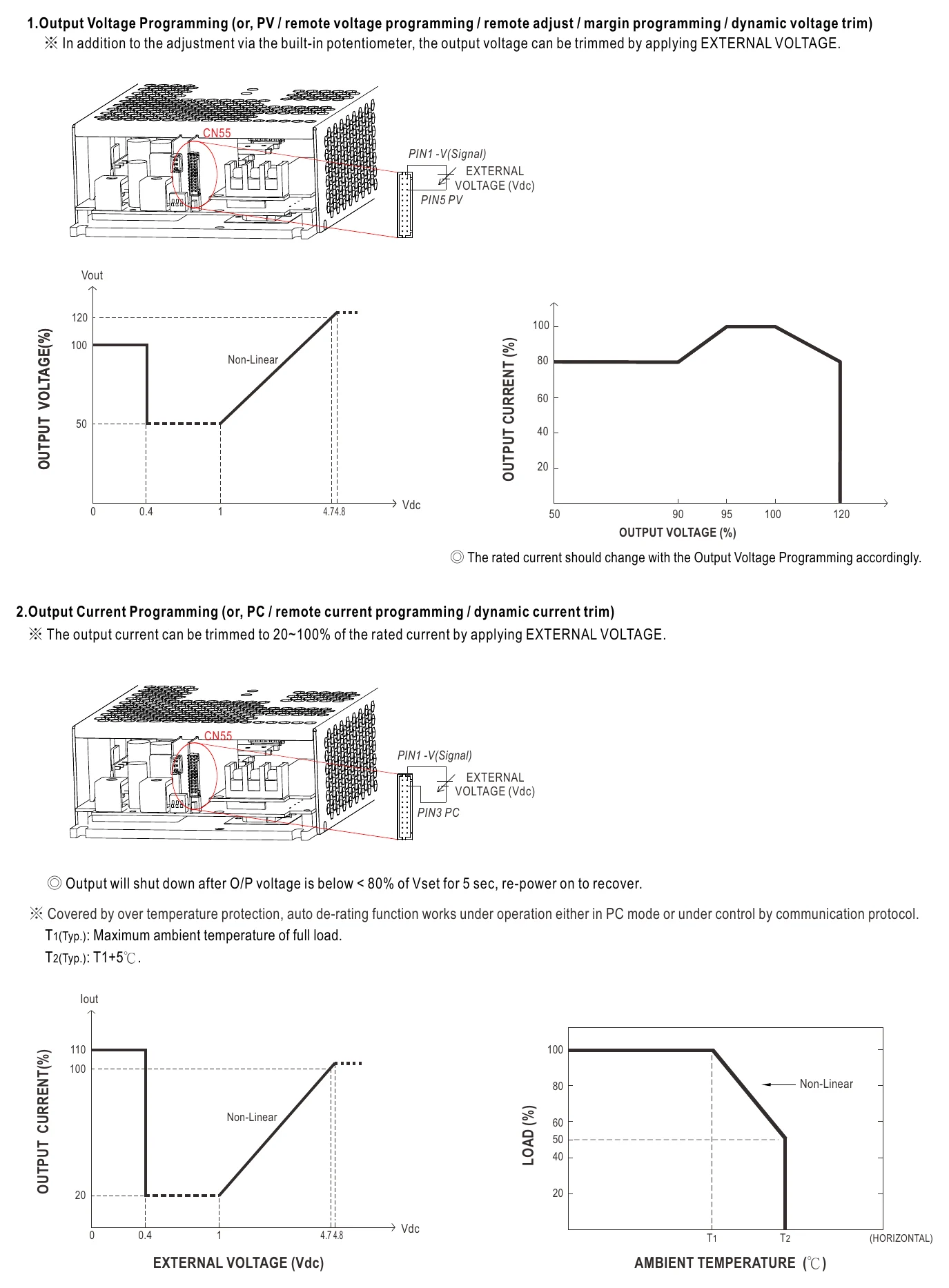

PHP-3500-48 FUNCTION MANUAL — FUNCTION MANUAL

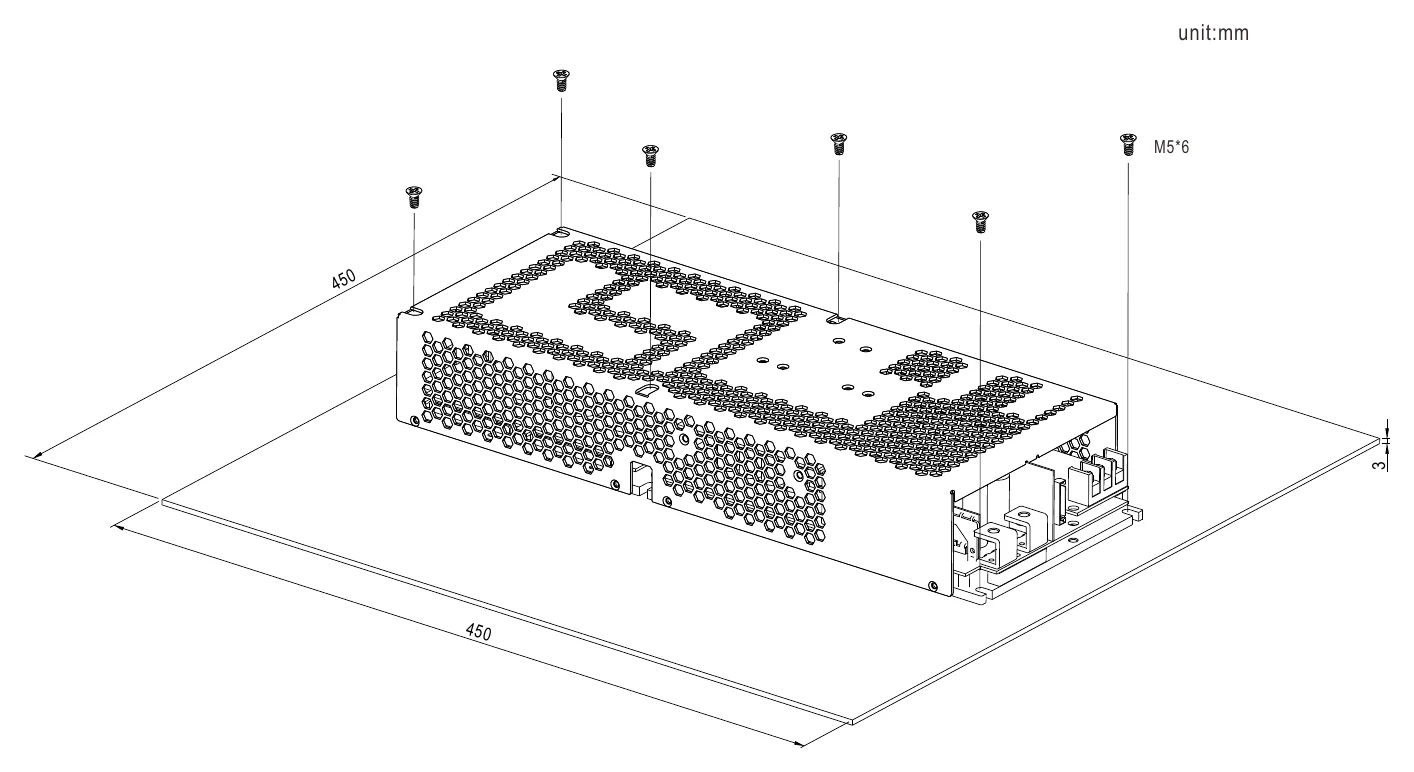

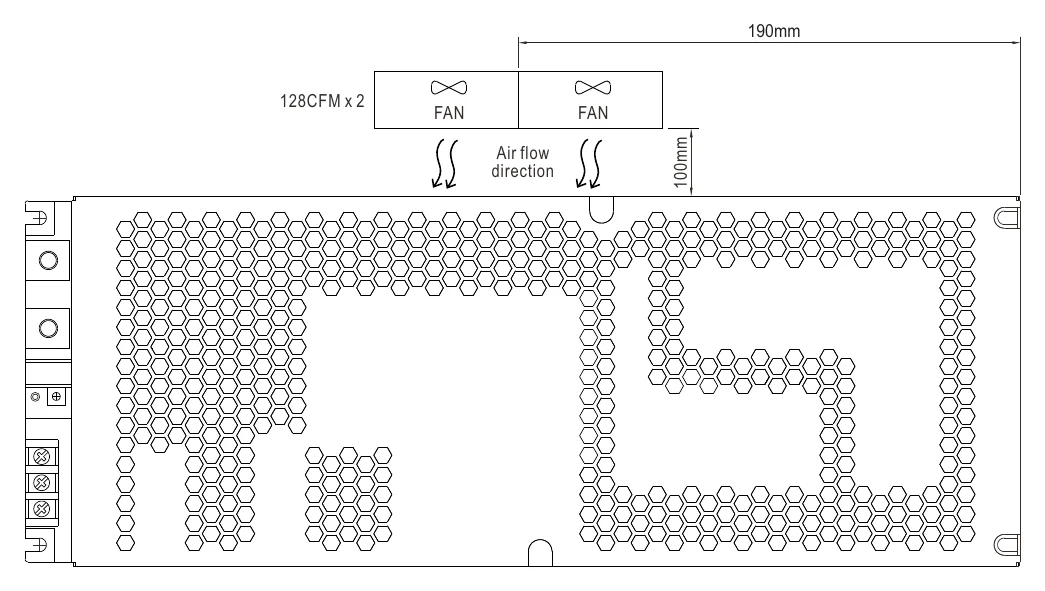

PHP-3500-48 Illustration (page 5) — Illustration (page 5)

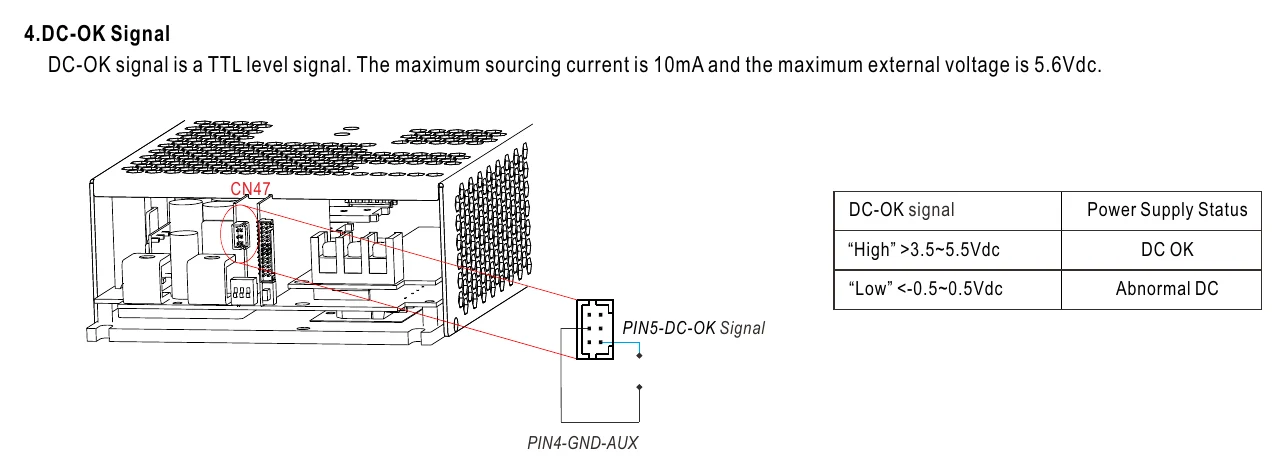

PHP-3500-48 4.DC-OK Signal — 4.DC-OK Signal

PHP-3500-48 PHP-3500 series — PHP-3500 series

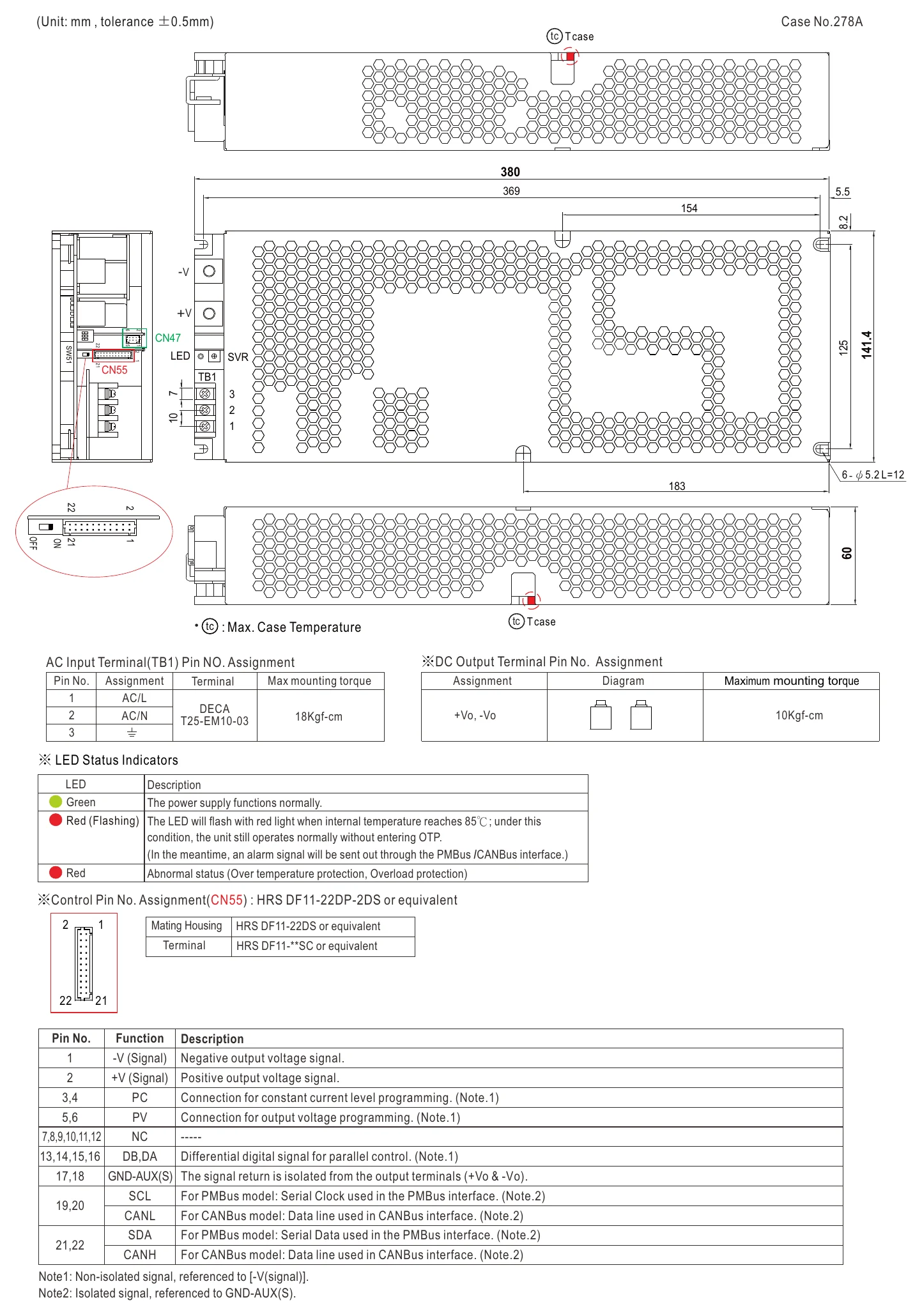

PHP-3500-48 MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

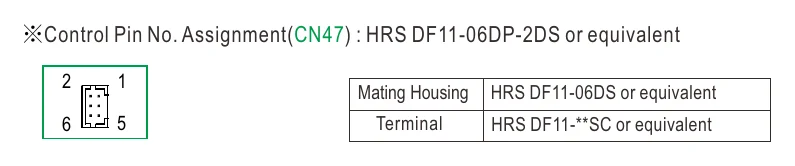

PHP-3500-48 ※Control Pin No. Assignment(CN47) : HRS DF11-06DP-2DS or… — ※Control Pin No. Assignment(CN47) : HRS DF11-06DP-2DS or…

PHP-3500-48 High (3.5 ~ 5.5Vdc) : When the Vout ≦80%±5%. — High (3.5 ~ 5.5Vdc) : When the Vout ≦80%±5%.

PHP-3500-48 Illustration (page 10) — Illustration (page 10)

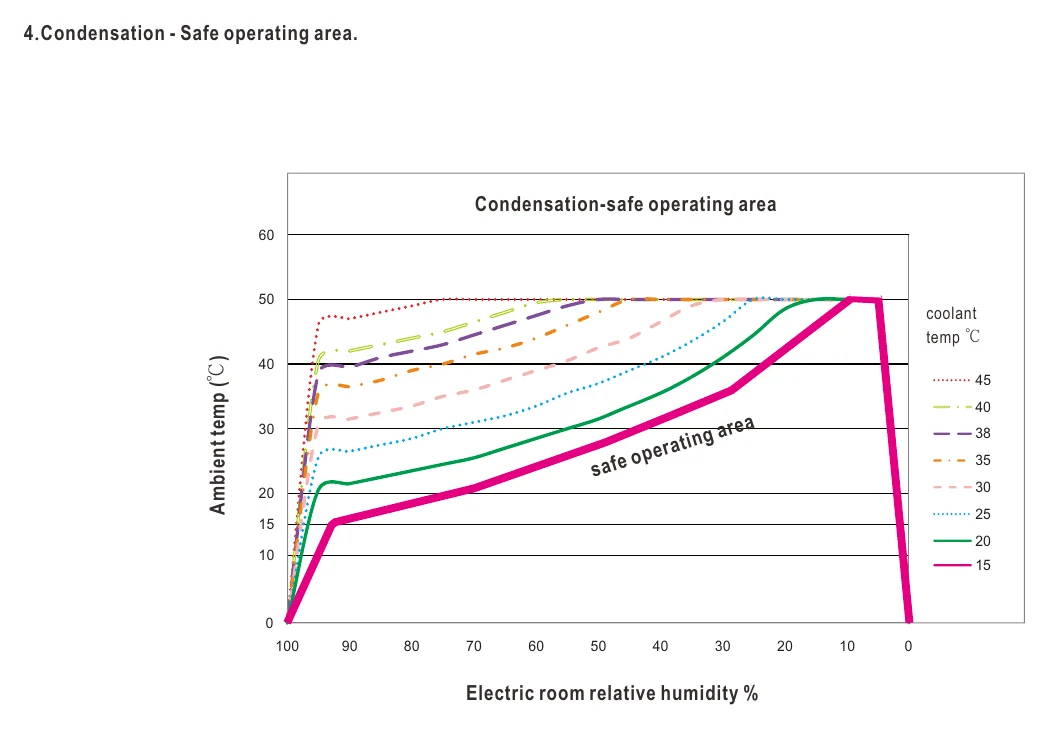

PHP-3500-48 4.Condensation - Safe operating area. — 4.Condensation - Safe operating area.

Typical applications

Industrial automation machinery
Industrial control system
Mechanical and electrical equipment
Electronic instruments, equipments or apparatus
Household appliances

Downloads

Certificates9

Mean Well PHP-3500-TUV Certificate PDF Download

Mean Well PHP-3500-CB(TUV) Certificate PDF Download

Mean Well PHP-3500-CB(UL) Certificate PDF Download

Mean Well PHP-3500-CB Certificate PDF Download

Mean Well PHP-3500-EMC Certificate PDF Download

Mean Well PHP-3500-UK-dec Certificate PDF Download

Mean Well PHP-3500-CE-dec Certificate PDF Download

Mean Well E183223 UL Certificate PDF Download

Mean Well 0147476-EAC Certificate PDF Download

Test reports1

Mean Well PHP-3500-24 Test Report PDF Download

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the PHP-3500-48 for a high-power 48V telecom or network DC bus?

Yes, this model is suited to large 48V constant-voltage systems. It is rated at 3504W with 48V output and 73A output current, which makes it relevant for telecom, network, or industrial IT equipment built around a 48V bus.

Is the PHP-3500-48 a fit for industrial embedded compute racks or control systems that distribute 48V power?

It can be, provided the equipment is designed for a 48V constant-voltage supply. With 3504W available and 73A output current, it is sized for high-load 48V infrastructure rather than small embedded boards.

Can the PHP-3500-48 be used in large automated test systems that need adjustable output behavior?

Yes, the listed features include programmable output voltage and programmable constant current level. Combined with 3504W at 48V and 73A, that makes it suitable for heavy 48V test platforms or production equipment.

Does the PHP-3500-48 support scaling to higher total 48V power?

Yes, the series supports active current sharing up to 14000W in a 3+1 arrangement. That makes this model useful when a single 3504W 48V supply is not enough for the full system load.

Is the PHP-3500-48 intended for outdoor use or wide temperature ranges?

Its working temperature range is -30°C to +70°C measured at the baseplate, with load derating at higher temperatures according to the derating curve. The supplied specs do not give an IP rating, so direct outdoor exposure is not established and a protective enclosure should be assumed if the environment requires it.

What other output options exist in the PHP-3500 family?

The PHP-3500 series has only one other output voltage: the PHP-3500-24 at 3480W 24V 145A, alongside this PHP-3500-48 at 3504W 48V 73A. Both come as a standard PMBus version or a CAN-suffix CANBus version, and an optional cold plate (ordering no. PGG1WHS-656) is available for water cooling.
