Description
Description
Features:
- 3ψ 3-wire / △196
305VAC or 3ψ 4-wire / Y 340530VAC - High efficiency up to 94%
- Forced air cooling

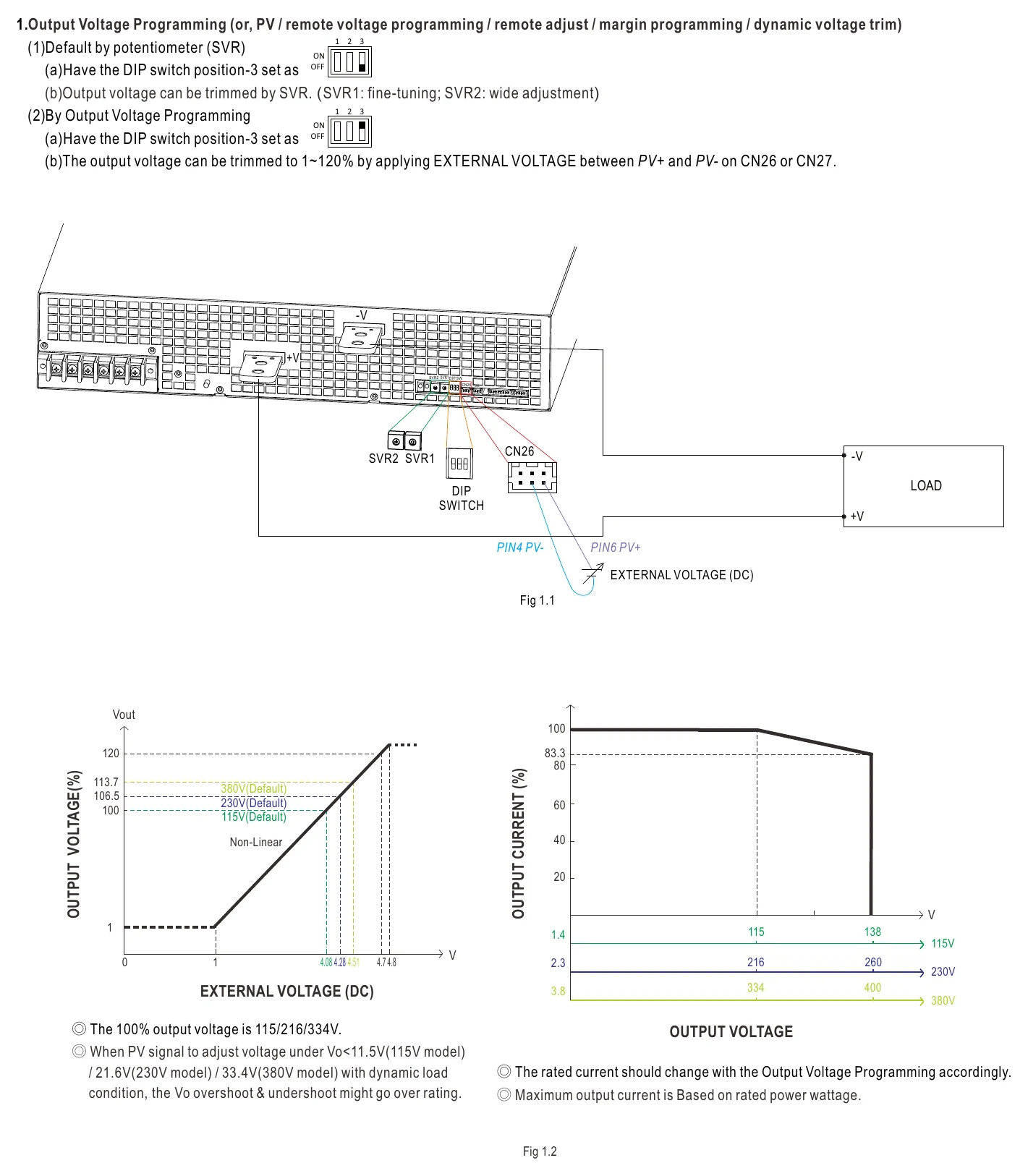

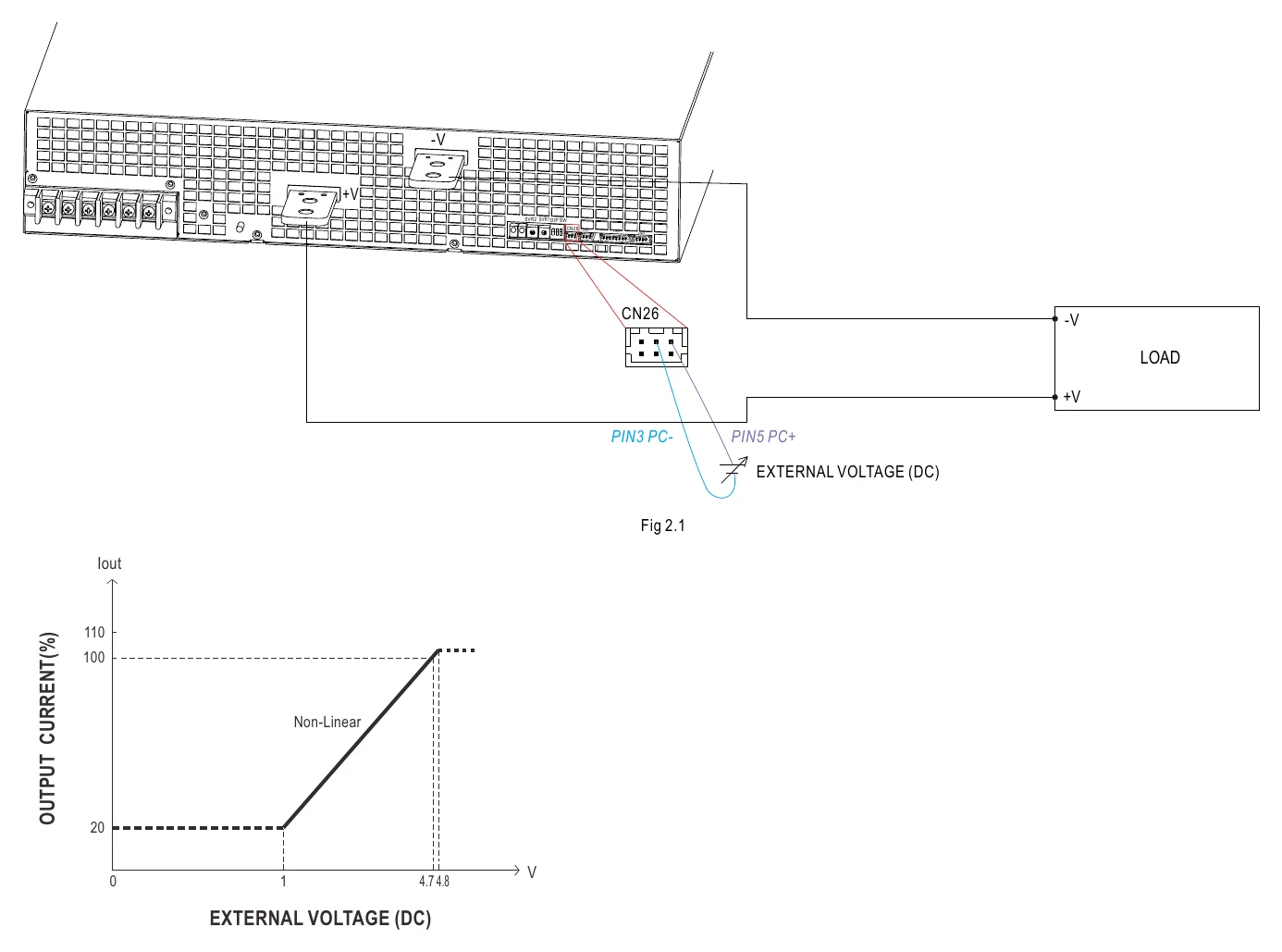

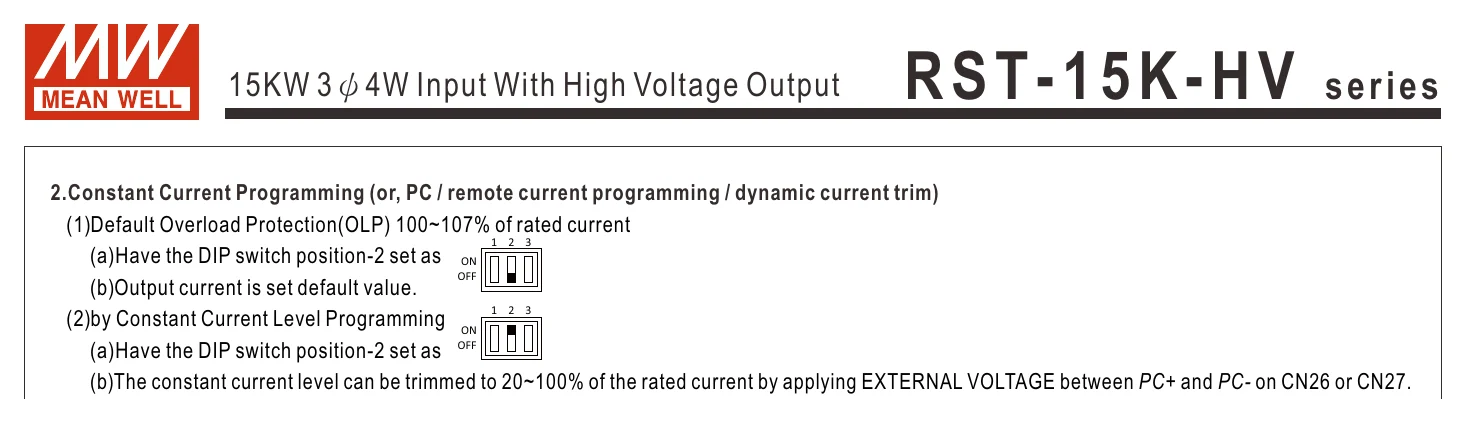

- Output voltage and constant current level programmable
- Wide voltage adjustment range 1~120%

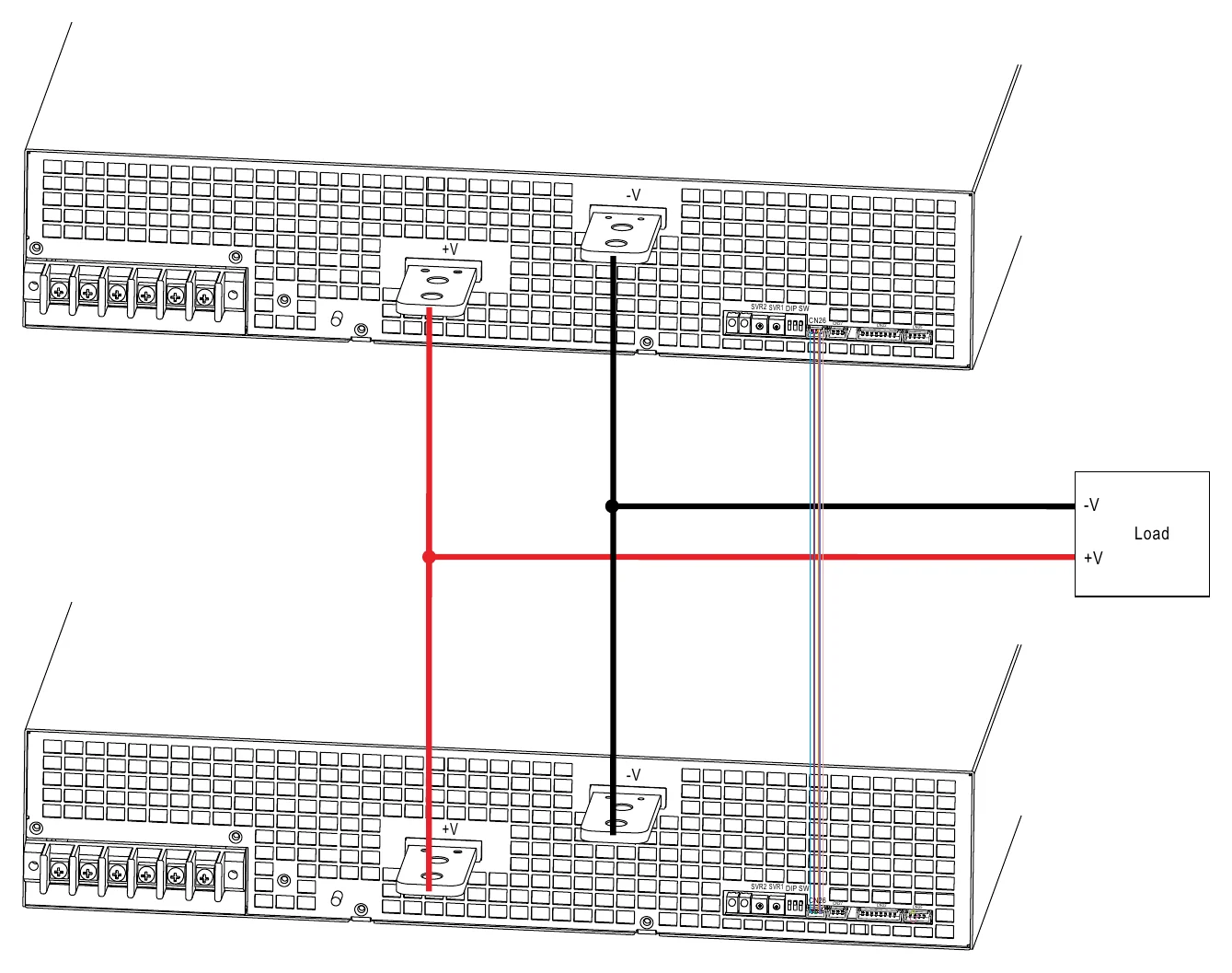

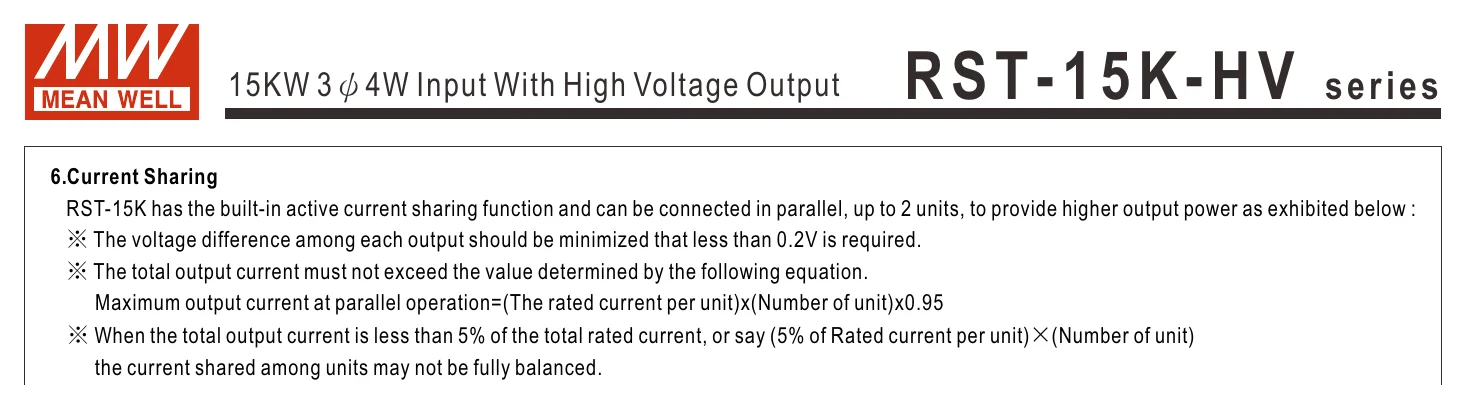

- Active current sharing up to 2 units(28.5KW)

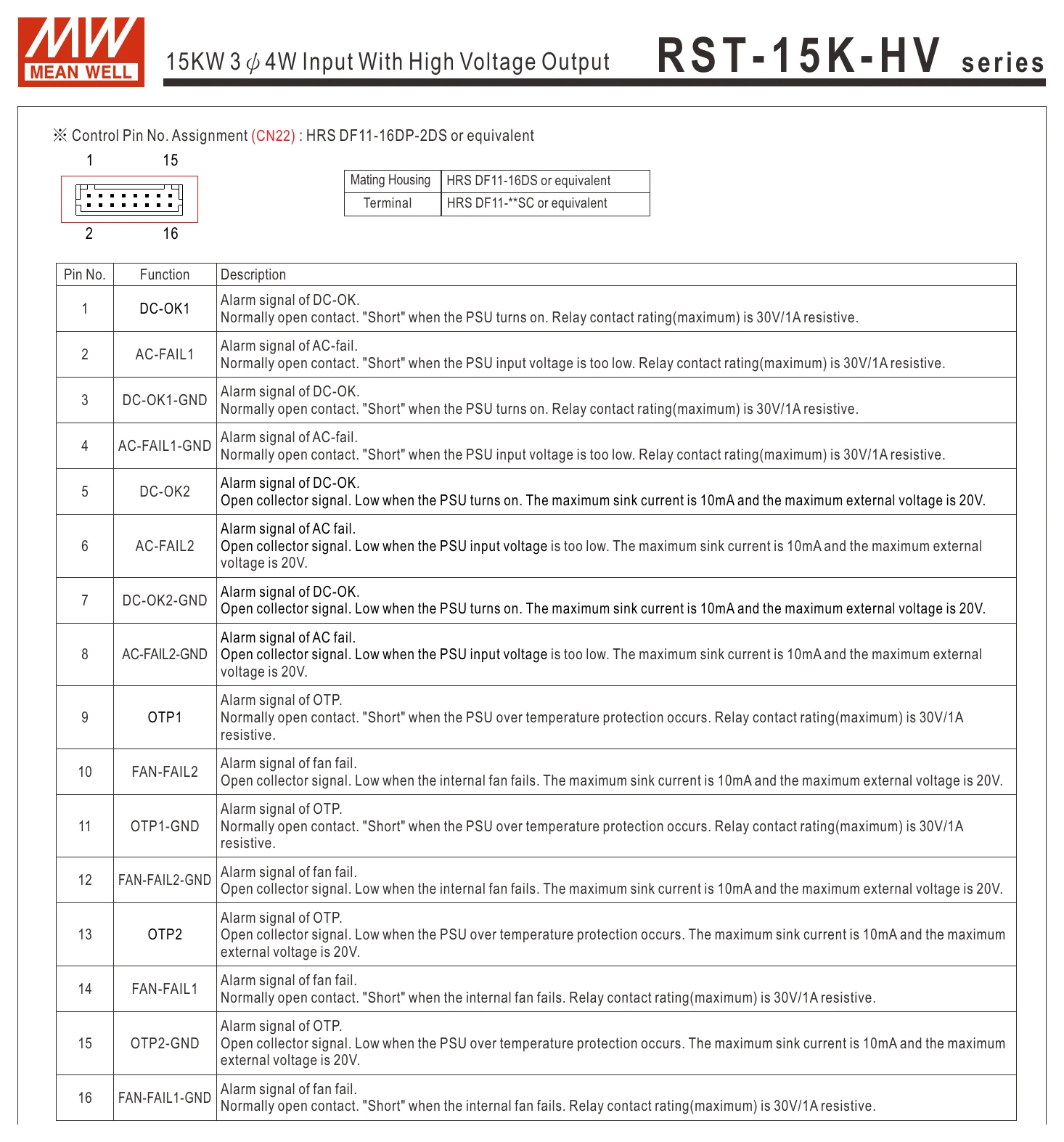

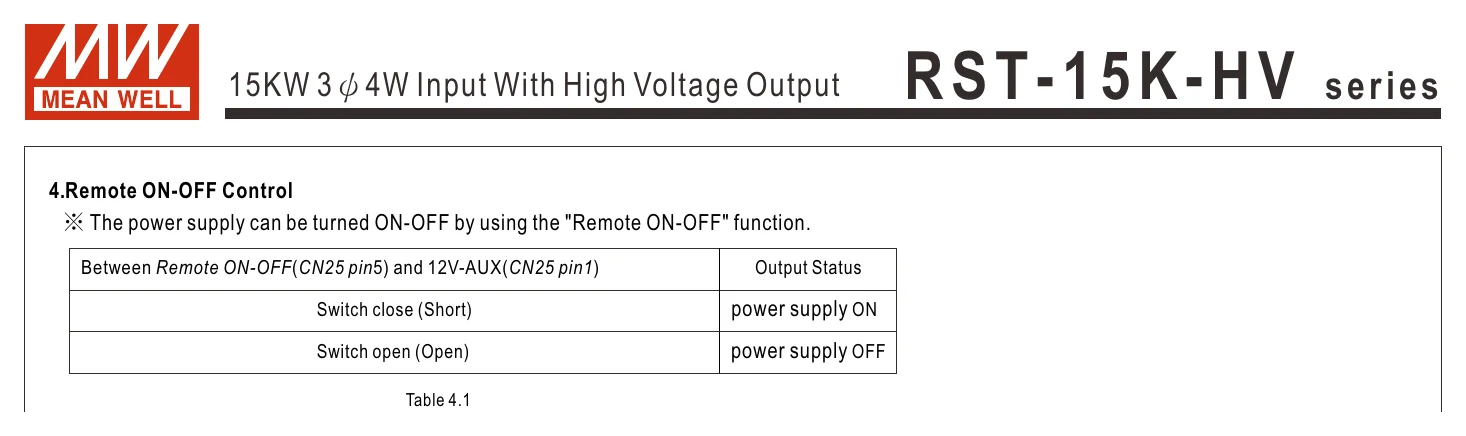

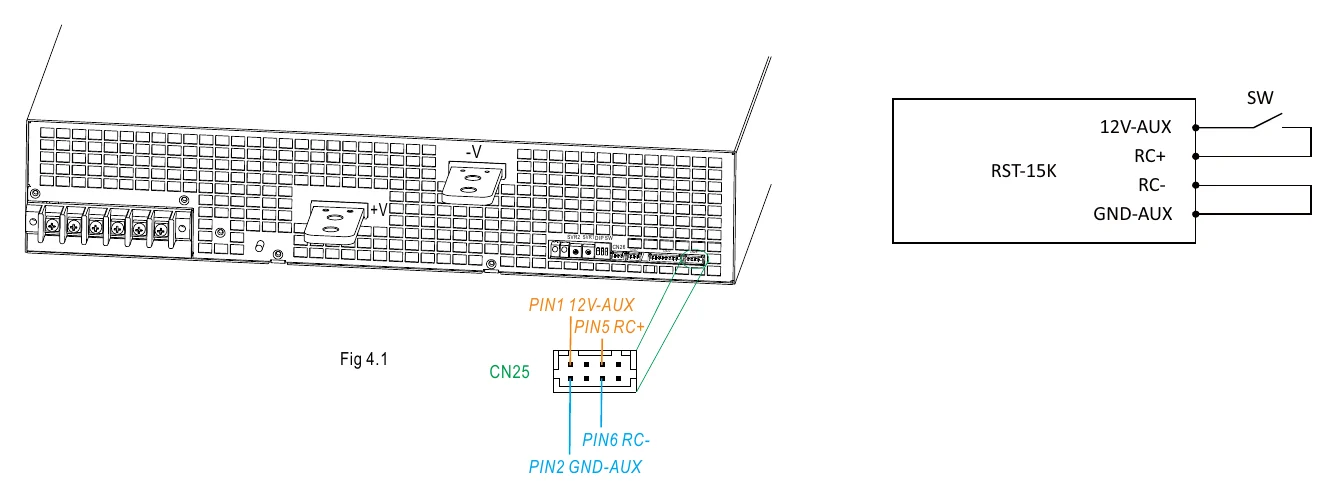

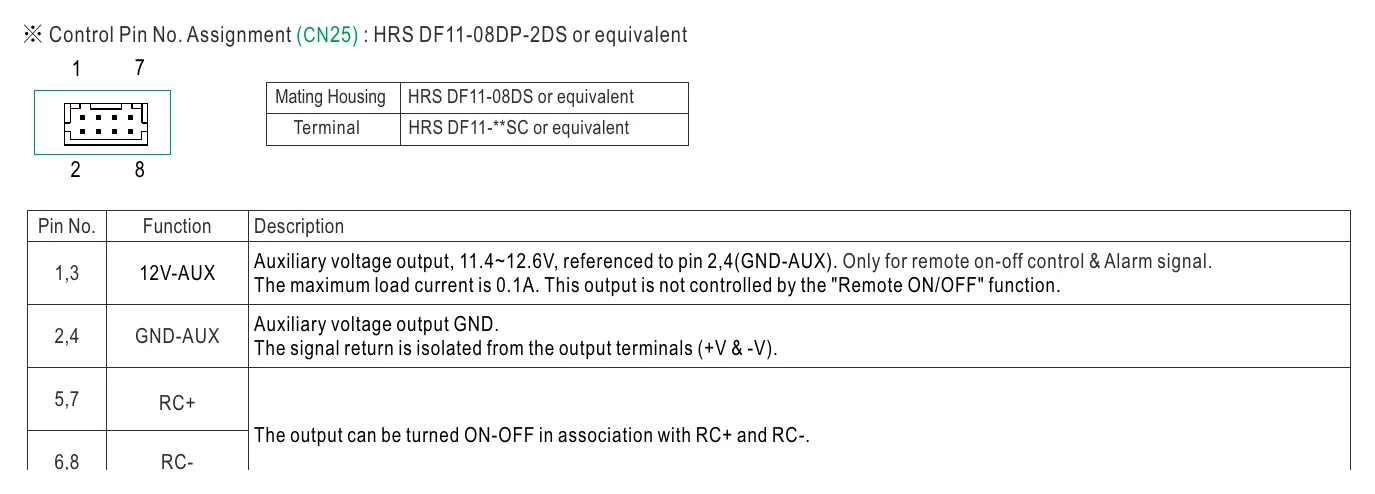

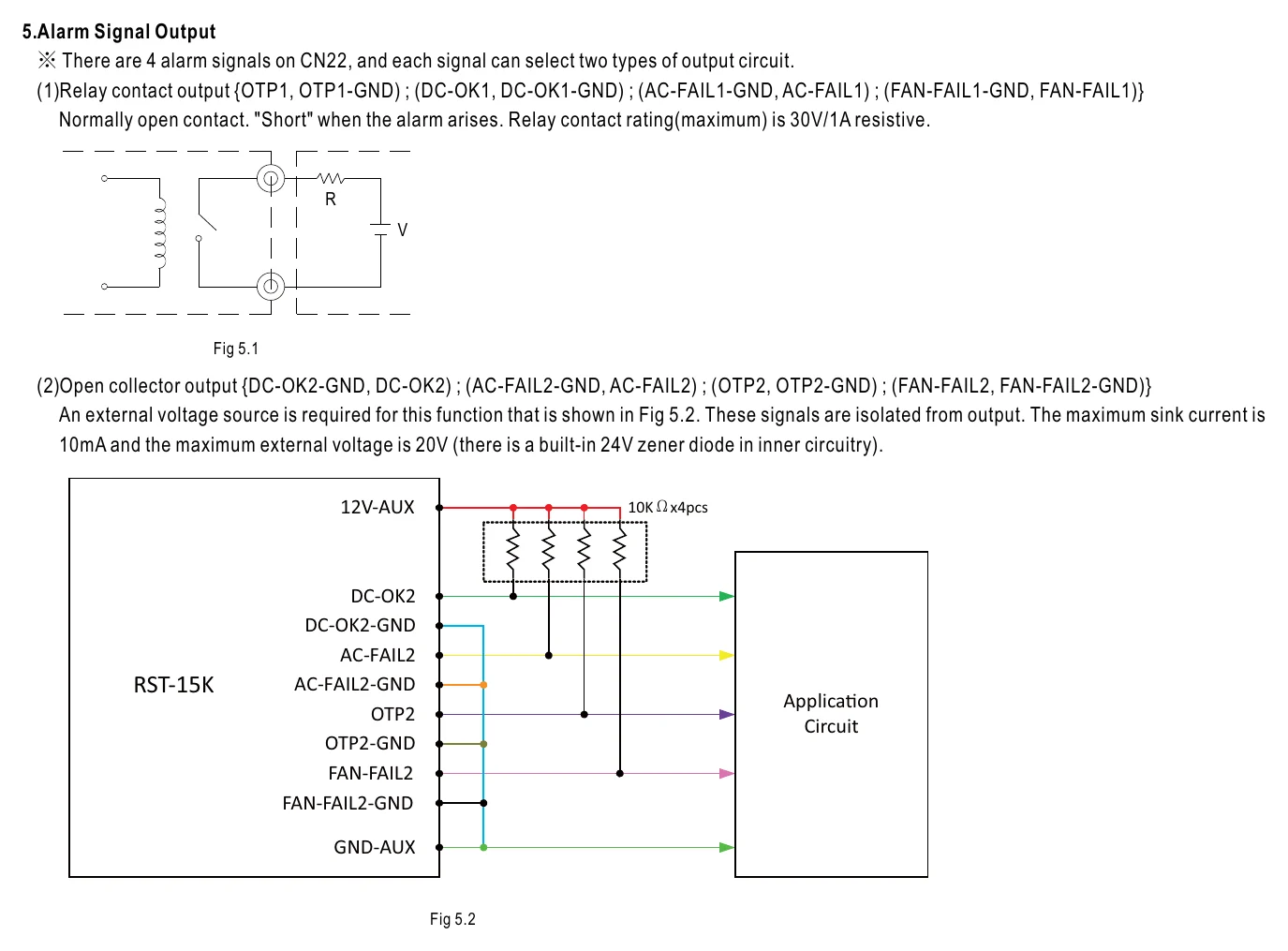

- Built-in remote ON-OFF control / Alarm signal
- Protections: Short circuit / Overload / Over voltage / Over temperature / Fan fail
- 5 years warranty
General Specification
AC input voltage range
3ψ 3W/ △196305VAC or 3ψ 4W/Y 340530VAC
AC inrush current (max.)
150A/230VAC(3ψ 3-wire / △) 100A/400VAC(3ψ 4-wire / Y)

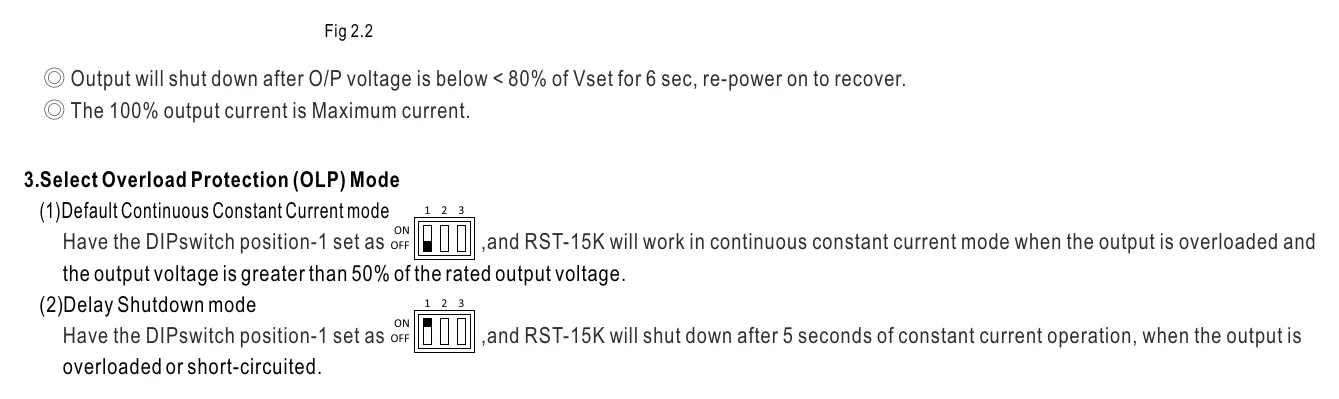

Overload protection
100 ~ 107% of rated current
Protection type: Constant current limiting, unit will shut down after 5 sec. re-power on to recover
Over-voltage protection
| 145 ~ 166V | 273 ~ 312V | 420 ~ 480V |
Protection type: Shut down o/p voltage, re-power on to recover
Over temperature protection
Shut down o/p voltage, recovers automatically after temperature goes down
Withstand voltage
I/P-O/P:4.3KVDC I/P-FG:2.8KVDC O/P-FG:2.8KVDC
Working temperature

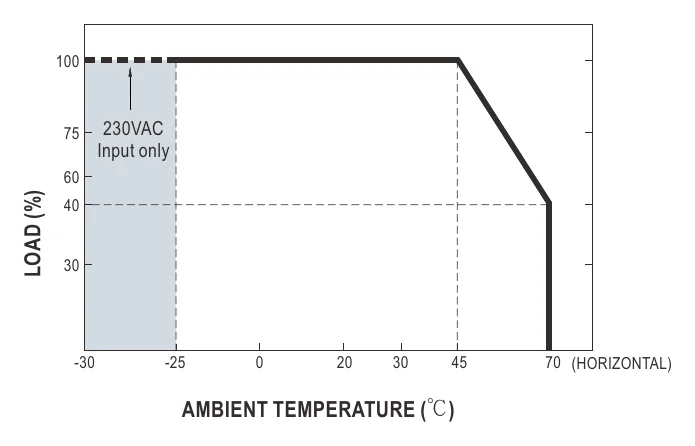

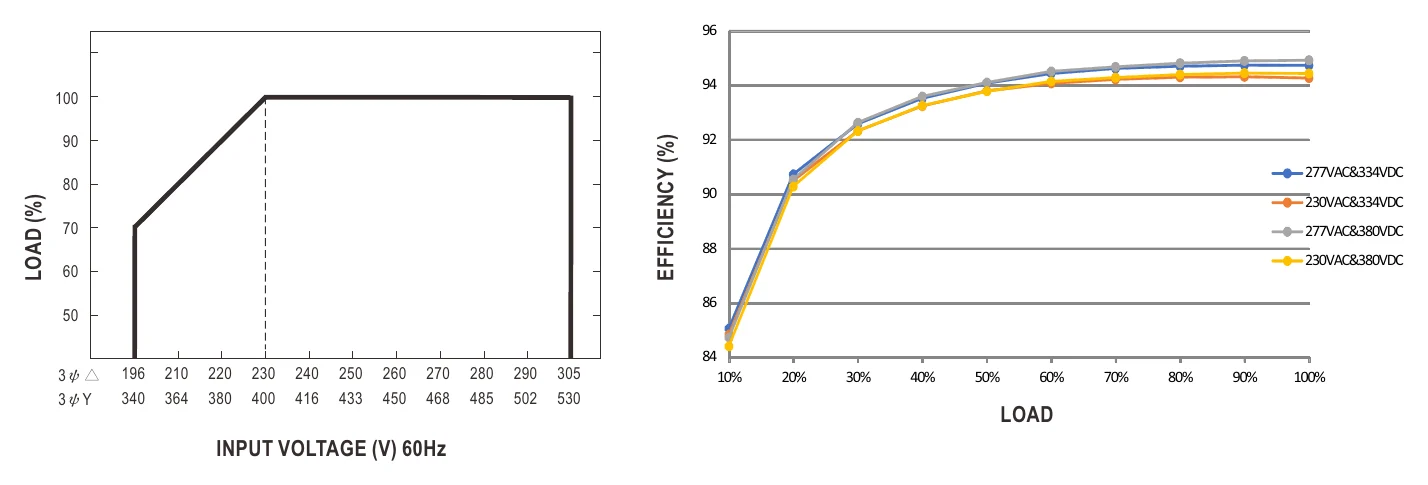

-30 ~ +70 (Refer to "Derating Curve")
Safety standards
UL62368-1, CAN/CSA C22.2 , TUV BS EN/EN62368-1, EAC TP TC 004 approved

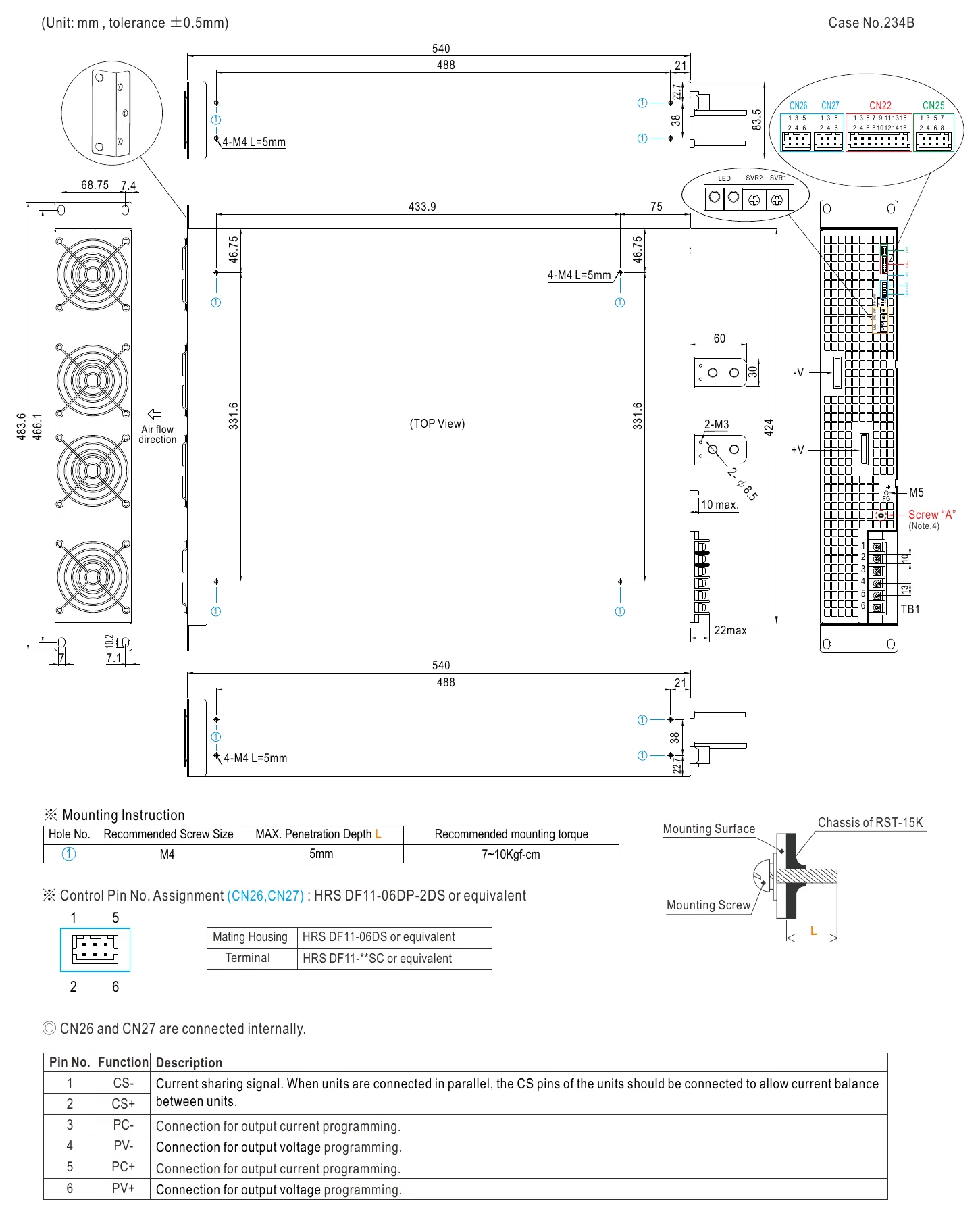

Dimension (LxWxH)
540x424x83.5mm
Specifications
Specifications
-
BrandMean Well
-
SeriesRST Series
-
Power Rating14950 Watt
-
Output Voltage115 Volt
-
Rated Current130 Ampere
-
Input Voltage196V~305V
-
Standards MetCB,CE,EAC,EN
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty5 Year
-
Length21.26 in
-
Width16.69 in
-
Height3.29 in
-
Weight55.12 lb
