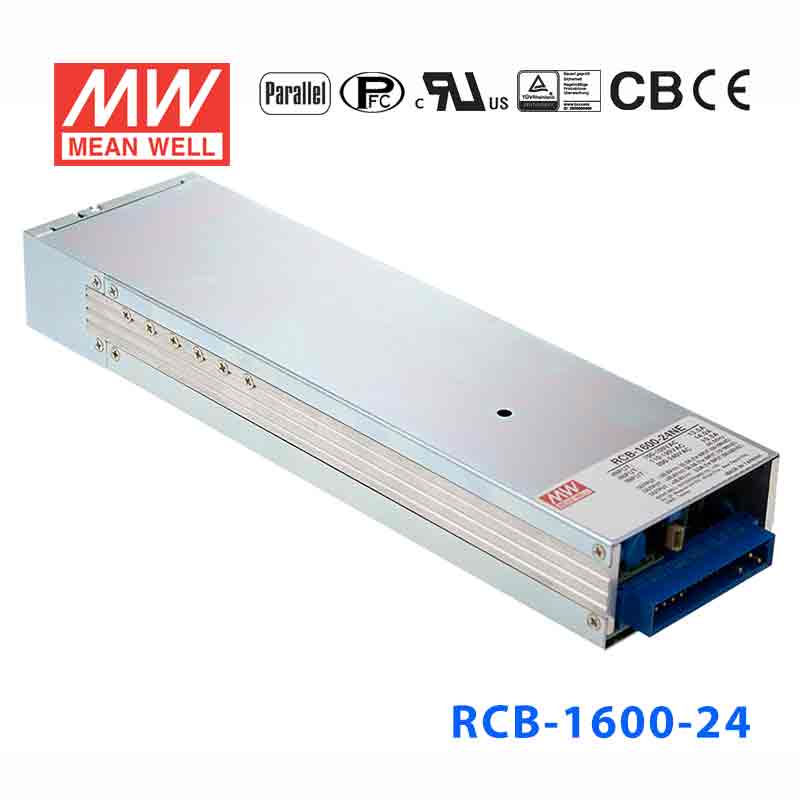

Mean Well RCB-1600-24 battery charger 1600W 28.8V 55A

Name: Mean Well RCB-1600-24 battery charger 1600W 28.8V 55A
Brand: Mean Well
SKU: RCB-1600-24
Price: 475.31 USD
Availability: InStock

charger for lead-acid and Li-ion batteriesoutput voltage and current programmablesupport hot swap

SKU RCB-1600-24

$475.31 USD

Shipping calculated at checkout.

Available to order

Overview

RCB-1600-24 is the model of this series: rated power 1584W, typical efficiency 92%.

RCB-1600 series is a single output 1600W AC/DC charger with 1U low profile (41mm). It is an intelligent charger with embedded charging curves which are programmable. Users are also able to adjust the charging voltage and current via the built-in potentiometer, output programmable functions, PMBus, or CANBus to charge different types of batteries, such as lead-acid batteries and li-ion batteries. Various protection mechanisms as well as the temperature compensation function are provided to assure the normal and safe operations. The rack-mountable attribute allows RCB-1600 to perfectly suit the charging, backup or constant current source applications exploiting the rack architecture or central management.

Features

Charger for lead-acid batteries (Gel, flooded and AGM) and Li-ion batteries (lithium iron and lithium manganese)
Built-in default 3 stage charging curves and programmable curve
Built-in I2C interface, PMBus protocol (Optional CANBus protocol)
Output voltage and current programmable
Universal AC input / Full range (Withstand 300VAC surge input for 5 seconds)
Built-in active PFC function
Forced air cooling by built-in DC fan
Built-in OR-ing FET, support hot swap (hot plug)
Active current sharing up to 8000W for one 19" rack shelf
Protections: Battery under voltage / Battery no connection / Short circuit / Over voltage / Over temperature
Optional conformal coating
5 years warranty

Specifications

RCB-1600-24Specifications from the official datasheet (2025-10-23 edition)

OUTPUT

BOOST CHARGE VOLTAGE(Vboost)(default): 28.8V
FLOAT CHARGE VOLTAGE(Vfloat)(default): 27.6V
CONSTANT CURRENT(CC)(default): 55A
RATED POWER: 1584W
VOLTAGE ADJ. RANGE: By built-in potentiometer, SVR
VOLTAGE ADJ. RANGE: 23.5 ~ 30V
RECOMMENDED BATTERY CAPACITY(AMP HOURS)^Note.3: 180 ~ 550Ah
LEAKAGE CURRENT FROM BATTERY (Typ.)^Note.8: <45mA

INPUT

VOLTAGE RANGE^Note.4: 90 ~ 264VAC 250 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): 0.97/230VAC at full load
EFFICIENCY (Typ.): 92%
AC CURRENT (Typ.)^Note.4: 15A/115VAC 8.5A/230VAC
INRUSH CURRENT (Typ.): COLD START 35A/230VAC
LEAKAGE CURRENT: <1.5mA / 230VAC

PROTECTION

OVER VOLTAGE: 31.5 ~ 37.5V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

FUNCTION

OUTPUT VOLTAGE PROGRAMMABLE(PV)^{Note 5}: Adjustment of output voltage is allowable to 75 ~ 125% of nominal output voltage Please refer to the Function Manual.
OUTPUT CURRENT PROGRAMMABLE(PC)^{Note 5}: Adjustment of output current is allowable to 20 ~ 100% of rated current Please refer to the Function Manual.
AUXILIARY POWER: 5V @ 0.3A, 12V @ 0.8A
REMOTE ON-OFF CONTROL: By electrical signal or dry contact Power ON:short Power OFF:open. Please refer to the Function Manual
TEMPERATURE COMPENSATION: -3mV / ℃ / cell / (12V = 6 cells ; 24V = 12 cells ; 48V = 24 cells)
DC OK SIGNAL: The isolated TTL signal out. Please refer to the Installation Manual
AC OK SIGNAL: The isolated TTL signal out. Please refer to the Installation Manual

ENVIRONMENT

WORKING TEMP.: -30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC (Note 6)

SAFETY STANDARDS: UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC (0.5KVAC for 12V)
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55032 (CISPR32) Conduction Class B, Radiation Class A ; BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, EAC TP TC 020

OTHERS

MTBF: 476.7K hrs min. Telcordia SR-332 (Bellcore) ; 38.7K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 300*85*41mm (L*W*H)
PACKING: 1.87Kg; 6pcs/12.2Kg/1.16CUFT

Test conditions and notes8

1. Modification for charger specification may be required for different battery specification. Please contact battery vendor and MEAN WELL for details.
2. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
3. This is MEAN WELL's suggested range. Please consult your battery manufacturer for their suggestions about maximum charging current limitation.
4. Derating may be needed under low input voltages. Please check the derating curve for more details.
5. PV/PC functions when users are not operating on PMBus/CANBus. SVR functions when users are neither operating on PMBus/CANBus nor using PV/PC.
6. The charger is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 720mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
8. When charging lead acid battery or battery without BMS, use breaker to disconnect charger and battery after fully charged.

Technical drawings

RCB-1600-24 Block Diagram — Block Diagram

RCB-1600-24 Derating Curve — Derating Curve

RCB-1600-24 Function Manual — Function Manual

RCB-1600-24 OUTPUTVOLTAGE(V) — OUTPUTVOLTAGE(V)

RCB-1600-24 OUTPUTCURRENT(%) — OUTPUTCURRENT(%)

RCB-1600-24 Mechanical Specification — Mechanical Specification

Typical applications

Large scale DC UPS or emergency back up system
Marine battery charger module
Electric scooter or vehicle charger station
Wastewater treatment system
Electrolysis system

Downloads

Certificates7

Mean Well E183223 UL Certificate PDF Download

Mean Well RCP-RCB-RSP-RPB-NSP-1600-RCB-1600NE-RHP-1U-RHP-8K1U-RHB-8K1U-TUV Certificate PDF Download

Mean Well 0655094-EAC Certificate PDF Download

Mean Well RCP-RCB-RSP-RPB-1600-RCB-1600NE-RHP-1U-RHP-8K1U-RHB-8K1U-CB(TUV) Certificate PDF Download

Mean Well RHP-8K1U-RHB-8K1U-RCP-1600-RCB-1600-EMC Certificate PDF Download

Mean Well RHP-8K1U-RHB-8K1U-RCP-RCB-1600-NSP-1600-CE-dec Certificate PDF Download

Mean Well RHP-8K1U-RHB-8K1U-RCP-RCB-1600-NSP-1600-UK-dec Certificate PDF Download

Test reports1

Mean Well PHP-3500-24 Test Report PDF Download

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

What are the main output specifications of the Mean Well RCB-1600-24?

The RCB-1600-24 is a 1600W-class battery charger with a rated power of 1584W. Its default boost charge voltage is 28.8V and constant current is 55A. This makes it a high-power model for applications that need substantial charging capacity from a single-output AC/DC charger.

What types of batteries can the RCB-1600-24 charge?

This model is designed for charging different battery types, including lead-acid and lithium-ion batteries. The product description states that it uses embedded programmable charging curves and also allows charging voltage and current adjustment. That flexibility makes it better suited to battery-based industrial and OEM applications than a fixed-charge-profile unit.

What makes the RCB-1600-24 an intelligent battery charger?

The RCB-1600-24 includes embedded programmable charging curves rather than using only a fixed charging profile. It also supports adjustment through built-in potentiometers and programmable functions, with PMBus and CANBus mentioned in the product description. For buyers comparing industrial chargers, that gives this model more control options than a basic power supply or non-programmable charger.

Is the RCB-1600-24 suitable for compact or space-constrained systems?

Yes. The product description identifies the RCB-1600 series as a 1U low-profile charger with a height of 41mm. That low-profile format can be useful where high charging power is needed in equipment bays or other space-limited industrial enclosures.

What operating temperature range does the Mean Well RCB-1600-24 support?

The specified operating temperature range is -30°C to 70°C. That wide range helps this model fit demanding industrial environments where ambient temperatures may vary significantly. Buyers should still confirm that the rest of their system is rated for the same conditions.

Does the RCB-1600-24 include protection and battery-related control features?

Yes. The description states that the charger includes various protection mechanisms as well as a temperature compensation function. Those features are relevant for battery charging applications where control and protection behavior matter as much as raw output power.

What warranty is provided for the RCB-1600-24?

The listed warranty period for this model is 5 years. For B2B buyers, that is a useful indicator of long-term product support expectations. It can also help when comparing this charger against shorter-warranty alternatives in industrial power projects.
