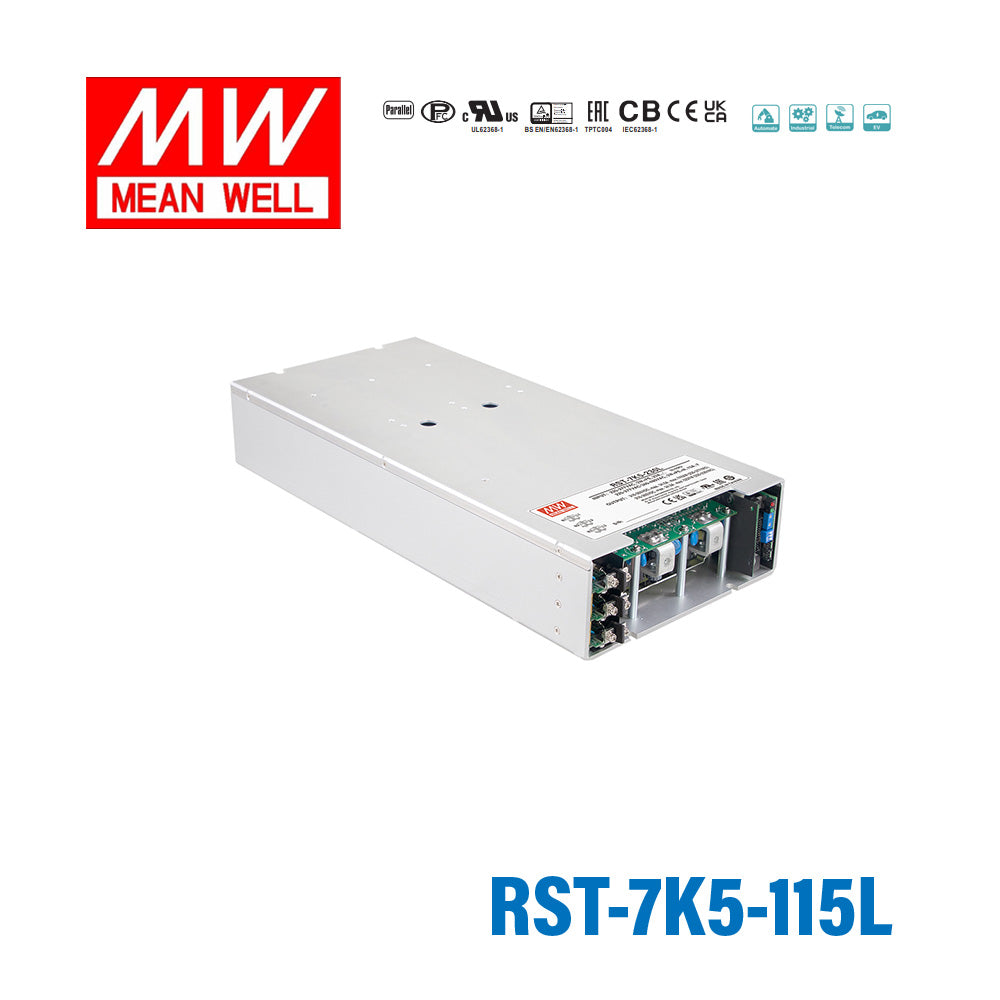

Mean Well RST-7K5-115L High Power AC/DC Power Supply 7475W, 3 Phase Input, 115V Output, Water Cooling 65A

Name: Mean Well RST-7K5-115L High Power AC/DC Power Supply 7475W, 3 Phase Input, 115V Output, Water Cooling 65A
Brand: Mean Well
SKU: RST-7K5-115L
Price: 3053.79 USD
Availability: InStock

up to 95% efficiencywide voltage adjustment range 1~120%active current sharing up to 4 units(28.5KW)

SKU RST-7K5-115L

$3,053.79 USD

Shipping calculated at checkout.

Available to order

Overview

RST-7K5-115L is the model of this series: rated power 7475W, typical efficiency 94%.

RST-7K5-HV is a 7.5KW 3ψinput enclosed type AC/DC power supply. This series operates for the wide range three phase AC input and offers the models with the high voltage DC output(115V/230V/380V) that mostly demanded from the industry. Two types of cooling methods, forced air and water cooling, that can be working at ambient temperature up to 70℃. Moreover, RST-7K5-HV provides vast design flexibility by equipping various built-in functions such as the output programming, active current sharing, remote ON-OFF control, alarm signals.....etc.

Features

3ψ 3-wire / △196~305VAC or 3ψ 4-wire / Y 340~530VAC
High efficiency up to 95%
Water / forced air cooling selectable
Output voltage and constant current level programmable
Wide voltage adjustment range 1~120%
Active current sharing up to 4 units(28.5KW)
Built-in remote ON-OFF control / Alarm signal
Protections: Short circuit / Overload / Over voltage / Over temperature / Fan fail
5 years warranty

Specifications

RST-7K5-115LSpecifications from the official datasheet (2026-08-13 edition)

OUTPUT

DC VOLTAGE (factory default): 115V
CURRENT (factory default): 65A
CURRENT RANGE: 0 ~ 65A
RATED POWER: 7475W
FULL POWER VOLTAGE RANGE: 115 ~ 138V
RIPPLE & NOISE (max.)^Note.2: 1Vp-p
VOLTAGE ADJ. RANGE: 90 ~ 138V Can be adjusted via built-in potentiometer
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME: 3000ms, 200ms at full load
HOLD UP TIME (Typ.): 16ms 230VAC/400VAC at 75% load 10ms / 230VAC/400VAC at full load

INPUT

VOLTAGE RANGE: 3ψ 3W/△196~305VAC or 3ψ 4W/Y 340~530VAC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): ≧0.98/230VAC(400VAC)/≧0.97/277VAC(480VAC) at full load
EFFICIENCY (Typ.)^Note.7: 94%
AC CURRENT (Typ.): 22.5A/230VAC(3ψ 3-wire /△) 13A/400VAC(3ψ 4-wire / Y)
INRUSH CURRENT (Typ.): 75A/230VAC(3ψ 3-wire /△) 50A/400VAC(3ψ 4-wire / Y)
LEAKAGE CURRENT: <3.5mA/Y 530VAC <10mA /△305VAC

PROTECTION

OVERLOAD: 100 ~ 107% of rated current Protection type : Constant current limiting. After O/P voltage falls, unit will shut down after 5 sec. re-power on to recover
OVER VOLTAGE: 145 ~ 166V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

FUNCTION

CURRENT SHARING: Up to 4 units. Please refer to the Function Manual
OUTPUT VOLTAGE PROGRAMMABLE: Adjustment of output voltage is allowable between 1 ~ 120% of nominal output voltage. Please refer to the PV curve Function Manual
CONSTANT CURRENT LEVEL PROGRAMMABLE: Adjustment of constant current level is allowable between 20 ~ 100% of rated current. Please refer to the Function Manual
REMOTE ON-OFF CONTROL: Please refer to the Function Manual
ALARM SIGNAL OUTPUT: AC fail, DC OK, fan fail, OTP. Please refer to the Function Manual

ENVIRONMENT

WORKING TEMP.: -30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 45℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL62368-1, CAN/CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE^Note.4: I/P-O/P:4.3KVDC I/P-FG:2.8KVDC O/P-FG:2.8KVDC
ISOLATION RESISTANCE^Note.4: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032 (CISPR32) / BS EN/EN55011 (CISPR11) Class A
Radiated BS EN/EN55032 (CISPR32) / BS EN/EN55011 (CISPR11) Class A
Harmonic Current BS EN/EN61000-3-2
Voltage Flicker BS EN/EN61000-3-3
EMC IMMUNITY: BS EN/EN55024 , BS EN/EN61204-3, BS EN/EN61000-6-2

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact
Radiated BS EN/EN61000-4-3 Level 3
EFT / Burst BS EN/EN61000-4-4 Level 3
Surge BS EN/EN61000-4-5 Level 4, 4KV/Line-Earth; Level 3, 2KV/Line-Line
Conducted BS EN/EN61000-4-6 Level 3
Magnetic Field BS EN/EN61000-4-8 Level 4
Voltage Dips and Interruptions BS EN/EN61000-4-11 >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

Parameter	Standard	Test Level
Conducted	BS EN/EN55032 (CISPR32) / BS EN/EN55011 (CISPR11)	Class A
Radiated	BS EN/EN55032 (CISPR32) / BS EN/EN55011 (CISPR11)	Class A
Harmonic Current	BS EN/EN61000-3-2
Voltage Flicker	BS EN/EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact
Radiated	BS EN/EN61000-4-3	Level 3
EFT / Burst	BS EN/EN61000-4-4	Level 3
Surge	BS EN/EN61000-4-5	Level 4, 4KV/Line-Earth; Level 3, 2KV/Line-Line
Conducted	BS EN/EN61000-4-6	Level 3
Magnetic Field	BS EN/EN61000-4-8	Level 4
Voltage Dips and Interruptions	BS EN/EN61000-4-11	>95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

OTHERS

MTBF: 234.5K hrs min. Telcordia SR-332 (Bellcore) ; 27.1K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: RST-7K5: 460*211*83.5mm (L*W*H) RST-7K5-L: 460*216*83.5mm (L*W*H)
PACKING: RST-7K5: 10.9Kg; 1pcs/11.9Kg/1.3CUFT RST-7K5-L: 10.1Kg; 1pcs/11.1Kg/1.13CUFT

Test conditions and notes10

1. All parameters NOT specially mentioned are measured at △230VAC(Y 400VAC) input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance :includes set up tolerance, line regulation and load regulation.
4. During withstand voltage and isolation resistance testing, the screw "A" shall be temporarily removed, and shall be installed back after the testing.
5. Derating may be needed under low input voltages. Please check the derating curve for more details.
6. If use PV signal to adjust Vo, under creatin operation conditions, ripple noise of Vo might go over rating defined in this specification.
7. The efficiency is measured at △: 230VAC/Y: 400VAC input. The efficiency level is measured at output voltage 115V(115V model)/230V(230V model)/380V(380V model).
8. The power supply is considered a componenr which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 600mm*900mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to "EMI testing of component power supplies." (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
9. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
10. An unstable O/P voltage is expected in the first 300ms after power on. A minimum load of 5% is suggested if fast load change is required at power on phase.

Technical drawings

RST-7K5-115L Block Diagram — Block Diagram

RST-7K5-115L DERATING CURVE — DERATING CURVE

RST-7K5-115L STATIC CHARACTERISTICS — STATIC CHARACTERISTICS

RST-7K5-115L Function Manual — Function Manual

RST-7K5-115L 7.5KW 3ψ4W Input With High Voltage Output — 7.5KW 3ψ4W Input With High Voltage Output

RST-7K5-115L OUTPUTCURRENT(%) — OUTPUTCURRENT(%)

RST-7K5-115L ◎ The 100% output current is Maximum current. — ◎ The 100% output current is Maximum current.

RST-7K5-115L 7.5KW 3ψ4W Input With High Voltage Output (2) — 7.5KW 3ψ4W Input With High Voltage Output (2)

RST-7K5-115L 7.5KW 3ψ4W Input With High Voltage Output (3) — 7.5KW 3ψ4W Input With High Voltage Output (3)

RST-7K5-115L Mechanical Specification — Mechanical Specification

RST-7K5-115L ※ Water Cooling (L type) — ※ Water Cooling (L type)

RST-7K5-115L ※ Control Pin No. Assignment (CN86,CN87) : HRS… — ※ Control Pin No. Assignment (CN86,CN87) : HRS…

Typical applications

Downloads

Datasheet1

RST-7K5-115L datasheetRST_7K5_HV_spec.pdf · 2026-08-13 edition PDF Download

FAQ

What are the core electrical ratings of the Mean Well RST-7K5-115L?

The RST-7K5-115L is a high power AC/DC supply rated for 7475W output. It provides 115V DC nominal output with 65A rated current. This model is designed for 3-phase AC input systems and is built for applications that need substantial regulated DC power from a single enclosure.

What types of applications is the RST-7K5-115L typically suited for?

This model fits industrial and OEM systems that need a high power 115V DC source, especially where centralized DC power is preferred over multiple smaller supplies. Its 7475W capacity, programmable output behavior, and support for parallel current sharing make it relevant for demanding equipment, test systems, and large control platforms. Buyers evaluating high-load B2B projects will usually consider it where both power density and output control matter.

Can the RST-7K5-115L be used in higher-capacity parallel power systems?

Yes. Mean Well specifies active current sharing for up to 4 units, allowing total capacity up to 28.5KW in multi-unit systems. That makes this model a practical option for larger installations that may need scalable DC power without changing to a different platform.

How does the RST-7K5-115L differ from a standard lower-power enclosed power supply?

The main difference is scale and control. This model delivers 7475W at 115V with 3-phase input support, programmable output voltage and constant current level, and selectable water or forced-air cooling. It is intended for substantially heavier-duty use than conventional single-phase or lower-wattage enclosed supplies.

What operating environment is this power supply designed for?

The RST-7K5-115L is specified for operation from -30°C to 70°C, which supports demanding industrial environments when the system is designed around the unit's cooling method. The L-type model uses water cooling, while the standard model uses forced-air cooling, giving flexibility for high thermal load installations. For buyers comparing platforms, that combination is a key differentiator in continuous-duty applications.

Does the RST-7K5-115L offer output adjustment and remote control features?

Yes. This model includes programmable output voltage and programmable constant current level, with a wide voltage adjustment range of 1 to 120%. It also has built-in remote ON-OFF control and an alarm signal, which is useful for monitored industrial power systems.

What protection and reliability features are included on the RST-7K5-115L?

Mean Well lists short circuit, overload, over voltage, over temperature, and fan fail protection for this model. The unit also carries a 5-year warranty, which is notable for a power supply in this output class. These features make it better aligned with long-service B2B equipment requirements than bare-bones high-power supplies.
