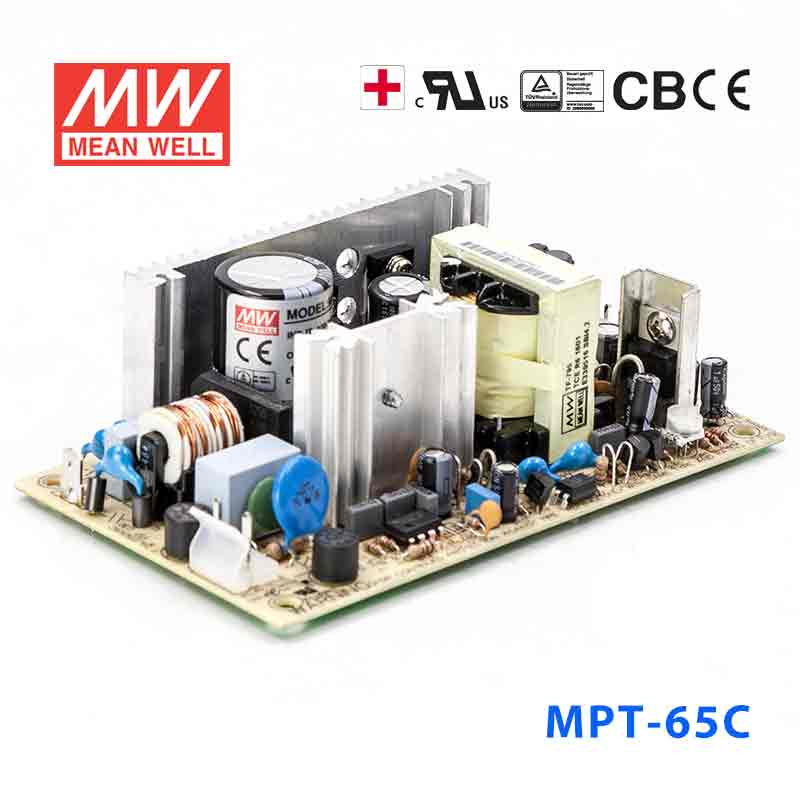

Mean Well MPT-65C Power Supply 65W 5V 15V -15V 5.5A

SKU MPT-65C
$55.02 USD
Shipping calculated at checkout.
Available to order
|

Overview

MPT-65C is the CH1: 5V / CH2: 15V / CH3: -15V output model of this series: rated current CH1: 5.5A / CH2: 2A / CH3: 0.5A, rated power 65W, typical efficiency 74%.

Features

  • Universal AC input / Full range
  • Low leakage current <250μA
  • Protections: Short circuit / Overload / Over voltage
  • Cooling by free air convection
  • Medical safety approved (2 x MOPP between primary to secondary)
  • 100% full load burn-in test
  • Fixed switching frequency at 45KHz
  • 3 years warranty

Specifications

MPT-65CSpecifications from the official datasheet (2022-02-28 edition)

OUTPUT

OUTPUT NUMBER
CH1 / CH2 / CH3
DC VOLTAGE
CH1: 5V / CH2: 15V / CH3: -15V
RATED CURRENT
CH1: 5.5A / CH2: 2A / CH3: 0.5A
CURRENT RANGE
CH1: 0.4 ~ 7A / CH2: 0.2 ~ 2.6A / CH3: 0 ~ 0.7A
RATED POWER
65W
OUTPUT POWER (max.)
72W with 18CFM min. Forced air convection
RIPPLE & NOISE (max.)Note.2
CH1: 60mVp-p / CH2: 180mVp-p / CH3: 100mVp-p
VOLTAGE ADJ. RANGE
CH1:4.5 ~ 5.5V
VOLTAGE TOLERANCENote.3
CH1: ±4.0% / CH2: +10,-7% / CH3: ±5.0%
LINE REGULATION
CH1: ±1.0% / CH2: ±2.0% / CH3: ±1.0%
LOAD REGULATION
CH1: ±3.0% / CH2: ±4.0% / CH3: ±1.0%
SETUP, RISE TIME
800ms, 20ms/230VAC 800ms, 20ms/115VAC at full load
HOLD UP TIME (Typ.)
80ms/230VAC 12ms/115VAC at full load

INPUT

VOLTAGE RANGE
90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
EFFICIENCY(Typ.)
74%
AC CURRENT (Typ.)
1.6A/115VAC 1A/230VAC
INRUSH CURRENT (Typ.)
COLD START 20A/115VAC 40A/230VAC
LEAKAGE CURRENTNote.7
Earth leakage current < 250 μA/264VAC , Touch current < 60 μA/264VAC

PROTECTION

OVERLOAD
73 ~ 95W rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
5.75 ~ 6.75VDC on CH1 Protection type : Hiccup mode, recovers automatically after fault condition is removed

ENVIRONMENT

WORKING TEMP.
-10 ~ +55℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-20 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.04%/℃ (0 ~ 50℃) on +5V output
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
ANSI/AAMI ES60601-1, TUV EN60601-1, IEC60601-1 approved
ISOLATION LEVEL
Primary-Secondary: 2xMOPP, Primary-Earth:1xMOPP
WITHSTAND VOLTAGE
I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC 1min.
ISOLATION RESISTANCE
I/P-O/P, I/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to EN55011 (CISPR11) Class B, EN61000-3-2,-3
EMC IMMUNITY
Compliance to EN61000-4-2,3,4,5,6,8,11, EN60601-1-2, medical level

OTHERS

MTBF
2952.3K hrs min. Telcordia SR-332 (Bellcore) ; 402.8K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
127*76*42mm (L*W*H)
PACKING
0.27Kg; 54pcs/16.8Kg/1.28CUFT
Test conditions and notes7
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to "EMI testing of component power supplies." (as available on http://www.meanwell.com)
  5. 5. Mounting holes M1 and M2 should be grounded for EMI purposes.
  6. 6. Heat Sink HS1,HS2 can not be shorted.
  7. 7. Touch current was measured from primary input to DC output.

Technical drawings

MPT-65C Mechanical Specification
Mechanical Specification
MPT-65C Block Diagram
Block Diagram

Downloads

FAQ

Can I use the MPT-65C for a 5V embedded system with ±15V analog circuitry?

Yes. This model provides constant-voltage 5V output up to 5.5A with 65W total power, and the product name identifies 15V and -15V rails. That combination fits embedded and industrial electronics that mix 5V digital sections with analog stages.

Is the MPT-65C suitable for control and measurement equipment with op-amp or sensor-conditioning boards?

It can be a good fit for that type of electronics because the model is configured around 5V, 15V, and -15V outputs. With 65W total power, it is rated 5.5A on 5V, 2A on 15V and 0.5A on -15V.

Can this supply power a 5V industrial processing board in a compact enclosure?

Yes, if the board is designed for constant-voltage 5V input and remains within 5.5A and 65W. The 127.0 × 76.0 × 42.0 mm housing is still relatively compact for enclosed equipment builds.

Would the MPT-65C be appropriate for bench or factory test electronics that need 5V plus ±15V rails?

Yes. The model name aligns with 5V, 15V, and -15V output needs, and the unit is rated for 65W total power. The rails are rated 5.5A on 5V, 2A on 15V and 0.5A on -15V, so check your test load against those limits.

Is the MPT-65C for indoor or outdoor use?

Its operating temperature range is -10°C to +55°C, but the specs provided do not include an IP rating. That means it is better suited to indoor equipment or protected enclosures than exposed outdoor locations.
