Mean Well

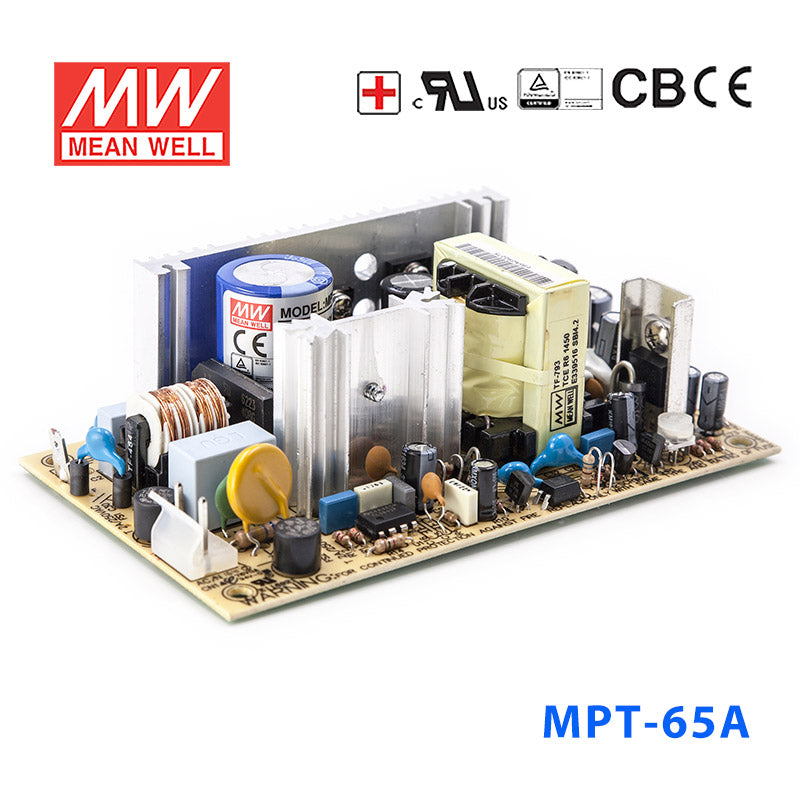

Mean Well MPT-65A Power Supply 65W 5V 12V -5V 5.5A

SKU MPT-65A
$55.02 USD
Shipping calculated at checkout.
Available to order
|

Overview

MPT-65A is the CH1: 5V / CH2: 12V / CH3: -5V output model of this series: rated current CH1: 5.5A / CH2: 2.5A / CH3: 0.5A, rated power 60W, typical efficiency 74%.

Features

  • Universal AC input / Full range
  • Low leakage current <250μA
  • Protections: Short circuit / Overload / Over voltage
  • Cooling by free air convection
  • Medical safety approved (2 x MOPP between primary to secondary)
  • 100% full load burn-in test
  • Fixed switching frequency at 45KHz
  • 3 years warranty

Specifications

MPT-65ASpecifications from the official datasheet (2022-02-28 edition)

OUTPUT

OUTPUT NUMBER
CH1 / CH2 / CH3
DC VOLTAGE
CH1: 5V / CH2: 12V / CH3: -5V
RATED CURRENT
CH1: 5.5A / CH2: 2.5A / CH3: 0.5A
CURRENT RANGE
CH1: 0.4 ~ 7A / CH2: 0.2 ~ 3.2A / CH3: 0 ~ 0.7A
RATED POWER
60W
OUTPUT POWER (max.)
72W with 18CFM min. Forced air convection
RIPPLE & NOISE (max.)Note.2
CH1: 60mVp-p / CH2: 120mVp-p / CH3: 60mVp-p
VOLTAGE ADJ. RANGE
CH1:4.5 ~ 5.5V
VOLTAGE TOLERANCENote.3
CH1: ±4.0% / CH2: +10,-7% / CH3: ±5.0%
LINE REGULATION
CH1: ±1.0% / CH2: ±2.0% / CH3: ±1.0%
LOAD REGULATION
CH1: ±3.0% / CH2: ±4.0% / CH3: ±1.0%
SETUP, RISE TIME
800ms, 20ms/230VAC 800ms, 20ms/115VAC at full load
HOLD UP TIME (Typ.)
80ms/230VAC 12ms/115VAC at full load

INPUT

VOLTAGE RANGE
90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
EFFICIENCY(Typ.)
74%
AC CURRENT (Typ.)
1.6A/115VAC 1A/230VAC
INRUSH CURRENT (Typ.)
COLD START 20A/115VAC 40A/230VAC
LEAKAGE CURRENTNote.7
Earth leakage current < 250 μA/264VAC , Touch current < 60 μA/264VAC

PROTECTION

OVERLOAD
73 ~ 95W rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
5.75 ~ 6.75VDC on CH1 Protection type : Hiccup mode, recovers automatically after fault condition is removed

ENVIRONMENT

WORKING TEMP.
-10 ~ +55℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-20 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.04%/℃ (0 ~ 50℃) on +5V output
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
ANSI/AAMI ES60601-1, TUV EN60601-1, IEC60601-1 approved
ISOLATION LEVEL
Primary-Secondary: 2xMOPP, Primary-Earth:1xMOPP
WITHSTAND VOLTAGE
I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC 1min.
ISOLATION RESISTANCE
I/P-O/P, I/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to EN55011 (CISPR11) Class B, EN61000-3-2,-3
EMC IMMUNITY
Compliance to EN61000-4-2,3,4,5,6,8,11, EN60601-1-2, medical level

OTHERS

MTBF
2952.3K hrs min. Telcordia SR-332 (Bellcore) ; 402.8K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
127*76*42mm (L*W*H)
PACKING
0.27Kg; 54pcs/16.8Kg/1.28CUFT
Test conditions and notes7
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to "EMI testing of component power supplies." (as available on http://www.meanwell.com)
  5. 5. Mounting holes M1 and M2 should be grounded for EMI purposes.
  6. 6. Heat Sink HS1,HS2 can not be shorted.
  7. 7. Touch current was measured from primary input to DC output.

Technical drawings

MPT-65A Mechanical Specification
Mechanical Specification
MPT-65A Block Diagram
Block Diagram

Downloads

FAQ

Can I use the MPT-65A for a 5V industrial controller that also needs 12V and -5V rails?

Yes. This model provides constant-voltage 5V output with up to 5.5A and 60W total power, and the product configuration includes 12V and -5V rails. That makes it suitable for control boards and electronic assemblies that combine logic and support voltages.

Is the MPT-65A suitable for older embedded systems or interface cards with mixed supply rails?

It can be a practical fit for embedded boards that use regulated 5V logic and also rely on the 12V and -5V outputs identified in the model name. The 5.5A rating on the 5V output gives headroom for denser 5V electronics within the 60W total rating.

Can this model power a 5V HMI or operator interface assembly in an automation panel?

Yes, if the assembly is designed for constant-voltage 5V input and remains within 5.5A and 60W. The 127.0 × 76.0 × 42.0 mm form factor also suits enclosed panel builds where space planning matters.

Would the MPT-65A work for control electronics that need more 5V capacity than a 3A supply?

Yes. Its 5V output is rated for 5.5A, which is a clear increase over a 3A supply. That makes it better suited to 5V control hardware with higher logic-side demand, within the 60W total rating.

Is the MPT-65A intended for indoor or outdoor use?

The operating temperature range is -10°C to +55°C, but the provided specs do not list an IP rating. On that basis, it is better treated as an indoor power supply or one mounted inside a protective enclosure.
