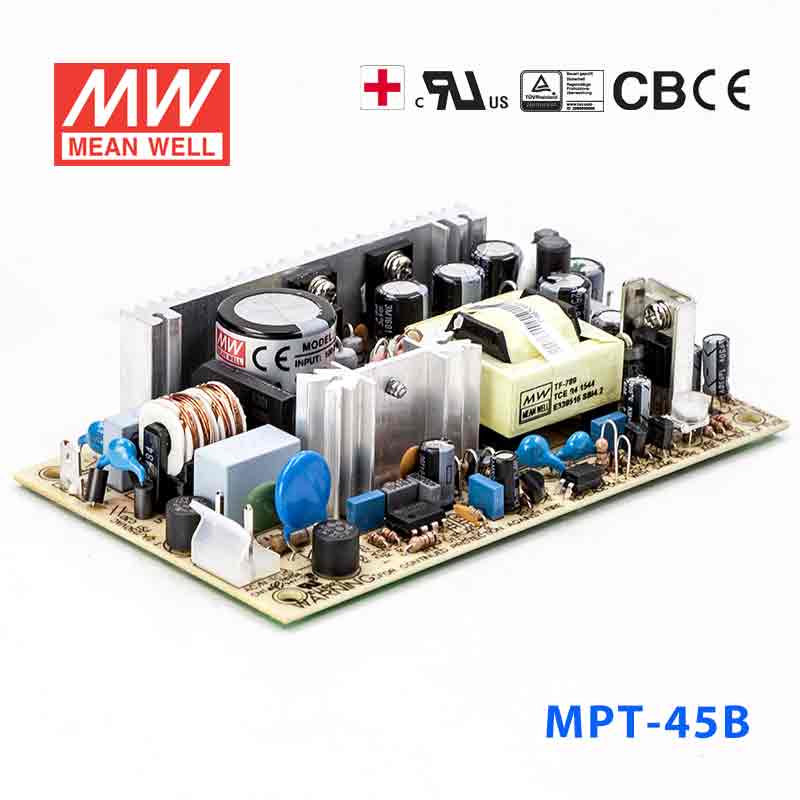

Mean Well MPT-45B Power Supply 45W 5V 12V -12V
$49.81 USD
Unit price /
Unavailable
Description
Description
Features
| Universal AC input / Full range |
| Low leakage current<0.5mA |
| Protections: Short circuit/ Overload/ Over voltage |
| Cooling by free air convection |
| 100% full load burn-in test |
| Fixed switching frequency at 65KHz |
| 2 years warranty |
General Specification
| AC input voltage range | 90~264VAC; 127~370VDC |
| AC inrush current | Cold start 15A/115VAC |
| Leakage current | <0.75mA |
| Overload protection | 130% ~ 185% rated output power |
| Over-voltage protection | 115%~135% rated output voltage |
| Setup, rise, hold up time | 800ms, 20ms, 60ms |
| Withstand voltage | I/P-O/P:3KVAC, I/P-FG:2KVAC, O/P-FG:0.5KVAC |
| Working temperature | -10~+60°C |
| Vibration | 10~500Hz, 2G 10min./1cycle, period for 60min. Each along X, Y, Z axes |
| Safety standards | UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved |
| EMC standards | EN55032 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,11 |
| Connection | I/P: 2 Pin Molex 5722-02, O/P: 8 Pin Molex 5273-08 |
| Dimension (LxWxH) | 127x76x28 |
| Packing | 72pcs / 17kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesMPT Series
-
Power Rating42.6 Watt
-
Output Voltage5 Volt
-
Rated Current3 Ampere
-
Input Voltage90V~264V
-
Standards MetCB,CE,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~60°C
-
Warranty3 Year
-
Length5 in
-
Width2.99 in
-
Height1.1 in
-
Weight0.46 lb
