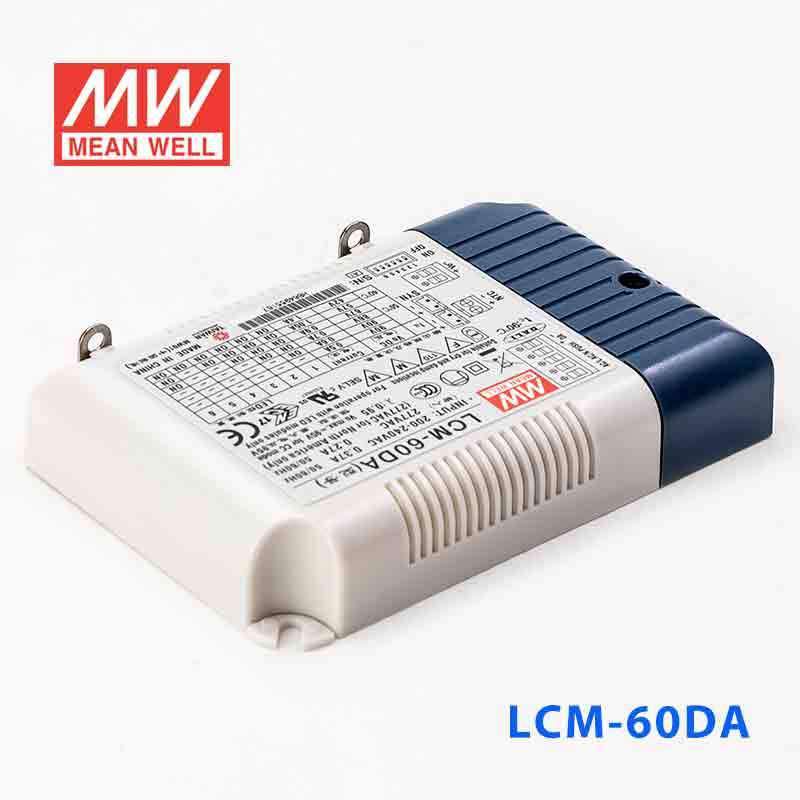

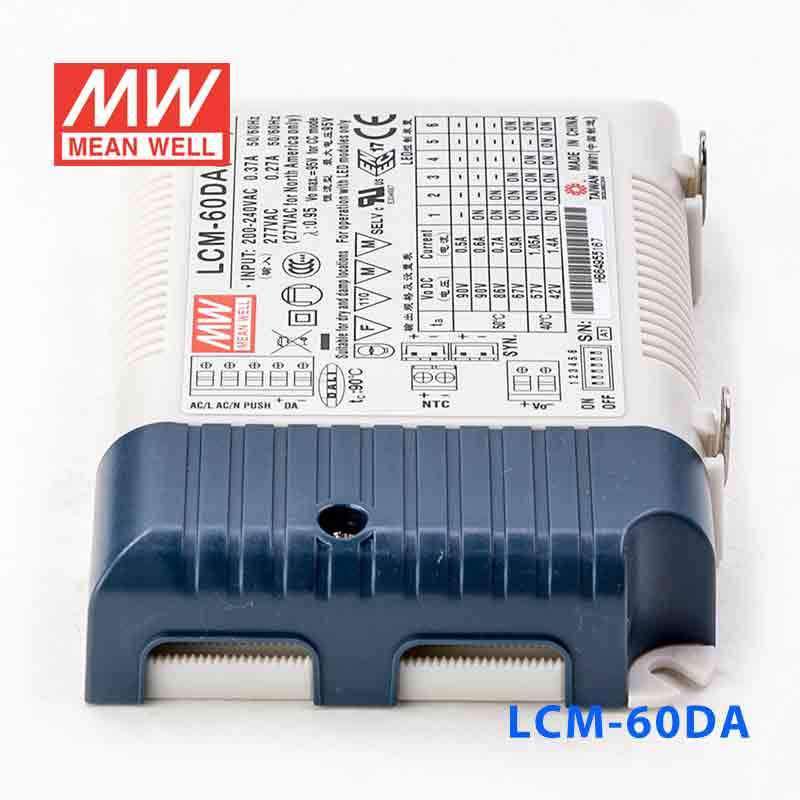

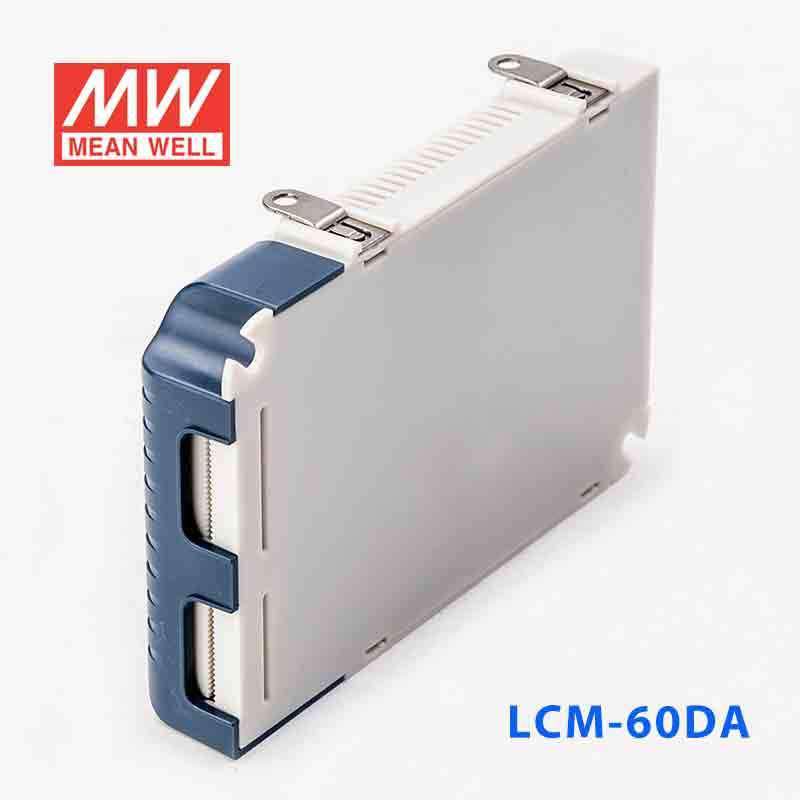

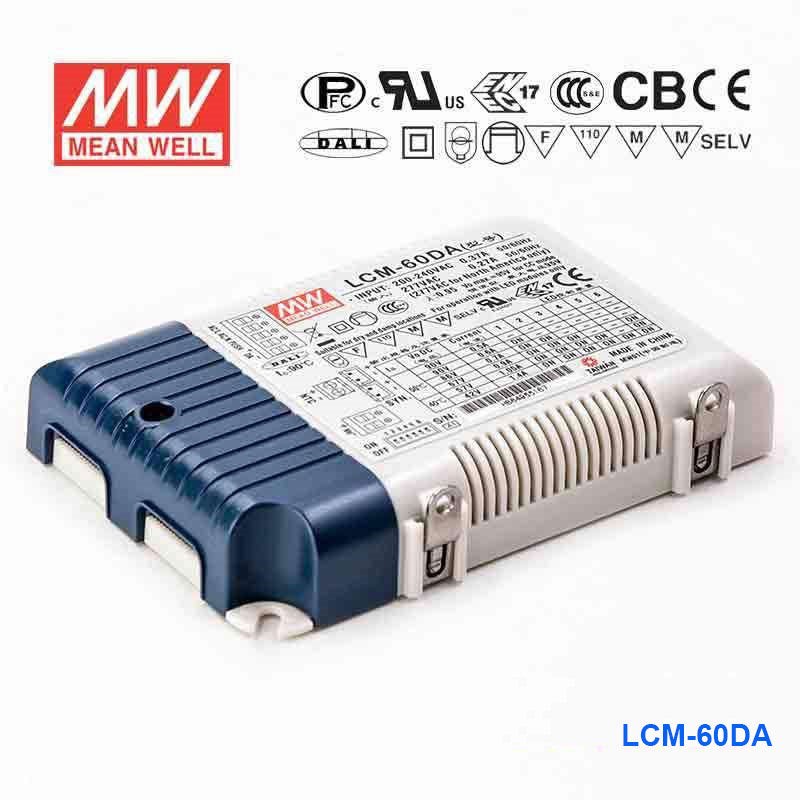

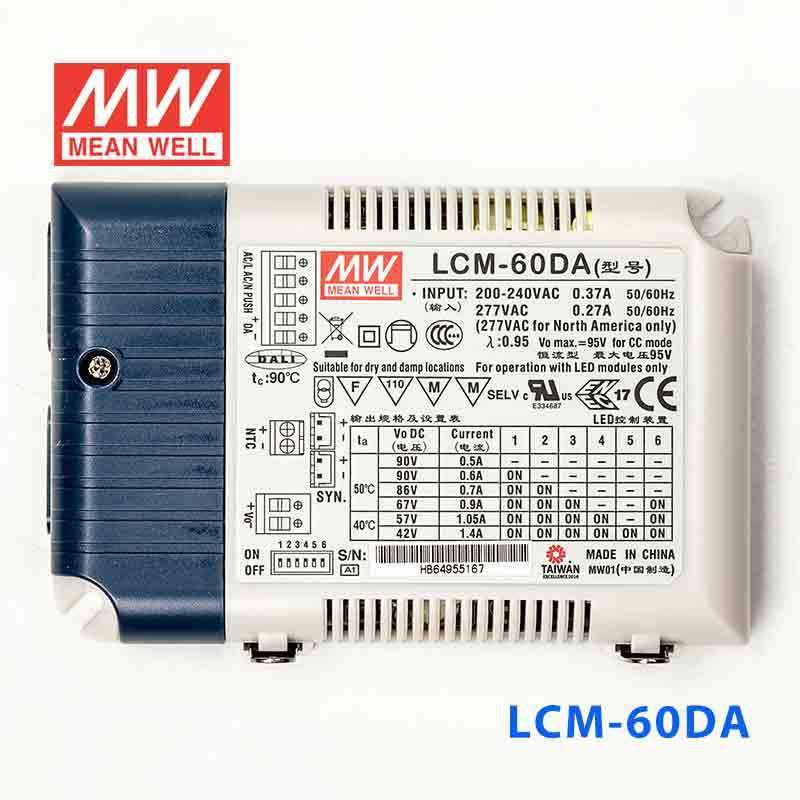

Mean Well LCM-60DA AC-DC Multi-Stage LED driver Constant Current

Name: Mean Well LCM-60DA AC-DC Multi-Stage LED driver Constant Current
Brand: Mean Well
SKU: LCM-60DA
Price: 40.48 USD
Availability: InStock

selectable output current using dip switchflicker-freeClass II without FGDALI

SKU LCM-60DA

$40.48 USD

Shipping calculated at checkout.

In stock

Overview

LCM-60DA is the model of this series: rated power 60.3W, typical efficiency 92%.

LCM-60DA series is a 60W AC/DC constant current mode output LED driver featuring the multiple levels selectable by dip switch and the DALI interface with the compliance to IEC62386. LCM-60DA operates from 180~295VAC and offers different current levels ranging between 500mA and 1400mA. Thanks to the high efficiency up to 92%, with the fanless design, the entire series is able to operate for -30℃~+90℃ case temperature under free air convection. In addition, LCM-60DA is equipped with push dimming and synchronization functions, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant current mode output with multiple levels selectable by dip switch
Emergency lighting application is available according to IEC61347-2-13
Built-in active PFC function and class II design
Standby power consumption <0.5W
Functions: DALI interface(logarithm or linear dimming curve selectable), push dimming synchronization up to 10units
3 years warranty

Specifications

LCM-60DASpecifications from the official datasheet (2026-02-09 edition)

OUTPUT

CURRENT LEVEL: Current level selectable via DIP switch, please refer to"DIP SWITCH TABLE" section; 500mA / 600mA / 700mA(default) / 900mA / 1050mA / 1400mA
RATED POWER: 60.3W
DC VOLTAGE RANGE: 500mA: 2 ~ 90V / 600mA: 2 ~ 90V / 700mA: 2 ~ 86V / 900mA: 2 ~ 67V / 1050mA: 2 ~ 57V / 1400mA: 2 ~ 42V
OPEN CIRCUIT VOLTAGE (max.): 95V (500mA, 600mA, 700mA) / 73V (900mA, 1050mA, 1400mA)
CURRENT RIPPLE^Note.5: 5.0% max. @rated current
CURRENT TOLERANCE: ±5%
AUXILIARY DC OUTPUT: Nominal 12V(deviation 11.4~12.6V)@50mA for AUX-Type only
SETUP TIME^{Note.3 Note.9}: 500ms / 230VAC

INPUT

VOLTAGE RANGE^Note.2: 180 ~ 295VAC 254 ~ 392VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.975/230VAC, PF≧0.95/277VAC@ full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧75%) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.)^Note.4: 92%
AC CURRENT (Typ.): 0.32A/230VAC 0.27A/277VAC
INRUSH CURRENT (Typ.): COLD START 20A(twidth=270μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 25 units (circuit breaker of type B) / 32 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.5mA / 240VAC
STANDBY POWER CONSUMPTION^Note.6: <0.5W for Blank-Type, <1.2W for AUX-Type

PROTECTION

SHORT CIRCUIT: Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 105 ~ 125V Shutdown o/p voltage, re-power on to recover
OVER TEMPERATURE: Shutdown o/p voltage,re-power on to recover

FUNCTION

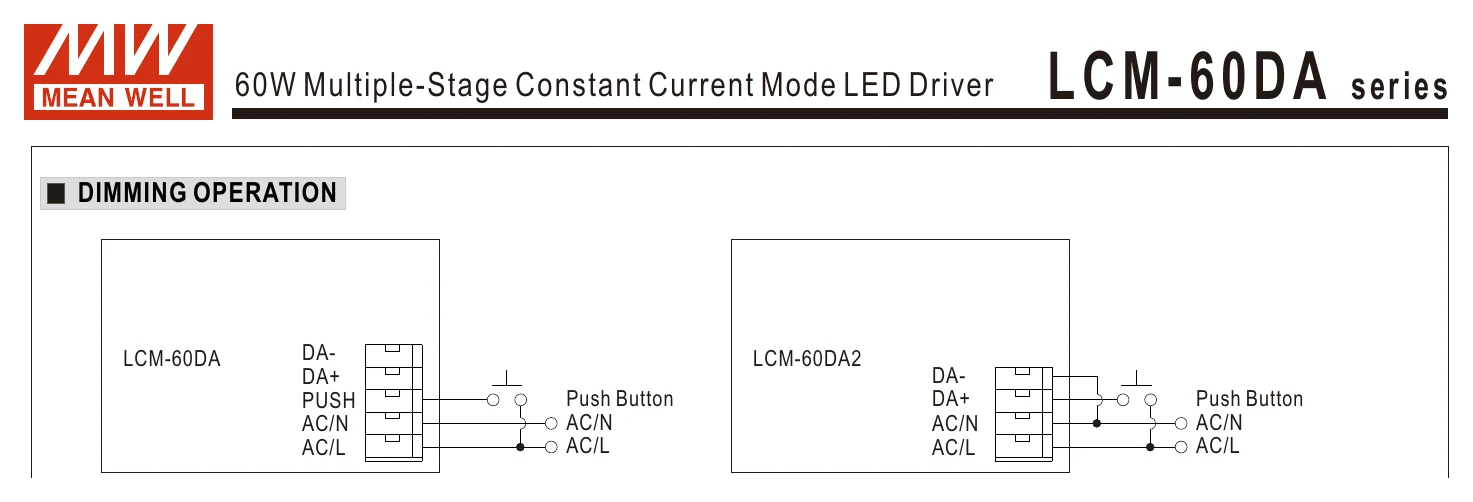

DIMMING: Please refer to "DIMMING OPERATION" section
SYNCHRONIZATION: Please refer to "SYNCHRONIZATION OPERATION" section
TEMP. COMPENSATION: By external NTC, please refer to “TEMPERATURE COMPENSATION OPERATION”section

ENVIRONMENT

WORKING TEMP.: Tcase=-30 ~ +90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+90℃
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(except for DA2-Type), CSA C22.2 No.250.13-12, ENEC BS EN/EN61347-1, BS EN/EN61347-2-13, BS EN/EN62384 independent,GB/T19510.1, GB/T19510.213,BIS IS15885(except for DA2-Type), EAC TP TC 004 approved; According to BS EN/EN61347-2-13 appendix J suitable for emergency installations(EL)(AC Input: 200-240Vac)(for DA2-Type only)
DALI STANDARDS: IEC62386-101, 102, 207,251
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC; I/P-DA:1.5KVAC; O/P-DA:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION^Note.7: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C(@load≧40%) ; BS EN/EN61000-3-3; GB/T 17743, GB17625.1, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level(surge immunity Line-Line 2KV), EAC TP TC 020

OTHERS

MTBF: 2270.7K hrs min. Telcordia SR-332 (Bellcore) ; 193.7K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 123.5*81.5*23mm (L*W*H)
PACKING: 0.24Kg ; 54pcs/15Kg/1.12CUFT

Test conditions and notes10

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
3. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
4. Efficiency is measured at 900mA/67V output set by DIP switch.
5. Current ripple is measured 60%~100% of maximum voltage under rated power delivery.
6. Standby power consumption is measured at 180~230VAC.
7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
9. Based on IEC 62386-101/102 DALI power on timing and interruption regulations, the set up time needs to test with a DALI controller which can support for DALI power on function, otherwise the set up time will be higher than 0.5 second for DA2-type.
10. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.

Technical drawings

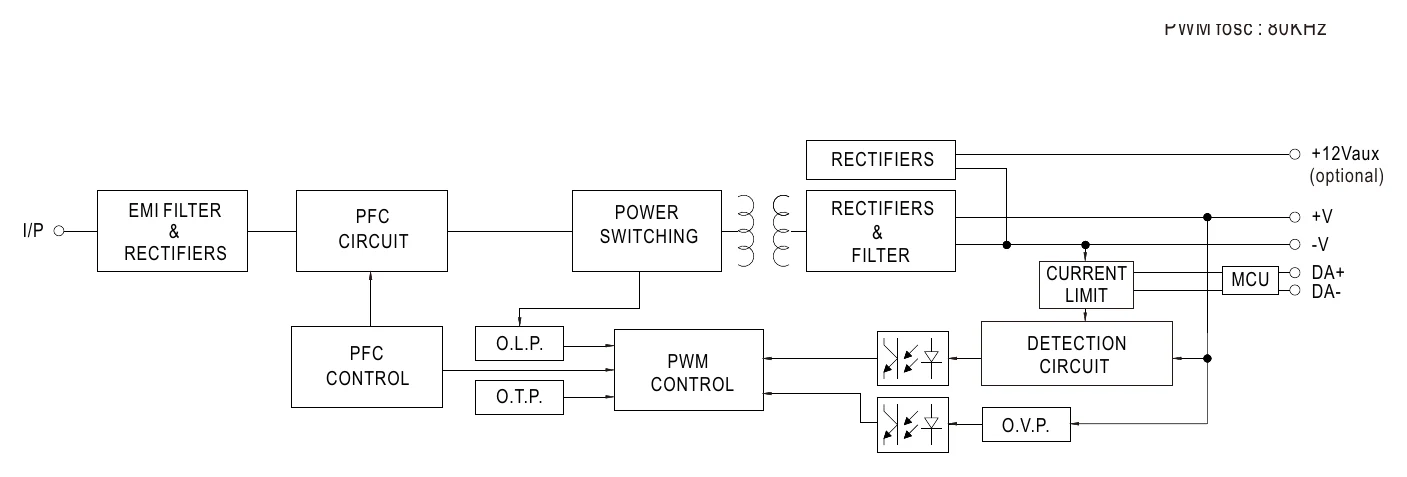

LCM-60DA LCM-60DA series — LCM-60DA series

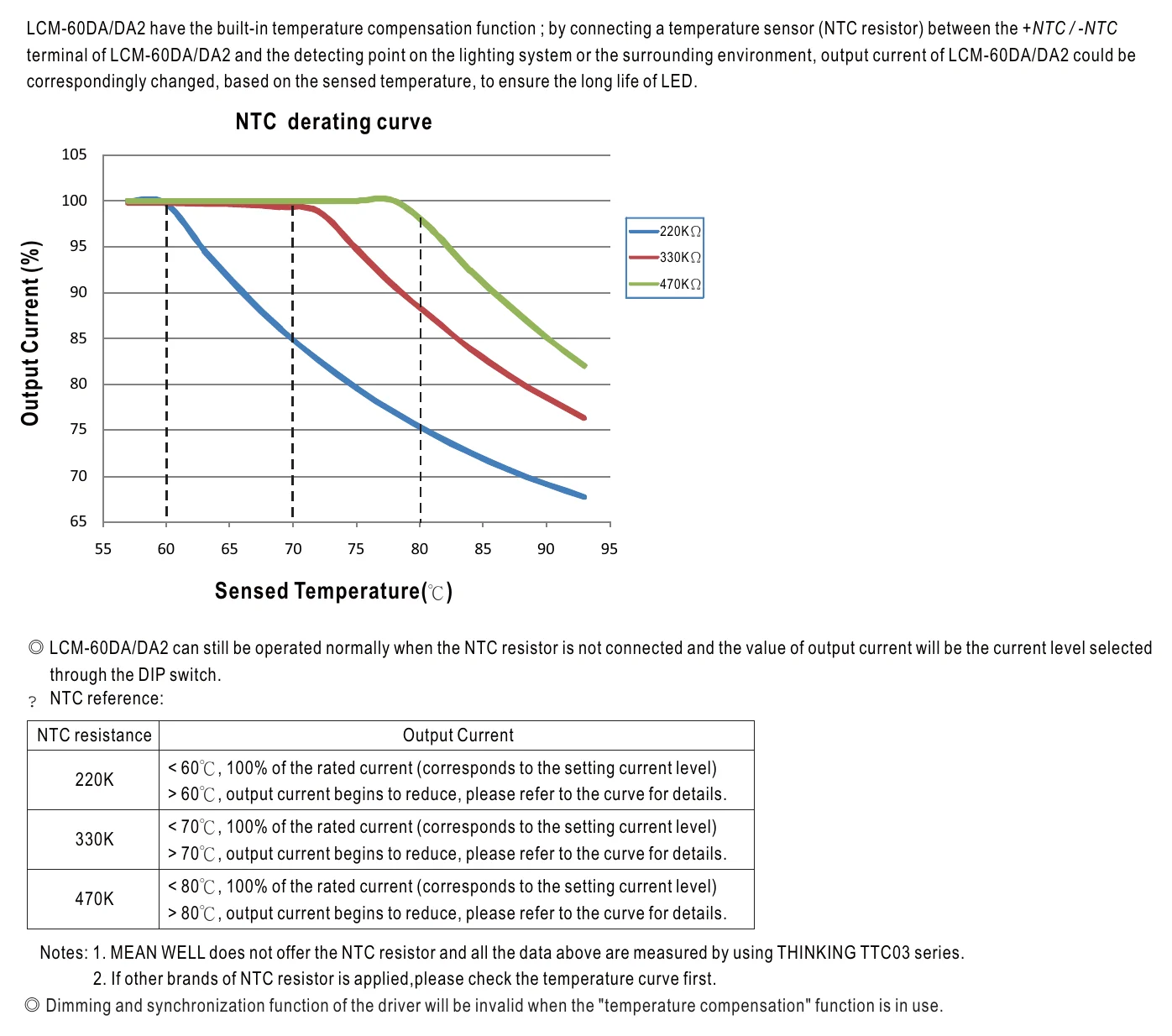

LCM-60DA TEMPERATURE COMPENSATION — TEMPERATURE COMPENSATION

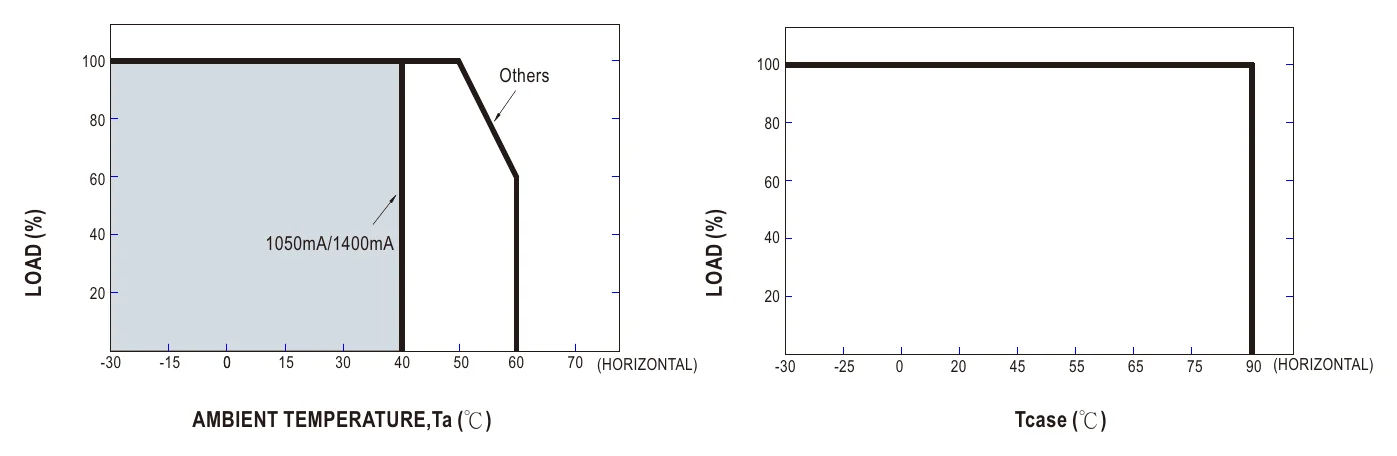

LCM-60DA OUTPUT LOAD vs TEMPERATURE — OUTPUT LOAD vs TEMPERATURE

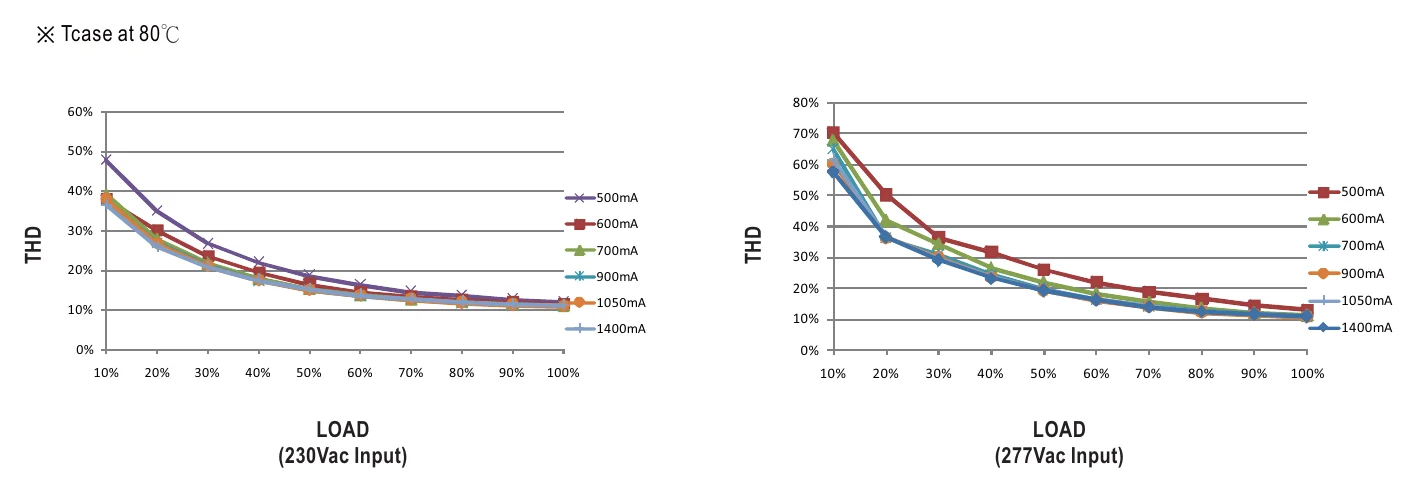

LCM-60DA TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

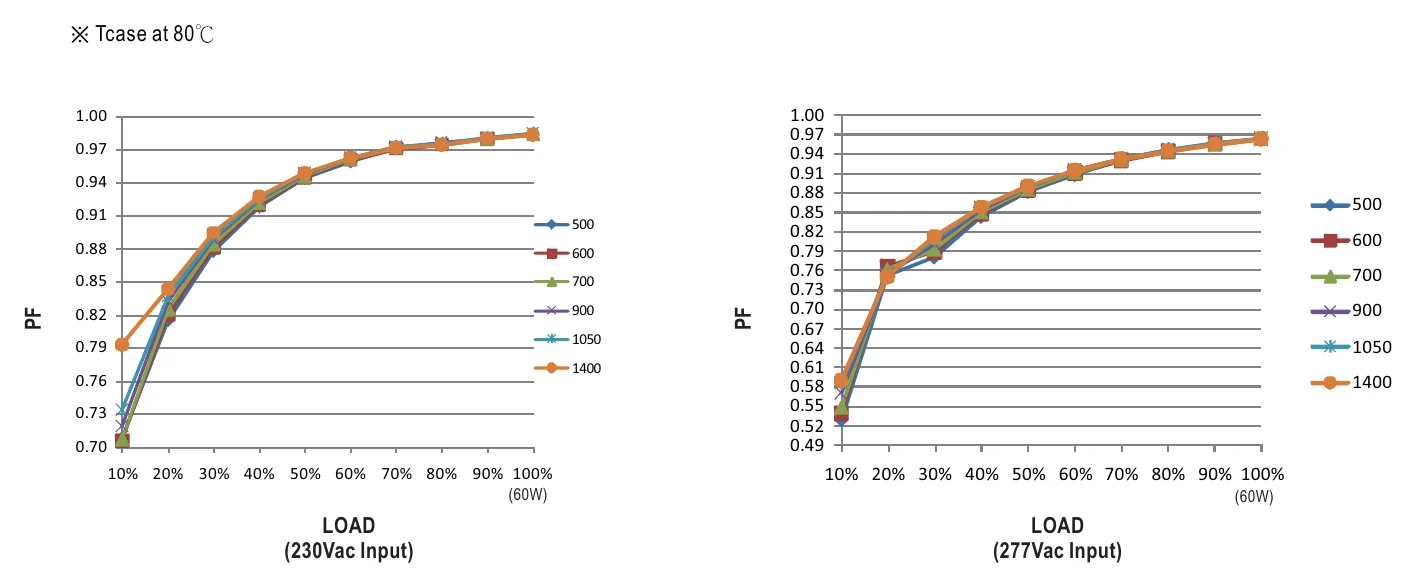

LCM-60DA POWER FACTOR (PF) CHARACTERISTIC — POWER FACTOR (PF) CHARACTERISTIC

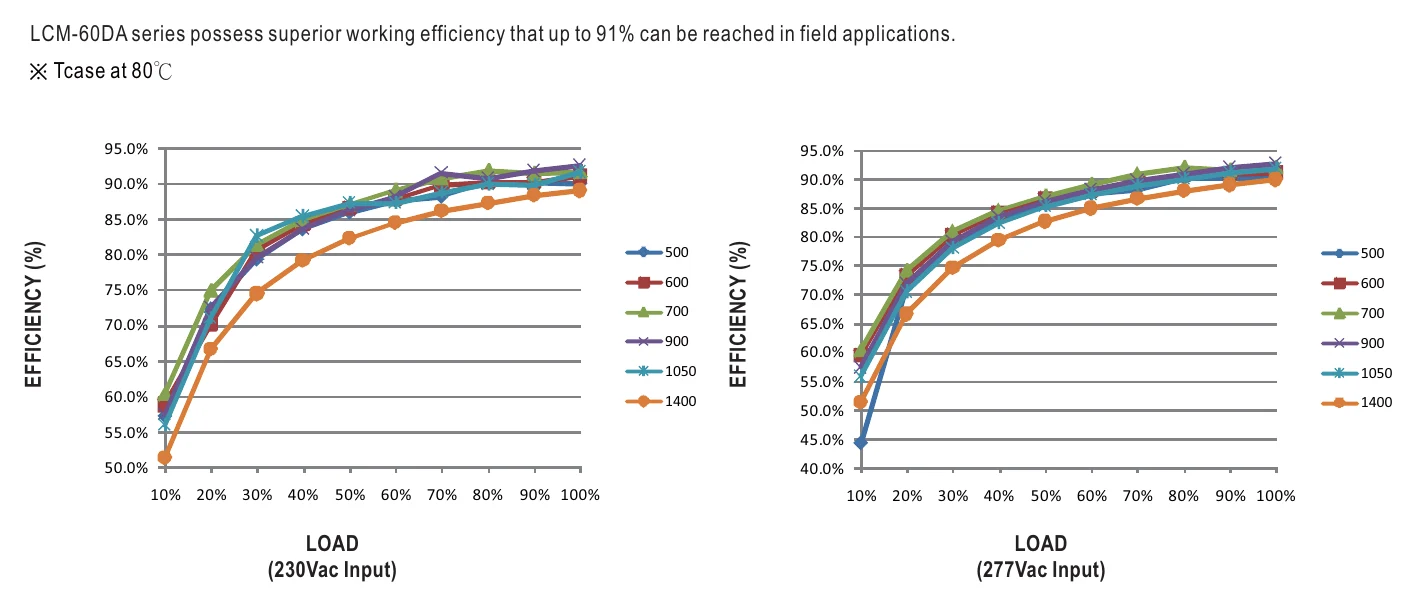

LCM-60DA EFFICIENCY vs LOAD — EFFICIENCY vs LOAD

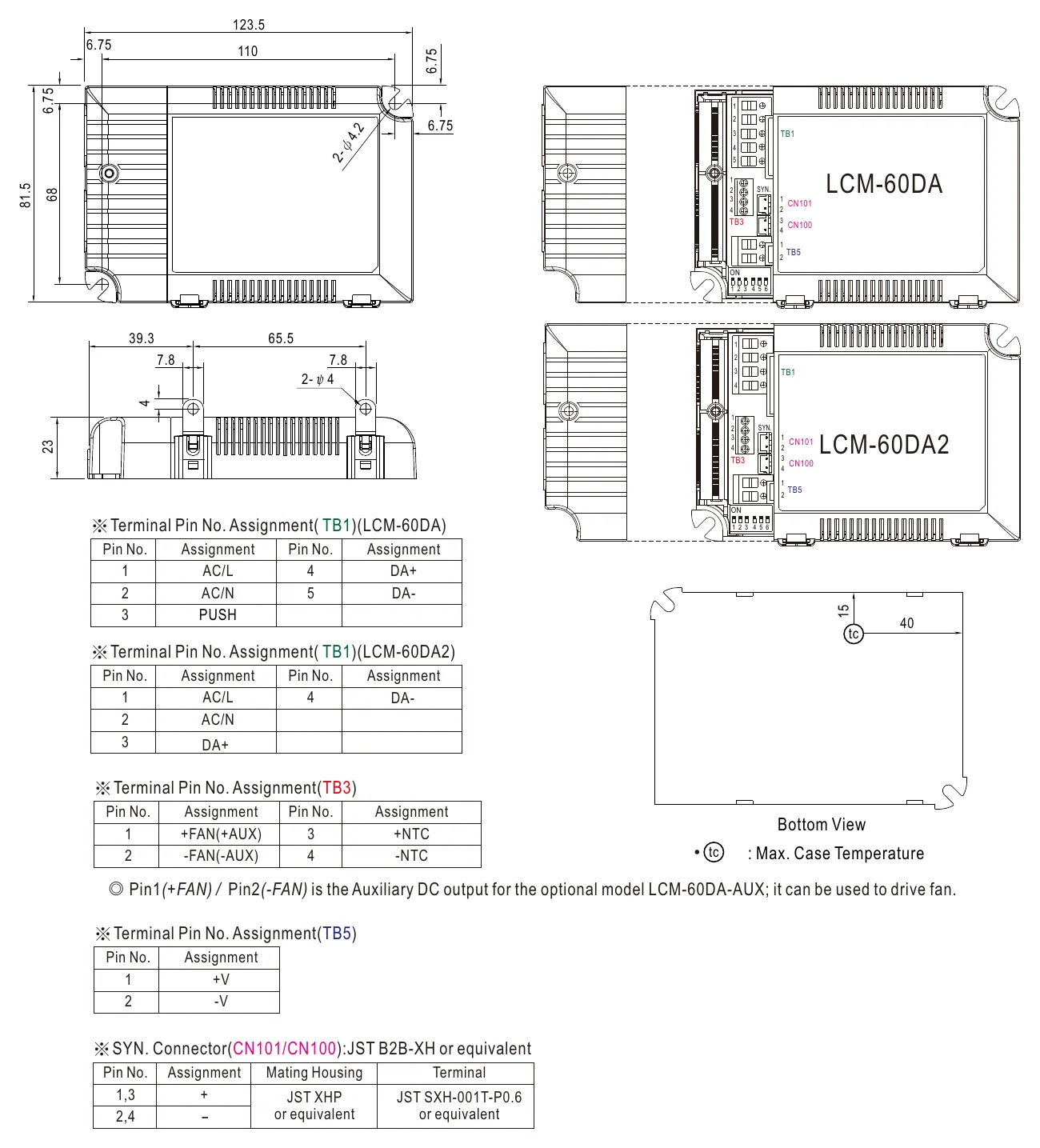

LCM-60DA MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

Typical applications

LED indoor lighting
LED office lighting
LED commercial lighting
LED panel lighting
Industrial lighting

Downloads

Certificates3

EMC Certificate(LCM-60DA)(EN) PDF Download

CB Certificate(LCM-60DA)(EN) PDF Download

ENEC Certificate(LCM-60DA)(EN) PDF Download

Test reports1

Test Report (LCM-60DA)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the LCM-60DA for DALI-controlled LED downlights?

Yes, this driver is designed for constant current LED loads and includes DALI support, which makes it suitable for downlight systems that need centralized dimming control. It is rated at 60.3W, and the LED load has to fit the voltage window of the DIP-selected current, e.g. 2-86V at the 700mA default or 2-42V at 1400mA.

Is the LCM-60DA a good match for constant current LED signage modules?

It can be, provided the signage module is a constant current load and stays within 60.3W and the voltage range of the selected current (2-90V at 500/600mA down to 2-42V at 1400mA). If the sign uses constant voltage modules, this is not the correct driver type even though it supports dimming.

Can this model run a dimmable small LED array with higher voltage demand?

Yes, it delivers up to 90V at the 500mA and 600mA settings and 2-86V at the 700mA default, which leaves room for higher-voltage constant current arrays. DALI support also makes it relevant where the LED array needs digital dimming control.

How should I size LEDs for the LCM-60DA?

Use it with constant current LEDs whose combined forward voltage falls within the range of the current set on the DIP switch: 2-90V at 500/600mA, 2-86V at 700mA, 2-67V at 900mA, 2-57V at 1050mA and 2-42V at 1400mA. The number of LEDs depends on each LED forward voltage, so compatibility should be checked by total forward voltage rather than by a fixed LED count.

Can the LCM-60DA operate in hot or cold conditions?

The specified working range is a case temperature (Tcase) of -30°C to +90°C, with load derating at higher temperatures per the output load vs temperature curve, so it suits a wide range of indoor operating conditions. These specs do not include an IP rating, so environmental sealing depends on the luminaire or enclosure used with it.
