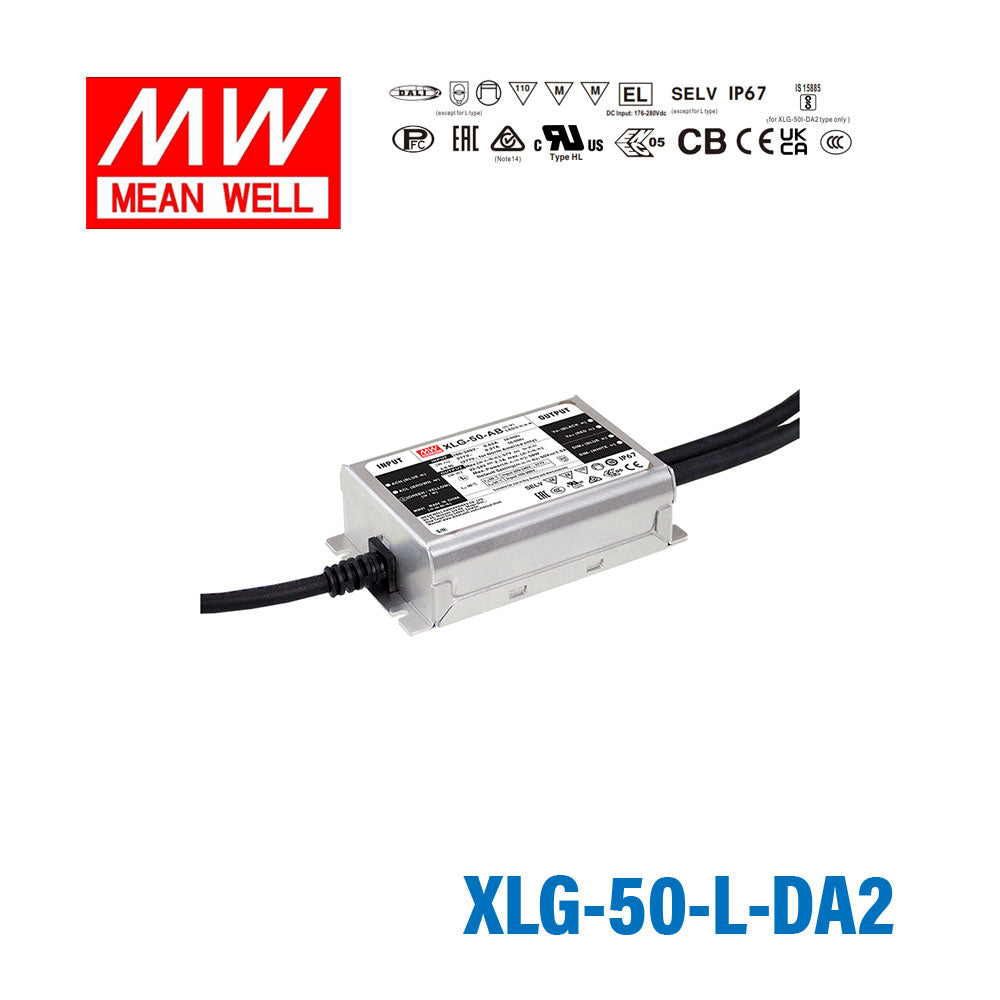

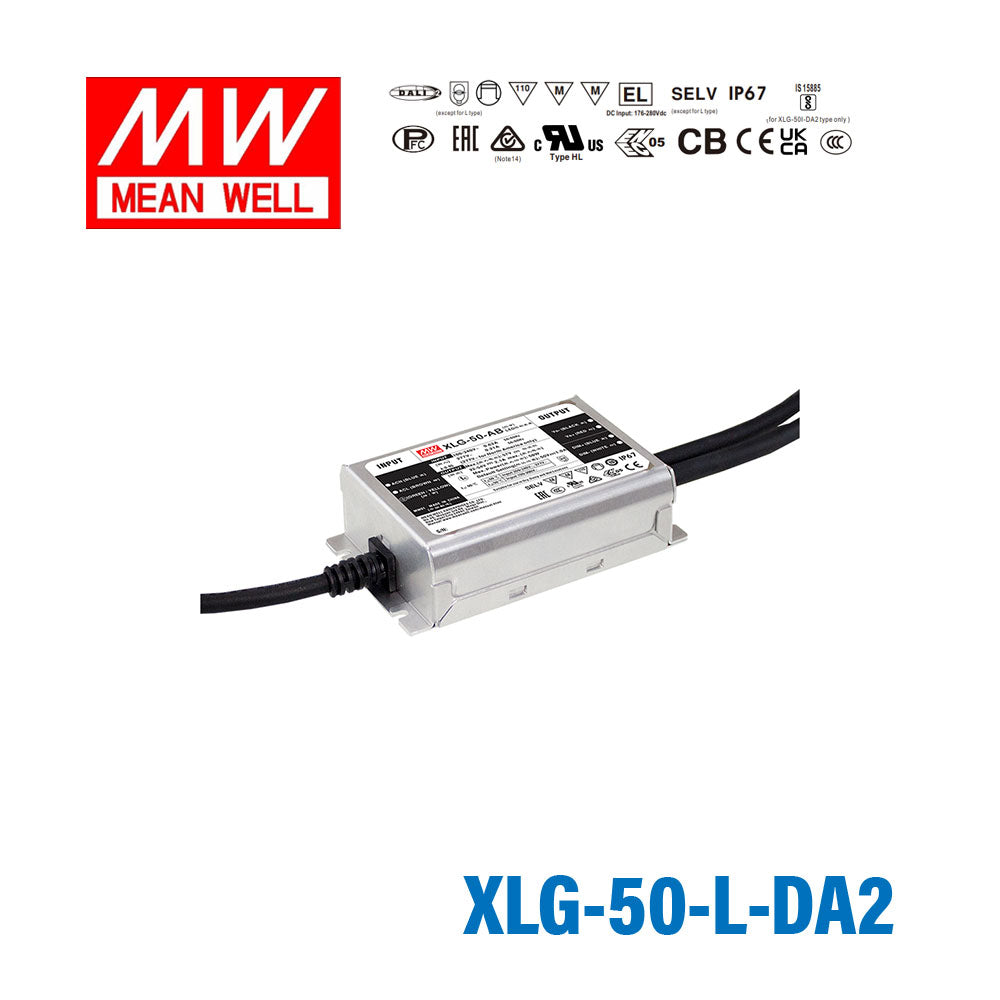

Mean Well XLG-50-L-DA2 Power Supply 50W 700mA - DALI2 Dimmable

Name: Mean Well XLG-50-L-DA2 Power Supply 50W 700mA - DALI2 Dimmable
Brand: Mean Well
SKU: XLG-50-L-DA2
Price: 51.32 USD
Availability: InStock

$51.32 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

The Mean Well XLG-50-L-DA2 is a 50W constant power LED driver delivering 700mA across a 60~142V constant current region. Housed in an IP67-rated case for damp and outdoor locations with built-in active PFC, it requires no earth connection and is flicker-free to the CE ErP directive.

Accepting 90~305VAC universal input, the XLG-50-L-DA2 operates at a case temperature of -40°C to 85°C and carries CB, CCC, CE, EAC, ENEC and SELV approvals. It supports DALI dimming. Protected against short circuit and over temperature, and backed by a 5-year warranty.

Key Features

✓Constant Power mode output
✓Metal housing design with functional Ground
✓Built-in active PFC function
✓Class 2 power unit(except for L type)
✓Standby power consumption <0.5W
✓IP67 rating for indoor or outdoor installations
✓Surge protection with 6KV/4KV
✓DALI-2 Dimming with a minimum level 8%
✓Lifetime >50,000 hrs
✓5 years warranty

Specifications

Brand

Mean Well
Series

XLG Series
Power Rating

50 Watt
Output Voltage

160 Volt
Rated Current

0.7 Ampere
Input Voltage

90V~305V
Standards Met

CB,CCC,CE,EAC,ENEC,SELV
Operation Mode

Constant Current
Operating Temperature

-40°C~85°C
Warranty

5 Year
Length

4.13 in
Width

2.48 in
Height

1.18 in
Weight

0.93 lb

File Downloads

::specification::
