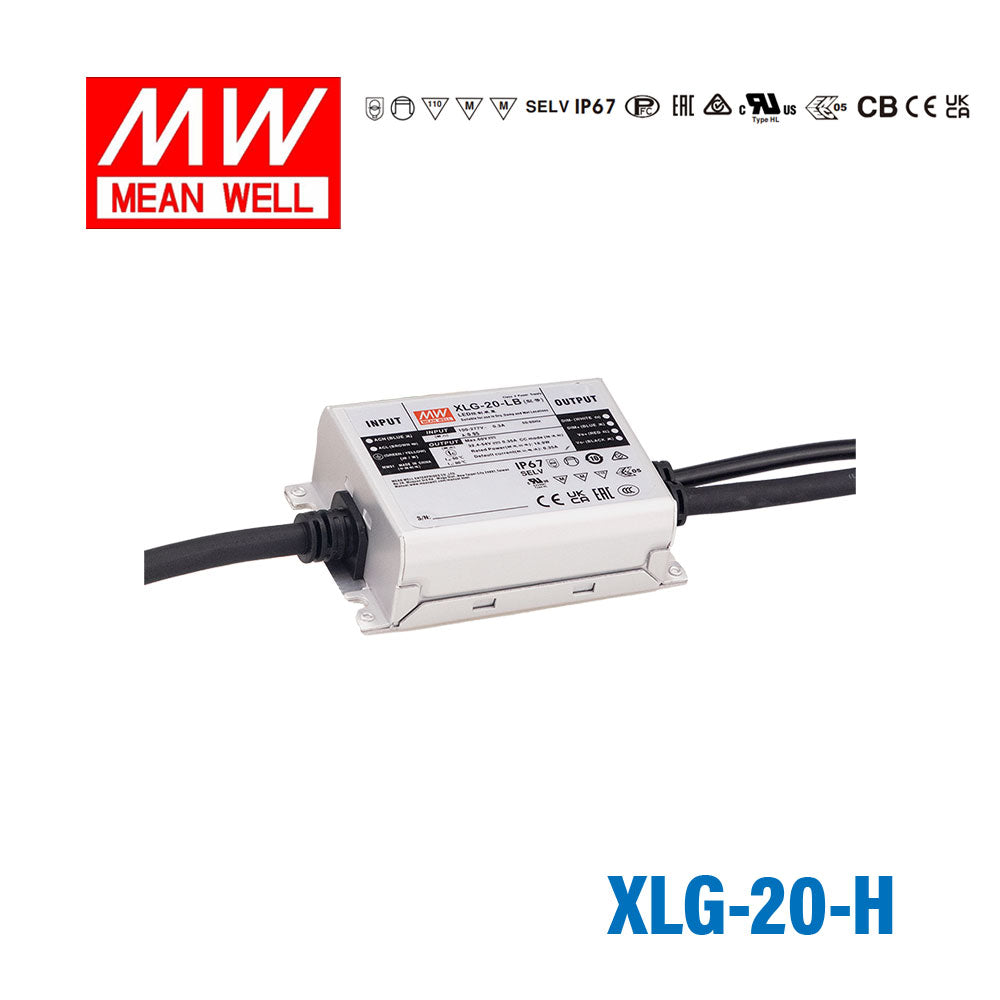

Mean Well XLG-20-H 21W 700mA 18-30V Constant Current LED Driver
$17.87 USD
Unit price /
Unavailable
Description
Description
Features
| Constant Current mode output(Class I) |
| Wide input range 100~305VAC |
| Built-in active PFC function |
| Class 2 power unit |
| No-load power consumption <0.5W |
| IP67 rating for indoor or outdoor installations |
| 3 in-1 dimming function (Isolation design) |
| Lifetime > 50,000 hrs |
| 5 years warranty |
General Specification
| AC input voltage range | 90~305VAC |
| AC inrush current | Cold start, 50A at 230VAC |
| Setup, rise, hold up time | 500ms, 100ms, 12ms |
| Withstand voltage | I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.5kVAC |
| Working temperature | -40~+80°C |
| Safety standards | BS EN/EN62384; UL8750 approved; EAC TP TC 004 |
| EMC standards | EN55015, EN61000-3-2 class C,EN61000-3-3, EN61000-4-2,3,4,5,6,8,11 |
| Dimension (LxWxH) | 95x63x30 |
| Packing | 24pcs / 8.67kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesXLG Series
-
Power Rating21 Watt
-
Output Voltage40 Volt
-
Rated Current0.7 Ampere
-
Input Voltage90V~305V
-
Standards MetCB,CCC,CE,EAC,ENEC,RCM,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~80°C
-
Warranty5 Year
-
Length3.74 in
-
Width2.48 in
-
Height1.18 in
-
Weight0.75 lb
