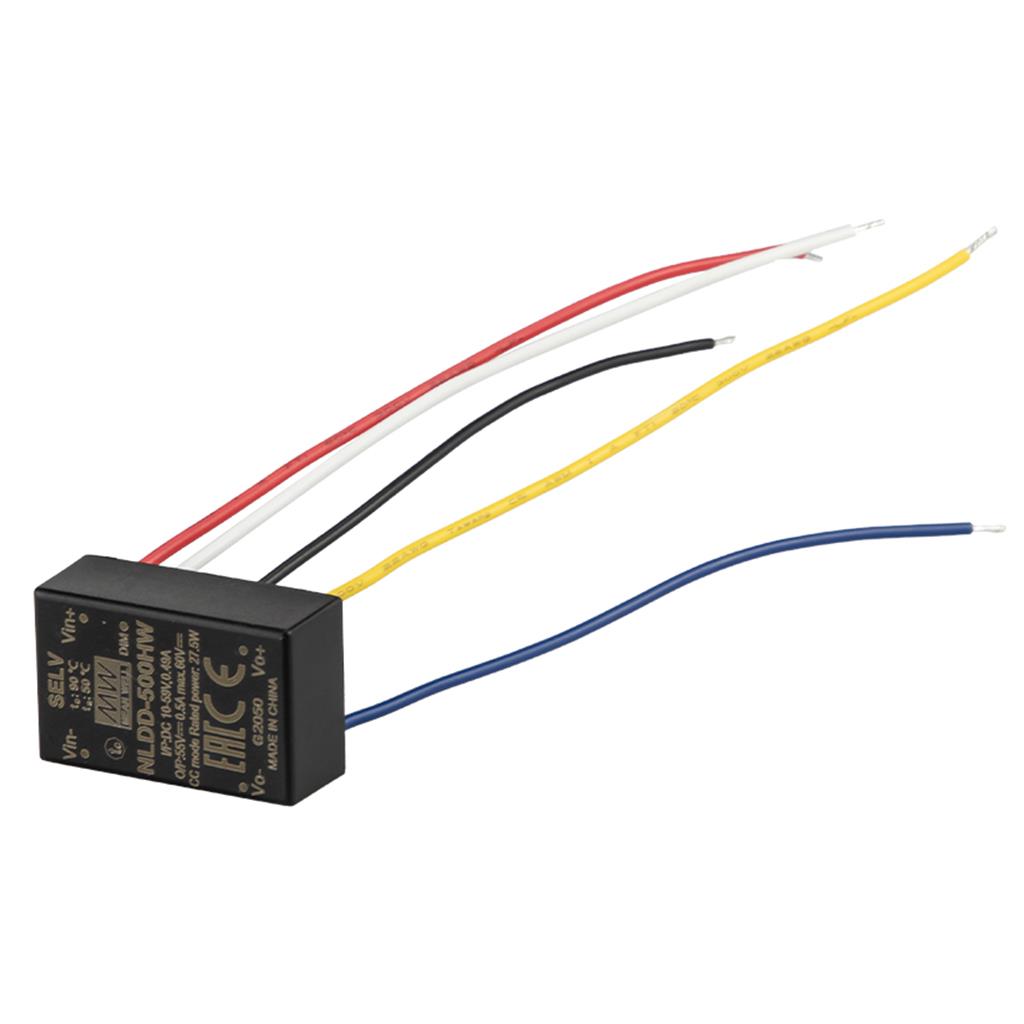

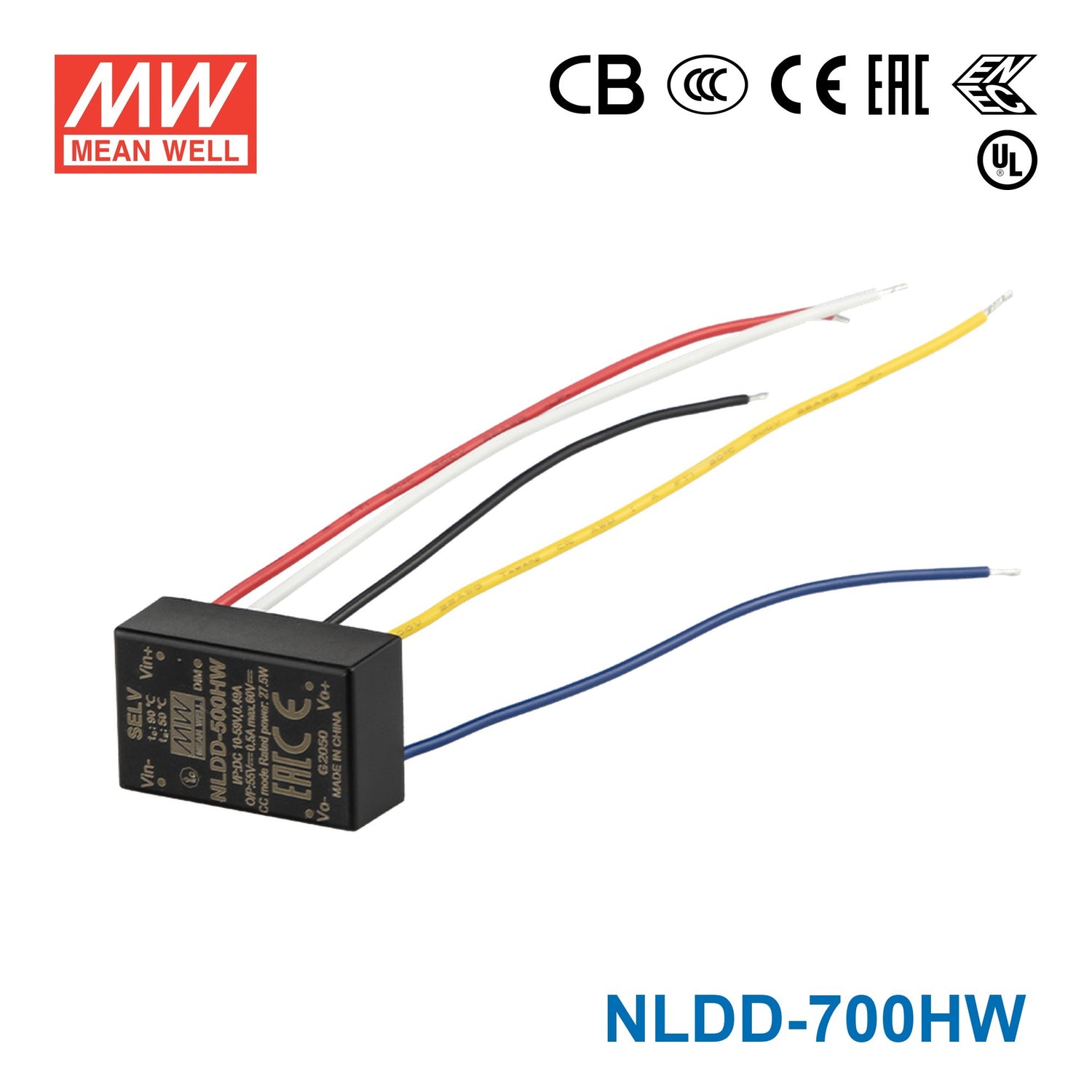

Mean Well NLDD-700HW DC/DC LED Driver CC 700mA - Step-down Wire Type

Name: Mean Well NLDD-700HW DC/DC LED Driver CC 700mA - Step-down Wire Type
Brand: Mean Well
SKU: NLDD-700HW
Price: 7.25 USD
Availability: InStock

constant currentstep downhigh efficiency up to 97%IP67wire style

SKU NLDD-700HW

$7.25 USD

Shipping calculated at checkout.

In stock

Overview

NLDD-700HW is the model of this series: typical efficiency 96% at full load and 36VDC/48VDC input.

NLDD-H series is a 60W DC/DC LED driver featuring constant current output. NLDD-H operates from 10~56VDC and offers models with different rated current ranging between 350mA and 1400mA. With the high efficiency up to 96%, The 94V-0 flame retardant plastic case the fully-potted silicone to enhance the heat dissipation allows this series to fit for classⅢ or DC bus lighting application.

Features

DC/DC step-down converter
Constant current output: 350mA to 1400mA
Wide input voltage: 10 ~ 56VDC(59VDC Max.)
Wide output LED forward voltage: 6 ~ 52VDC
High efficiency up to 96%
Comply with BS EN/EN61347 and BS EN/EN55015 regulation
For class Ⅲ application(SELV)
Built-in PWM and remote ON/OFF control
Protections: Short circuit / Over temperature
Cooling by free air convection
Fully encapsulated and compact site
Suitable for driving illumination LED
3 years warranty

Specifications

NLDD-700HWSpecifications from the official datasheet (2024-10-16 edition)

OUTPUT

CURRENT RANGE: 700mA
VOLTAGE RANGE^Note.4: 6 ~ 52VDC
CURRENT ACCURACY (Typ.): ±5% at 48VDC input
RIPPLE & NOISE(max.)^Note.2: 200mVp-p
SWITCHING FREQENCY: 200KHz

INPUT

VOLTAGE RANGE: 10 ~ 56VDC (59VDC Max.)
EFFICIENCY (max.): 96% at full load and 36VDC/48VDC input
DC CURRENT Full load^Note.3: 700mA
DC CURRENT No load: 5mA

PWM DIMMING & ON/OFF CONTROL

REMOTE ON/OFF: Leave open if not use Power ON with dimming: DIM ~ -Vin >2.5 ~ 5VDC or open circuit Power OFF : DIM ~ -Vin < 0.8VDC or short
PWM FREQUENCY: 100 ~ 1KHz
QUIESCENT INPUT CURRENT IN SHUTDOWN MODE(max.): 2mA at PWM dimming OFF at 48VDC input

PROTECTION

SHORT CIRCUIT: Regulated at rated current Protection type: Can be continued, recovers automatically after fault condition is removed
OVER TEMPERATURE: Tj 165℃ typically(IC1) detect on main control IC Protection type : Shut down, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.: -40 ~ + 50℃(Refer to derating curve)
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03% / ℃
VIBRATION: 10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes
OPERATING CASE TEMP. (max.): 90℃
SOLDERING TEMPERATURE: Wave soldering: 265℃,5s (max.); Manual soldering: 390℃,3s (max.)

EMC

SAFETY STANDARDS: LVD BS EN/EN61347-1, BS EN/EN61347-2-13;IEC61347 and EAC TP TC 004 approved
EMC EMISSION: Compliance to BS EN/EN55015, BS EN/EN61547
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,6,8, light industry level, EAC TP TC 020

OTHERS

MTBF: 29984.3K hrs min. Telcordia SR-332 (Bellcore) 2881.6Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 32.1*20.5*12.5mm or 1.26"*0.8"*0.49" inch (L*W*H)
WEIGHT: NLDD-H:15.6g ; NLDD-HW:18g (Please refer to Page 6 for packing)
POTTING MATERIAL: Expoxy(UL94-V0)

Test conditions and notes7

1.All parameters are specified at normal input(48VDC), rated load, 25℃ 70% RH ambient.
2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μf capacitor.
3.Test condition: 48VDC input.
4.Output voltage will always step down by 4 volts from input DC voltage.
5.The output of NLDD-H should not be connected to the input of the same unit or output from other sources.
6.The power supply is regarded as a part of the components in the system, and the final EMI test needs to be tested with the final device. If an additional EMI filter circuit is required to meet the electromagnetic compatibility requirements, please refer to the EMC test report for details. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
7.Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com

Technical drawings

NLDD-700HW Mechanical Specification — Mechanical Specification

NLDD-700HW Derating Curve — Derating Curve

NLDD-700HW PWM Dimming Control — PWM Dimming Control

NLDD-700HW Efficiency VS Output Voltage — Efficiency VS Output Voltage

Typical applications

DC battery source lighting
Portable lighting
Commercial lighting
DC 48V Track lighting
DC 24V landscape lighting

Downloads

Certificates3

Mean Well NLDD-H-EMC Certificate PDF Download

Mean Well NLDD-CE-dec Certificate PDF Download

Mean Well NLDD-UK-dec Certificate PDF Download

Test reports1

Mean Well NLDD-700H Test Report PDF Download

FAQ

Can I use the Mean Well NLDD-700HW for LED downlights?

Yes, this model can fit LED downlights that require a constant current driver at 700mA. It is a step-down LED driver with a constant current voltage range of 6 ~ 52VDC, so the downlight load needs to fall within that range. Its fully potted epoxy construction helps where extra environmental protection is needed.

Is the NLDD-700HW suitable for LED signage modules?

It can be suitable for LED signage modules if the modules are designed for constant current operation at 700mA rather than constant voltage. The supported constant current voltage range is 6 ~ 52VDC, and total load must stay within the 60W rating. Its fully potted epoxy construction also makes it a better fit for harsher conditions than non-sealed drivers.

Can this driver run a small LED array?

Yes, it is intended for constant current LED loads such as small LED arrays when the array requires 700mA constant current. The load voltage must stay within the 6 ~ 52VDC constant current range, and the total power must remain within 60W. It is not the right choice for LED products that expect constant voltage input.

Can I use the NLDD-700HW in outdoor or dusty environments?

This model is fully potted in epoxy (UL94-V0), which makes it appropriate for environments where moisture and dust resistance matter. Its operating temperature range is -40°C to +50°C, so the surrounding conditions need to stay within that window. Environmental suitability still depends on the rest of the system meeting the same conditions.

How do I know if my LEDs are compatible with the NLDD-700HW?

Your LEDs need to be designed for constant current operation at 700mA, not constant voltage operation. The driver supports a constant current output voltage range of 6 ~ 52VDC, and the number of LEDs depends on the forward voltage of each LED. The total load also needs to stay within the 60W rating.

What is the difference between the NLDD-700HW and other NLDD-H series models?

The main difference is output current. In the same series, the NLDD-350H and NLDD-350HW are 350mA with a 6 ~ 52VDC constant current range and 60W, the NLDD-500H and NLDD-500HW are 500mA with a 6 ~ 52VDC range and 60W, the NLDD-700H is 700mA with a 6 ~ 52VDC range and 60W, the NLDD-1050H and NLDD-1050HW are 1050mA with a 6 ~ 52VDC range and 60W, and the NLDD-1200H, NLDD-1200HW, NLDD-1400H, and NLDD-1400HW are 1200mA or 1400mA with a 6 ~ 46VDC range and 60W.
