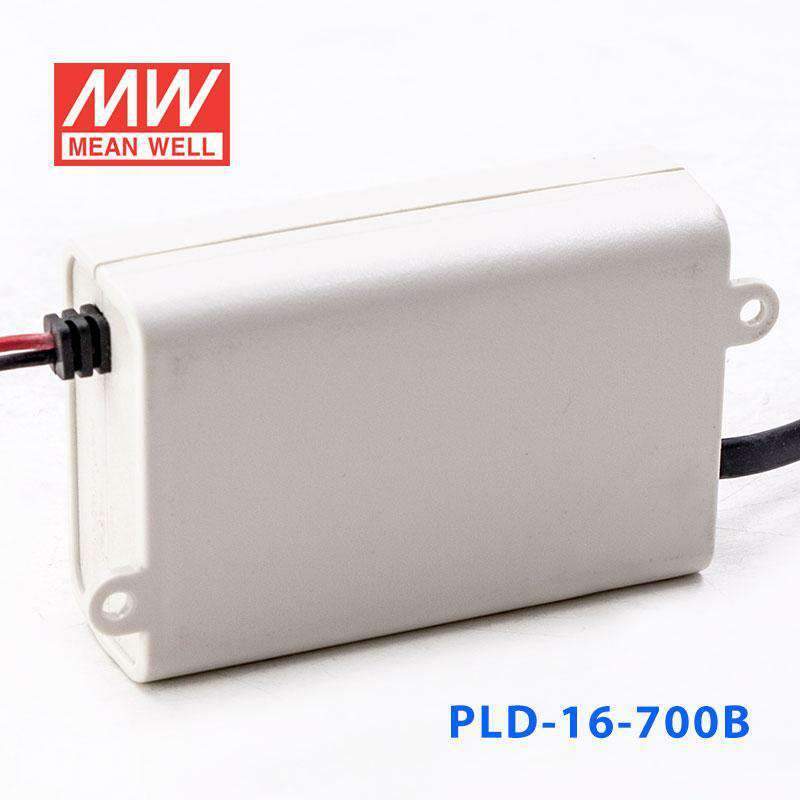

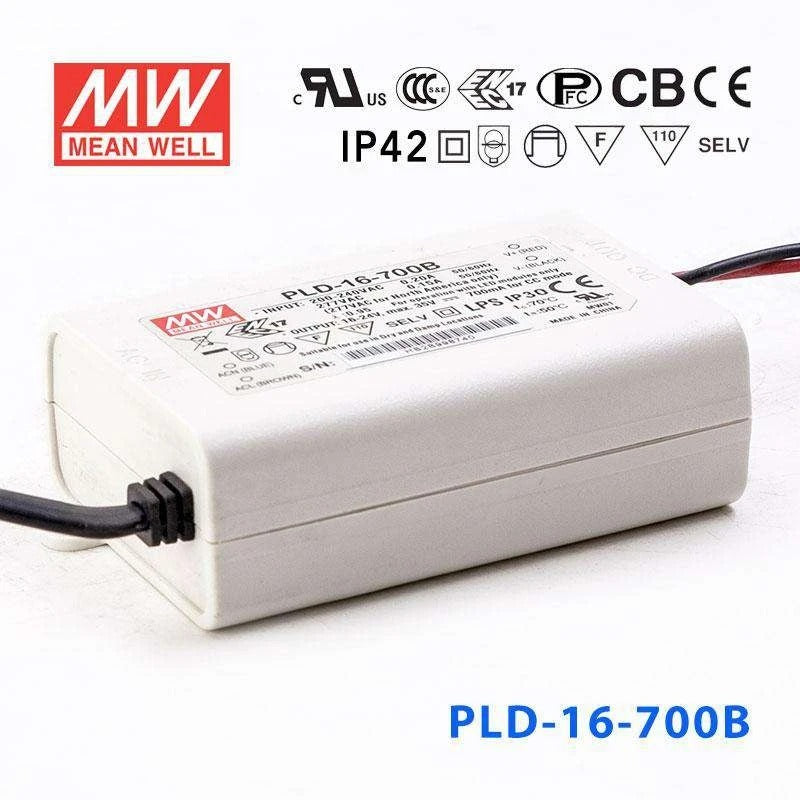

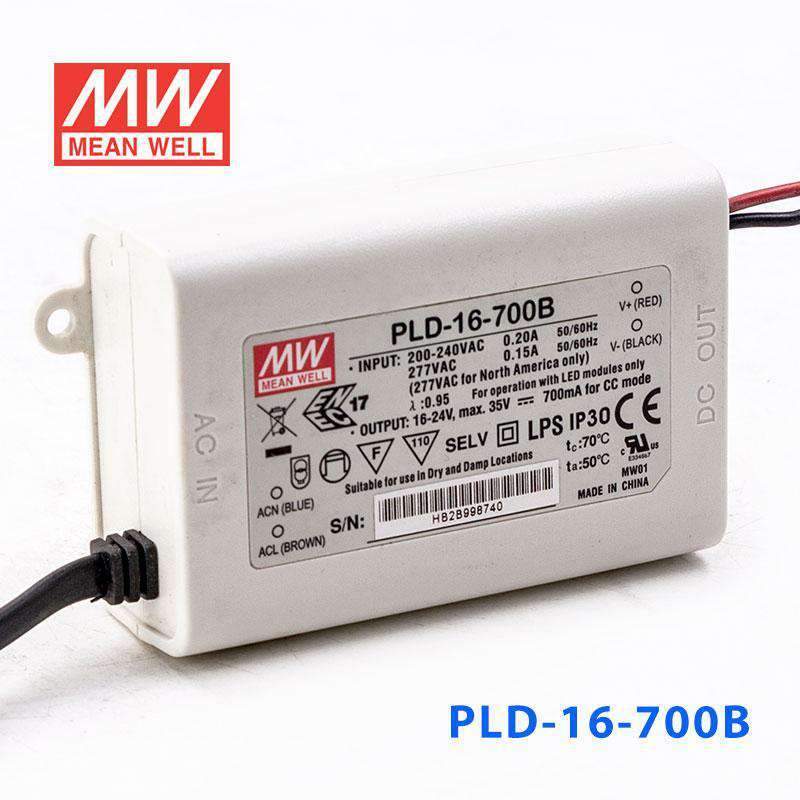

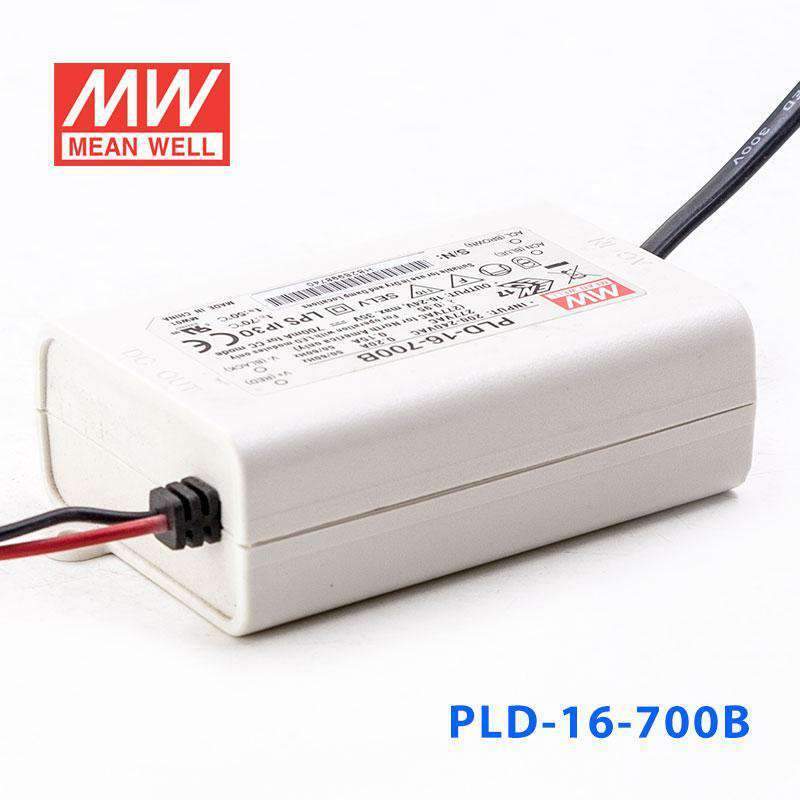

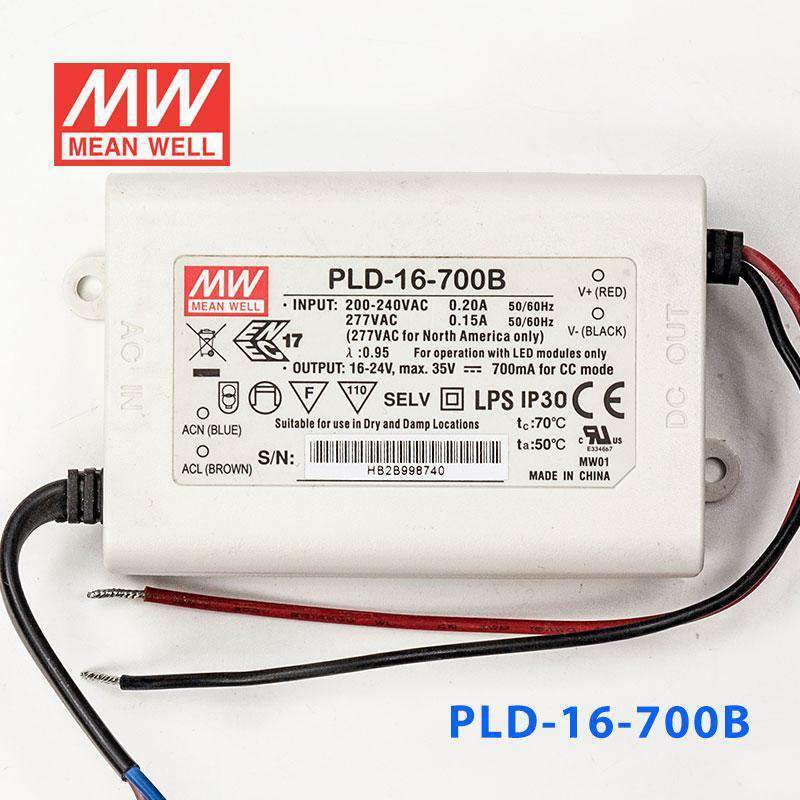

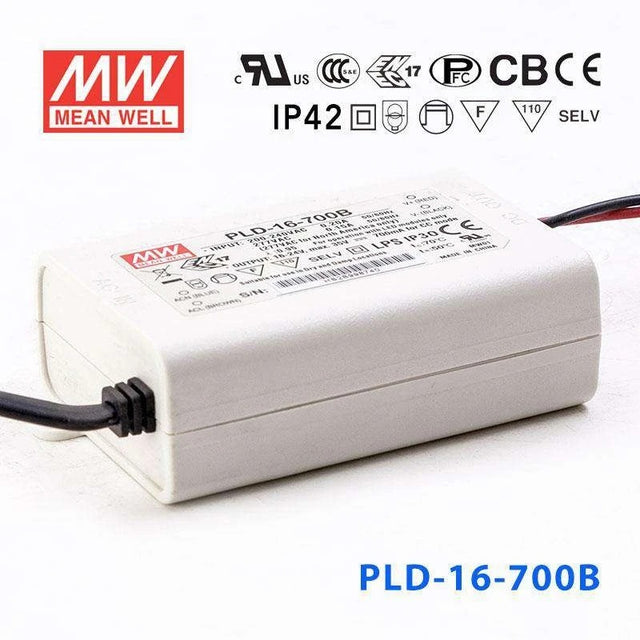

Mean Well PLD-16-700B Power Supply 16W 700mA

Name: Mean Well PLD-16-700B Power Supply 16W 700mA
Brand: Mean Well
SKU: PLD-16-700B
Price: 19.09 USD
Availability: InStock

plastic caseIP42Class II design without FG

SKU PLD-16-700B

$19.09 USD

Shipping calculated at checkout.

In stock

Overview

PLD-16-700B is the model of this series: rated current 700mA, rated power 16.8W, typical efficiency 84.5%.

Features

115VAC or 230VAC models available
Built-in active PFC function
Constant current design
Protections: Short circuit / Over temperature
Cooling by free air convection
Fully isolated plastic case
Class 2 Power Unit
Class Ⅱ power unit, no FG
IP42 design
Suitable for LED related fixture or appliance (such as LED Decoration or Advertisement devices)
100% full load burn-in test
Low cost
High reliability
3 years warranty

Specifications

PLD-16-700BSpecifications from the official datasheet (2024-09-25 edition)

OUTPUT

RATED CURRENT: 700mA
OPERATING VOLTAGE RANGE: 16 ~ 24V
CURRENT ACCURACY: ±5.0%
RATED POWER: 16.8W
RIPPLE & NOISE (max.)^Note.1: 2.7Vp-p
NO LOAD OUTPUT VOLTAGE (max.): 35V
SETUP TIME: 500ms / 230VAC 2000ms / 115VAC at full load

INPUT

FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.9/115VAC, PF>0.9/230VAC, PF>0.9/277VAC at full load (Please refer to "Power Factor Characteristic" curve)
TOTAL HARMONIC DISTORTION A series: THD< 20% when output loading≧70% at 115VAC
TOTAL HARMONIC DISTORTION B series: THD< 20% when output loading≧70% at 230VAC input and output loading≧80% at 277VAC input
EFFICIENCY (Typ.) A series: 84.5%
EFFICIENCY (Typ.) B series: 86%
AC CURRENT (Typ.): 0.4A/115VAC 0.2A/230VAC 0.15A/277VAC
INRUSH CURRENT(Typ.): COLD START 20A(twidth=25μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER A series: 58 units (circuit breaker of type B) / 58 units (circuit breaker of type C) at 115VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER B series: 128 units (circuit breaker of type B) / 128 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.5mA / 240VAC

PROTECTION

SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed.
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: -30 ~ +50℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750,CSA C22.2 No.250.0-08;ENEC BS EN/EN 613471-1,BS EN/EN 61347-2-13 independent, BS EN/EN62384(for B type only), EAC TP TC 004, IP42 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015 (B type only), BS EN/EN61000-3-2 Class C ; BS EN/EN61000-3-3, FCC part 18 non-consumer equipment(A type only), EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level, EAC TP TC 020

OTHERS

MTBF: 6807.7K hrs min. Telcordia SR-332 (Bellcore) ; 872.4Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 84*57*29.5mm (L*W*H)
PACKING: 0.19Kg; 72pcs/14.7Kg/0.92CUFT

Test conditions and notes5

1. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
2. Direct connecting to LEDs is suggested, but is not suitable for using additional drivers.
3. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
4. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
5. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

PLD-16-700B Mechanical Specification — Mechanical Specification

PLD-16-700B Block Diagram — Block Diagram

PLD-16-700B Power Factor Characteristic — Power Factor Characteristic

PLD-16-700B EFFICIENCY vs LOAD (PLD-16-350) — EFFICIENCY vs LOAD (PLD-16-350)

Downloads

Certificates5

ENEC Certificate (PLD-16)(EN) PDF Download

CB Certificate (PLD-16)(EN) PDF Download

EMC Certificate (PLD-16)(EN) PDF Download

UL Certificate (PLD-16)(EN) PDF Download

FCC Certificate(PLD-16)(EN) PDF Download

Test reports1

Test Report(PLD-16-700B)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can the PLD-16-700B run a 700mA LED downlight?

Yes, if the downlight is specified for 700mA constant current and its LED string operates within the 16-24V constant current range. With a 16.8W rating, it is aimed at smaller downlight loads in that range. It is a constant current model, so it should not be substituted for a constant voltage supply.

Is the PLD-16-700B appropriate for LED display or accent arrays?

Yes, for small LED arrays that require 700mA constant current and have a total forward voltage between 16V and 24V. The actual number of LEDs depends on the forward voltage of each LED. The output power limit is 16.8W.

Can I use this driver for constant current signage lighting?

Yes, if the signage lighting is built around a 700mA constant current load within the 16-24V CC range. It is not suitable for standard constant voltage signage modules that expect a fixed DC voltage. The distinction between constant current and constant voltage matters here.

What kind of LED load matches the PLD-16-700B?

A compatible load requires 700mA constant current and must operate within the driver's 16-24V constant current range. The number of LEDs is determined by the forward voltage of each LED rather than a single stated count. Total load power should remain within 16.8W.

Is the PLD-16-700B suitable for exposed outdoor conditions?

No, the IP42 rating points to use in protected areas instead of exposed outdoor environments. The driver is rated for operation from -30°C to +50°C, which covers a broad temperature range, but ingress protection is still limited to IP42. It is better suited to enclosed or sheltered installations.
