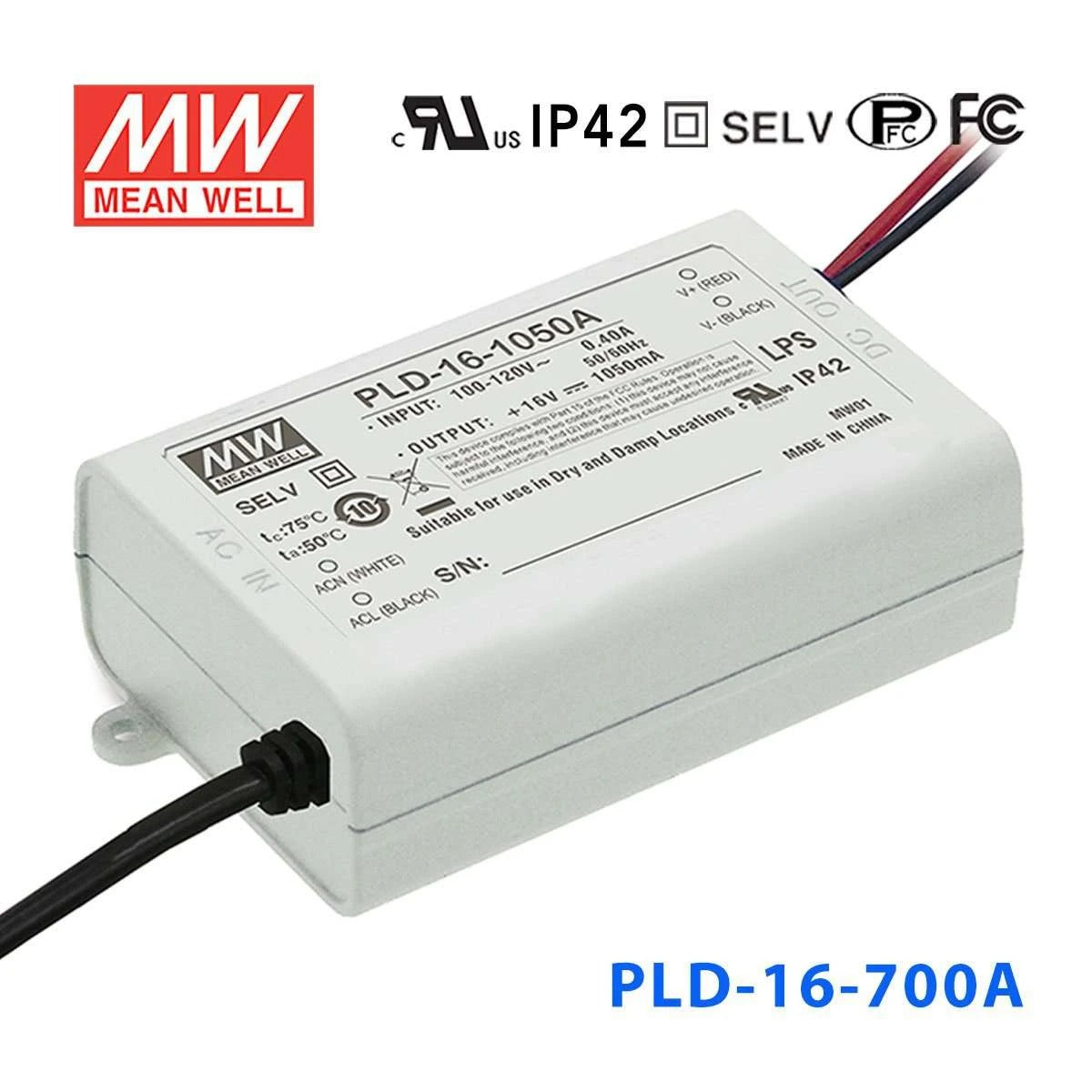

Mean Well PLD-16-700A Power Supply 16W 700mA

Name: Mean Well PLD-16-700A Power Supply 16W 700mA
Brand: Mean Well
SKU: PLD-16-700A
Price: 19.09 USD
Availability: InStock

plastic caseIP42Class II design without FG

SKU PLD-16-700A

$19.09 USD

Shipping calculated at checkout.

Available to order

Overview

PLD-16-700A is the model of this series: rated current 700mA, rated power 16.8W, typical efficiency 84.5%.

Features

115VAC or 230VAC models available
Built-in active PFC function
Constant current design
Protections: Short circuit / Over temperature
Cooling by free air convection
Fully isolated plastic case
Class 2 Power Unit
Class Ⅱ power unit, no FG
IP42 design
Suitable for LED related fixture or appliance (such as LED Decoration or Advertisement devices)
100% full load burn-in test
Low cost
High reliability
3 years warranty

Specifications

PLD-16-700ASpecifications from the official datasheet (2024-09-25 edition)

OUTPUT

RATED CURRENT: 700mA
OPERATING VOLTAGE RANGE: 16 ~ 24V
CURRENT ACCURACY: ±5.0%
RATED POWER: 16.8W
RIPPLE & NOISE (max.)^Note.1: 2.7Vp-p
NO LOAD OUTPUT VOLTAGE (max.): 35V
SETUP TIME: 500ms / 230VAC 2000ms / 115VAC at full load

INPUT

FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.9/115VAC, PF>0.9/230VAC, PF>0.9/277VAC at full load (Please refer to "Power Factor Characteristic" curve)
TOTAL HARMONIC DISTORTION A series: THD< 20% when output loading≧70% at 115VAC
TOTAL HARMONIC DISTORTION B series: THD< 20% when output loading≧70% at 230VAC input and output loading≧80% at 277VAC input
EFFICIENCY (Typ.) A series: 84.5%
EFFICIENCY (Typ.) B series: 86%
AC CURRENT (Typ.): 0.4A/115VAC 0.2A/230VAC 0.15A/277VAC
INRUSH CURRENT(Typ.): COLD START 20A(twidth=25μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER A series: 58 units (circuit breaker of type B) / 58 units (circuit breaker of type C) at 115VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER B series: 128 units (circuit breaker of type B) / 128 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.5mA / 240VAC

PROTECTION

SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed.
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: -30 ~ +50℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750,CSA C22.2 No.250.0-08;ENEC BS EN/EN 613471-1,BS EN/EN 61347-2-13 independent, BS EN/EN62384(for B type only), EAC TP TC 004, IP42 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015 (B type only), BS EN/EN61000-3-2 Class C ; BS EN/EN61000-3-3, FCC part 18 non-consumer equipment(A type only), EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level, EAC TP TC 020

OTHERS

MTBF: 6807.7K hrs min. Telcordia SR-332 (Bellcore) ; 872.4Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 84*57*29.5mm (L*W*H)
PACKING: 0.19Kg; 72pcs/14.7Kg/0.92CUFT

Test conditions and notes5

1. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
2. Direct connecting to LEDs is suggested, but is not suitable for using additional drivers.
3. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
4. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
5. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

PLD-16-700A Mechanical Specification — Mechanical Specification

PLD-16-700A Block Diagram — Block Diagram

PLD-16-700A Power Factor Characteristic — Power Factor Characteristic

PLD-16-700A EFFICIENCY vs LOAD (PLD-16-350) — EFFICIENCY vs LOAD (PLD-16-350)

Downloads

Certificates5

ENEC Certificate (PLD-16)(EN) PDF Download

CB Certificate (PLD-16)(EN) PDF Download

EMC Certificate (PLD-16)(EN) PDF Download

UL Certificate (PLD-16)(EN) PDF Download

FCC Certificate(PLD-16)(EN) PDF Download

Test reports1

Test Report(PLD-16-700A)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the PLD-16-700A with a 700mA LED downlight?

Yes, if the downlight is designed for constant current operation at 700mA and its LED load falls within the 16-24V constant current range. This driver is rated for 16.8W, which fits compact downlight assemblies in that electrical window. It is not intended for downlights that expect a constant voltage input.

Will the PLD-16-700A work for small LED arrays?

It will work for small LED arrays that require 700mA constant current and have a combined forward voltage between 16V and 24V. The exact number of LEDs depends on the forward voltage of each LED in the array. The driver's maximum output power is 16.8W.

Is this a good choice for compact LED signage modules?

It can be, but only for signage modules engineered for 700mA constant current input within the 16-24V CC range. Many signage products use constant voltage systems, and those are not compatible with this driver. This model is for constant current loads only.

How should I size the PLD-16-700A for my LEDs?

Match it to LED loads that need 700mA constant current and operate across 16-24V on the output side. The number of LEDs depends on the forward voltage of each LED, so the correct load is determined by total forward voltage rather than a fixed LED quantity. The load also needs to stay within the 16.8W rating.

Where can the PLD-16-700A be used from an environmental standpoint?

The PLD-16-700A is IP42 rated, so it is intended for protected environments rather than direct outdoor exposure. Its operating temperature range is -30°C to +50°C (see the derating curve). Humidity should stay within 20-95% RH non-condensing.
